John Deere

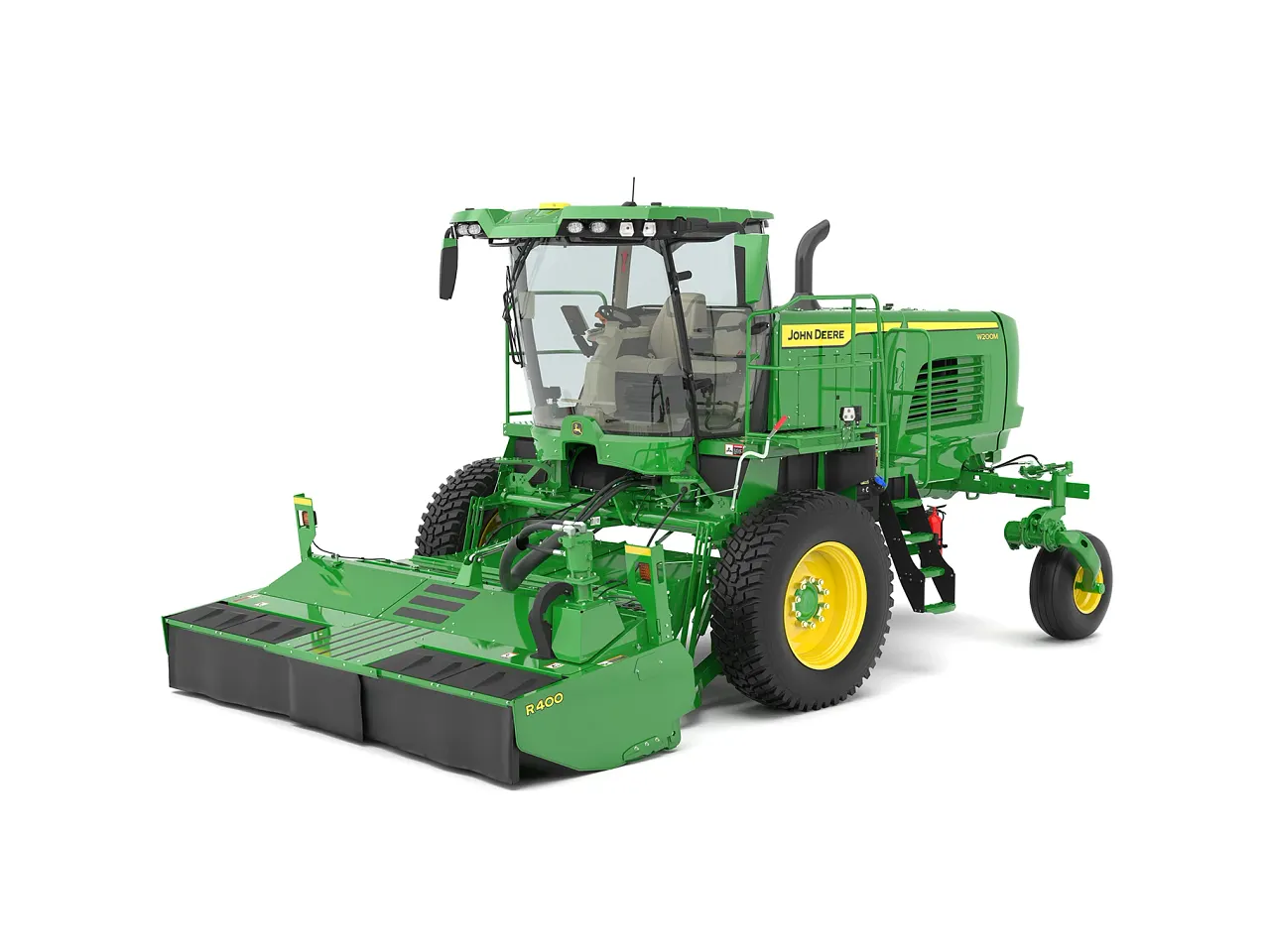

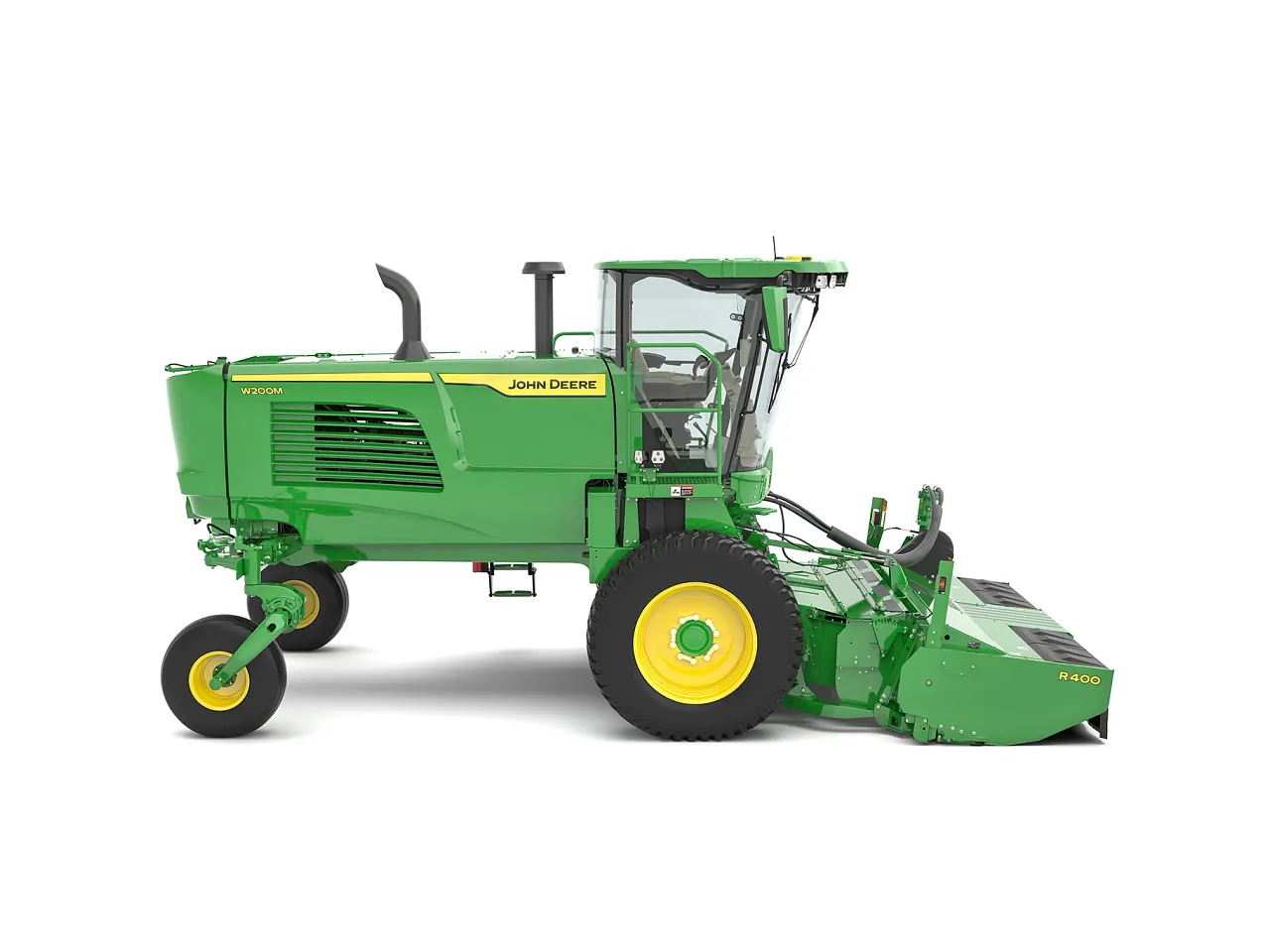

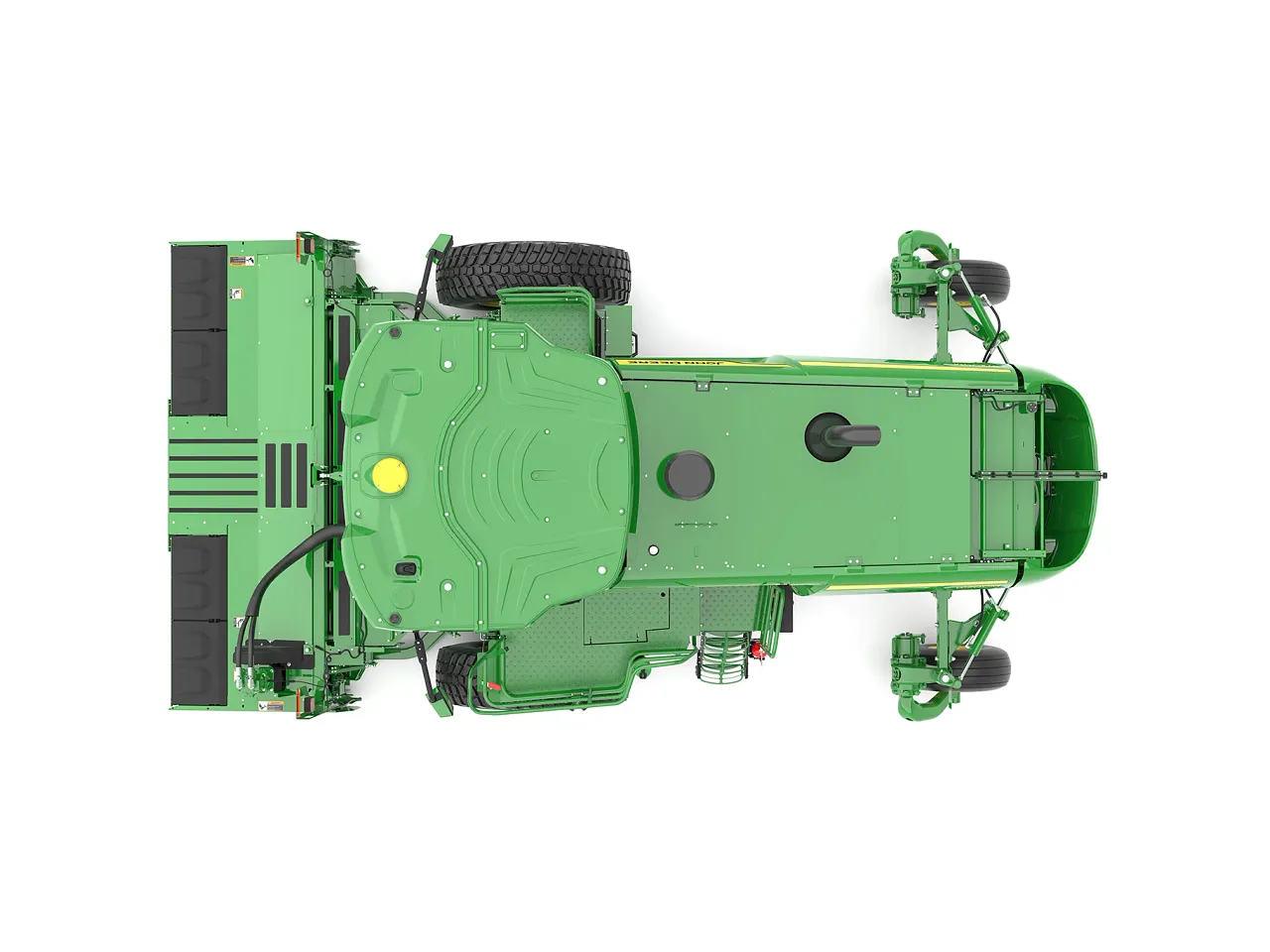

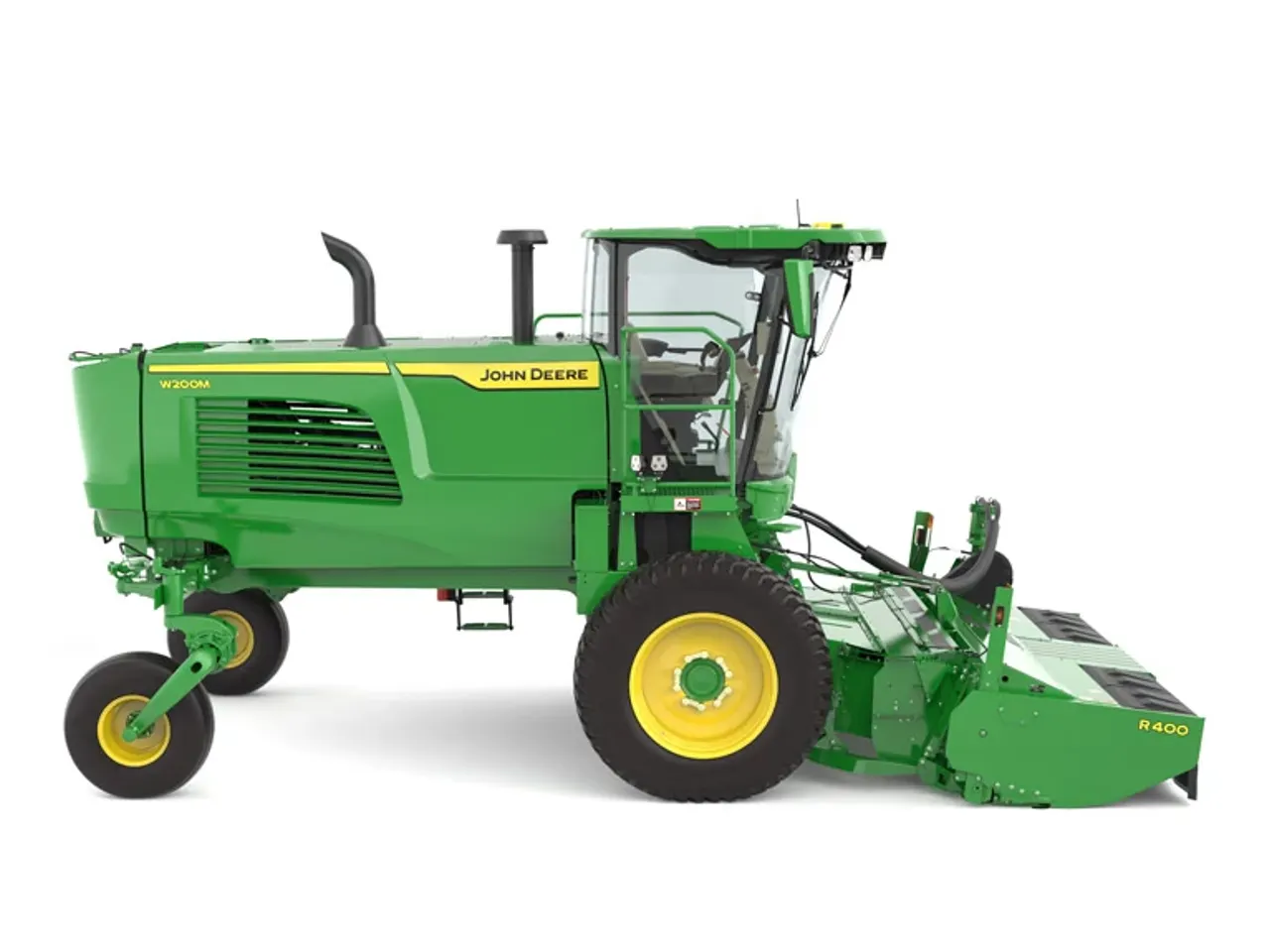

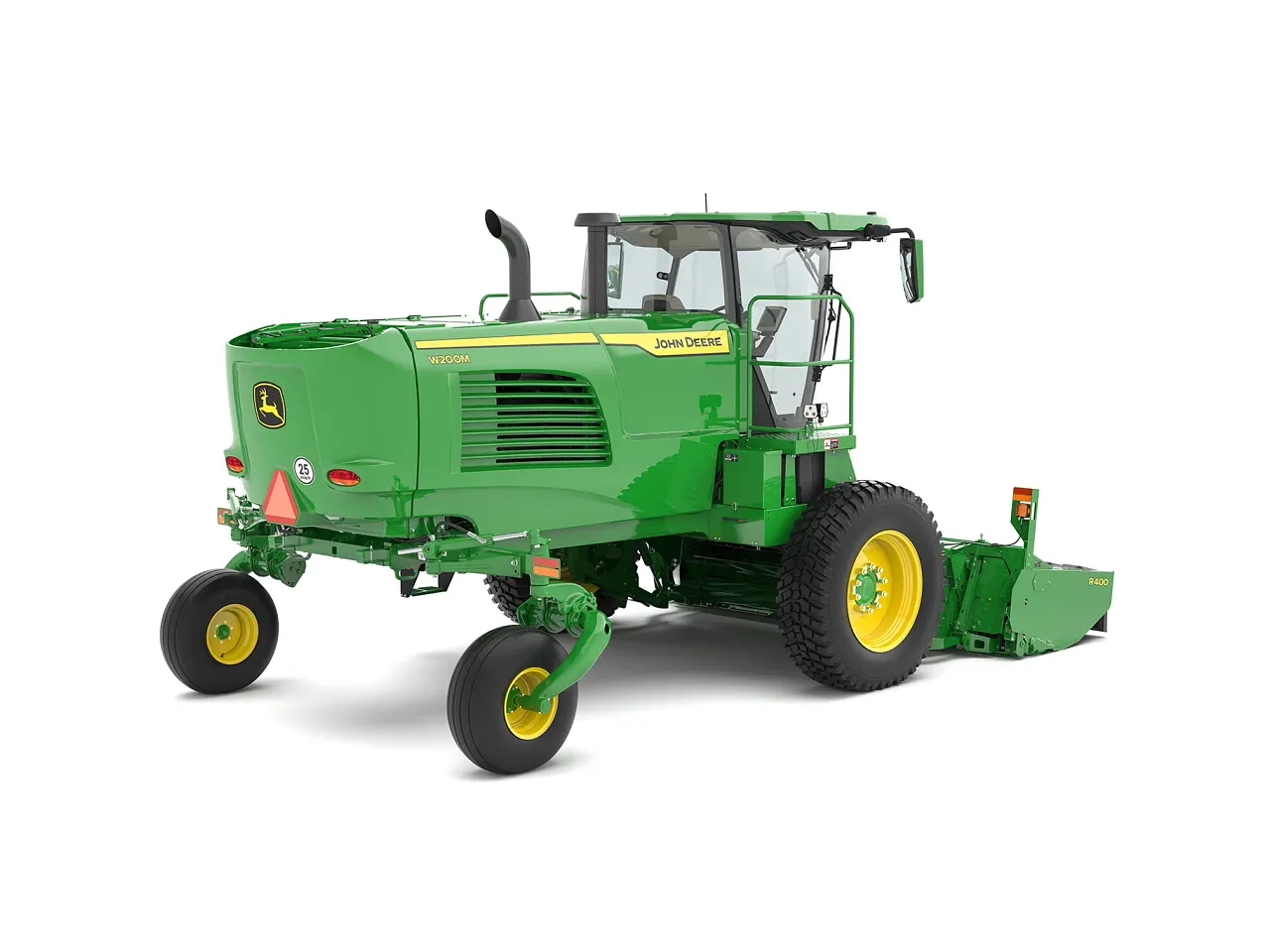

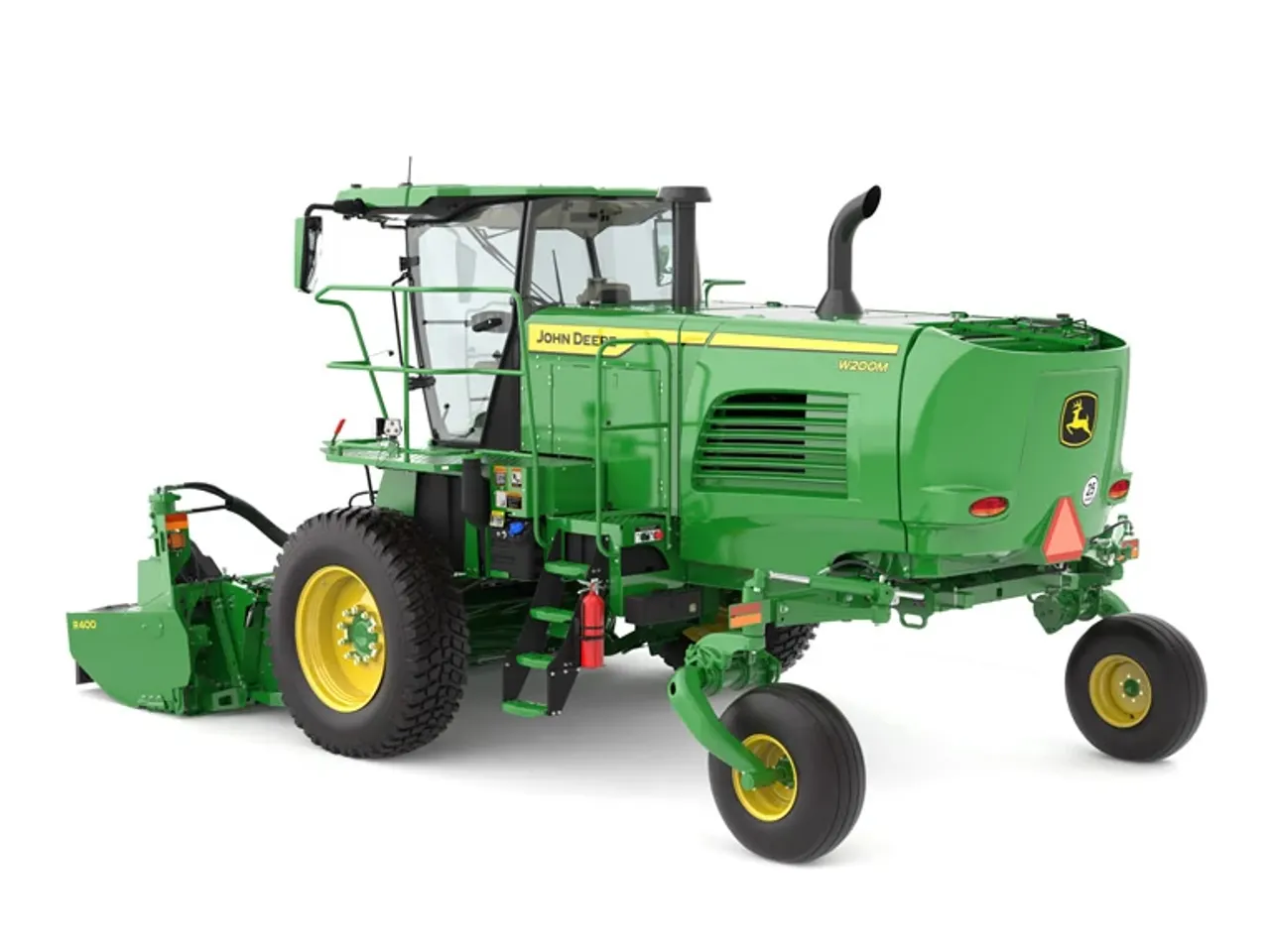

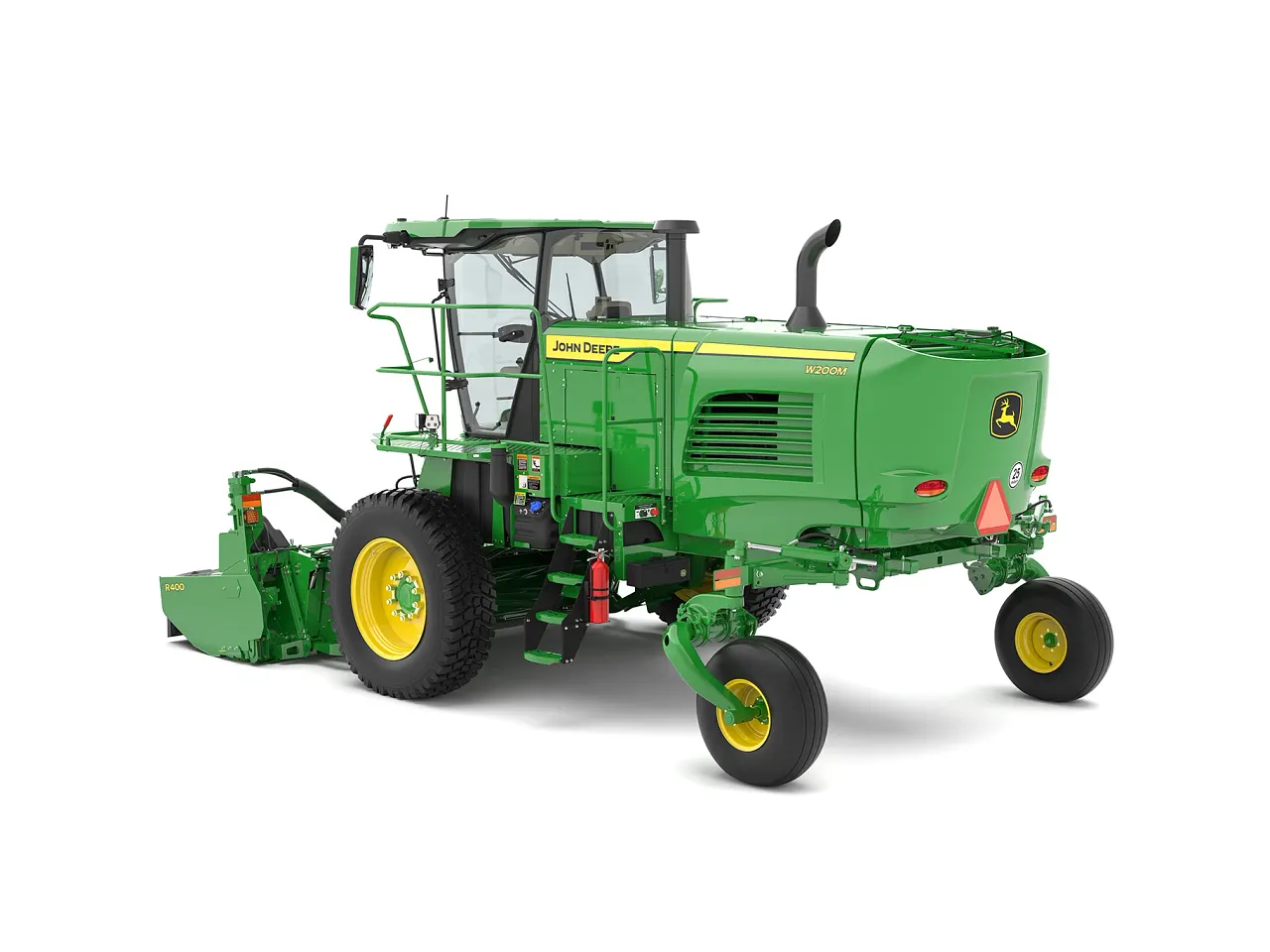

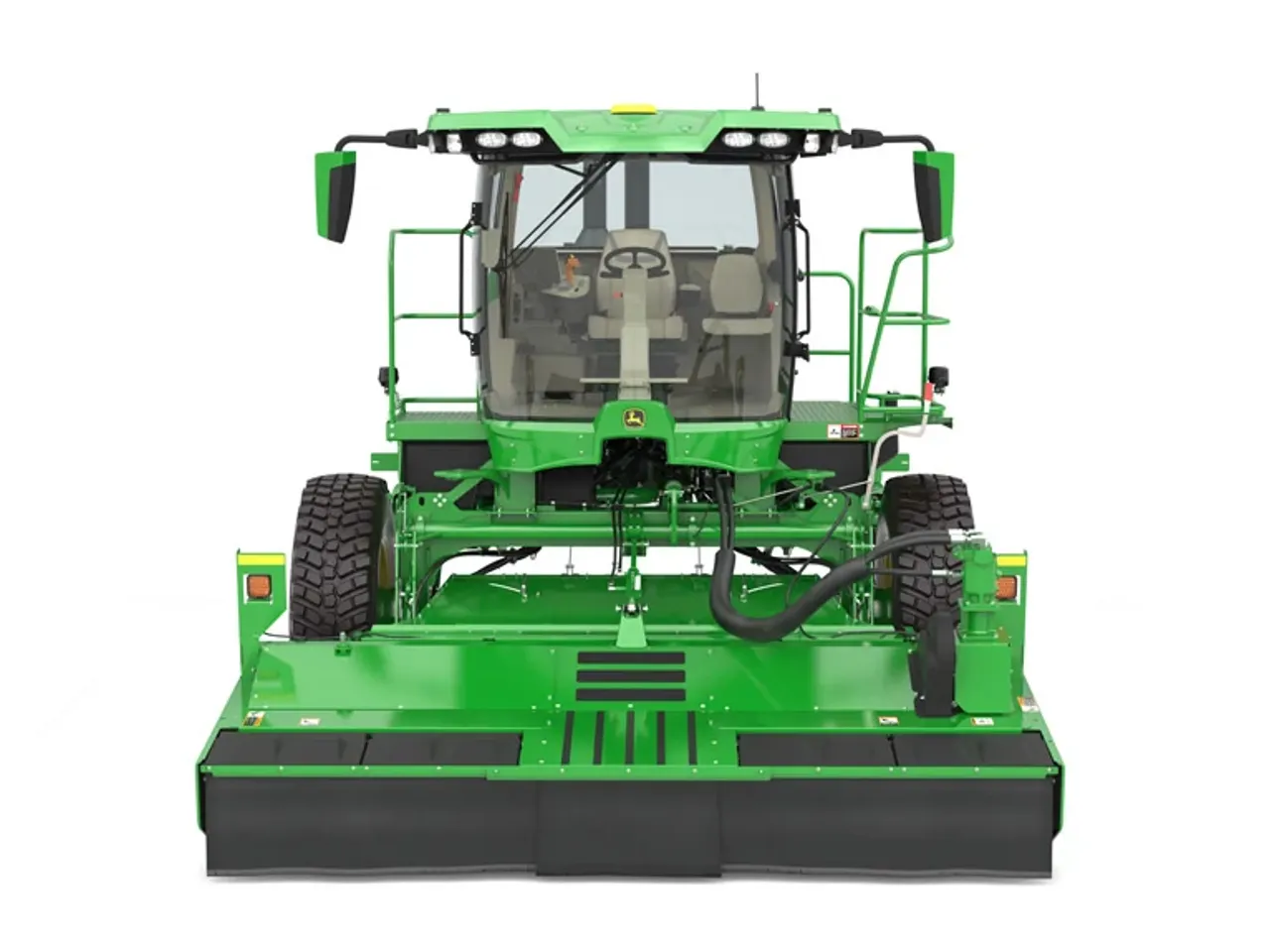

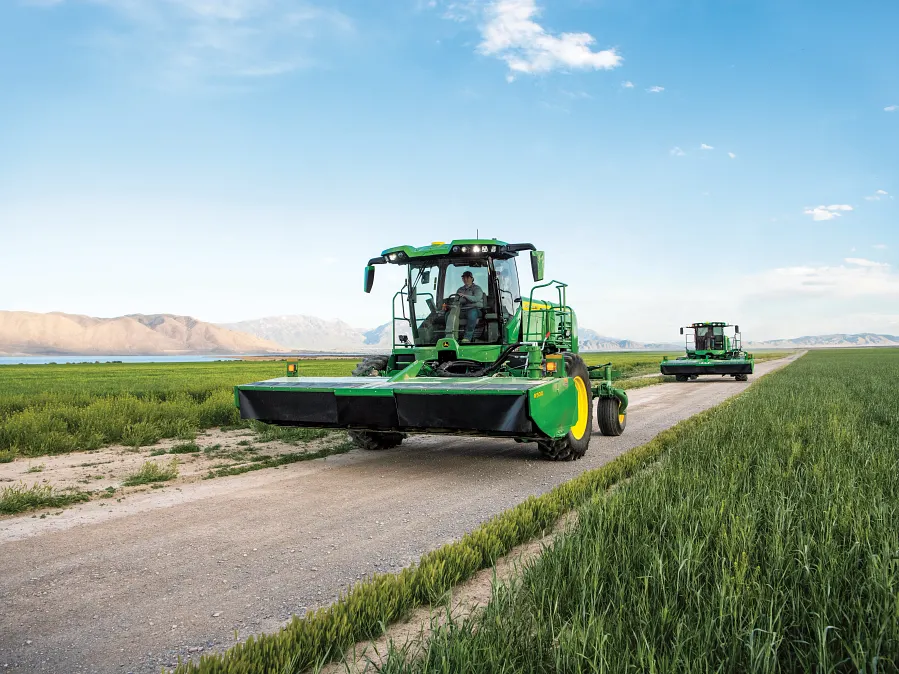

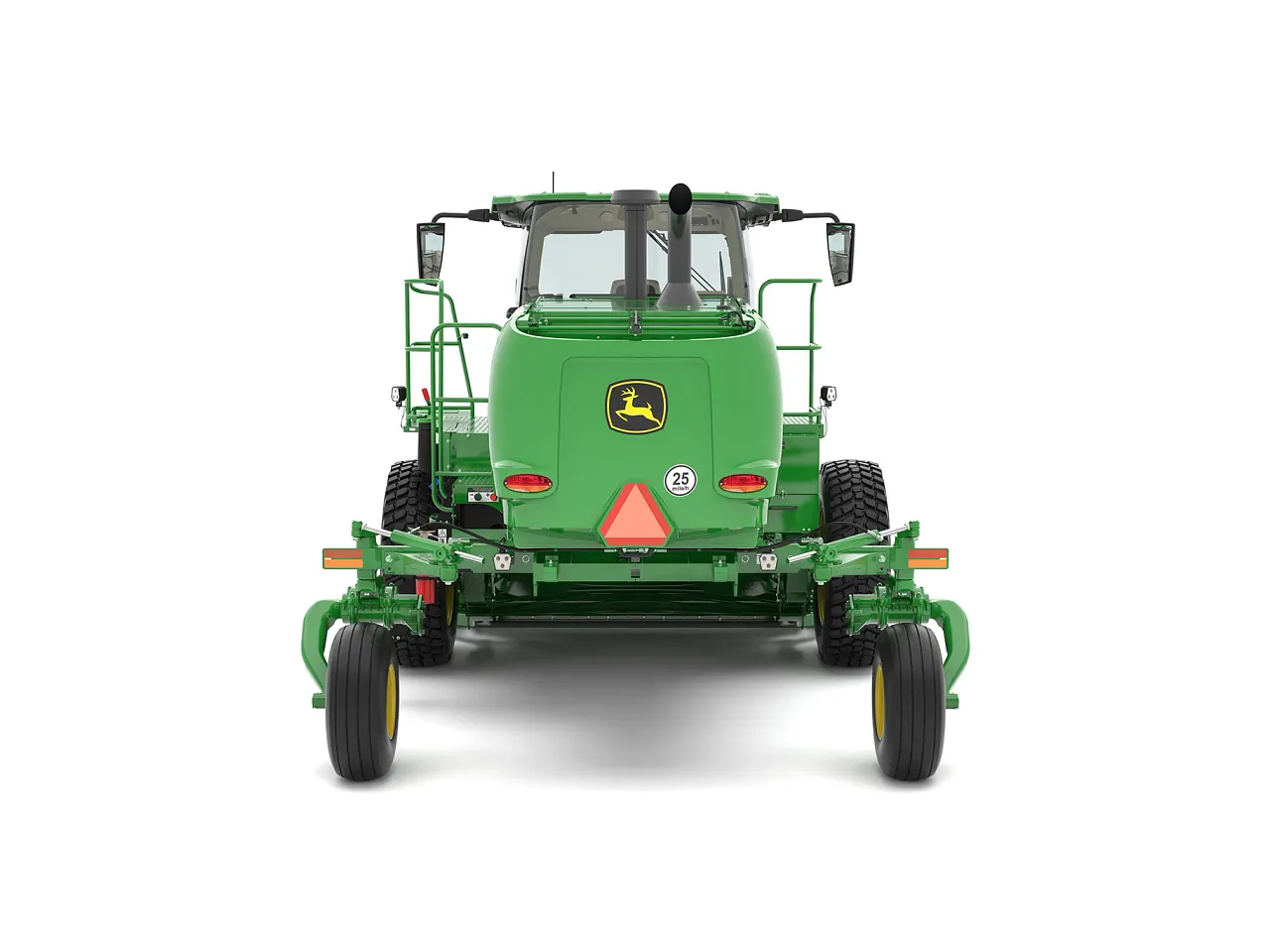

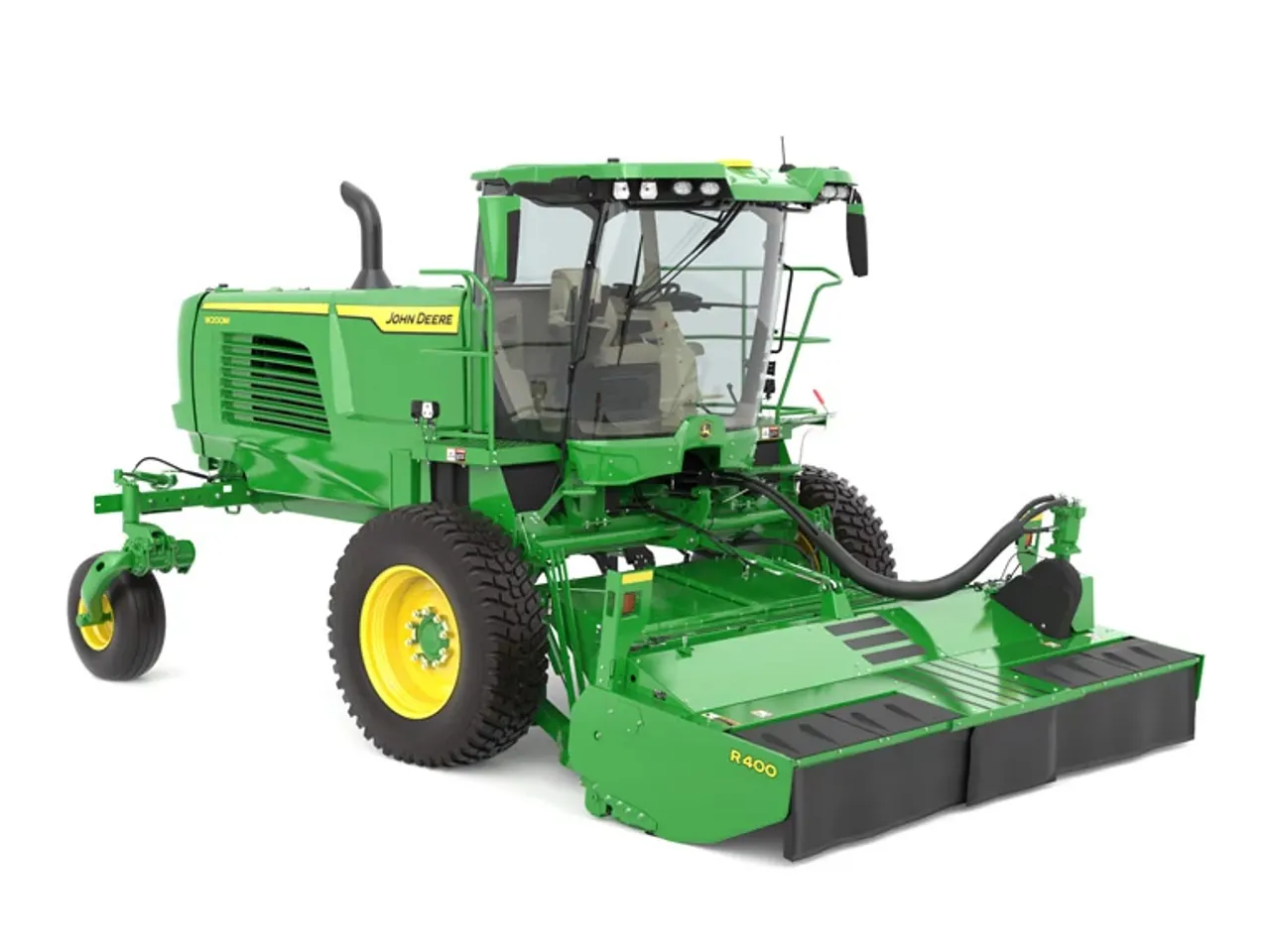

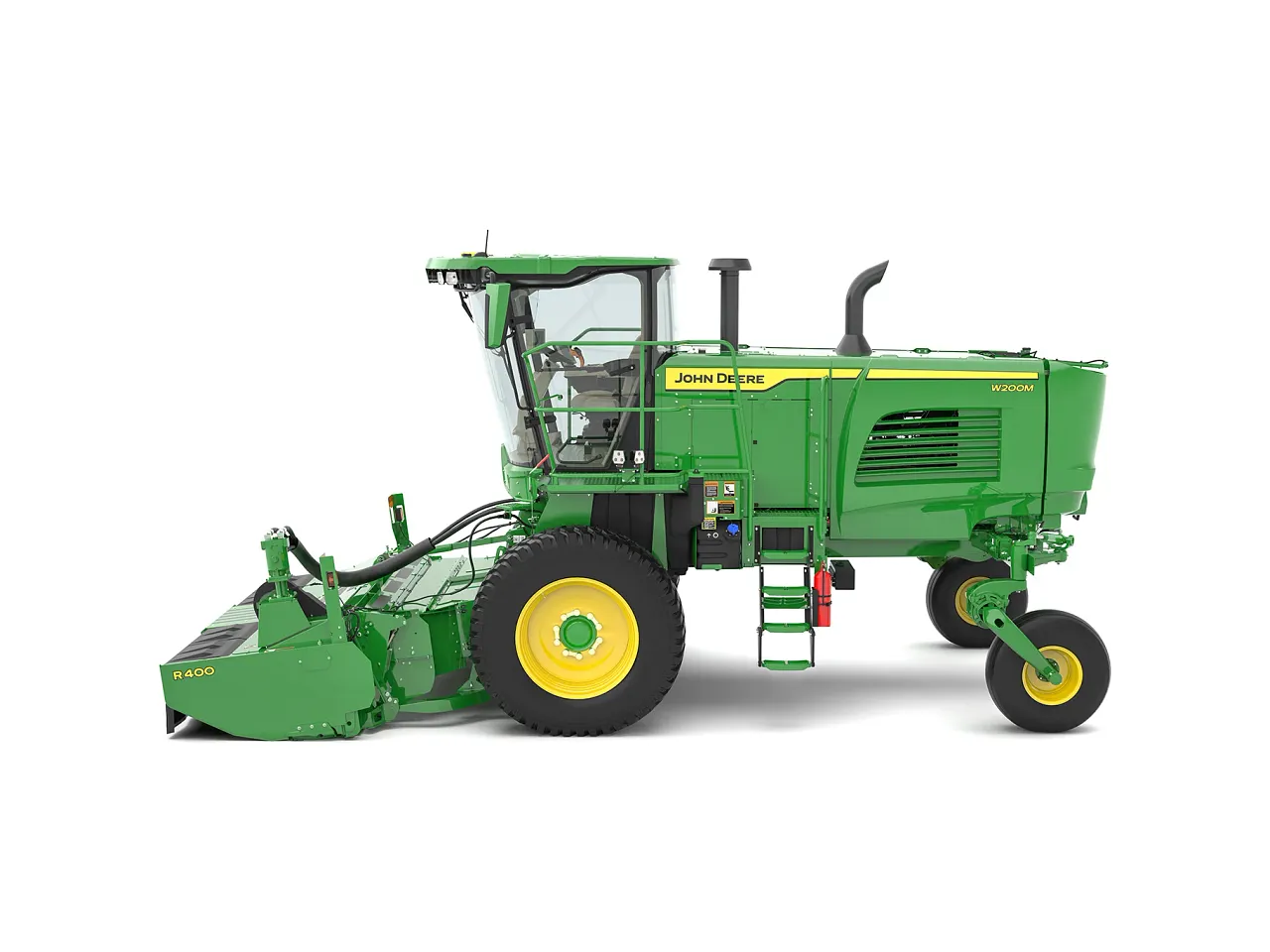

W200M Windrower
Mowing

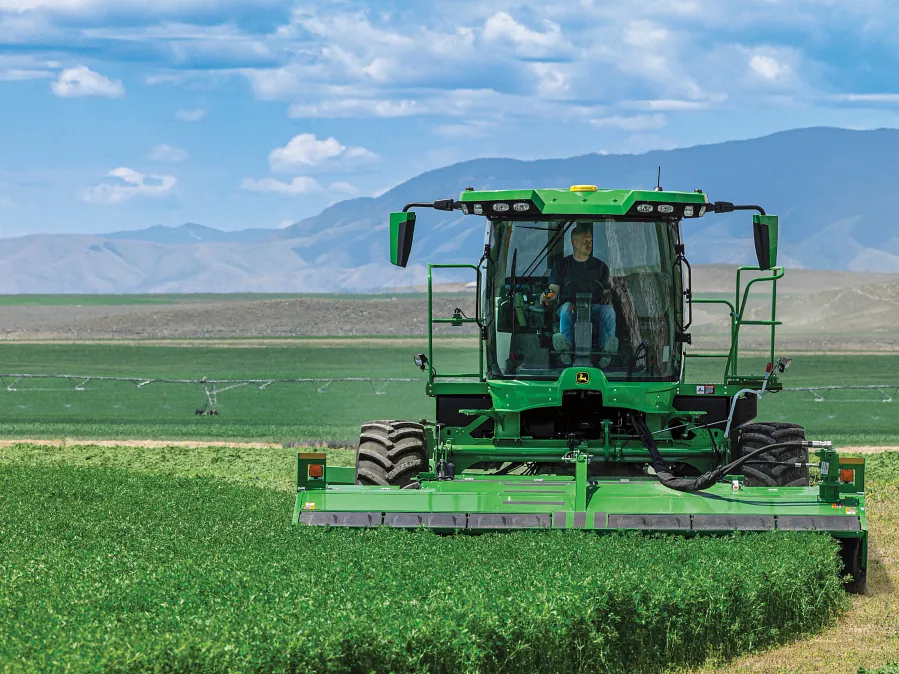

Boost hay productivity with the John Deere W200M Windrower, featuring 200 hp, AutoTrac™ guidance, JDLink™ monitoring, and optional high-speed transport for efficient, consistent cutting.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 4061E
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs19 specifications
- Model
- PowerTech™ PVS Final Tier 4
- Horsepower At 2,400 rpm (Imperial)
- 200.0 hp
- Horsepower At 2,400 rpm (Metric)
- 149.0 kW
- Ground Drive Type
- Base: Single-speed hydrostatic; Optional: Two-speed hydrostatic
- Fuel Capacity (Imperial)
- 150.0 U.S. gal.
- Fuel Capacity (Metric)
- 568.0 L
- DEF Capacity (Imperial)
- 7.0 U.S. gal.
- DEF Capacity (Metric)
- 26.5 L
- Low Range With Single Speed (Imperial)
- 18.0 mph
- Low Range With Single Speed (Metric)
- 28.8 km/h
- Low Range With Two Speed (Imperial)
- 15.0 mph
- Low Range With Two Speed (Metric)
- 24.1 km/h
- High Range 2 Speed/Mid Range 3 Speed With Two Speed (Imperial)
- 24.0 mph
- High Range 2 Speed/Mid Range 3 Speed With Two Speed (Metric)
- 38.4 km/h
- Cab Seat
- Air suspension
- Under Frame Clearance (Imperial)
- 44.0 in.
- Under Frame Clearance (Metric)
- 112.0 cm
- Total Weight (Imperial)
- 15428.0 lb.
- Total Weight (Metric)
- 6998.0 kg
Engine18 specifications
- Make
- John Deere
- Model
- PowerTech™ PVS Final Tier 4
- Horsepower At 2,400 rpm (Imperial)
- 200.0 hp
- Horsepower At 2,400 rpm (Metric)
- 149.0 kW
- Horsepower Peak At 2,200 rpm (Imperial)
- 220.0 hp
- Horsepower Peak At 2,200 rpm (Metric)
- 164.0 kW
- Number Of Cylinders
- 6
- Exhaust Direction
- Vertical
- Engine Displacement (Imperial)
- 415.0 cu in.
- Engine Displacement (Metric)
- 6.8 L
- Low Idle Engine Speed
- 900.0 rpm
- Variable Idle Engine Speed
- Electronic adjustable from 1,700 to 2,450 rpm
- High Idle (No Load) Engine Speed
- 2450.0 rpm
- Rated Engine Speed
- 2450.0 rpm
- Oil Crankcase Capacity (With Filter) (Imperial)
- 33.2 U.S. qt
- Oil Crankcase Capacity (With Filter) (Metric)
- 31.4 L
- Cooling System (Imperial)
- 13.0 U.S. gal.
- Cooling System (Metric)
- 49.2 L
Ground Drive1 specifications
- Ground Drive Type
- Base: Single-speed hydrostatic; Optional: Two-speed hydrostatic
Hydraulic Platform Drive7 specifications
- Number Of Pumps (Rotary/Auger)
- 1
- Number Of Motors (Rotary/Auger)
- 1
- Speed Control System
- Electronic adjusted from cab
- Pump Displacement (Imperial)
- 7.02 cu in.
- Pump Displacement (Metric)
- 115.0 cc
- Motor Displacement (Per Revolution) (Imperial)
- 4.6 cu in.
- Motor Displacement (Per Revolution) (Metric)
- 75.4 cm³
Platform Float System2 specifications
- Platform Float System Type
- Hydraulic piston accumulator
- Platform Float System Control
- Resume on header lower
Final Drives1 specifications
- Final Drives Type
- Direct drive heavy-duty wheel motors
Brakes1 specifications
- Brake Type/Activation
- Manual parking brake engage button on armrest; Parking brake automatically engagaes and disingages, integrated into multi-function lever
Hydraulics2 specifications
- Reservoir Capacity (Imperial)
- 25.0 U.S. gal.
- Reservoir Capacity (Metric)
- 94.5 L
Fuel4 specifications
- Fuel Capacity (Imperial)
- 150.0 U.S. gal.
- Fuel Capacity (Metric)
- 568.0 L
- DEF Capacity (Imperial)
- 7.0 U.S. gal.
- DEF Capacity (Metric)
- 26.5 L
Electrical System2 specifications
- Alternator
- 240.0 amp
- Battery
- Heavy-duty 12 V
Tires3 specifications
- Drive Wheel Standard
- 620/75R26 Bar
- Drive Wheel Option
- Hybrid tires: 480/80R34; Radial button: 23.1R26 R3
- Caster Wheels
- 14Lx16.1 8-ply ribbed
Speeds6 specifications
- Low Range With Single Speed (Imperial)
- 18.0 mph
- Low Range With Single Speed (Metric)
- 28.8 km/h
- Low Range With Two Speed (Imperial)
- 15.0 mph
- Low Range With Two Speed (Metric)
- 24.1 km/h
- High Range 2 Speed/Mid Range 3 Speed With Two Speed (Imperial)
- 24.0 mph
- High Range 2 Speed/Mid Range 3 Speed With Two Speed (Metric)
- 38.4 km/h
Suspension2 specifications
- Vehicle Suspension
- Suspended rear axle in base
- Cab Suspension
- Air-ride seat suspension for smooth ride
Cab14 specifications
- Cab Construction
- Uni-body, welded
- Cab Glass (Imperial)
- 58.7 sq ft
- Cab Glass (Metric)
- 5.45 m²
- Cab Seat
- Air suspension
- Steering Column
- Dual-tilt telescoping
- Cab Instructional Seat
- Standard
- Cab Windshield Wiper
- Single blade
- Air Conditioner
- Standard with manual temperature control
- Air Conditioner Refrigerant
- R134a
- Air Conditioner Capacity (Imperial)
- 5.5 lb.
- Air Conditioner Capacity (Metric)
- 2.5 kg
- Air Conditioner Filters
- Dry type, reusable
- Air Conditioner Compressor
- Rotary
- Air Conditioner Overload Protection
- Low-pressure and high-pressure cut off
Lights4 specifications
- Front Lights
- Six halogen
- Side Lights
- Four optional
- Back Lights
- Standard: Two halogen
- Delayed Egress Lights
- Yes

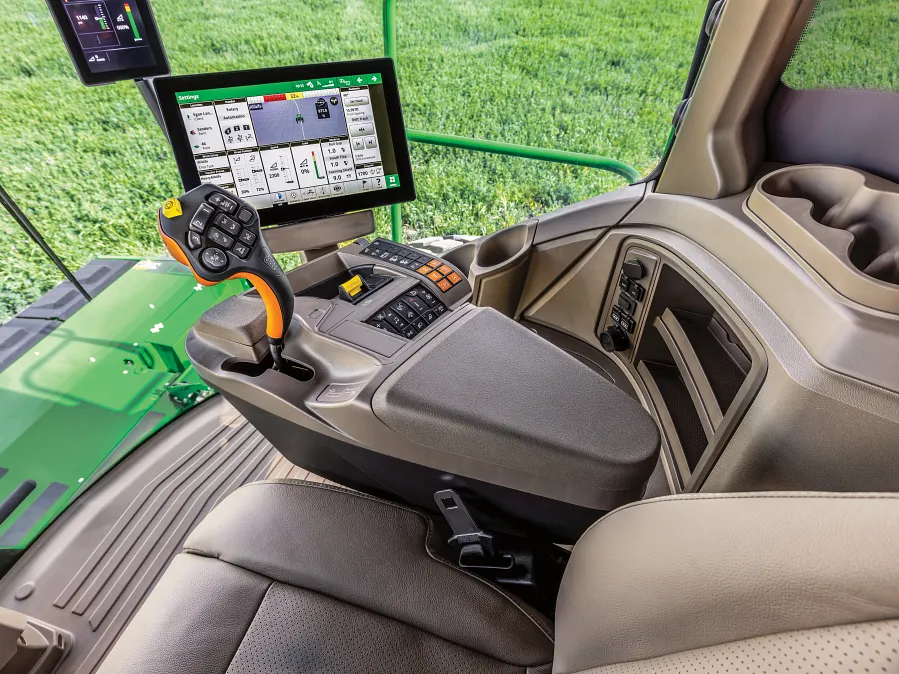

Display And Input3 specifications
- Display Type
- Electronic touchscreen
- Display Size (Imperial)
- 8.4 in.
- Display Size (Metric)
- 21.4 cm
Technology1 specifications
- Automatic Steering Technology
- John Deere GreenStar™ with integrated AutoTrac™ system
Dimensions (With Platform Installed)10 specifications
- Overall Length Without Platform (Imperial)
- 225.5 in.
- Overall Length Without Platform (Metric)
- 590.0 cm
- Overall Height (Imperial)
- 148.0 in.
- Overall Height (Metric)
- 376.0 cm
- Under Frame Clearance (Imperial)
- 44.0 in.
- Wheelbase (Imperial)
- 146.0 in.
- Under Frame Clearance (Metric)
- 112.0 cm
- Wheelbase (Metric)
- 371.0 cm
- Track Width (Imperial)
- 133.0 in.
- Track Width (Metric)
- 340.0 cm
Weight6 specifications
- Front Axle Weight (Imperial)
- 9636.0 lb.
- Front Axle Weight (Metric)
- 4370.0 kg
- Rear Axle Weight
- 5792.0 lb.
- Real Axle Weight
- 2627.0 kg
- Total Weight (Imperial)
- 15428.0 lb.
- Total Weight (Metric)
- 6998.0 kg
Warranty2 specifications
- Manufacturer's Warranty
- Full machine: 1 year; Engine: 2 years or 2,000 hours
- Service Plan (Extended Warranty)
- PowerGard™ Protection Plan
