John Deere
639 Hay Pickup
Hay and Forage Attachments

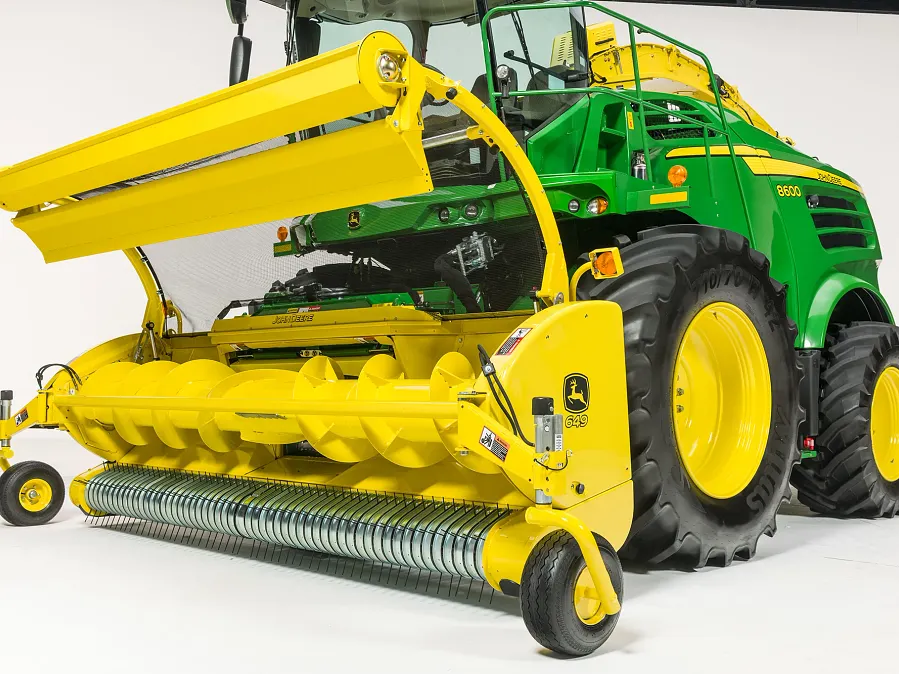

Optimize your forage harvesting with the 639 Windrow Pickup, featuring a premium heavy-duty reel for high yields, automatic auger lifting, and smooth feeding for maximum productivity.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 01A1KM
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs10 specifications
- Height (Imperial)
- 4.6 ft
- Height (Metric)
- 1.4 m
- Length (Imperial)
- 4.4 ft
- Length (Metric)
- 1.35 m
- Number Of Tines
- Four rows of 40 tines
- Auger

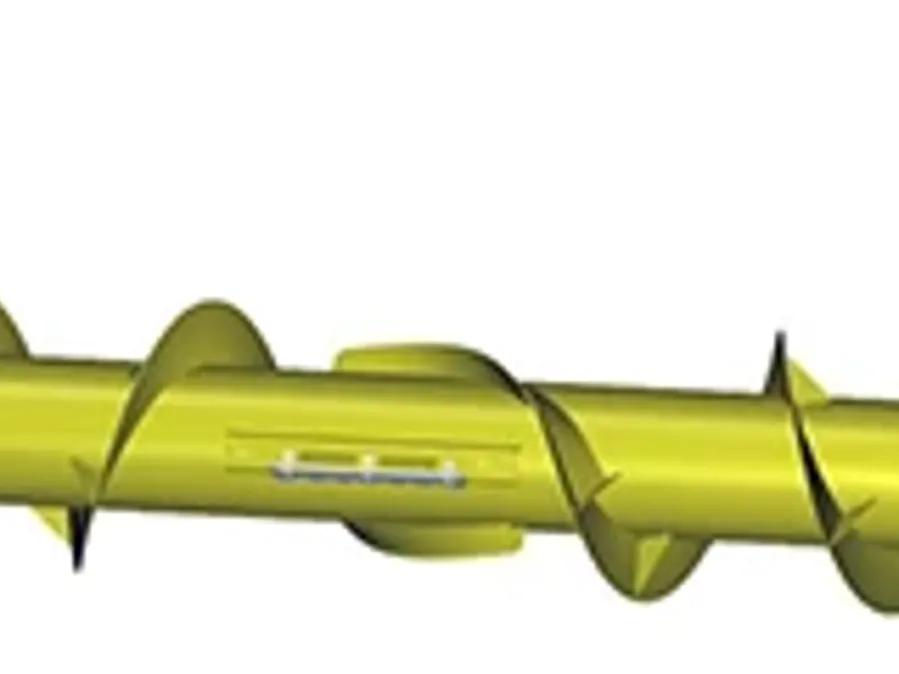

- Feed auger: Adjustable paddles
- Auger Diameter (Imperial)
- 22.0 in.
- Auger Diameter (Metric)
- 56.0 cm
- Weight (Imperial)
- 2359.0 lb.
- Weight (Metric)
- 1070.0 kg
Windrow Pickup24 specifications
- Pickup Width Transport Width (Imperial)
- 9.8 ft
- Pickup Width Transport Width (Metric)
- 3.0 m
- Pickup Width Operating Width (Tine To Tine) (Imperial)
- 8.4 ft
- Pickup Width Operating Width (Tine To Tine) (Metric)
- 2.56 m
- Overall Pickup Width Unfolded Gauge Wheels (Imperial)
- 15.1 ft
- Overall Pickup Width Unfolded Gauge Wheels (Metric)
- 4.1 m
- Effective Pickup Width (Imperial)
- 9.8 ft
- Effective Pickup Width (Metric)
- 3.0 m
- Height (Imperial)
- 4.6 ft
- Height (Metric)
- 1.4 m
- Length (Imperial)
- 4.4 ft
- Length (Metric)
- 1.35 m
- Number Of Tines
- Four rows of 40 tines
- Tine Spacing (Imperial)
- 2.56 in.
- Tine Spacing (Metric)
- 65.0 mm
- Stripper Diameter (Imperial)
- 9.0 in.
- Stripper Diameter (Metric)
- 230.0 mm
- Gauge Wheels (Two)
- Two manual folding pneumatic gauge wheels - 18.5 x 8.5-8PR
- Gauge Shoes
- Two skid shoes
- Auger
- Feed auger: Adjustable paddles
- Auger Diameter (Imperial)
- 22.0 in.
- Auger Diameter (Metric)
- 56.0 cm
- Weight (Imperial)
- 2359.0 lb.
- Weight (Metric)
- 1070.0 kg
Additional Information1 specifications
- Date Collected
- 2020-02-18
