John Deere

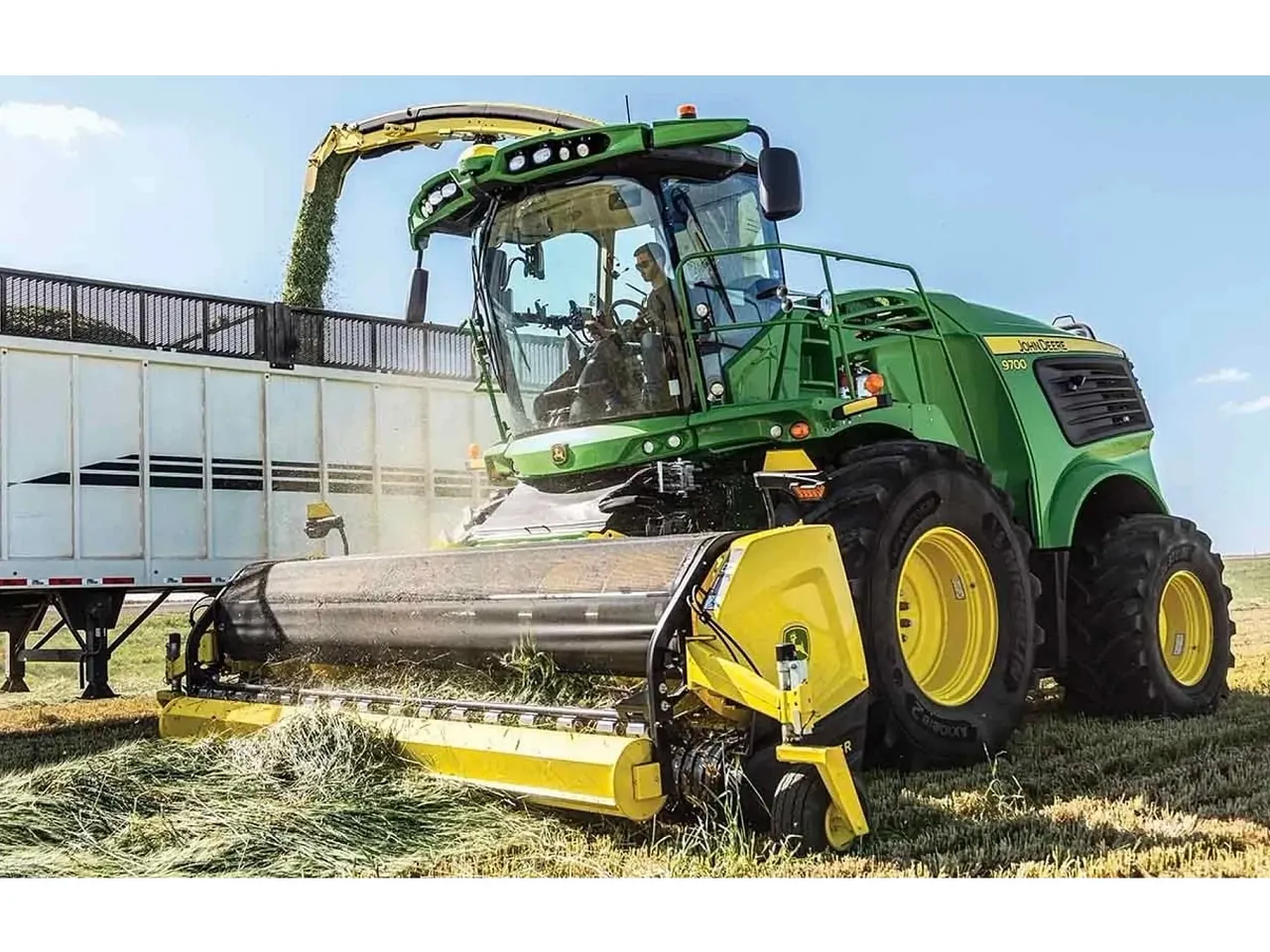

46R Hay Pickup
Hay and Forage Attachments
The 46R Windrow Pickup offers superior hay handling with a large-diameter auger, maintenance-free chainless drive, six tine bar reel, and adaptable gauge wheels for efficient and reliable forage collection.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 0833KM
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs10 specifications
- Height (Imperial)
- 4.8 ft
- Height (Metric)
- 1.45 m
- Length (Imperial)
- 4.4 ft
- Length (Metric)
- 1.35 m
- Number Of Tines
- Six rows of 32
- Auger
- Feed auger: adjustable paddles
- Auger Diameter (Imperial)
- 31.1 in.
- Auger Diameter (Metric)
- 79.0 cm
- Weight (Imperial)
- 4883.0 lb.
- Weight (Metric)
- 2215.0 kg
Windrow Pickup16 specifications
- Pickup Width Transport Width (Imperial)
- 15.1 ft
- Pickup Width Transport Width (Metric)
- 4.6 m
- Pickup Width Operating Width (Tine To Tine) (Imperial)
- 14.1 ft
- Pickup Width Operating Width (Tine To Tine) (Metric)
- 4.3 m
- Overall Pickup Width (Imperial)
- 18.5 ft
- Overall Pickup Width (Metric)
- 5.65 m
- Height (Imperial)
- 4.8 ft
- Height (Metric)
- 1.45 m
- Length (Imperial)
- 4.4 ft
- Length (Metric)
- 1.35 m
- Number Of Tines
- Six rows of 32
- Auger
- Feed auger: adjustable paddles
- Auger Diameter (Imperial)
- 31.1 in.
- Auger Diameter (Metric)
- 79.0 cm
- Weight (Imperial)
- 4883.0 lb.
- Weight (Metric)
- 2215.0 kg
Additional Information1 specifications
- Date Collected
- 2022-09-01
