John Deere
S200 Small Square Baler
Balers

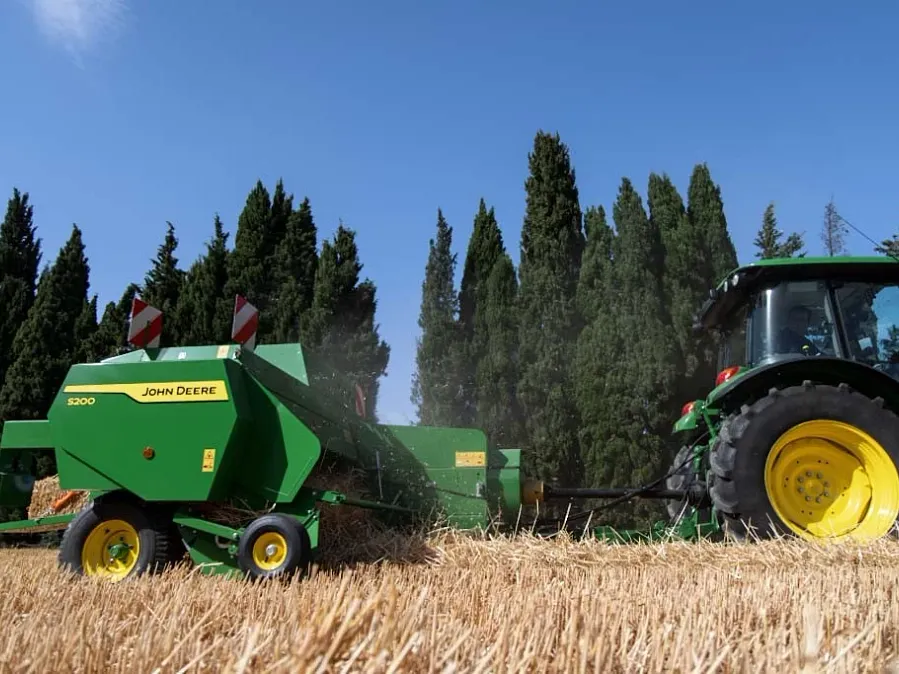

The S200 Small Square Baler from John Deere offers wide, high-capacity pickup for your Hay and Forage needs.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 702BXG
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs10 specifications
- Height x Width (Imperial)
- 14.2 x 18.1 in.
- Height x Width (Metric)
- 36 x 46 cm
- Length (Imperial)
- 15.75-51.2 in.
- Length (Metric)
- 40-130 cm
- Pickup Width (Imperial)
- 6.73 ft
- Pickup Width (Metric)
- 2.05 m
- Strokes/minute
- 90.0 spm
- Minimum PTO (Imperial)
- 59.0 hp
- Minimum PTO (Metric)
- 44.0 kW
- Bale Density Adjustment
- Yes
Bale Size4 specifications
- Height x Width (Imperial)
- 14.2 x 18.1 in.
- Height x Width (Metric)
- 36 x 46 cm
- Length (Imperial)
- 15.75-51.2 in.
- Length (Metric)
- 40-130 cm

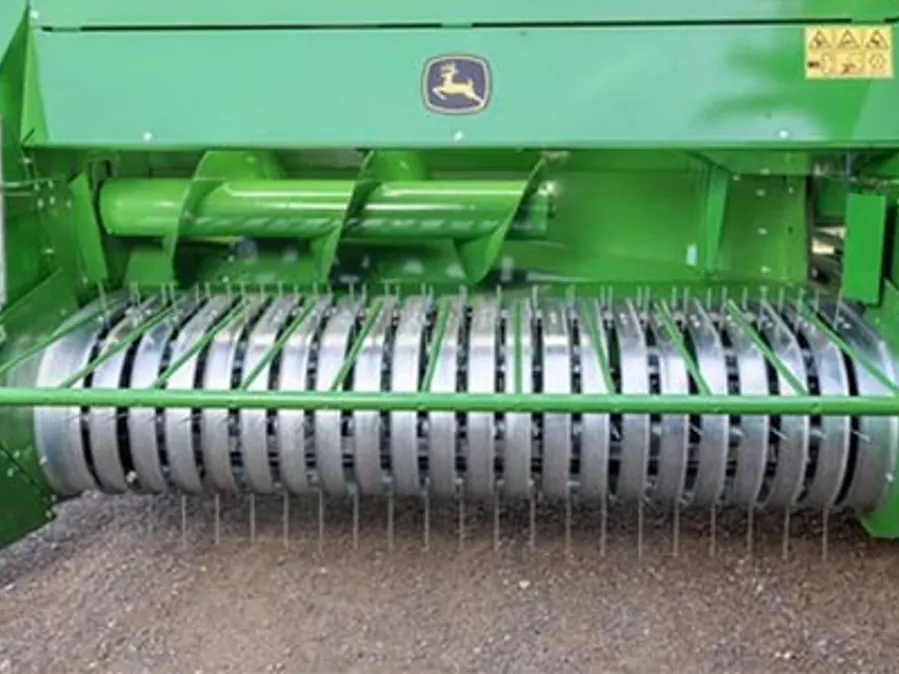

Pickup4 specifications
- Pickup Width (Imperial)
- 6.73 ft
- Pickup Width (Metric)
- 2.05 m
- Pickup Diameter (Imperial)
- 17.3 in.
- Pickup Diameter (Metric)
- 44.0 cm
Auger And Feeder Forks6 specifications
- Diameter (Imperial)
- 15.75 in.
- Diameter (Metric)
- 40.0 cm
- Length (Imperial)
- 45.67 in.
- Length (Metric)
- 118.0 cm
- Feed Opening (Imperial)
- 286.75 sq in.
- Feed Opening (Metric)
- 1850.0 cm²
Plunger3 specifications
- Strokes/minute
- 90.0 spm
- Stroke Length (Imperial)
- 29.5 in.
- Stroke Length (Metric)
- 75.0 cm
Tying Mechanism5 specifications
- Number Of Knotters
- 2
- Twine Capacity
- 10
- Twine Size Runnage (Imperial)
- 372.0 ftPerLb
- Twine Size Runnage (Metric)
- 250.0 m.kg
- Wire Ball Capacity
- 2
Baler Dimensions8 specifications
- Length With Long Tongue (Imperial)
- 19.4 ft
- Length With Long Tongue (Metric)
- 5.19 m
- Width (Imperial)
- 9.4 ft
- Width (Metric)
- 2.86 m
- Height with Fork Cover (Imperial)
- 6.3 ft
- Height with Fork Cover (Metric)
- 1.91 m
- Weight Empty (Imperial)
- 3900.0 lb.
- Weight Empty (Metric)
- 1770.0 kg
Tractor Requirements3 specifications
- PTO Speed
- 540.0 rpm
- Minimum PTO (Imperial)
- 59.0 hp
- Minimum PTO (Metric)
- 44.0 kW
Drive Mechanism4 specifications
- Diameter Of Flywheel (Imperial)
- 21.7 in.
- Diameter Of Flywheel (Metric)
- 550.0 mm
- Weight Of Flywheel
- 231.5 lb.
- Weight of Flywheel
- 105.0 kg
Tires3 specifications
- Right Hand Standard Tire Size
- 10.00/80-12 (8 PR)
- Left Hand Standard Tire Size
- 10.00/75-15.3 (10 PR)
- Pickup Gauge Wheels Tires Size
- 15X6.00-6 (6 PR)
Lights1 specifications
- Work
- Yes
Density Control System1 specifications
- Bale Density Adjustment
- Yes
