John Deere

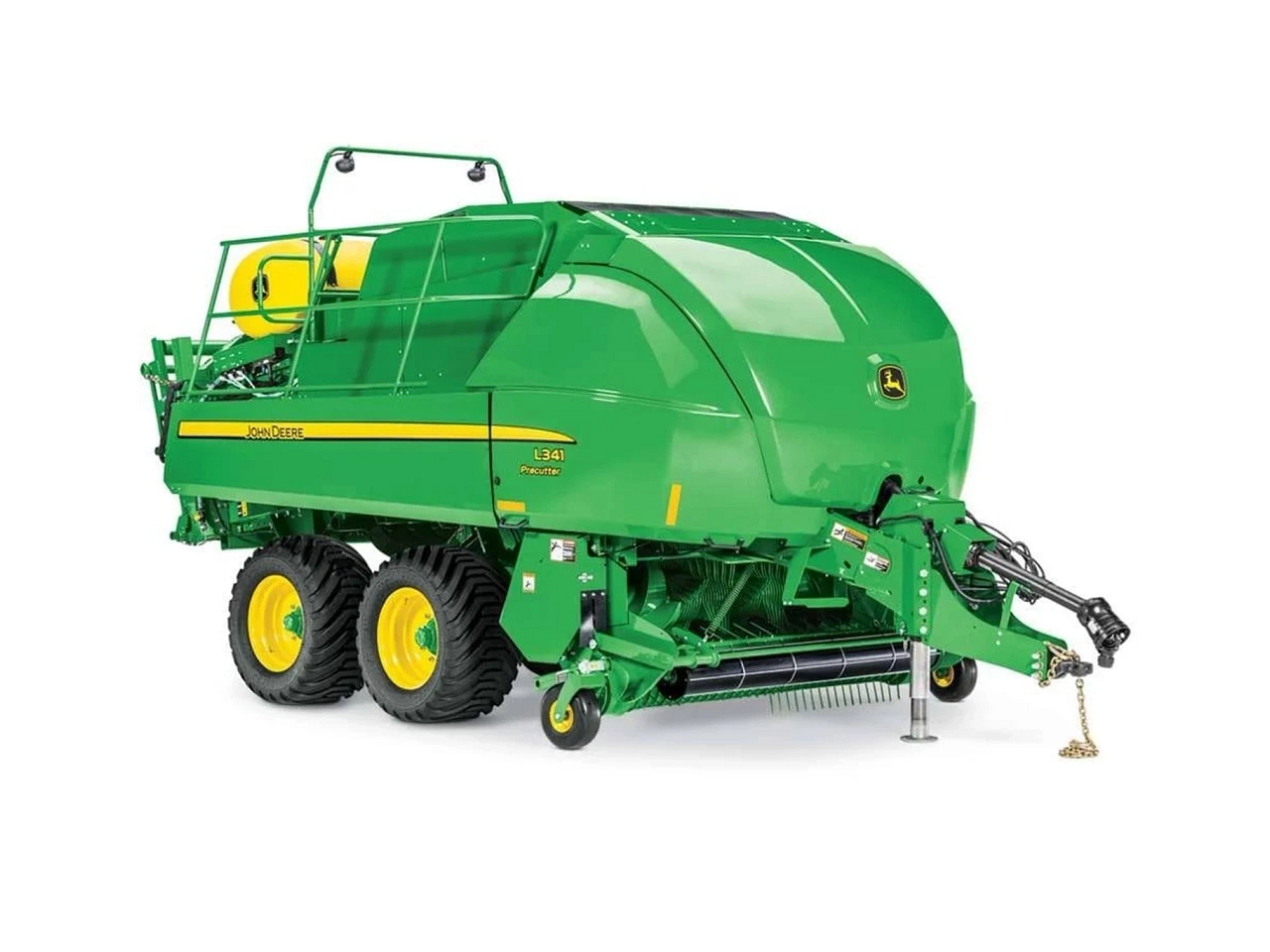

ModelL341R Large Square Baler
Balers
The L341R Large Square Baler is built for more capacity, more efficiency, and more accuracy.
Model / part number: 3420E
Key specifications
- Bale (Metric)
- 90x120 cm
- Bale Width (Metric)
- 120.0 cm
- Bale Height (Metric)
- 90.0 cm
- Bale Length (Metric)
- 60.0 cm
Technical specifications
62 specifications
Key Specs19 details
- Bale (Metric)
- 90x120 cm
- Bale (Imperial)
- 3x4 ft.
- Bale Width (Metric)
- 120.0 cm
- Bale Width (Imperial)
- 46.5 in.
- Bale Height (Metric)
- 90.0 cm
- Bale Height (Imperial)
- 35.0 in.
- Bale Length (Metric)
- 60.0 cm
- Bale Length (Imperial)
- 24.0 in.
- Number Of Knotters
- 6
- Knives
- 21, 11, or 10
- Machine Length (Metric)
- 8.0 m
- Machine Length (Imperial)
- 26.25 ft
- Machine Width (Metric)
- 3.0 m
- Machine Width (Imperial)
- 9.8 ft
- Machine Height (Metric)
- 2.75 m
- Machine Height (Imperial)
- 9.0 ft
- Machine Weight (Metric)
- 9210.0 kg
- Machine Weight (Imperial)
- 20370.0 lb.
- Minimum Tractor Requirement
- 108 kW 145 PTO hp - no Pre-Cutter 119 kW 160 PTO hp - with Pre-Cutter
Bale Dimensions8 details
- Bale (Metric)
- 90x120 cm
- Bale (Imperial)
- 3x4 ft.
- Bale Width (Metric)
- 120.0 cm
- Bale Width (Imperial)
- 46.5 in.
- Bale Height (Metric)
- 90.0 cm
- Bale Height (Imperial)
- 35.0 in.
- Bale Length (Metric)
- 60.0 cm
- Bale Length (Imperial)
- 24.0 in.

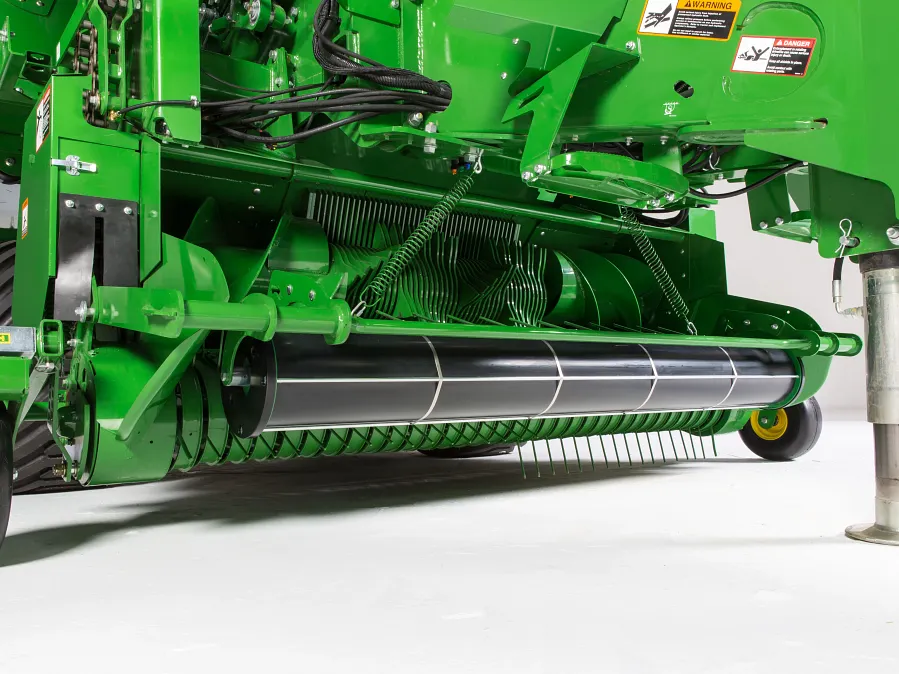

Pickup7 details
- Intake Width (Metric)
- 220.0 cm
- Intake Width (Imperial)
- 86.0 in.
- Pickup Diameter (Metric)
- 25.6 cm
- Pickup Diameter (Imperial)
- 10.0 in.
- Number Of Tine Bars 4 5
- 4
- Tine Spacing (Metric)
- 6.6 cm
- Tine Spacing (Imperial)
- 2.6 in.
Bale Chamber8 details
- Number Of Plunger Strokes
- 45 spm
- Plunger Stroke (Metric)
- 69.5 cm
- Plunger Stroke (Imperial)
- 27.0 in.
- Density Control
- Four hydraulic cylinders
- Number Of Hydraulic Cylinders
- 4
- Bale Chamber Length (Metric)
- 3.05 m
- Bale Chamber Length (Imperial)
- 120.0 in.
- Control
- ISOBUS - GreenStar™ 2 1800 or GreenStar 3 2630
Knotting System2 details
- Number Of Knotters
- 6
- Twine Capacity (Rolls)
- 30
Intake System6 details
- High Capacity Rotor
- Yes
- Knives
- 21, 11, or 10
- Cutting Length (Metric)
- 44.0 mm
- Cutting Length (Imperial)
- 1.7 in.
- Knife Protection
- Individual spring
- Slide Out Floor
- Yes
Wheels And Axles3 details
- Single Axle
- 600/50/22.5 or 710/40R/22.5
- Tandem Axle Steered (Optional)
- 500/55/20 or 550/45/22.5
- Brakes System
- Optional hydraulic
Machine Dimensions9 details
- Machine Length (Metric)
- 8.0 m
- Machine Length (Imperial)
- 26.25 ft
- Machine Width (Metric)
- 3.0 m
- Machine Width (Imperial)
- 9.8 ft
- Machine Height (Metric)
- 2.75 m
- Machine Height (Imperial)
- 9.0 ft
- Machine Weight (Metric)
- 9210.0 kg
- Machine Weight (Imperial)
- 20370.0 lb.
- Minimum Tractor Requirement
- 108 kW 145 PTO hp - no Pre-Cutter 119 kW 160 PTO hp - with Pre-Cutter
