John Deere

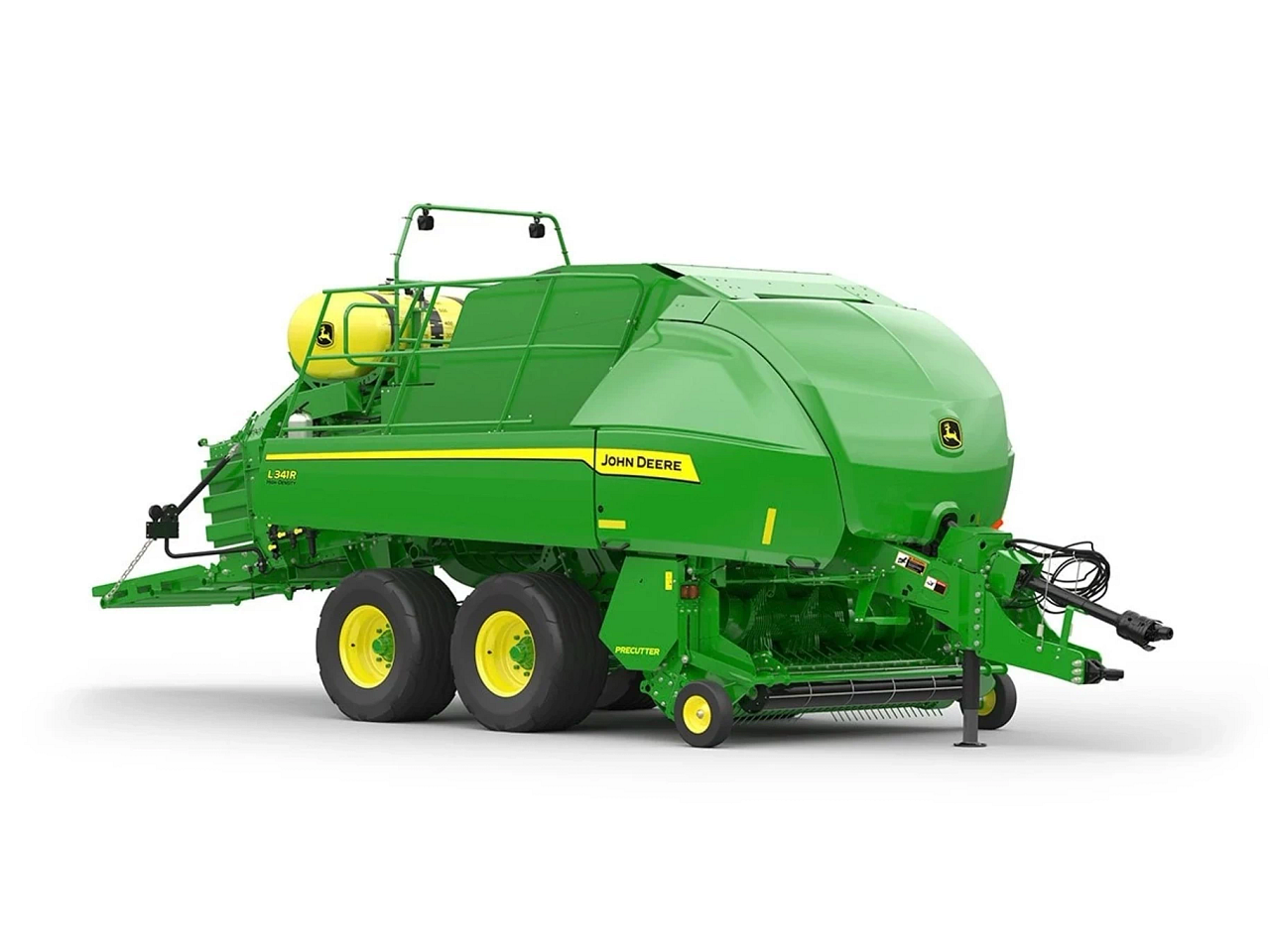

L341R High-Density Large Square Baler
Balers
Boost your hay production with the John Deere L341R High-Density Large Square Baler. Designed for efficiency, it delivers high-density bales that optimize storage and transport. Featuring advanced technology for precise bale formation, this baler ensures performance and quality in every field.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 3430E
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs19 specifications
- Bale (Metric)
- 90x120 cm
- Bale (Imperial)
- 3x4 in.
- Bale Width (Metric)
- 120.0 cm
- Bale Width (Imperial)
- 46.5 in.
- Bale Height (Metric)
- 90.0 cm
- Bale Height (Imperial)
- 35.0 in.
- Bale Length (Metric)
- 60.0 cm
- Bale Length (Imperial)
- 24.0 in.
- Number Of Knotters
- 6
- Knives
- 21, 11, or 10
- Machine Length (Metric)
- 9.29 m
- Machine Length (Imperial)
- 30.6 ft
- Machine Width (Metric)
- 3.35 m
- Machine Width (Imperial)
- 11.0 ft
- Machine Height (Metric)
- 3.0 m
- Machine Height (Imperial)
- 9.9 ft
- Machine Weight (Metric)
- 10755.0 kg
- Machine Weight (Imperial)
- 23710.0 lb.
- Minimum Tractor Requirement
- 108 kW 145 PTO hp - no Pre-Cutter 119 kW 160 PTO hp - with Pre-Cutter
Bale Dimensions8 specifications
- Bale (Metric)
- 90x120 cm
- Bale (Imperial)
- 3x4 in.
- Bale Width (Metric)
- 120.0 cm
- Bale Width (Imperial)
- 46.5 in.
- Bale Height (Metric)
- 90.0 cm
- Bale Height (Imperial)
- 35.0 in.
- Bale Length (Metric)
- 60.0 cm
- Bale Length (Imperial)
- 24.0 in.
Pickup7 specifications
- Intake Width (Metric)
- 220.0 cm
- Intake Width (Imperial)
- 86.0 in.
- Pickup Diameter (Metric)
- 25.6 cm
- Pickup Diameter (Imperial)
- 10.0 in.
- Number Of Tine Bars 4 5
- 4
- Tine Spacing (Metric)
- 6.6 mm
- Tine Spacing (Imperial)
- 2.6 in.
Bale Chamber7 specifications
- Number Of Plunger Strokes
- 45 spm
- Plunger Stroke (Metric)
- 695.0 cm
- Plunger Stroke (Imperial)
- 27.0 in.
- Density Control
- Six hydraulic cylinders
- Bale Chamber Length (Metric)
- 3.23 m
- Bale Chamber Length (Imperial)
- 138.0 ft
- Control
- ISOBUS - GreenStar™ 2 1800 or GreenStar 3 2630

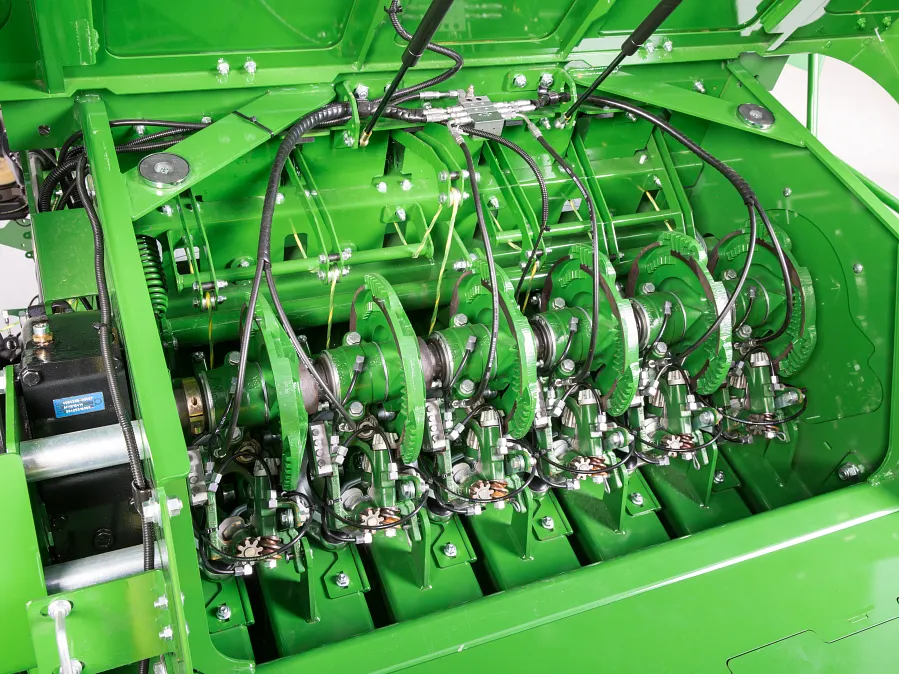

Knotting System2 specifications
- Number Of Knotters
- 6
- Twine Capacity (Rolls)
- 30
Intake System6 specifications
- High Capacity Rotor
- Yes
- Knives
- 21, 11, or 10
- Cutting Length (Metric)
- 44.0 mm
- Cutting Length (Imperial)
- 1.7 in.
- Knife Protection
- Individual spring
- Slide Out Floor
- Yes
Wheels And Axles3 specifications
- Single Axle
- 600/50/22.5 or 710/40R/22.5
- Tandem Axle Steered (Optional)
- 500/55/20 or 550/45/22.5
- Brakes System
- Optional hydraulic
Machine Dimensions9 specifications
- Machine Length (Metric)
- 9.29 m
- Machine Length (Imperial)
- 30.6 ft
- Machine Width (Metric)
- 3.35 m
- Machine Width (Imperial)
- 11.0 ft
- Machine Height (Metric)
- 3.0 m
- Machine Height (Imperial)
- 9.9 ft
- Machine Weight (Metric)
- 10755.0 kg
- Machine Weight (Imperial)
- 23710.0 lb.
- Minimum Tractor Requirement
- 108 kW 145 PTO hp - no Pre-Cutter 119 kW 160 PTO hp - with Pre-Cutter
