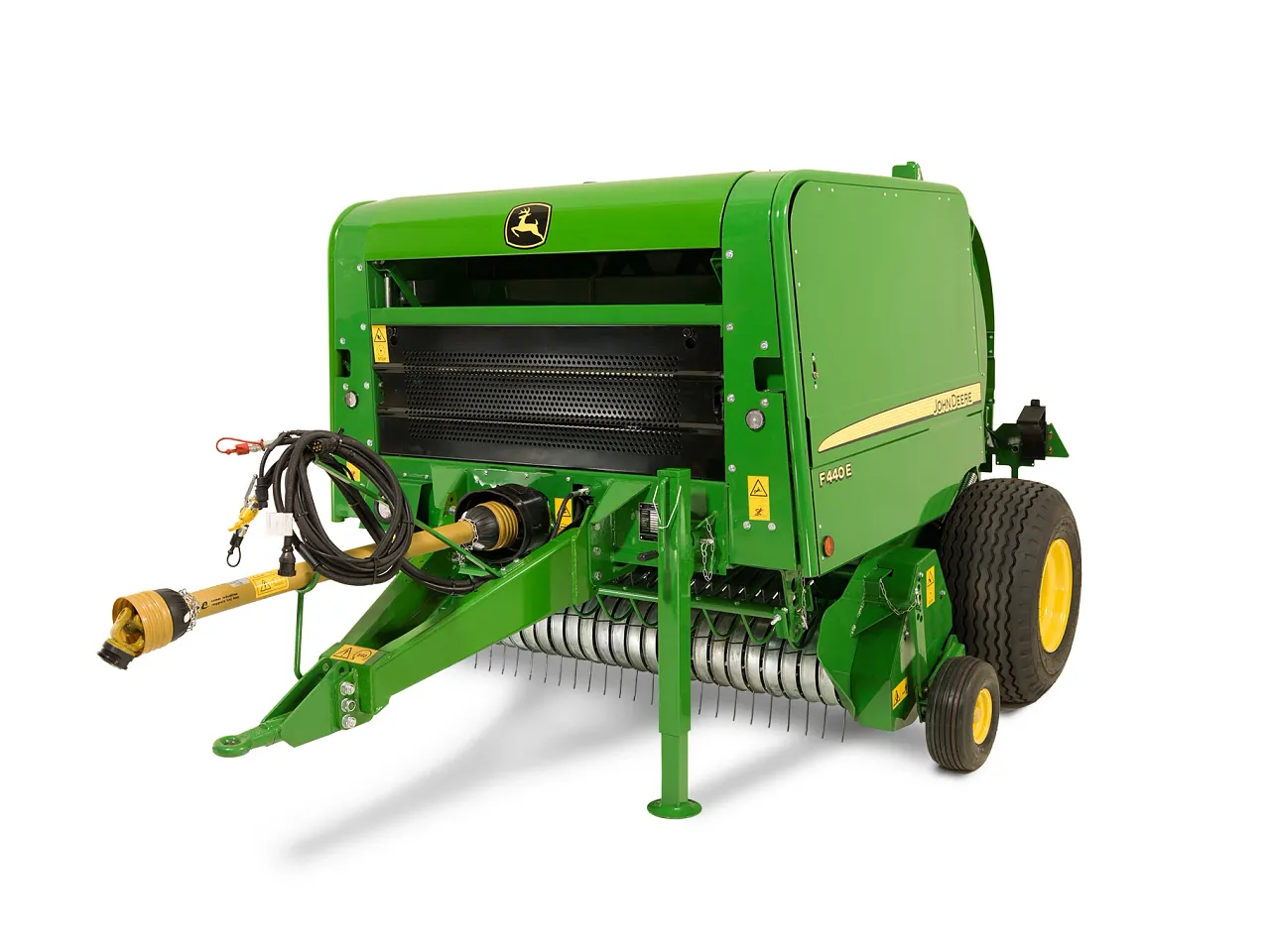

John Deere
F450E Fixed chamber baler
Balers
Robust F450E fixed chamber baler delivers economical operation, flexible pickup configurations, and dependable performance for high-quality bales.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 4020XG
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs4 specifications
- Working Width (DIN 11220) (Metric)
- mm
- Working Width (DIN 11220) (Imperial)
- in.
- Minimum Tractor Power Requirements (Metric)
- 37 kW
- Minimum Tractor Power Requirements (Imperial)
- 50 hp
Dimensions & Weights8 specifications
- Length (Metric)
- 3.76 m
- Length (Imperial)
- 12.34 ft
- Width (Metric)
- 2.51 (with 500/55-20) m
- Width (Imperial)
- 8.23 (with 500/55-20) ft
- Height (Metric)
- 2.37 m
- Height (Imperial)
- 7.78 ft
- Weight (Metric)
- 2450.0 kg
- Weight (Imperial)
- 5401.28 lb.

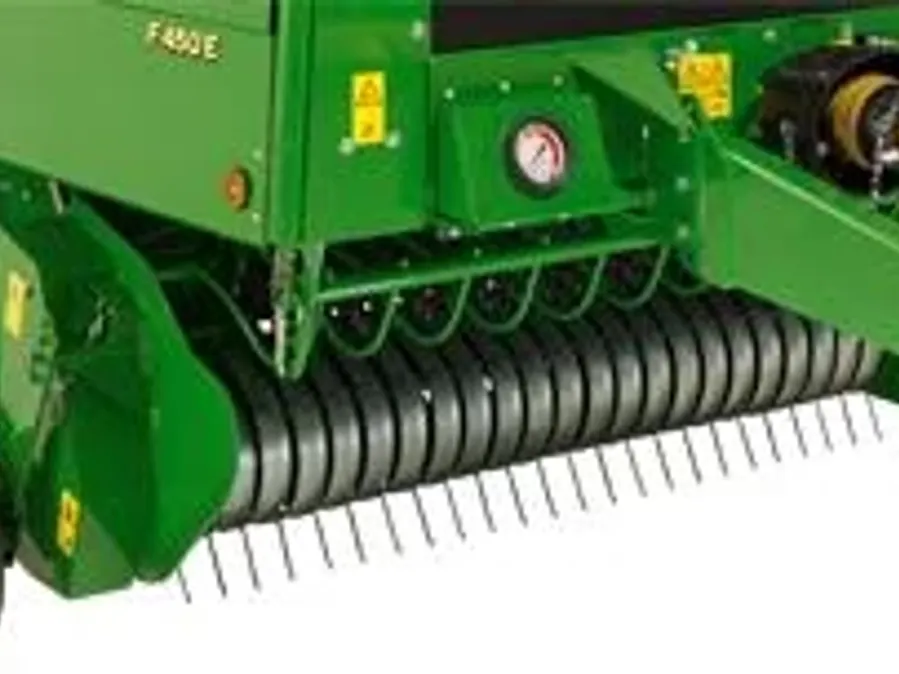

Pickup4 specifications
- Working Width (DIN 11220) (Metric)
- mm
- Working Width (DIN 11220) (Imperial)
- in.
- Pickup Tine Spacing (Metric)
- 69.0 mm
- Pickup Tine Spacing (Imperial)
- 2.7 in.

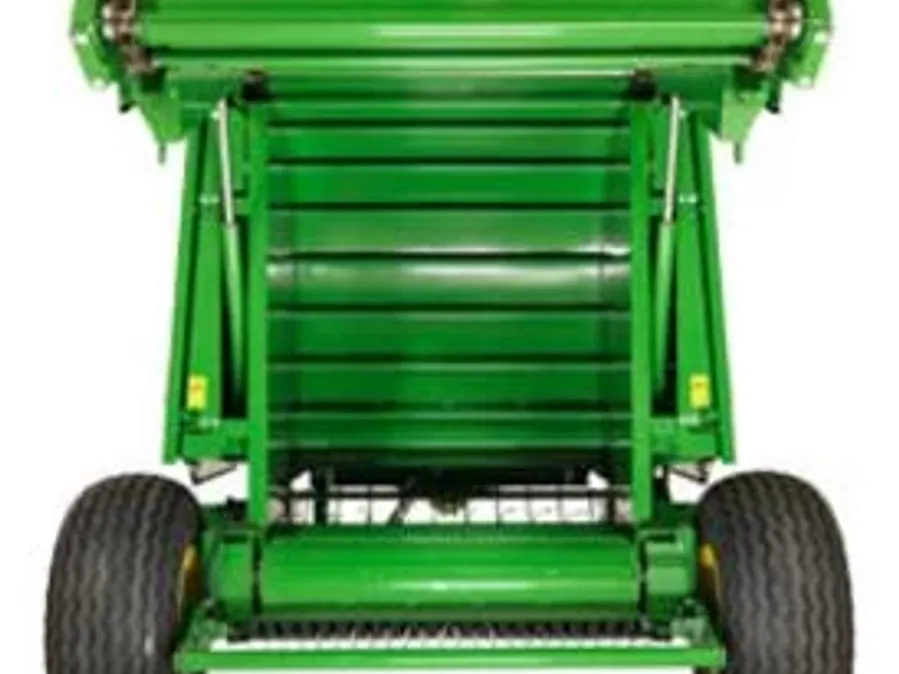

Bale Chamber6 specifications
- Bale Chamber Width (Metric)
- 1200.0 mm
- Bale Chamber Width (Imperial)
- 47.24 in.
- Bale Chamber Diameter (Metric)
- 1500 mm
- Bale Chamber Diameter (Imperial)
- 59.06 in.
- Maximum Bale Chamber Volume (Metric)
- 1.76 m³
- Maximum Bale Chamber Volume (Imperial)
- 62.15 cu ft
Transmission and Driveline1 specifications
- Number of Baler Chains
- 4
Tractor Requirements4 specifications
- Minimum Tractor Power Requirements (Metric)
- 37 kW
- Minimum Tractor Power Requirements (Imperial)
- 50 hp
- Minimum Required Hydraulic Flow (Metric)
- 25.0 L/min
- Minimum Required Hydraulic Flow (Imperial)
- 6.6 gpm
