John Deere
F442R Fixed chamber baler
Balers

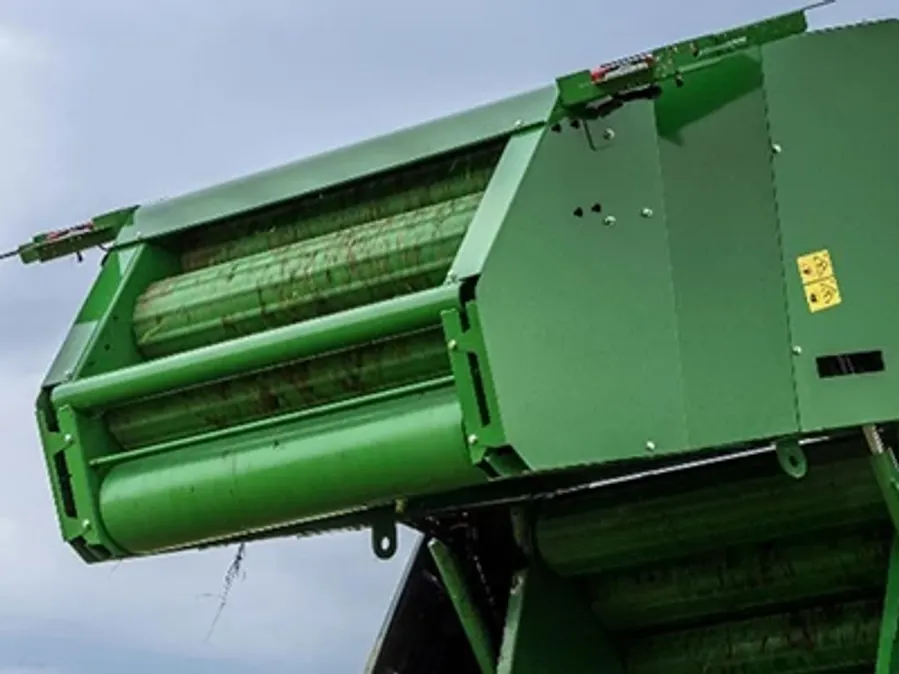

F442R round baler features an 18-roll chamber, MaxiCut HC technology and baler automation for consistent, high-quality bale production.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 1022C
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs4 specifications
- Working Width (DIN 11220) (Metric)
- mm
- Working Width (DIN 11220) (Imperial)
- in.
- Minimum Tractor Power Requirements (Metric)
- 88 kW
- Minimum Tractor Power Requirements (Imperial)
- 120 hp
Dimensions & Weights8 specifications
- Length (Metric)
- 4.6 m
- Length (Imperial)
- 15.1 ft
- Width (Metric)
- 2.76 m
- Width (Imperial)
- 9.06 ft
- Height (Metric)
- 2.38 m
- Height (Imperial)
- 7.81 ft
- Weight (Metric)
- 4400.0 kg
- Weight (Imperial)
- 9700.0 lb.
Pickup6 specifications
- Working Width (DIN 11220) (Metric)
- mm
- Working Width (DIN 11220) (Imperial)
- in.
- Tines Diameter (Metric)
- 6.0 mm
- Tines Diameter (Imperial)
- 0.24 in.
- Pickup Tine Spacing (Metric)
- 66.0 mm
- Pickup Tine Spacing (Imperial)
- 2.6 in.
Rotor6 specifications

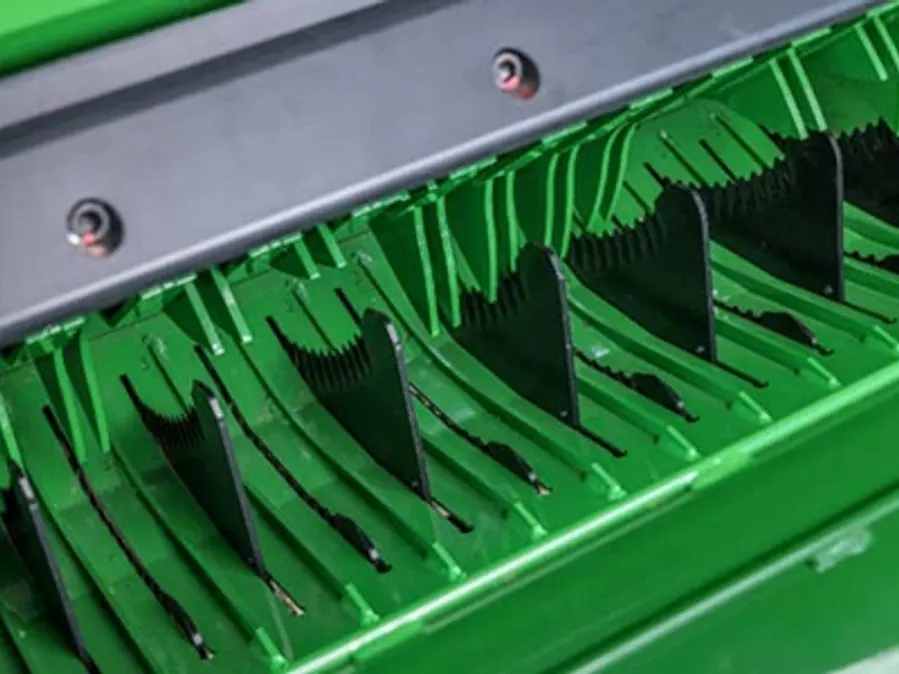

- Standard Precutter Rotor Maximum Number of Knives
- 15
- Standard Precutter Rotor Theoretical Length of Cut (Metric)
- mm
- Standard Precutter Rotor Theoretical Length of Cut (Imperial)
- in.
- Premium Precutter Rotor Maximum Number of Knives
- 25
- Premium Precutter Rotor Theoretical Length of Cut (Metric)
- mm
- Premium Precutter Rotor Theoretical Length of Cut (Imperial)
- in.
Bale Chamber6 specifications
- Bale Chamber Width (Metric)
- 1210.0 mm
- Bale Chamber Width (Imperial)
- 47.64 in.
- Bale Chamber Diameter (Metric)
- 1250 - 1350 mm
- Bale Chamber Diameter (Imperial)
- 49.21 - 53.15 in.
- Maximum Bale Chamber Volume (Metric)
- 1.73 m³
- Maximum Bale Chamber Volume (Imperial)
- 61.09 cu ft
Transmission and Driveline1 specifications
- Number of Baler Chains
- 5
Tractor Requirements4 specifications
- Minimum Tractor Power Requirements (Metric)
- 88 kW
- Minimum Tractor Power Requirements (Imperial)
- 120 hp
- Minimum Required Hydraulic Flow (Metric)
- 35.0 L/min
- Minimum Required Hydraulic Flow (Imperial)
- 9.25 gpm
Additional Information1 specifications
- Date Collected
- 2025-08-13
