John Deere

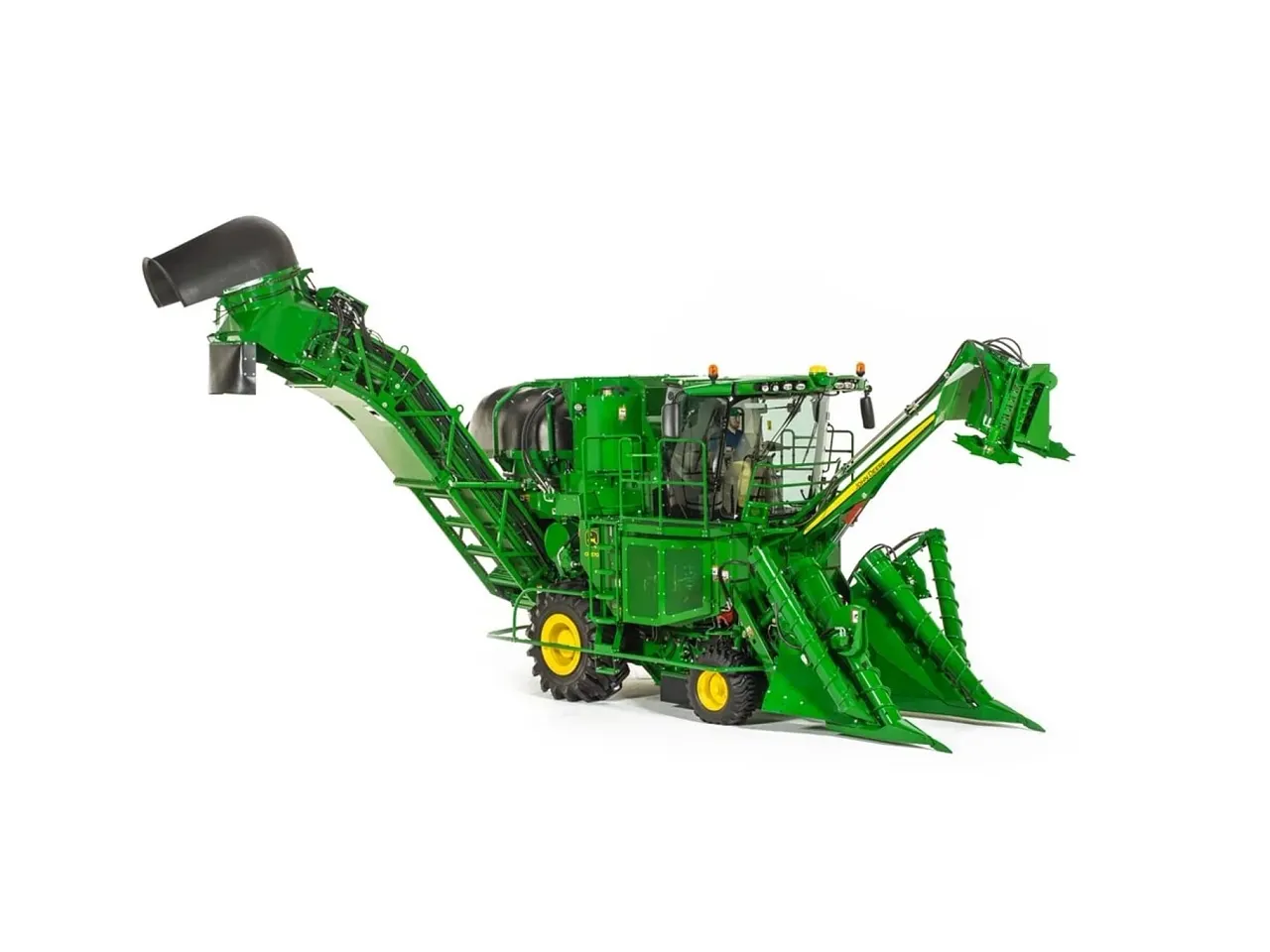

ModelCH570 Wheel Cane Harvester
Sugar
CH570 Sugarcane Harvester delivers higher cane quality, reduced losses, and efficient harvesting for improved productivity.
Model / part number: 061JT8
Key specifications
- Standard Power At 2100 RPM (Imperial)
- 337.0 hp
- Standard Power At 2100 RPM (Other)
- 342.0 cv
- Fuel Capacity (Imperial)
- 160.0 gal.
- Maximum Whole Topper Reach (Imperial)
- 17.0 ft
Technical specifications
72 specifications
Key Specs11 details
- Standard Power At 2100 RPM (Imperial)
- 337.0 hp
- Standard Power At 2100 RPM (Metric)
- 251.0 kW
- Standard Power At 2100 RPM (Other)
- 342.0 cv
- Fuel Capacity (Imperial)
- 160.0 gal.
- Fuel Capacity (Metric)
- 605.0 L
- Maximum Whole Topper Reach (Imperial)
- 17.0 ft
- Maximum Whole Topper Reach (Metric)
- 5.2 m
- Standard Disc Diameter (With Hard Surfacing) (Imperial)
- 24.0 in.
- Standard Disc Diameter (With Hard Surfacing) (Metric)
- 61.0 cm
- Fan Diameter (Imperial)
- 5.0 ft
- Fan Diameter (Metric)
- 1.5 m
Engine20 details
- Model
- 6090HT Diesel
- Family
- AJDXL09.0102
- Standard Power At 2100 RPM (Imperial)
- 337.0 hp
- Standard Power At 2100 RPM (Metric)
- 251.0 kW
- Standard Power At 2100 RPM (Other)
- 342.0 cv
- Standard Power At 2000 RPM (Imperial)
- 350.0 hp
- Standard Power At 2000 RPM (Metric)
- 261.0 kW
- Standard Power At 2000 RPM (Other)
- 355.0 cv
- Optional Power At 2100 RPM (Imperial)
- 375.0 hp
- Optional Power At 2100 RPM (Metric)
- 280.0 kW
- Optional Power At 2100 RPM (Other)
- 380.0 cv
- Optional Power At 2000 RPM (Imperial)
- 400.0 hp
- Optional Power At 2000 RPM (Metric)
- 298.0 kW
- Optional Power At 2000 RPM (Other)
- 405.0 cv
- Displacement (Imperial)
- 548.0 cu in.
- Engine Speeds Low Idle
- 850.0 rpm
- Engine Speeds Full Throttle
- 2210.0 rpm
- Alternator (Metric)
- 200.0 amp
- Alternator (Other)
- 12.0 V
- Displacement (Alternative 2)
- 9.0 L
Transmission2 details
- Wheel Machine Top Speed (Dependent on Tire/Hydraulic System Option) (Imperial)
- 0 - 15.3 mph
- Wheel Machine Top Speed (Dependent on Tire/Hydraulic System Option) (Metric)
- 0 - 24.6 km/h
Capacities4 details
- Fuel Capacity (Imperial)
- 160.0 gal.
- Fuel Capacity (Metric)
- 605.0 L
- Hydraulic Oil Capacity (Imperial)
- 106.0 gal.
- Hydraulic Oil Capacity (Metric)
- 405.0 L
Wheels4 details
- Tread Width Front (Imperial)
- 82.0 in.
- Tread Width Front (Metric)
- 2.08 m
- Tread Width Rear (Imperial)
- 74.0 in.
- Tread Width Rear (Metric)
- 1.88 m
Topper6 details
- Maximum Whole Topper Reach (Imperial)
- 17.0 ft
- Maximum Whole Topper Reach (Metric)
- 5.2 m
- Extended Width Whole Topper Overall (Imperial)
- 93.1 in.
- Extended Width Whole Topper Overall (Metric)
- 2.4 m
- Extended Width Whole Topper Compared To On Standard Topper (Imperial)
- 71.5 in.
- Extended Width Whole Topper Compared To On Standard Topper (Metric)
- 1.8 m
Crop Dividers1 detail
- Inside Scrolls Approach Angle
- 46.0 degree (angle)
Basecutter7 details
- Standard Disc Diameter (With Hard Surfacing) (Imperial)
- 24.0 in.
- Standard Disc Diameter (With Hard Surfacing) (Metric)
- 61.0 cm
- Optional Disc Diameter (With Hard Surfacing) (Imperial)
- 22.0 in.
- Optional Disc Diameter (With Hard Surfacing) (Metric)
- 56.0 cm
- Center Distance (Imperial)
- 24.8 in.
- Center Distance (Metric)
- 63.0 cm
- Number Of Blades Per Disc
- 5
Feedrollers1 detail
- Number Of Rollers
- 10
Chopper4 details
- Drum Center Distance (Imperial)
- 15.0 in.
- Drum Center Distance (Metric)
- 38.1 cm
- Blade Width (Imperial)
- 3.74 in.
- Blade Width (Metric)
- 9.5 cm
Primary Extractor5 details
- Fan Diameter (Imperial)
- 5.0 ft
- Fan Diameter (Metric)
- 1.5 m
- Number Of Fan Blades
- 4
- Maximum Fan Speed Factory Set
- 1000.0 rpm
- Maximum Fan Speed Possible
- 1360.0 rpm
Elevator5 details
- Width (Imperial)
- 34.2 in.
- Width (Metric)
- 86.9 cm
- Total Swing Angle
- 170.0 degree (angle)
- Optional Elevator Extension (Imperial)
- 12 / 24 in.
- Optional Elevator Extension (Metric)
- 30.5 / 61 cm
Weight2 details
- Machine Weight (May Vary With Options) (Imperial)
- 38500.0 lb.
- Machine Weight (May Vary With Options) (Metric)
- 17500.0 kg
