John Deere

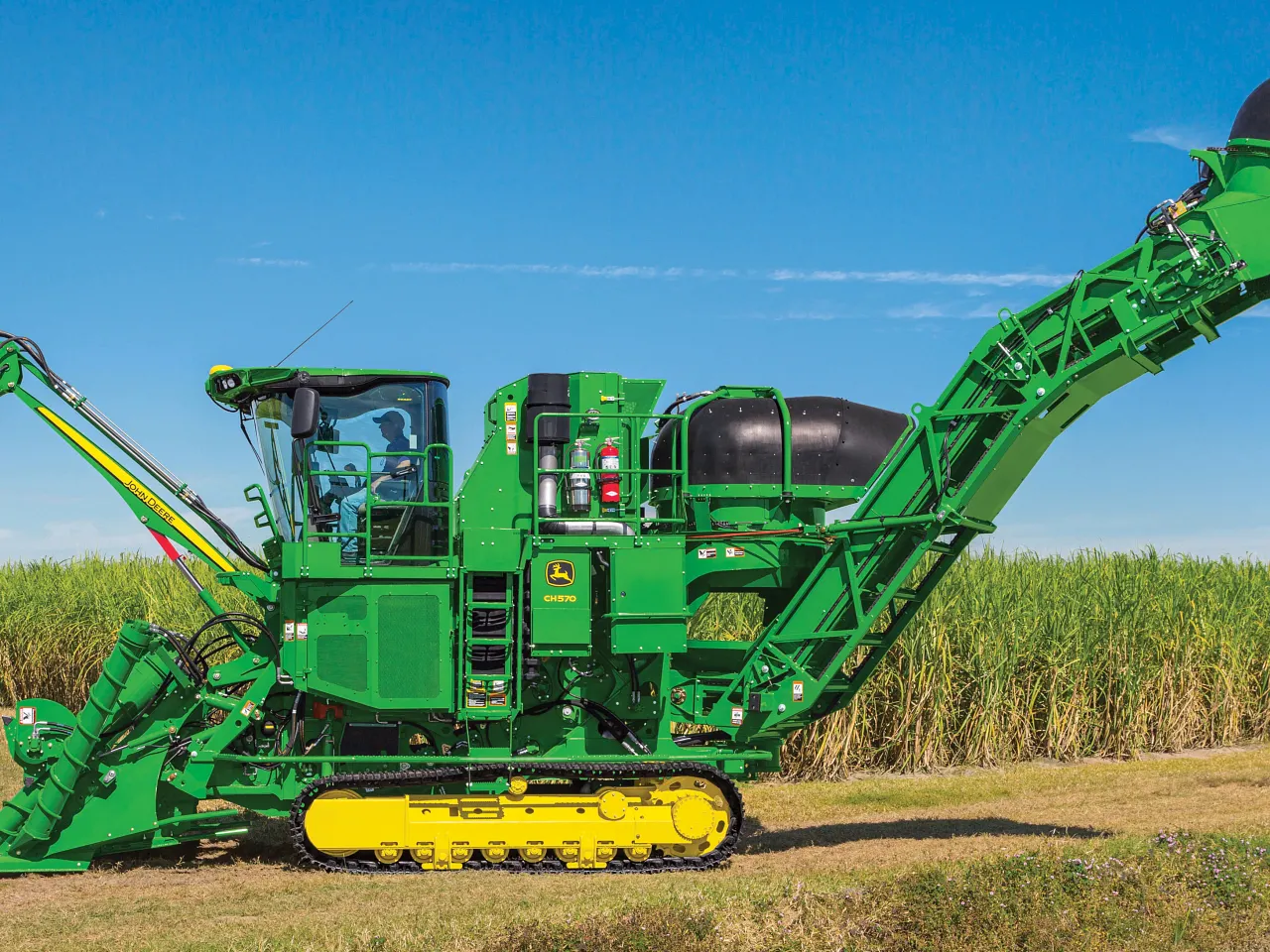

ModelCH570 Track Cane Harvester
Sugar
CH570 Sugarcane Harvester delivers higher cane quality, reduced losses, and efficient harvesting for improved productivity.
Model / part number: 062JNW
Key specifications
- Standard engine power
- 251 kW (337 hp)
- Optional engine power
- Up to 280 kW (375 hp), depending on emissions configuration
- Fuel capacity
- 605 L
- DEF capacity
- 54 L on applicable Tier 4 configuration
Technical specifications
10 specifications
Key Specifications10 details
- Engine
- John Deere 6090T PowerTech, 6-cylinder, 9.0 L
- Standard engine power
- 251 kW (337 hp)
- Optional engine power
- Up to 280 kW (375 hp), depending on emissions configuration
- Fuel capacity
- 605 L
- Track machine top speed
- 9 km/h
- Wheel machine top speed
- Up to 24.6 km/h; dependent on tire and hydraulic-system option
- Track shoes
- 457 mm standard; 410 mm and 510 mm options
- Maximum whole topper reach
- 5.2 m
- Primary extractor diameter
- 1.52 m
- DEF capacity
- 54 L on applicable Tier 4 configuration
