John Deere

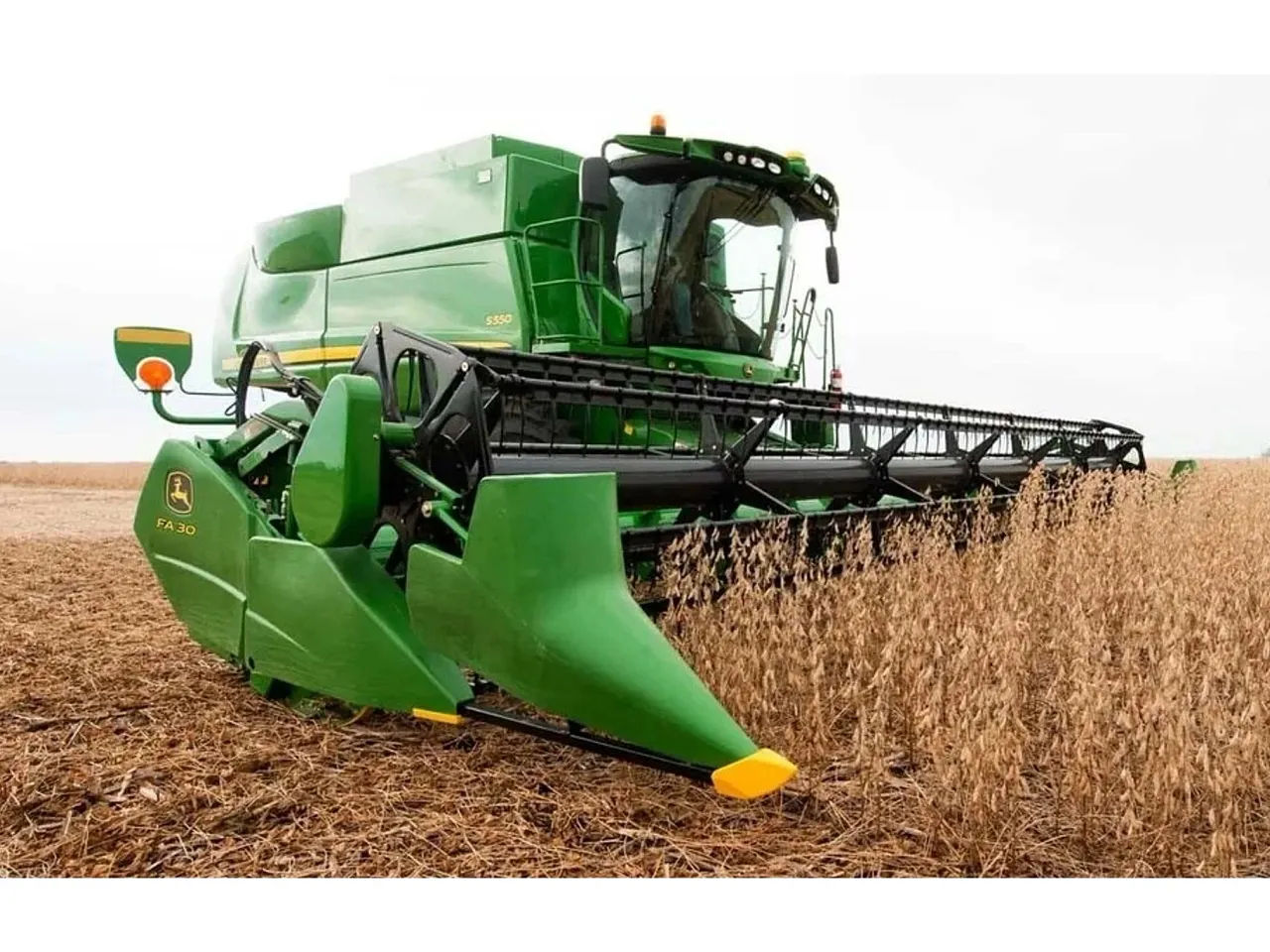

FA 30 Flex-Auger Cutting Platform
Headers and Platforms
The FA header with floating cutterbar runs faster and cuts cleaner on uneven ground for reduced losses in down or tangled crops. The result of decades of know-how in harvesting soya and beans, the 600F is available in 5 widths from 6.10 m up to 10.70 m. It takes the proven frame, drives, auger and stainless steel feed plates of the RA and adds its own unique flex technology.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 767BCQ
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs11 specifications
- Cutterbar Length (Metric)
- 9.14 m
- Cutterbar Length (Imperial)
- 30.0 ft
- Flex Cutterbar Float Range (Metric)
- 152.0 mm
- Flex Cutterbar Float Range (Imperial)
- 6.0 in.
- Tilt Adjustment
- 17.0 degree (angle)
- Height Control
- Hydraulic
- Speed Control
- Hydraulic
- Cutting Width (Metric)
- 9.15 m
- Cutting Width (Imperial)
- 30.0 ft
- Overall Width (Metric)
- 9.6 m
- Overall Width (Imperial)
- 31.7 ft
Platform1 specifications
- Type
- Auger
Cutterbar14 specifications
- Cutterbar Type
- Knife system with in-line gearbox
- Type (Metric)
- 102.0 mm
- Type (Imperial)
- 4.0 in.
- Cutterbar Angle
- 10.0 degree (angle)
- Cutterbar Length (Metric)
- 9.14 m
- Cutterbar Length (Imperial)
- 30.0 ft
- Flex Cutterbar Float Range (Metric)
- 152.0 mm
- Flex Cutterbar Float Range (Imperial)
- 6.0 in.
- Tilt Adjustment
- 17.0 degree (angle)
- Knife Sections
- Heavy-duty, over-serrated
- Guards
- Forged steel, heat-treated
- Backshaft Speed
- 490.0 rpm
- Knife Speed (Imperial)
- 520.0 rpm
- Knife Speed (Other)
- 490.0 cycles/min
Platform Auger4 specifications
- Diameter (Metric)
- 66.0 cm
- Diameter (Imperial)
- 26.0 in.
- Operating Speed Minimum
- 135.0 rpm
- Operating Speed Maximum
- 170.0 rpm
Reel3 specifications
- Number Of Slats
- 6
- Diameter (Metric)
- 1.067 m
- Diameter (Imperial)
- 3.5 ft
Reel Controls4 specifications
- Height Control
- Hydraulic
- Speed Control
- Hydraulic
- Operating Speeds Minimum
- 6.0 rpm
- Operating Speeds Maximum
- 44.0 rpm
Hydraulics2 specifications
- Reel Fore/Aft Stroke (Metric)
- 359.0 mm
- Reel Fore/Aft Stroke (Imperial)
- 14.1 in.
Dimensions8 specifications
- Cutting Width (Metric)
- 9.15 m
- Cutting Width (Imperial)
- 30.0 ft
- Gathering Width (Metric)
- 9.18 m
- Gathering Width (Imperial)
- 30.1 ft
- Overall Width (Metric)
- 9.6 m
- Overall Width (Imperial)
- 31.7 ft
- Approximate Weight (Metric)
- 2559.0 kg
- Approximate Weight (Imperial)
- 5641.0 lb.
