John Deere

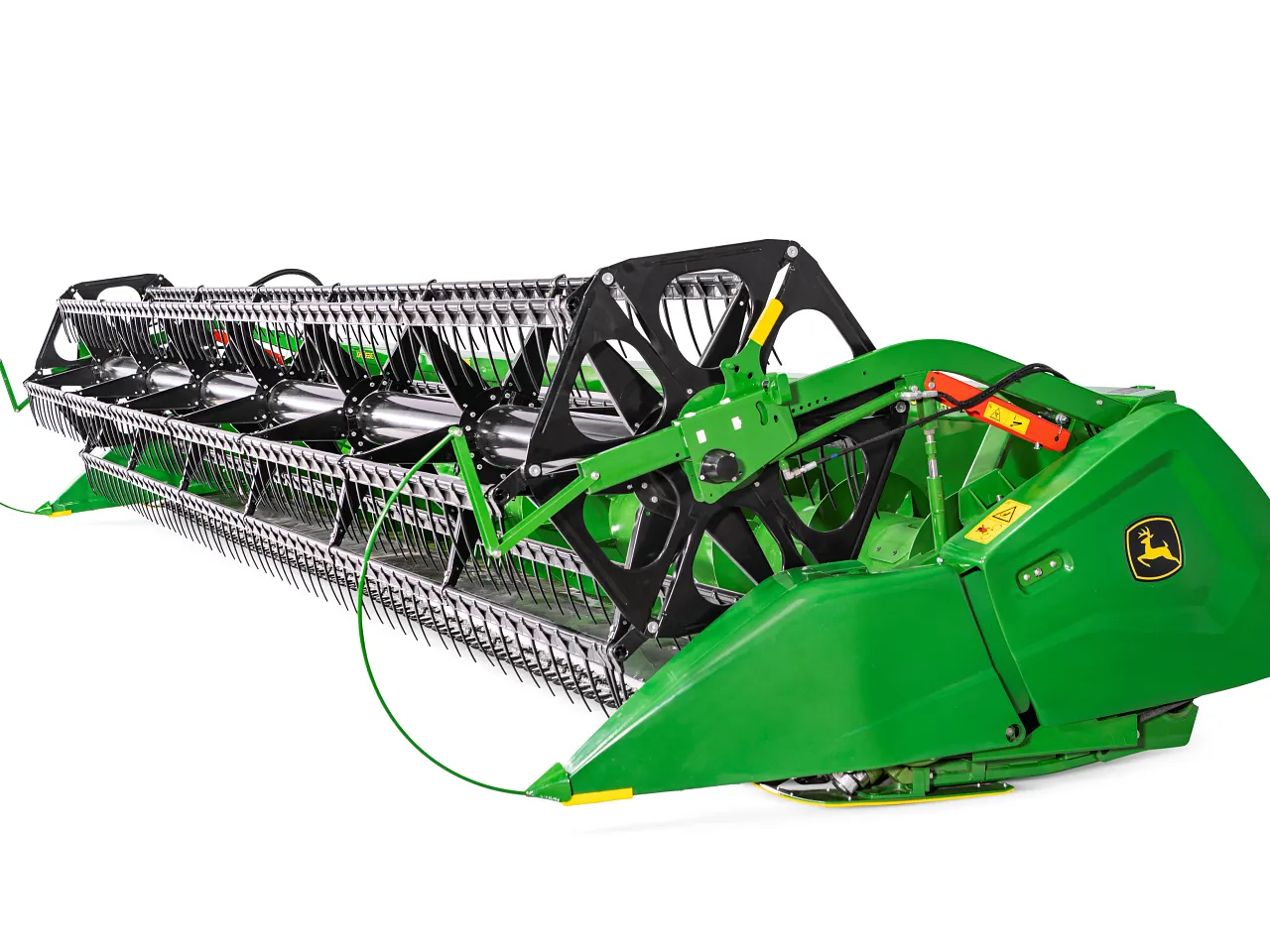

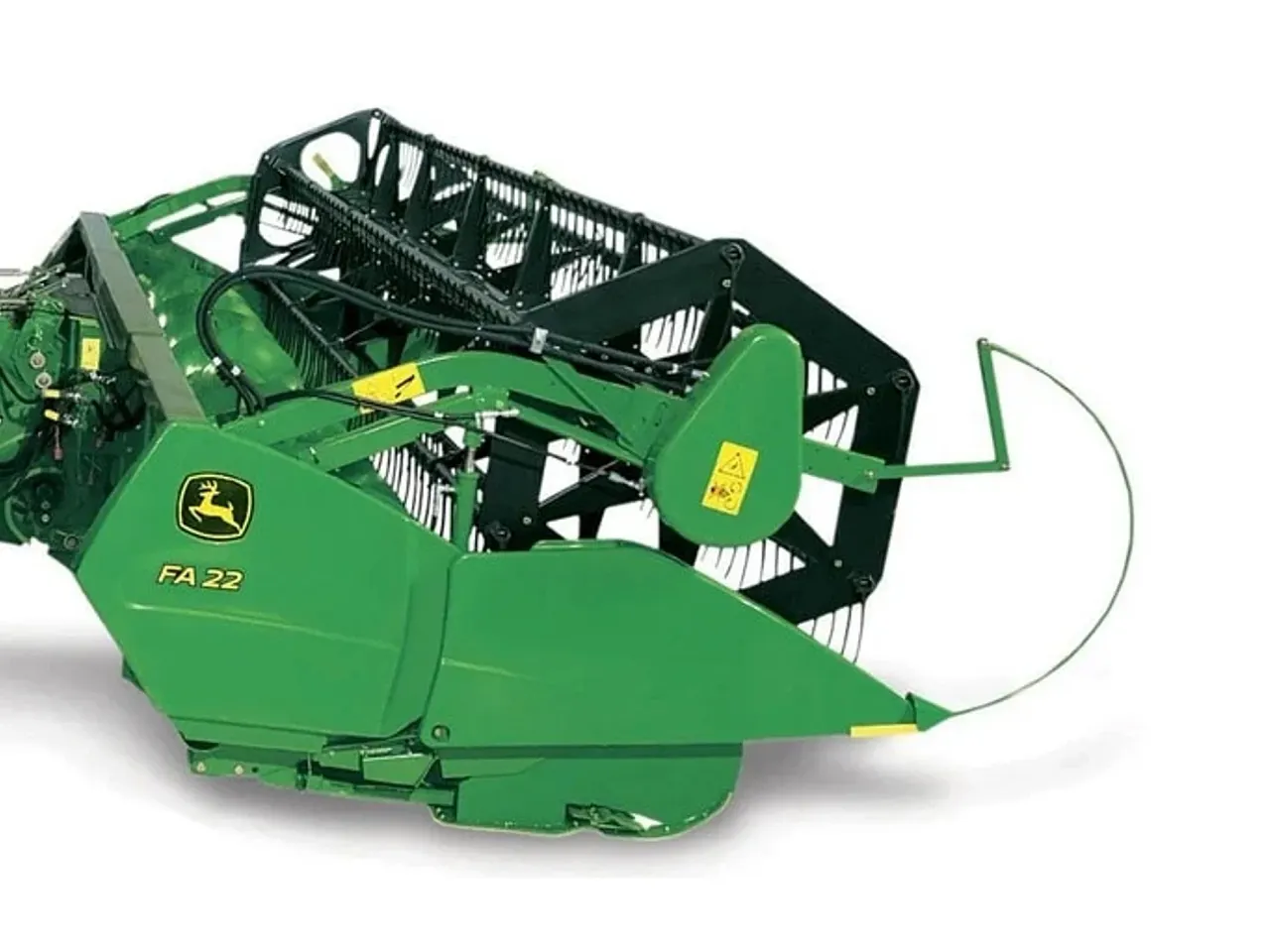

FA 22 HydraFlex™ Cutting Platform
Headers and Platforms
FA 22 HydraFlex™ Cutting Platform Headers from John Deere. Learn more about the features, specifications and more for the FA 22 HydraFlex™ Cutting Platform Headers.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 765BCQ
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs11 specifications
- Cutterbar Length (Metric)
- 6.7 m
- Cutterbar Length (Imperial)
- 22.0 ft
- Flex Cutterbar Float Range (Metric)
- 152.0 mm
- Flex Cutterbar Float Range (Imperial)
- 6.0 in.
- Tilt Adjustment
- 17.0 degree (angle)
- Height Control
- Hydraulic
- Speed Control
- Hydraulic
- Cutting Width (Metric)
- 6.7 m
- Cutting Width (Imperial)
- 22.0 ft
- Overall Width (Metric)
- 7.5 m
- Overall Width (Imperial)
- 23.7 ft
Platform1 specifications
- Type
- Auger
Cutterbar14 specifications
- Cutterbar Type
- Knife system with in-line gearbox
- Type (Metric)
- 102.0 mm
- Type (Imperial)
- 4.0 in.
- Cutterbar Angle
- 10.0 degree (angle)
- Cutterbar Length (Metric)
- 6.7 m
- Cutterbar Length (Imperial)
- 22.0 ft
- Flex Cutterbar Float Range (Metric)
- 152.0 mm
- Flex Cutterbar Float Range (Imperial)
- 6.0 in.
- Tilt Adjustment
- 17.0 degree (angle)
- Knife Sections
- Heavy-duty, over-serrated
- Guards
- Forged steel, heat-treated
- Backshaft Speed
- 490.0 rpm
- Knife Speed (Imperial)
- 520.0 rpm
- Knife Speed (Other)
- 490.0 cycles/min
Platform Auger4 specifications
- Diameter (Metric)
- 66.0 cm
- Diameter (Imperial)
- 26.0 in.
- Operating Speed Minimum
- 135.0 rpm
- Operating Speed Maximum
- 170.0 rpm
Reel3 specifications
- Number Of Slats
- 6
- Diameter (Metric)
- 1.067 m
- Diameter (Imperial)
- 3.5 ft
Reel Controls4 specifications
- Height Control
- Hydraulic
- Speed Control
- Hydraulic
- Operating Speeds Minimum
- 6.0 rpm
- Operating Speeds Maximum
- 44.0 rpm
Hydraulics2 specifications
- Reel Fore/Aft Stroke (Metric)
- 359.0 mm
- Reel Fore/Aft Stroke (Imperial)
- 14.1 in.
Dimensions8 specifications
- Cutting Width (Metric)
- 6.7 m
- Cutting Width (Imperial)
- 22.0 ft
- Gathering Width (Metric)
- 6.8 m
- Gathering Width (Imperial)
- 22.1 ft
- Overall Width (Metric)
- 7.5 m
- Overall Width (Imperial)
- 23.7 ft
- Approximate Weight (Metric)
- 1912.0 kg
- Approximate Weight (Imperial)
- 4215.0 lb.
