John Deere

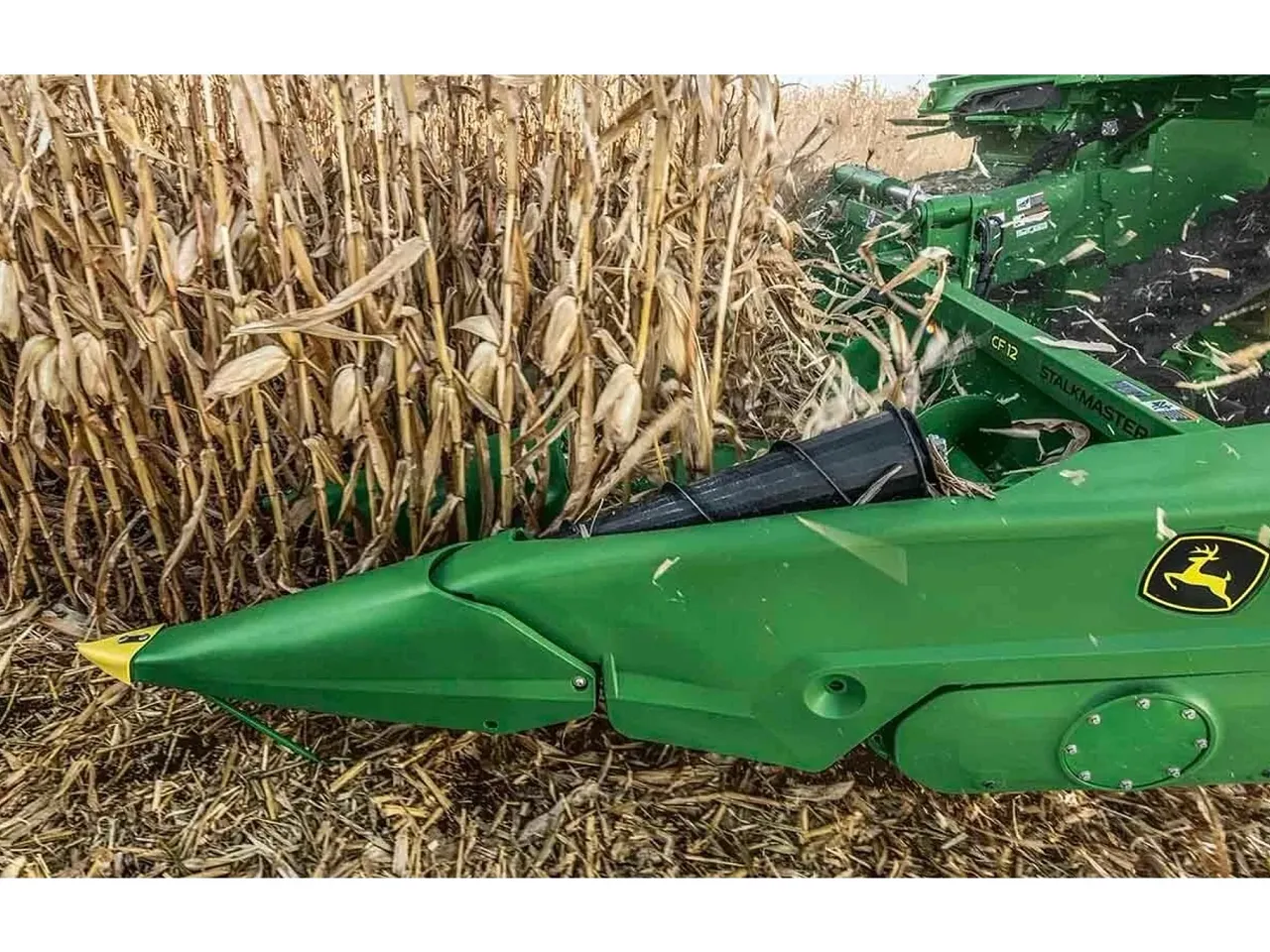

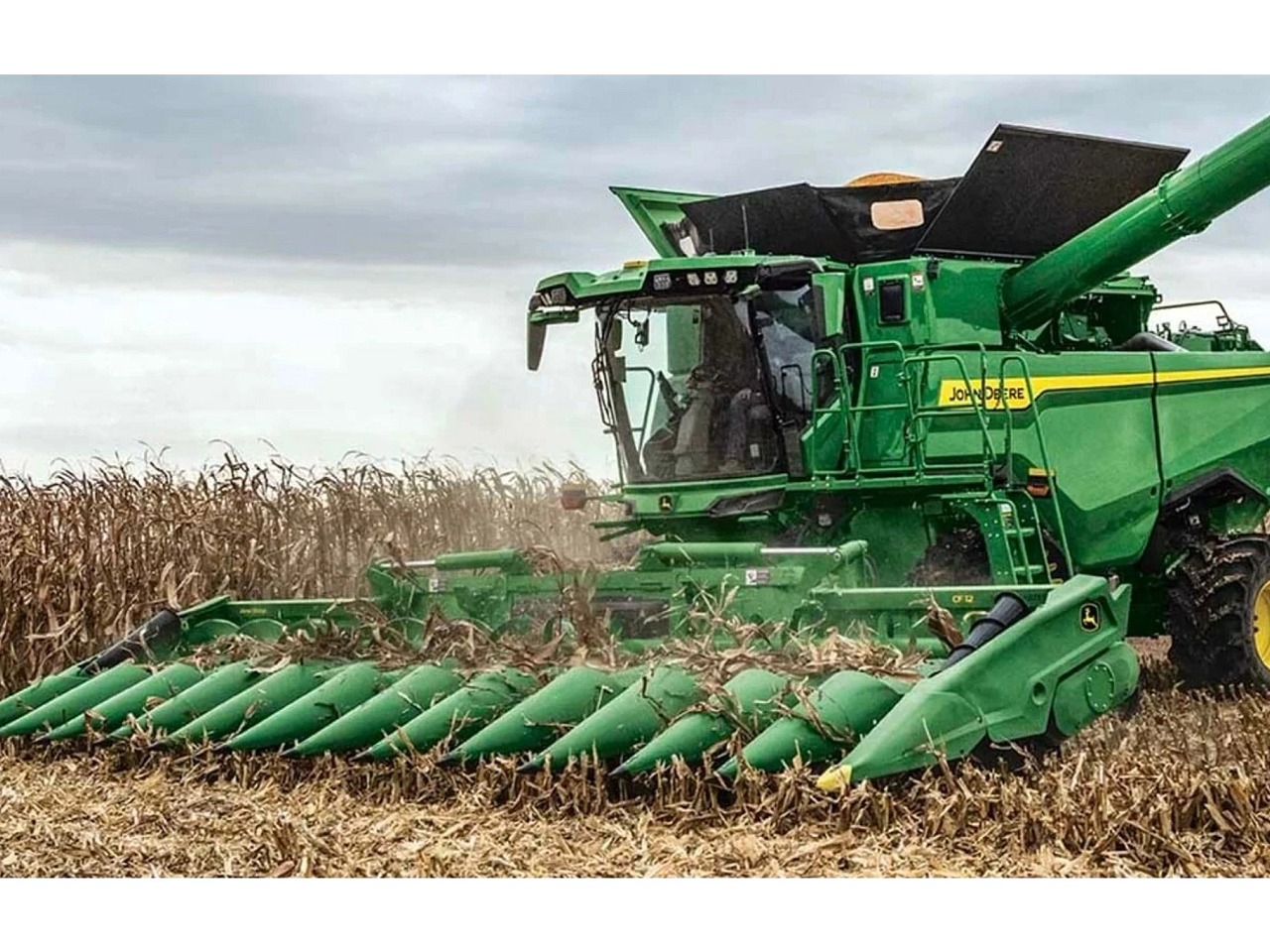

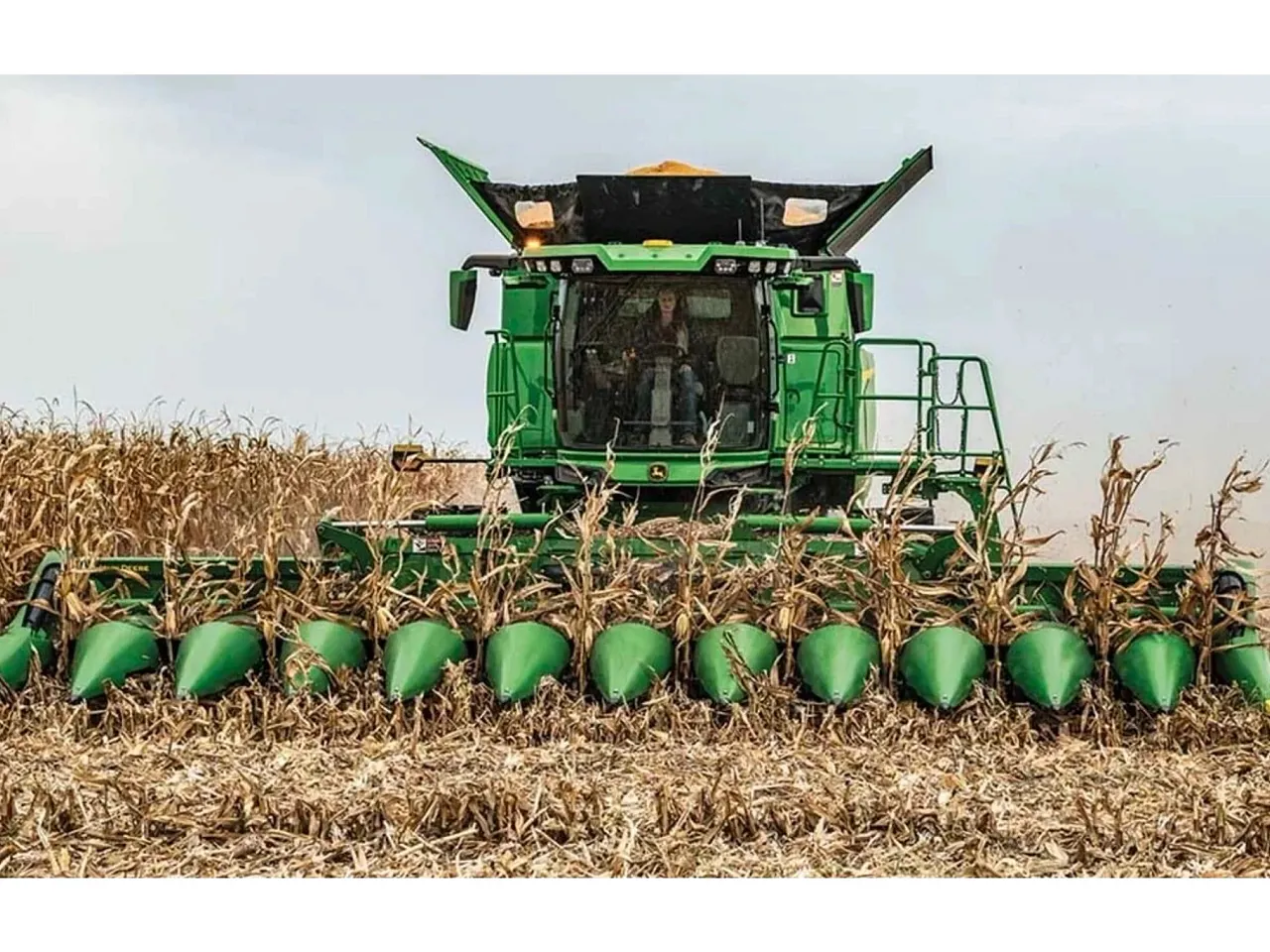

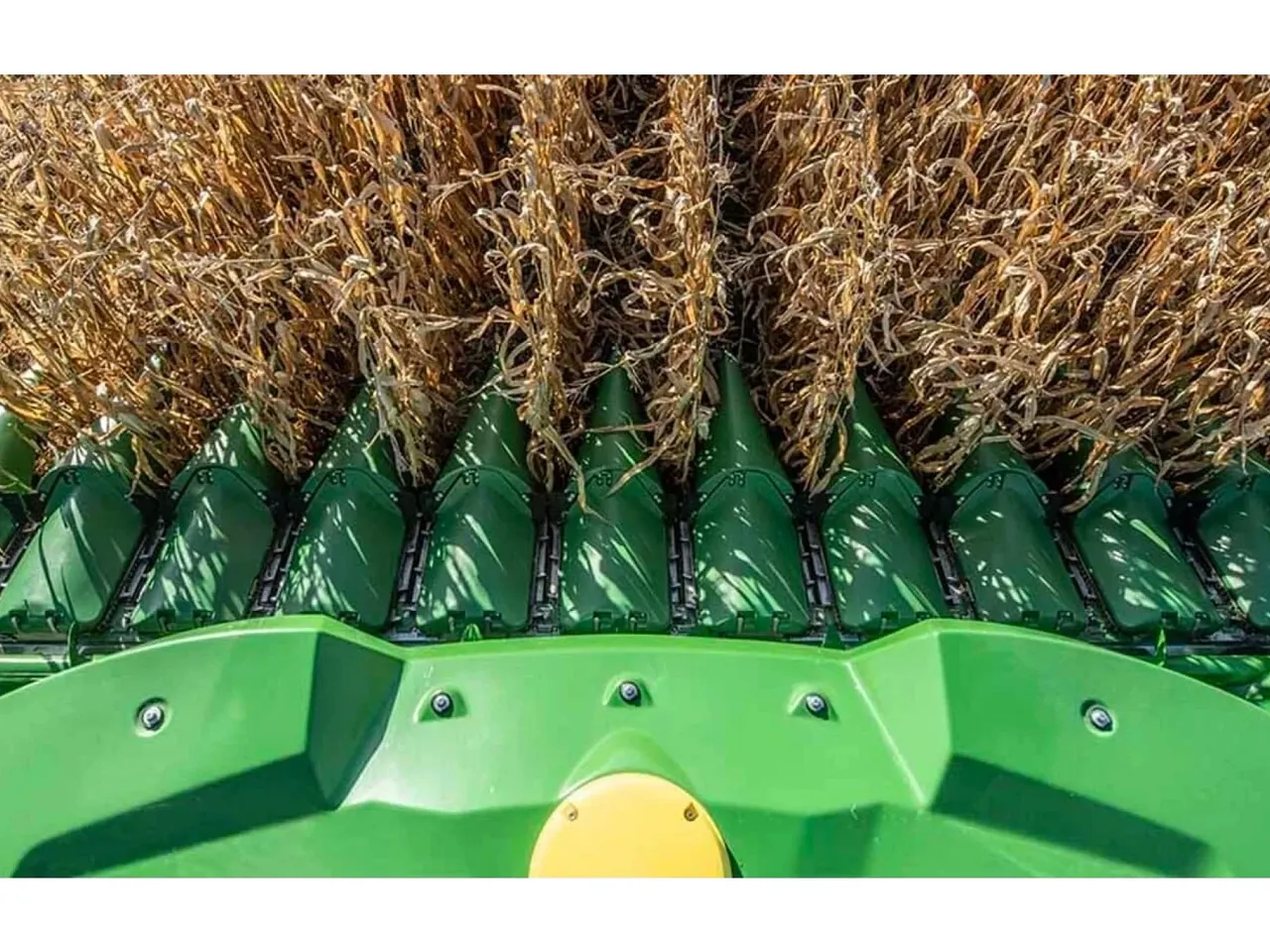

CF 12 Folding Corn Head
Headers and Platforms
Enhance your corn harvesting efficiency with the John Deere CF 12 Corn Head, designed for precise crop collection, robust durability, and seamless integration with combines for optimal yield and productivity.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 782BH
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs6 specifications
- Gathering Chains
- Heavy-duty, 620, endless steel roller chain with chromed pins (no master connecting link)
- Gathering Chain Adjustment
- Spring loaded, self-adjusting
- Deck Plate Adjustment
- Hydraulic adjustment
- Approximate Overall Width
- 9.24 m (30.33 ft)
- Approximate Folded Width
- 4.88 m (16 ft)
- Row Spacings
- 76.2 cm (30 in.)
Corn Head12 specifications
- Gathering Points
- Four-position, low-profile floating type hinged above gathering chains
- Center And Outer Gatherings
- Hinged, quickly removable
- Gathering Chains
- Heavy-duty, 620, endless steel roller chain with chromed pins (no master connecting link)
- Minimum Clearance Between Gathering Chains And Ground (Imperial)
- 1.25 in.
- Minimum Clearance Between Gathering Chains And Ground (Metric)
- 32.0 mm
- Row Unit Drive
- Enclosed, submerged-in-lubricant gearbox, driven by single input hexagon shaft
- Gathering Chain Adjustment
- Spring loaded, self-adjusting
- Stalk Rolls
- Opposed, intermeshing, and chopping (two per row-unit)
- Deck Plate Adjustment
- Hydraulic adjustment
- Slip Clutch
- One per row-unit plus auger drive
- Trash Knives
- Full-length, one-piece, heat-treated steel
- Stalk Deflectors
- Factory-installed option
Dimensions9 specifications
- Approximate Overall Width
- 9.24 m (30.33 ft)
- Approximate Folded Width
- 4.88 m (16 ft)
- Points In Operating Position (Lowered)
- 3 m (10 ft)
- Points Folded Up (Service Position)
- 2.6 m (8.5 ft)
- Approximate Shipping Weight (Includes Shipping Skid) non Stalk Master
- 4566 kg / 10,066 lb
- Approximate Shipping Weight (Includes Shipping Skid) Stalk Master
- 4897 kg / 10,796 lb
- Row Spacings
- 76.2 cm (30 in.)
- Standard Weight non Stalk Master
- 4566 kg / 10,066 lb
- Standard Weight Stalk Master
- 4897 kg / 10,796 lb
Additional Information1 specifications
- Date Collected
- 2020-06-15
