John Deere

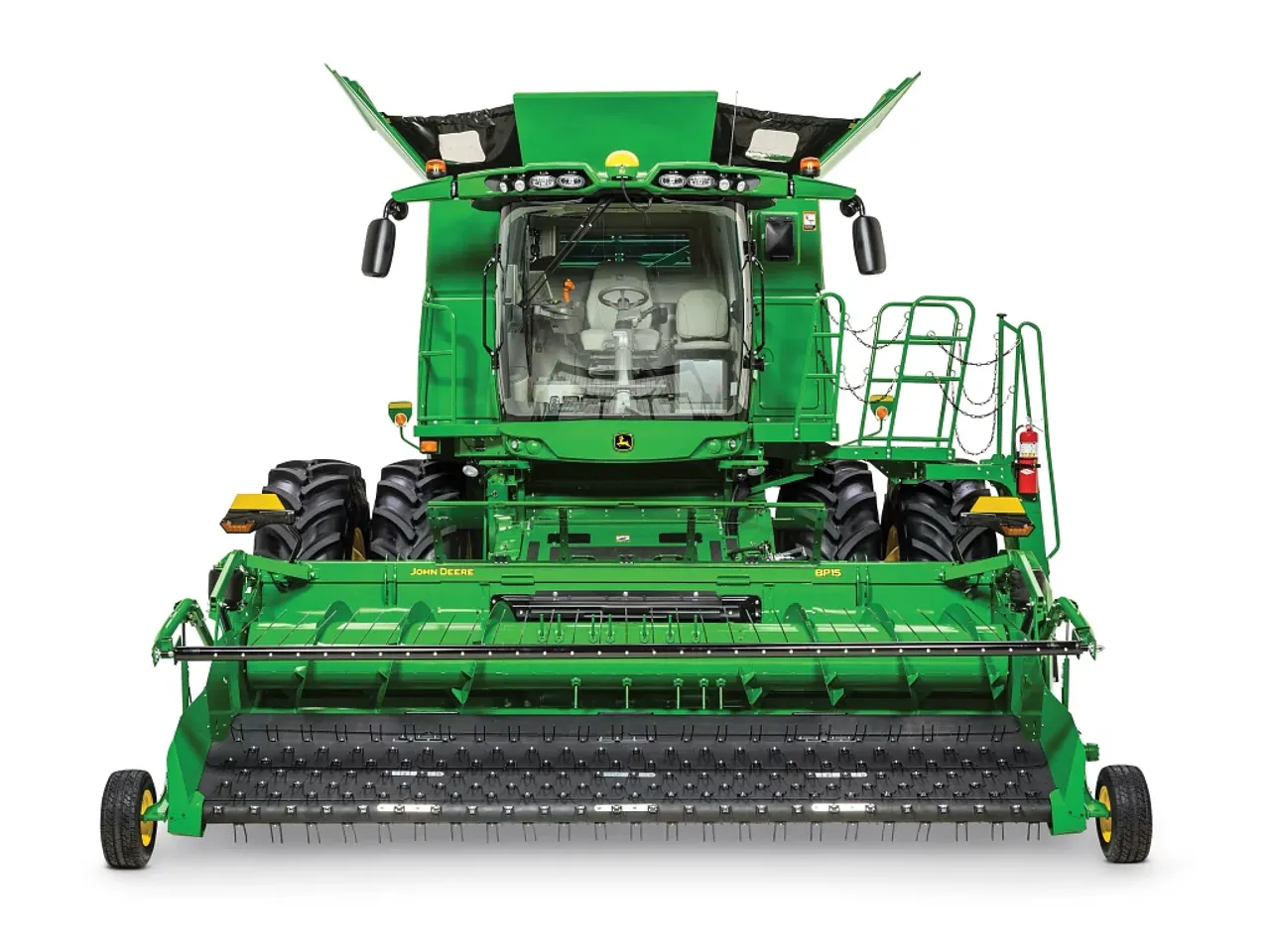

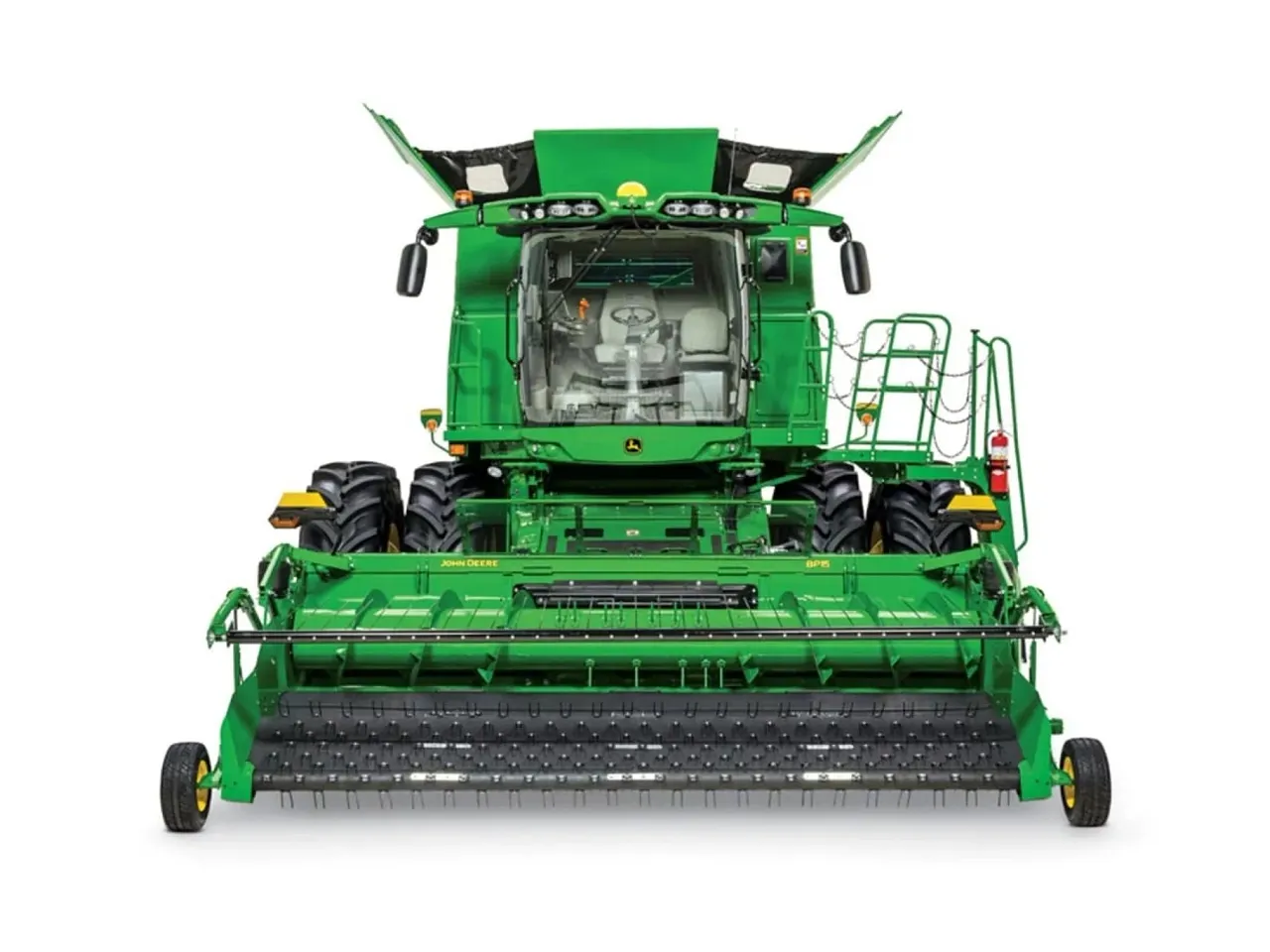

BP15 Belt Pickup Platform
Headers and Platforms
The John Deere BP15 Belt Pickup is engineered to optimize harvesting efficiency and productivity across various crops. With a generous total picking width of 4.55 meters (14.9 feet), this pickup head facilitates the swift collection of large windrows.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 756BH
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs8 specifications
- Total Picking Width (Metric)
- 4.55 m
- Total Picking Width (Imperial)
- 14.9 ft
- Cutting Width (Imperial)
- 14.9 ft
- Cutting Width (Metric)
- 4.55 m
- Number Of Fingers Per Belt
- 84
- Auger Diameter (Imperial)
- 26.0 in.
- Auger Diameter (Metric)
- 66.0 cm
- Auger Fingers
- Steel with breakaway notch; Diameter: 0.625 in. (15.9 mm)
Header2 specifications
- Transport Widths (Metric)
- 5.35 m
- Transport Widths (Imperial)
- 17.5 in.
Pickup Belts8 specifications
- Width Of Belts (Metric)
- 1.13 m
- Width Of Belts (Imperial)
- 3.7 ft
- Number Of Belts Per Pickup
- 4
- Total Picking Width (Metric)
- 4.55 m
- Total Picking Width (Imperial)
- 14.9 ft
- Number Of Rollers
- 2
- Cutting Width (Imperial)
- 14.9 ft
- Cutting Width (Metric)
- 4.55 m
Pickup Fingers2 specifications
- Type
- Plastic
- Number Of Fingers Per Belt
- 84
Auger10 specifications
- Float Range (Imperial)
- 2.25 in.
- Float Range (Metric)
- 57.0 mm
- Auger Diameter (Imperial)
- 26.0 in.
- Auger Diameter (Metric)
- 66.0 cm
- Auger Fingers
- Steel with breakaway notch; Diameter: 0.625 in. (15.9 mm)
- Number Of Auger Fingers
- 19 STS, maximum 22
- Auger Finger Pattern
- In-line, retracting
- Finger Reach (Metric)
- 152.0 mm
- Finger Reach (Imperial)
- 6.0 in.
- Operating Speed
- 216.0 rpm
Tires4 specifications
- Adjustment
- Toolless
- Pressure (Other)
- 103.4 kPa
- Pressure (Metric)
- 1.0 bar
- Pressure (Imperial)
- 15.0 psi
Crop Deflector1 specifications
- Crop Deflector
- Factory installed
Weight2 specifications
- Approximate Shipping Weight (Includes Shipping Skids) (Imperial)
- 3630.0 lb.
- Approximate Shipping Weight (Includes Shipping Skids) (Metric)
- 1647.0 kg
Additional Information1 specifications
- Date Collected
- 2020-06-15
