John Deere

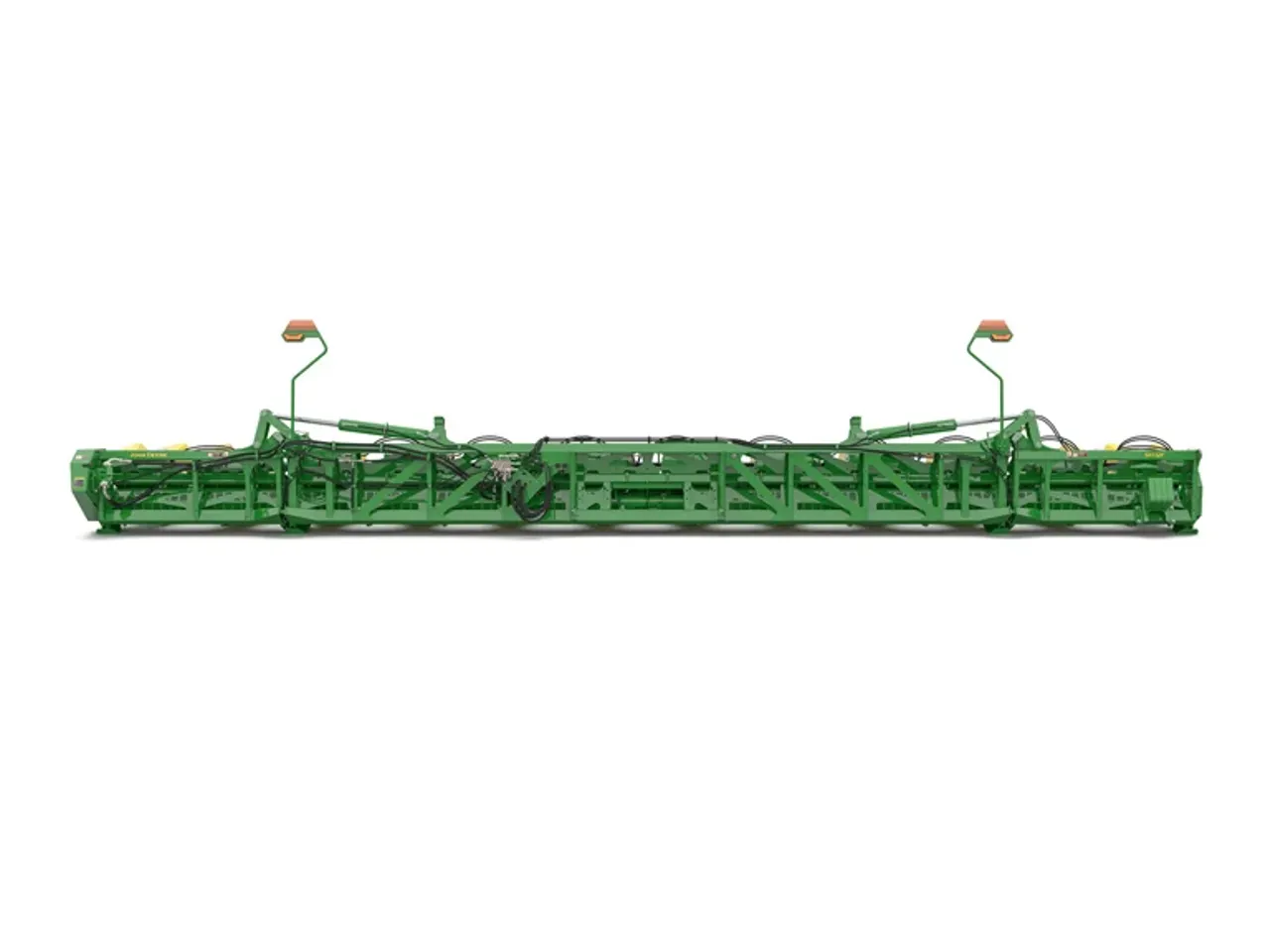

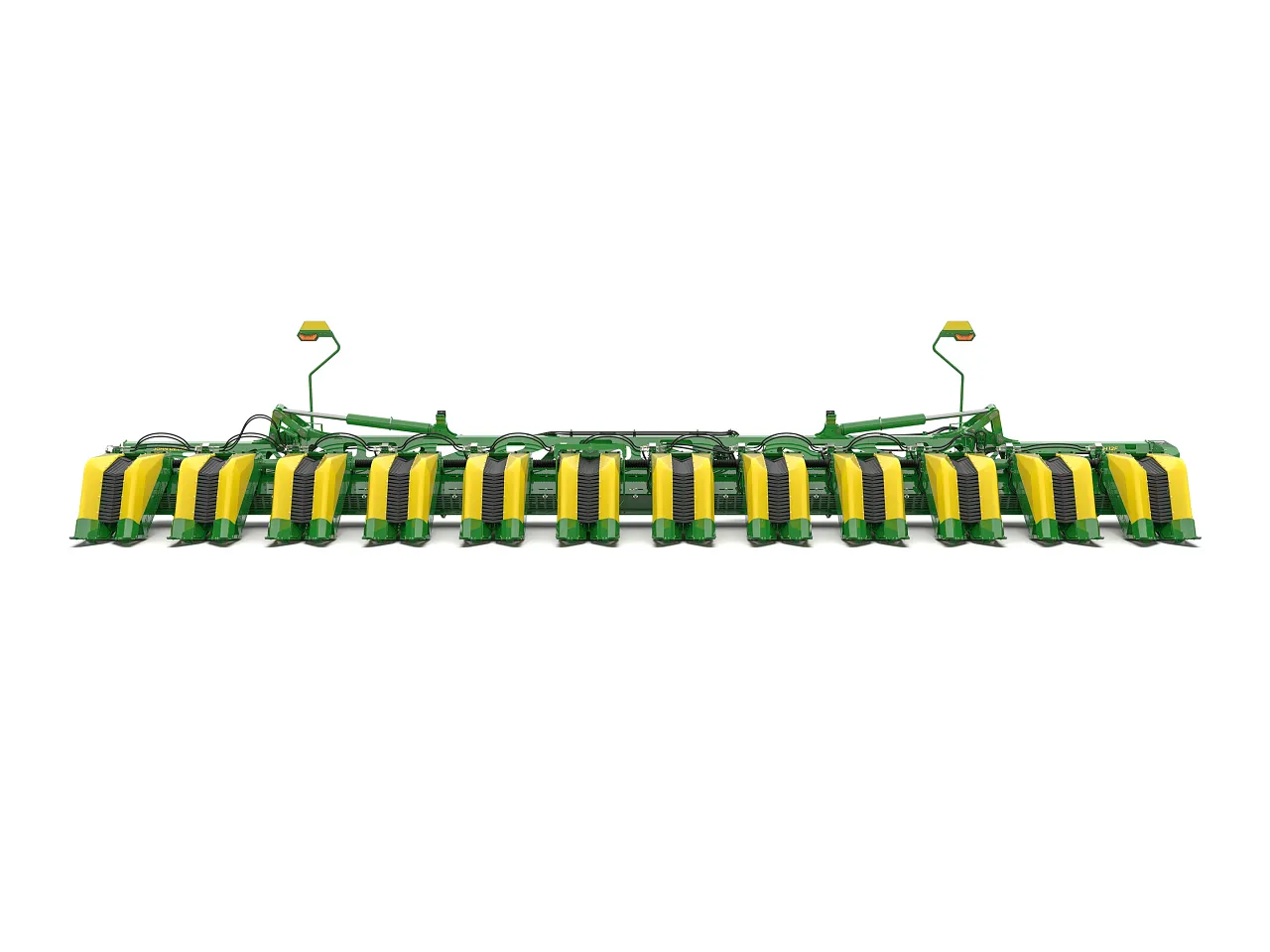

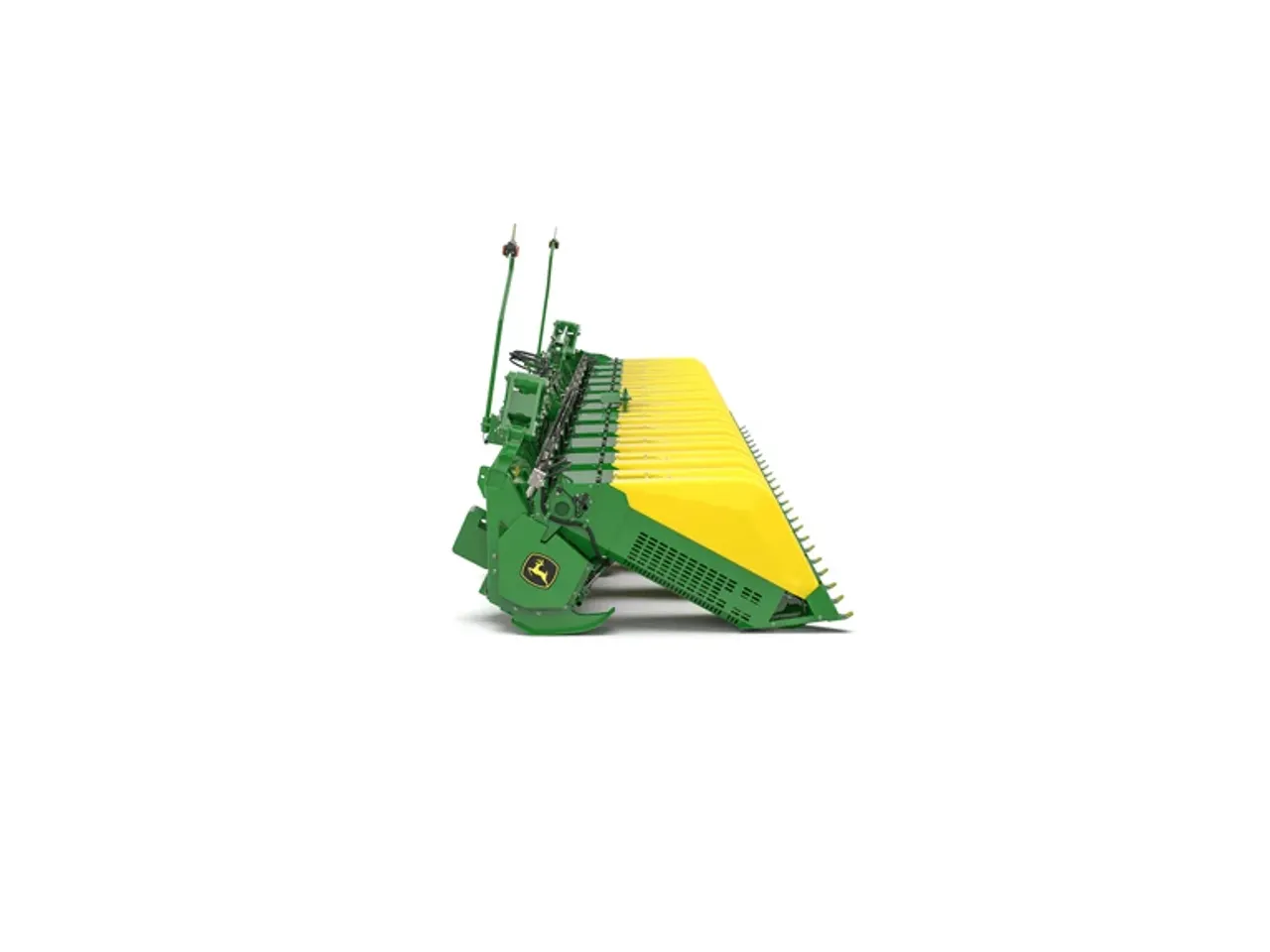

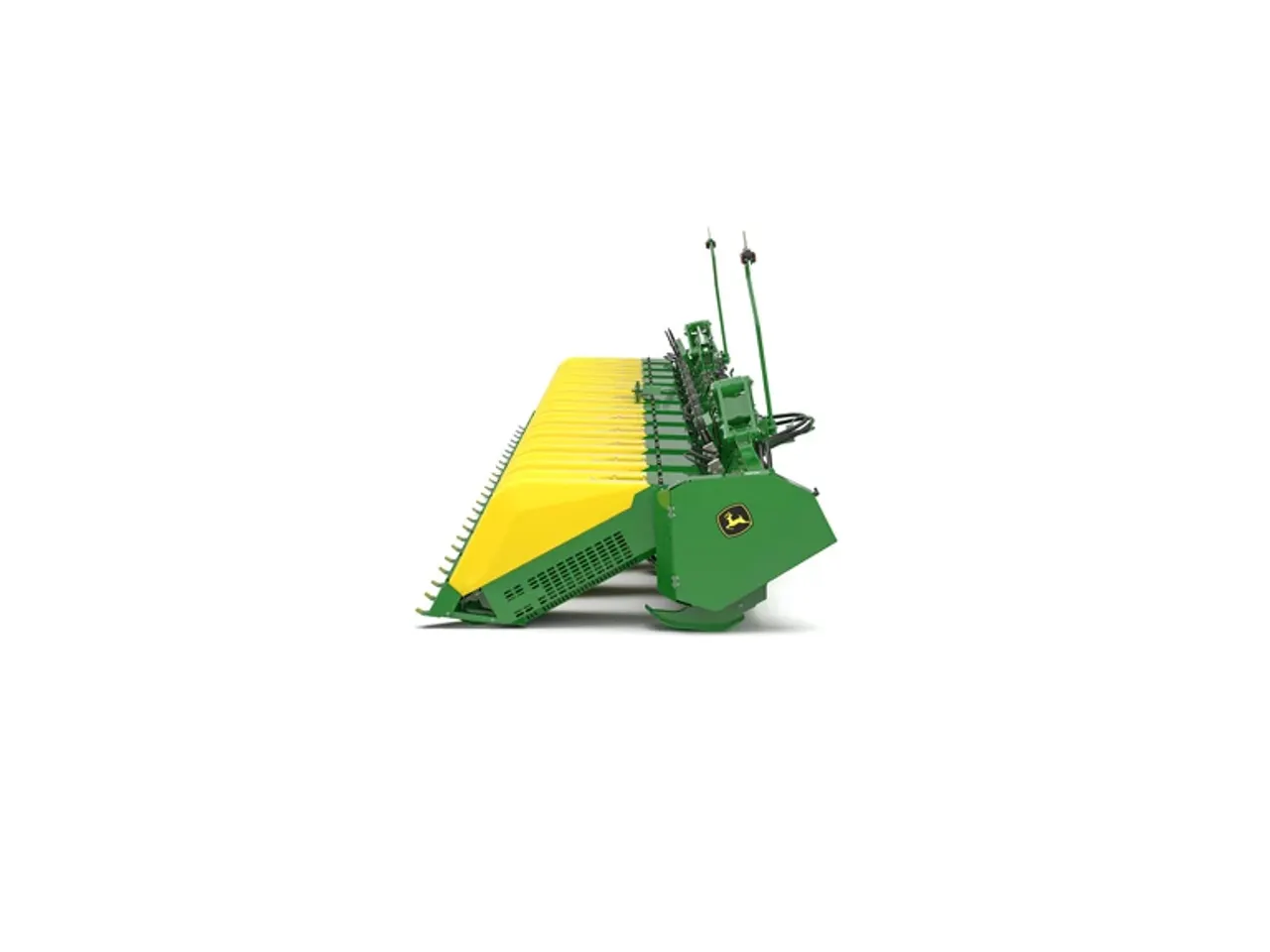

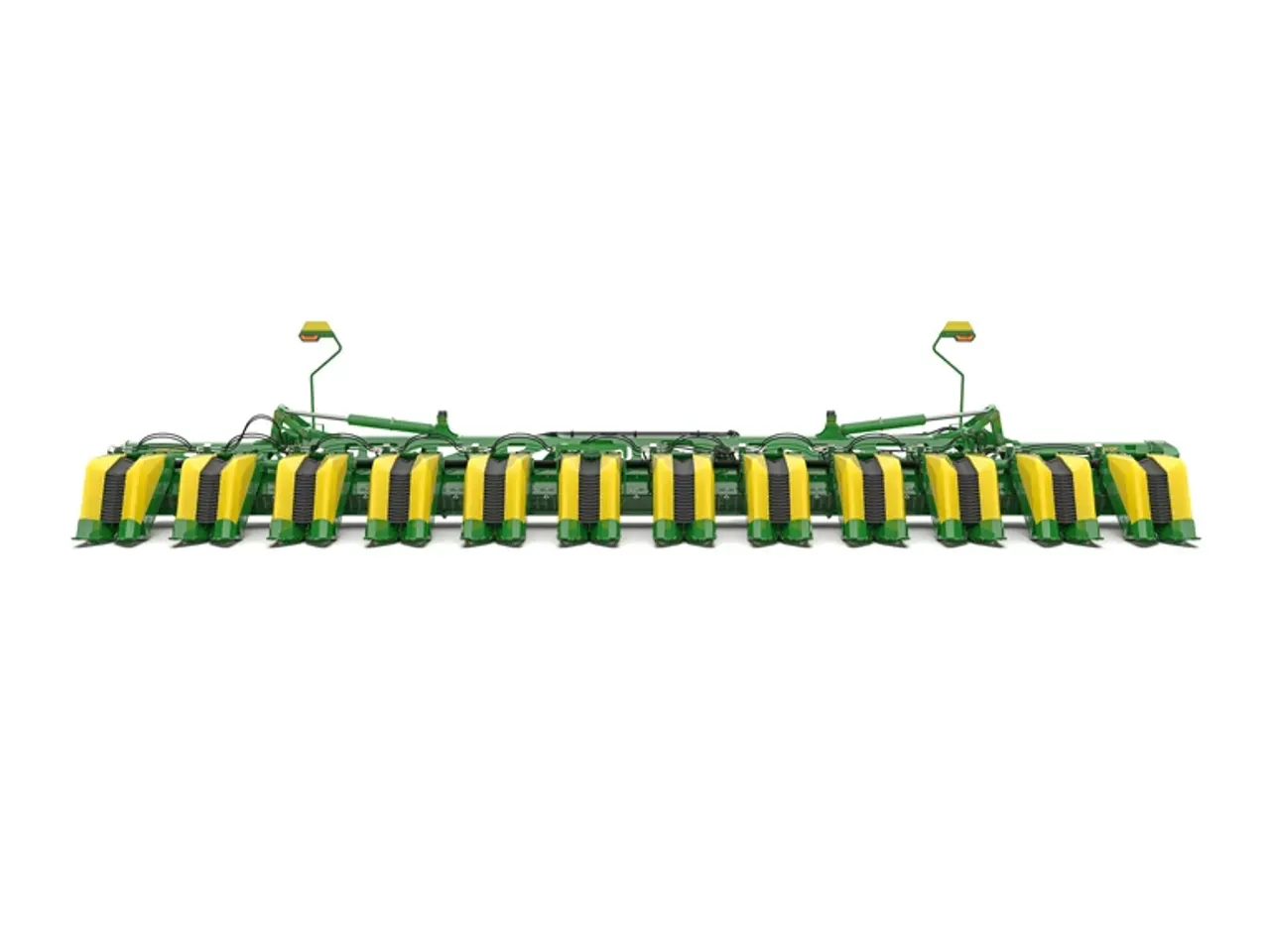

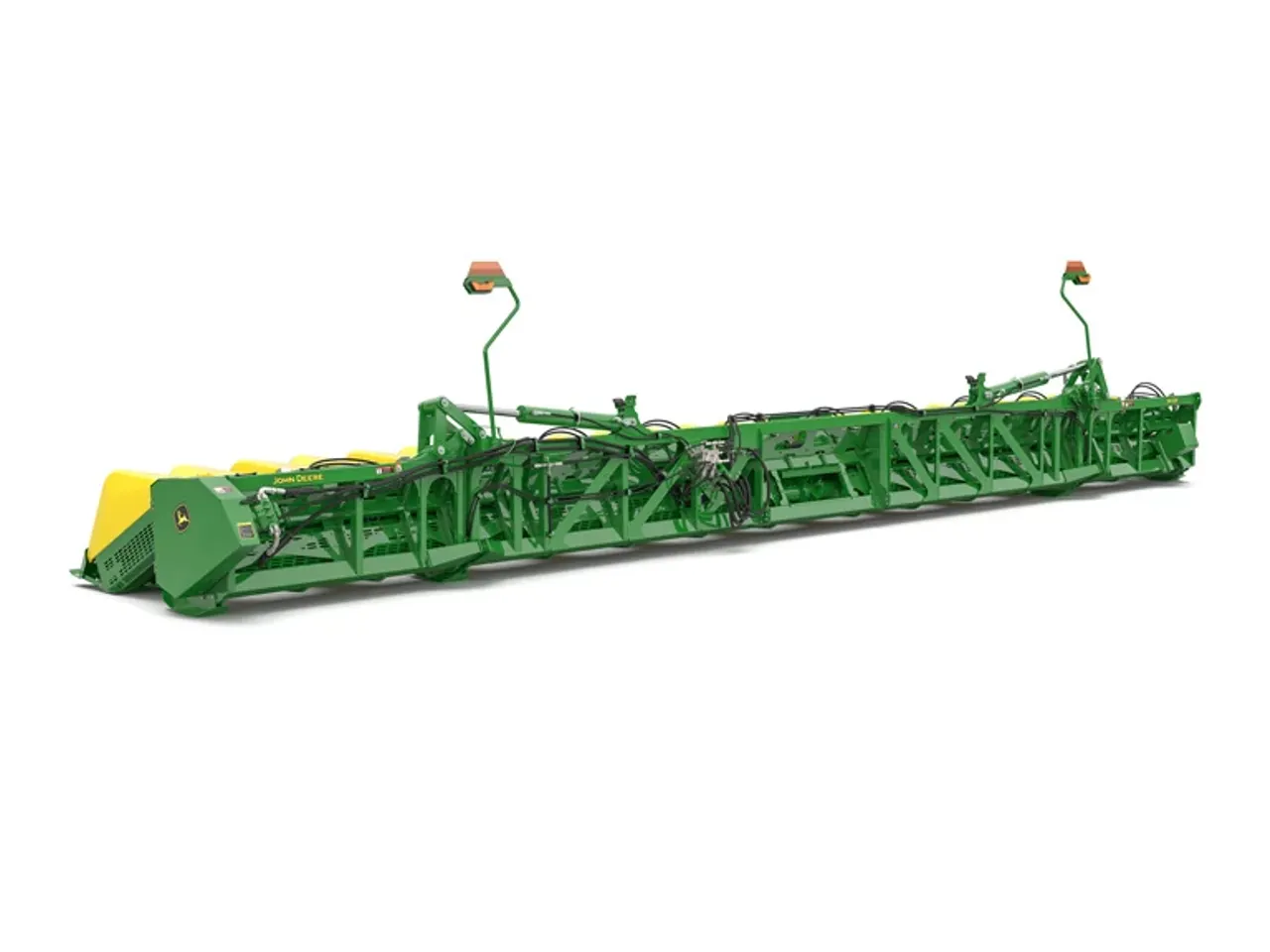

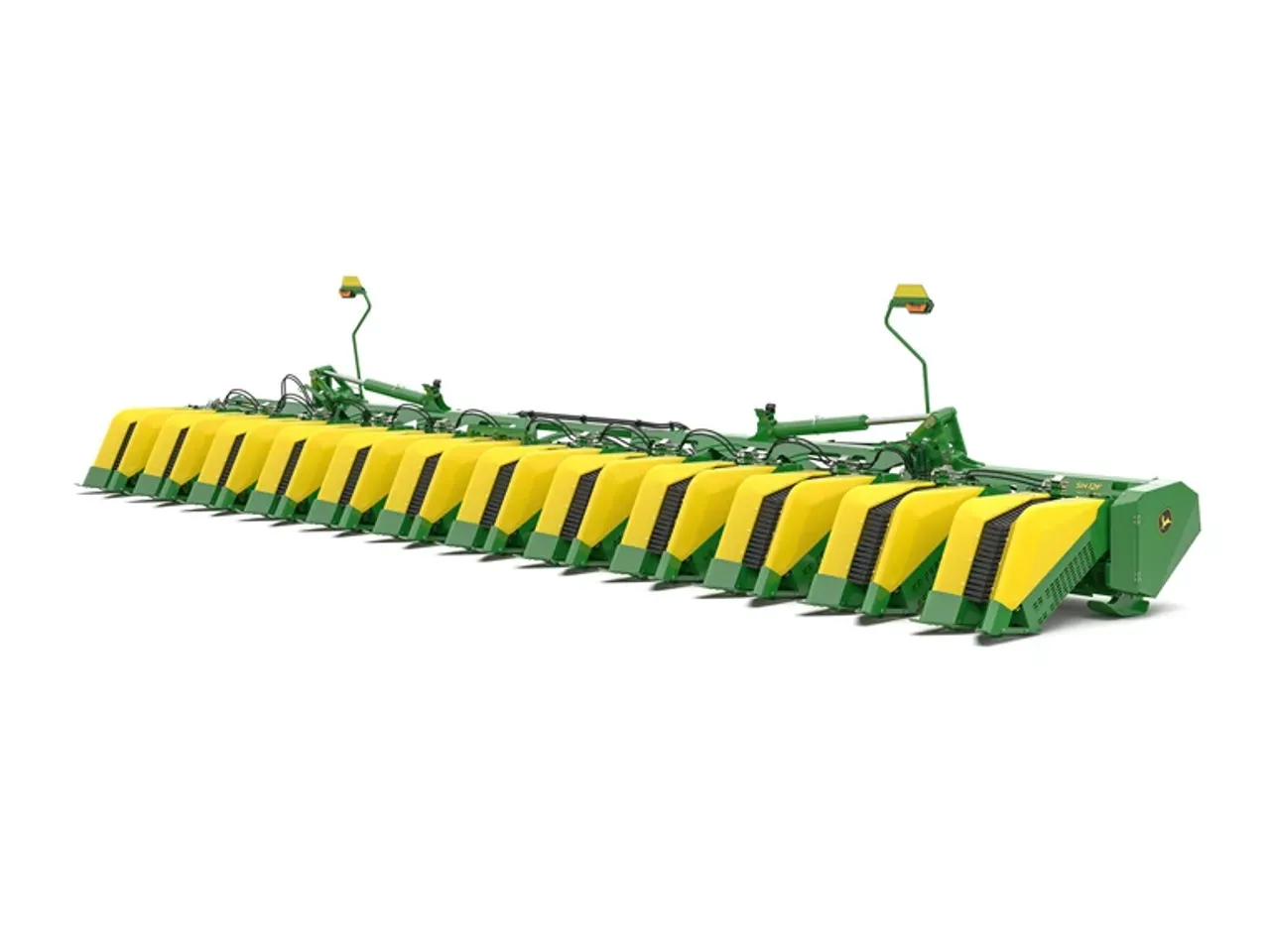

SH12R Cotton Stripper Header: 12-Row Rigid
Cotton

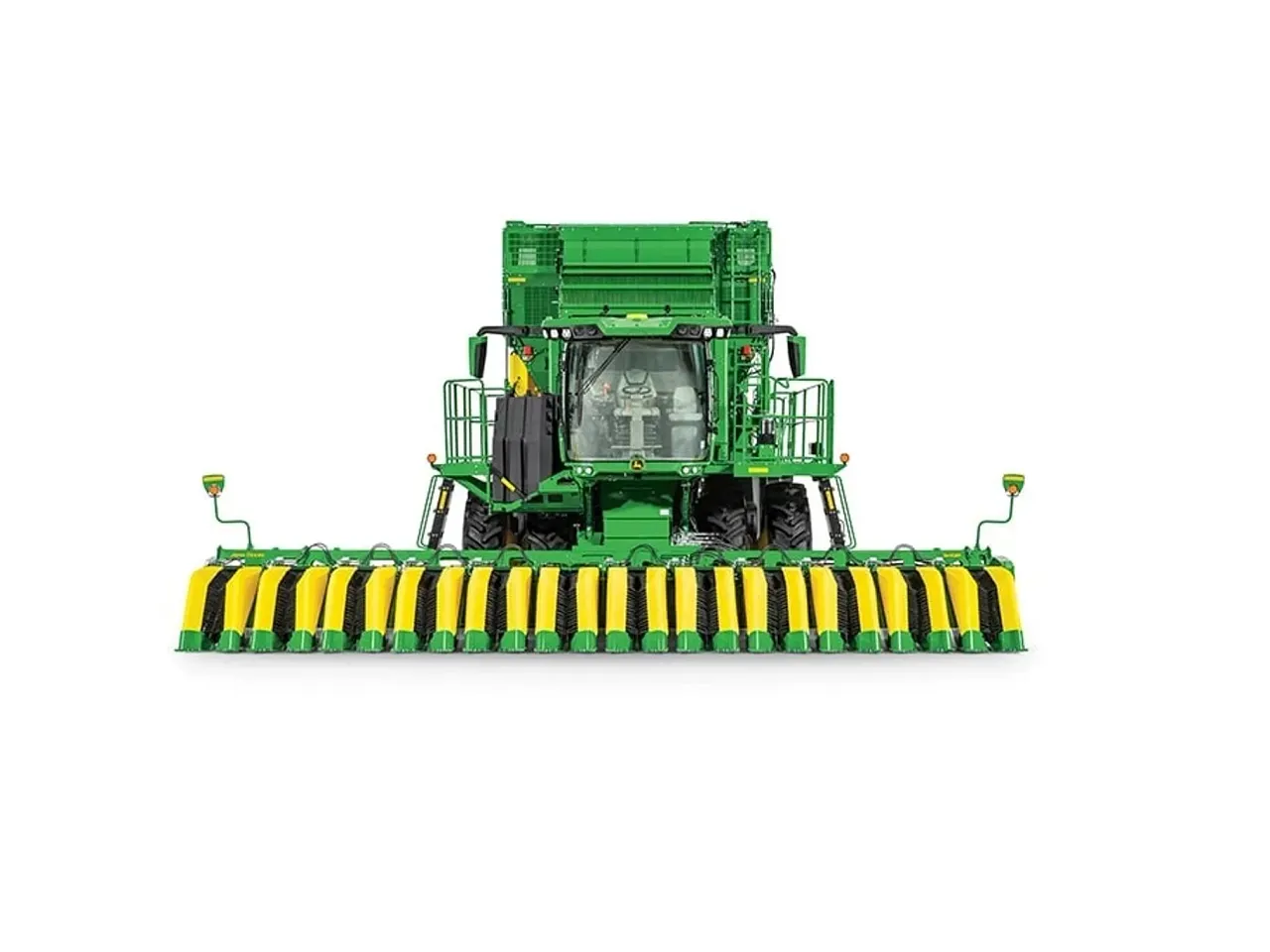

Non-stop harvesting for a whole new crop of producers with the CS770 Cotton Picker.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 4854T8
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs5 specifications
- Number Of Rows
- 12
- Spacings
- 30 in. (76.2 cm), 32 in. (81.3 cm), 36 in. (91.4 cm), Six-Row Single Skip: 38 in. (96.5 cm), 40 in. (101.6 cm)
- Frame
- Rigid
- Cross Auger Type
- High-capacity with single flight auger, 13 in. (33.2 cm)
- Stripping Unit Style
- Bat/brush stripping units
Row Units16 specifications
- Number Of Rows
- 12
- Spacings
- 30 in. (76.2 cm), 32 in. (81.3 cm), 36 in. (91.4 cm), Six-Row Single Skip: 38 in. (96.5 cm), 40 in. (101.6 cm)
- Frame
- Rigid
- Cross Auger Type
- High-capacity with single flight auger, 13 in. (33.2 cm)
- Cross Auger Diameter (Imperial)
- 13.0 in.
- Cross Auger Diameter (Metric)
- 33.2 cm
- Brush Roll Diameter (Imperial)
- 6.0 in.
- Brush Roll Diameter (Metric)
- 15.2 cm
- Brush Roll Length (Imperial)
- 40.0 in.
- Brush Roll Length (Metric)
- 101.6 cm
- Unit Auger Diameter (Imperial)
- 5.75 in.
- Unit Auger Diameter (Metric)
- 14.6 cm
- Cross Auger Speed (Forward)
- 500-700 rpm
- Cross Auger Speed (Reverse)
- 300 rpm
- Brush Roll Speed
- 500-700 rpm
- Unit Auger Speed
- 500-700 rpm
Stripping Units2 specifications
- Stripping Unit Style
- Bat/brush stripping units
- Stripping Unit Drive Protection
- Slip clutch, one per unit
