John Deere

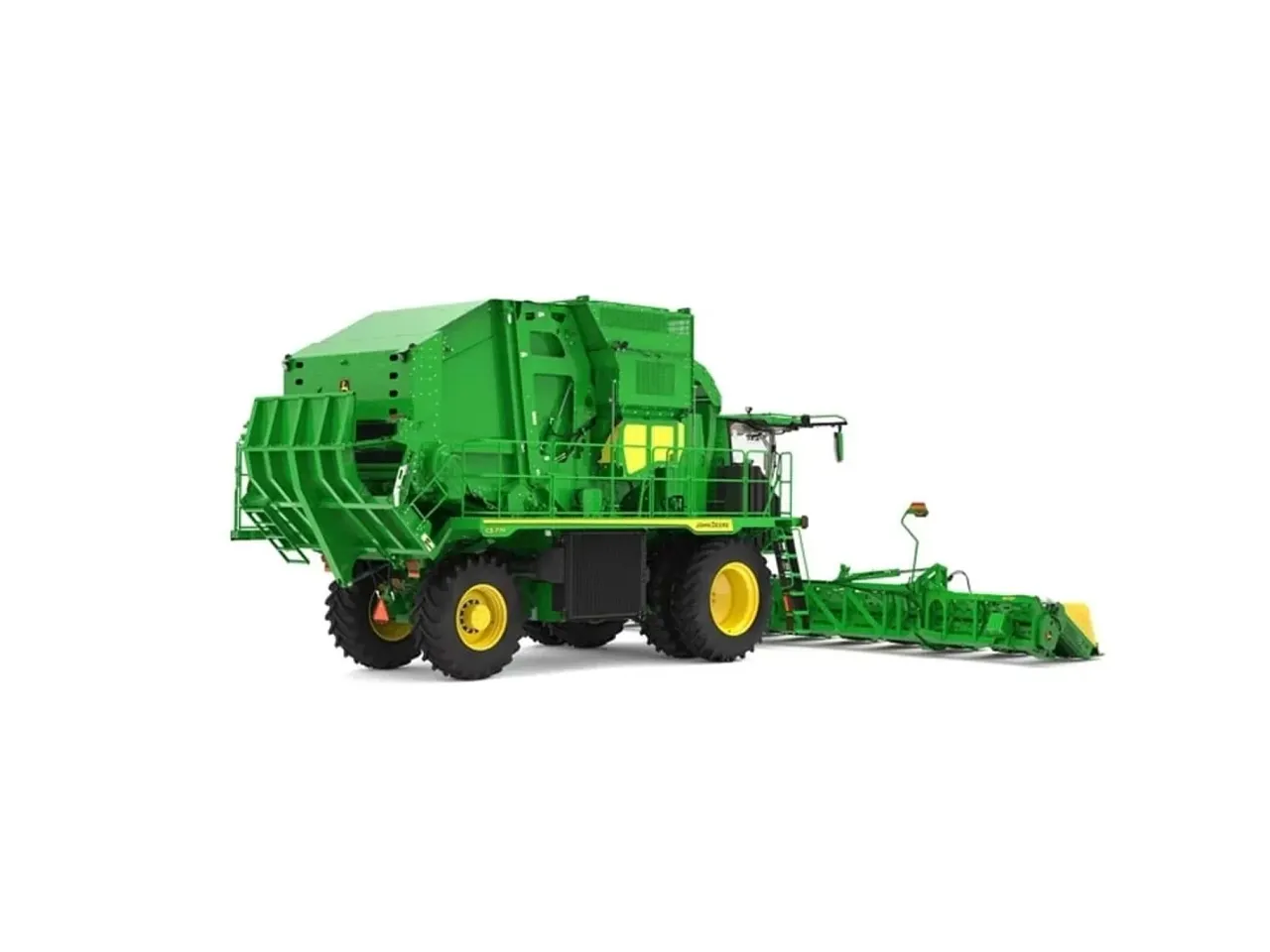

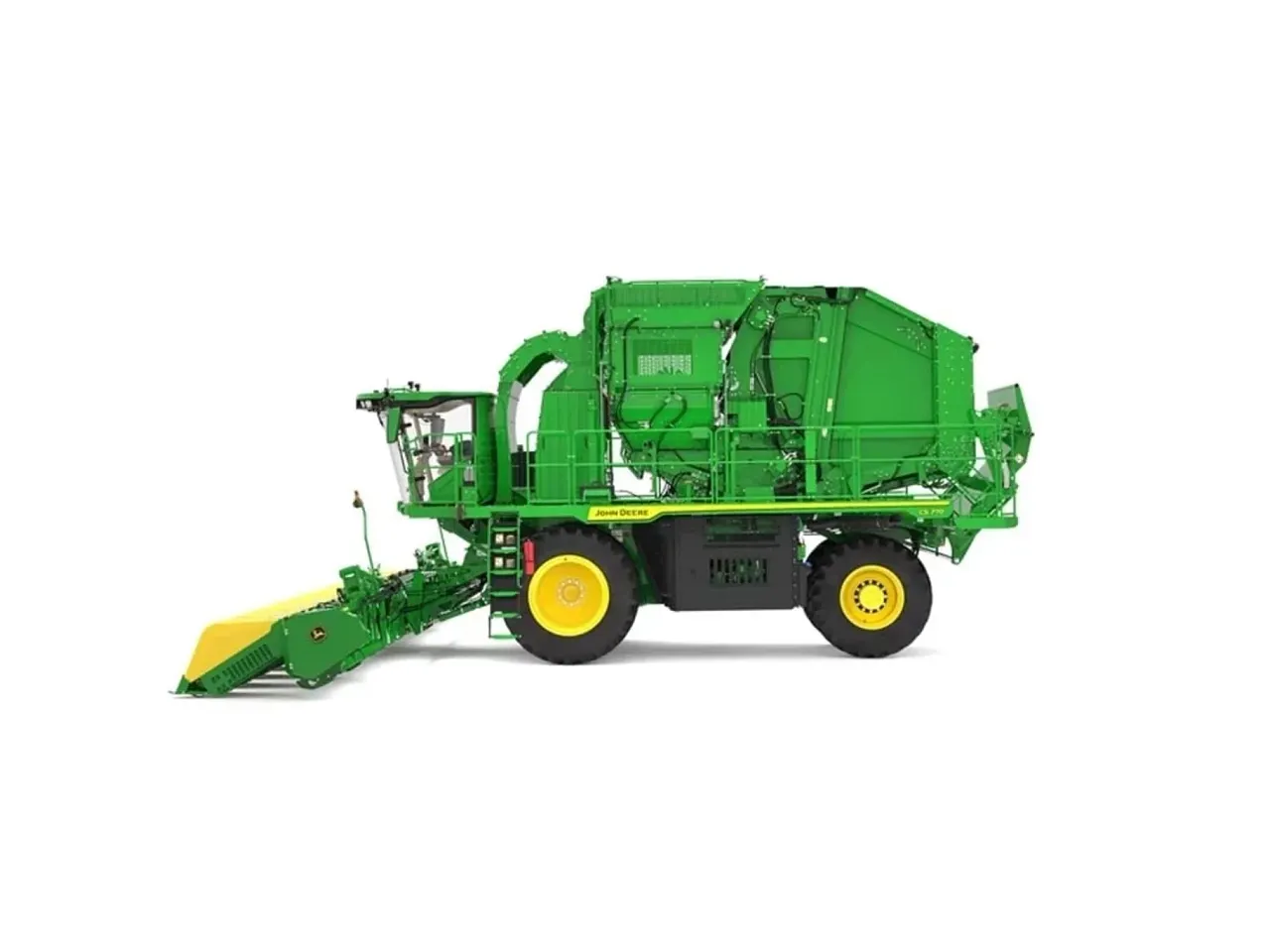

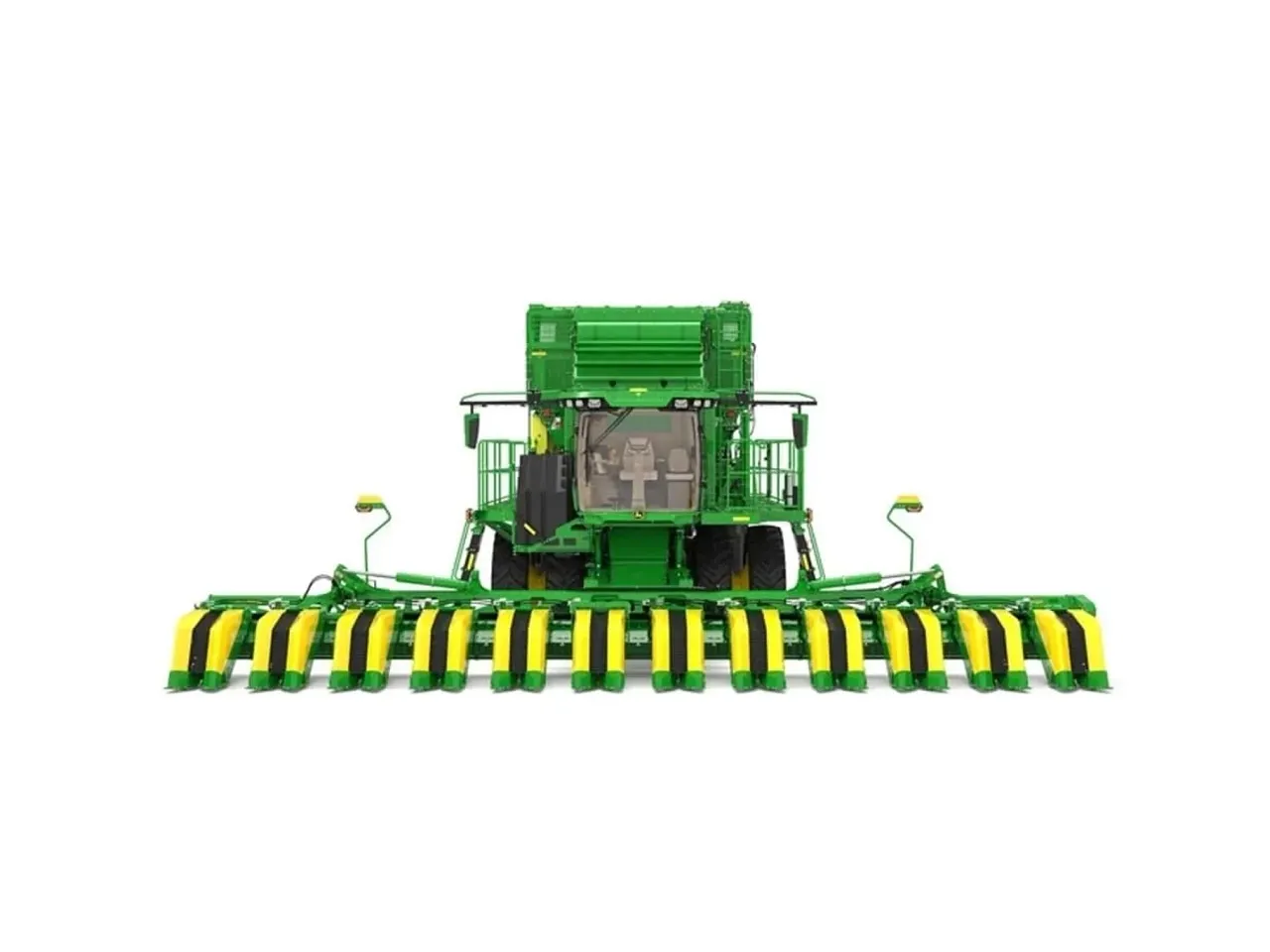

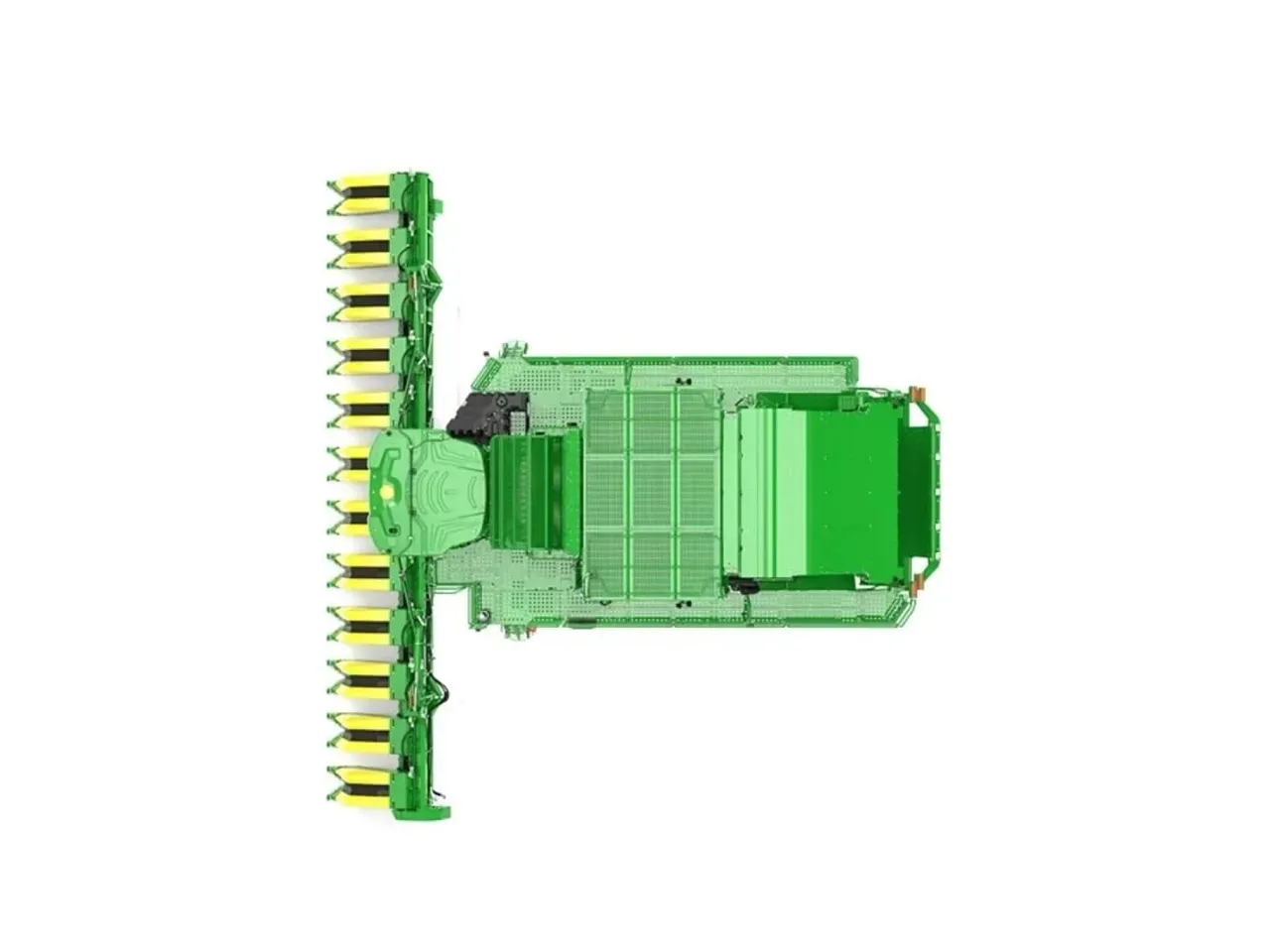

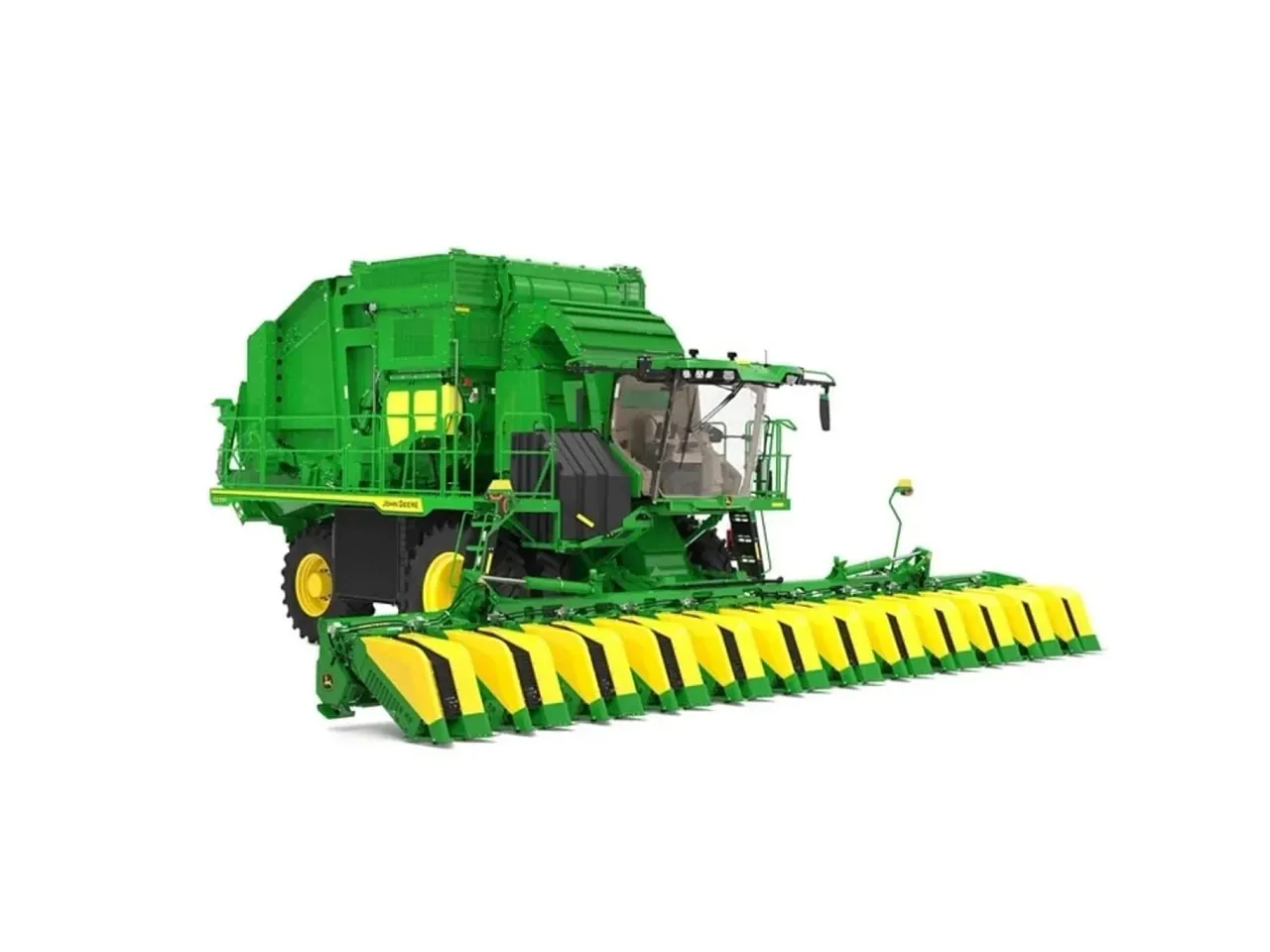

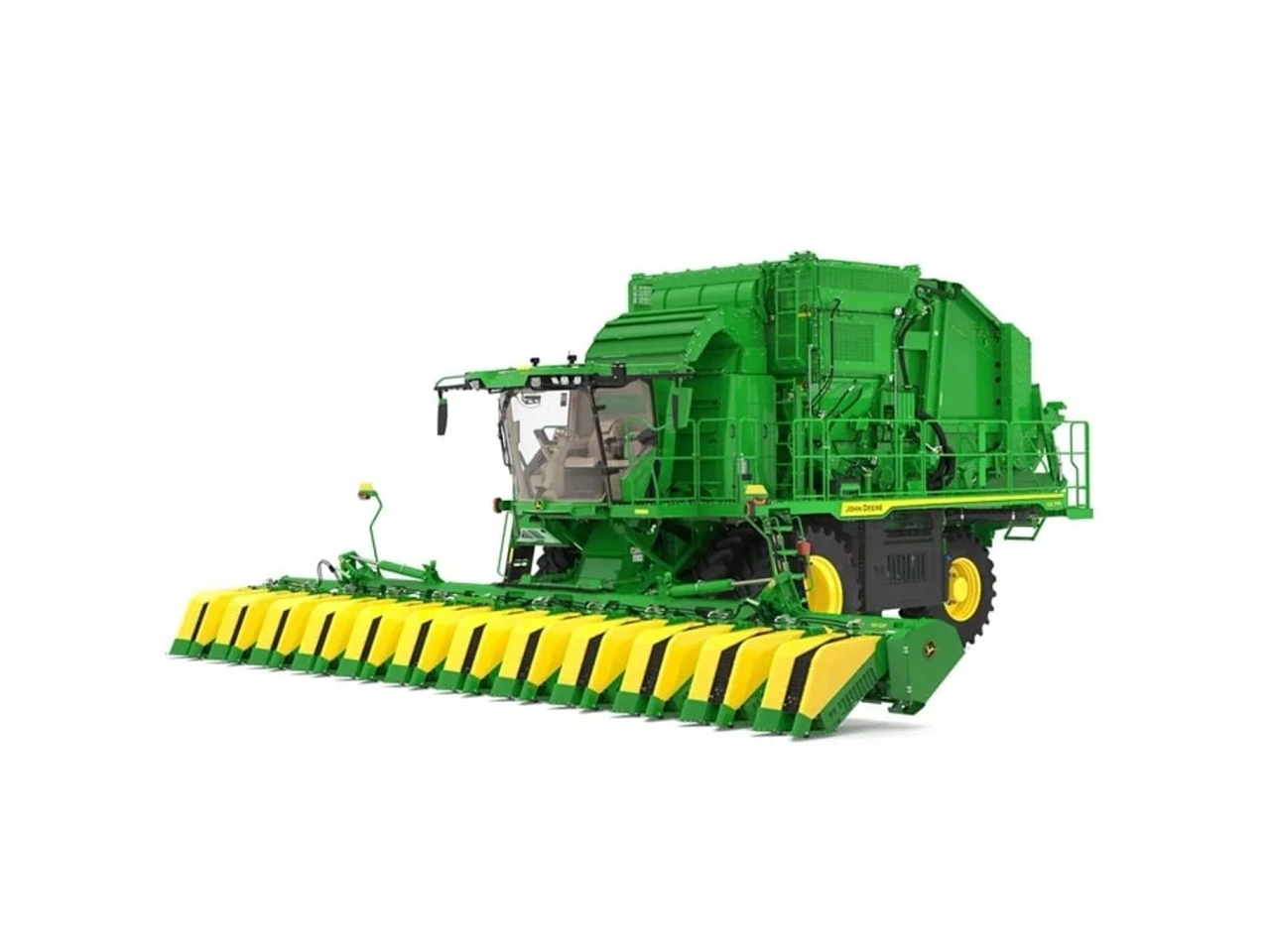

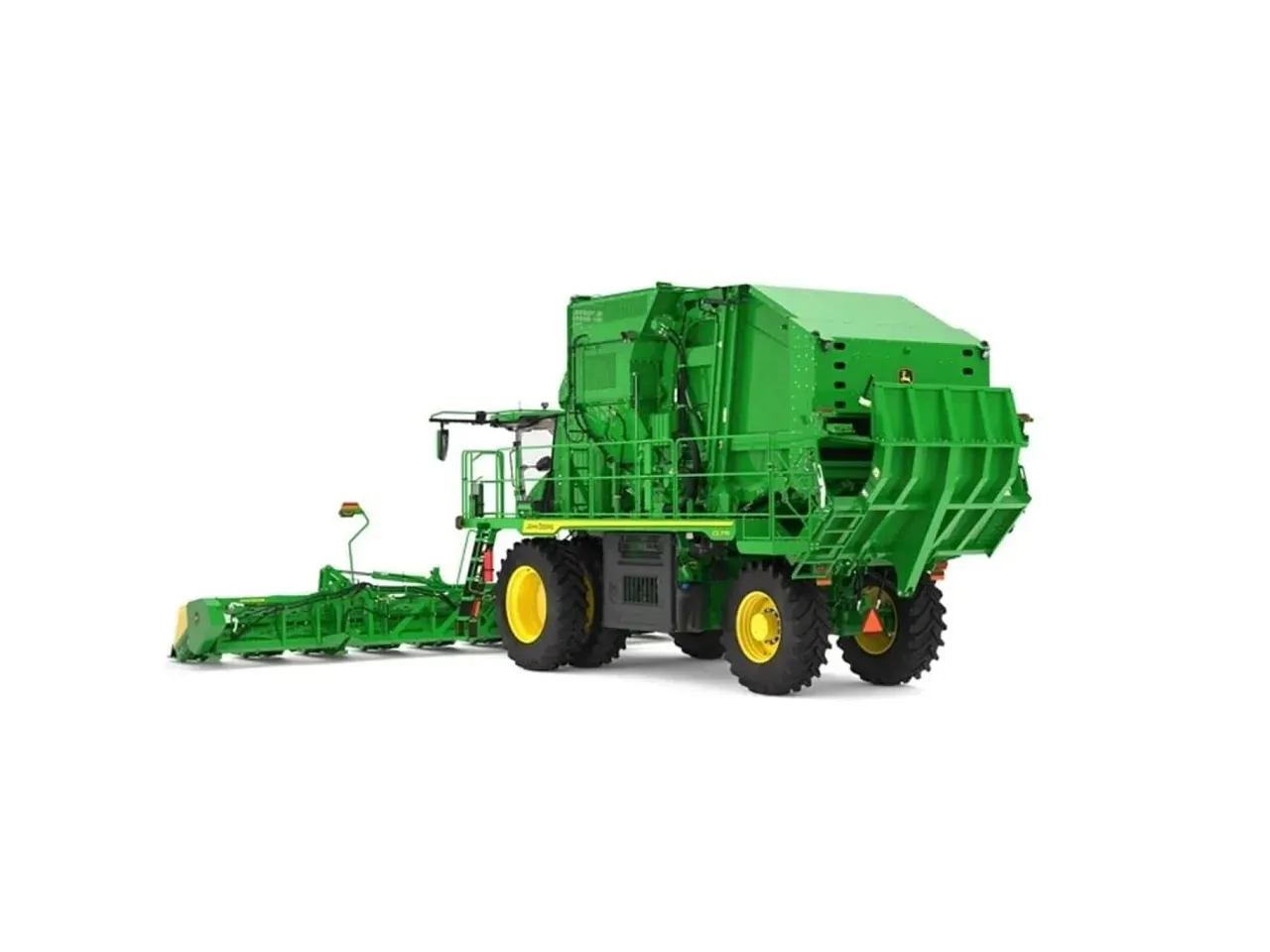

ModelCS770 Cotton Stripper
Cotton
The CS770 delivers efficient and consistent cotton harvesting with dependable performance and advanced technology.
Model / part number: 48B6N
Key specifications
- Engine
- John Deere JD14P 13.6 L
- Rated Engine Power (Imperial)
- 515.0 hp
- Power Boost (Imperial)
- 33.0 hp
- Module Shape
- Round/cylindrical
Technical specifications
101 specifications
Key Specs13 details
- Engine
- John Deere JD14P 13.6 L
- Rated Engine Power (Imperial)
- 515.0 hp
- Rated Engine Power (Metric)
- 384.0 kW
- Power Boost (Imperial)
- 33.0 hp
- Power Boost (Metric)
- 24.6 kW
- Module Shape
- Round/cylindrical
- Module Dimensions
- Diameter up to 96 in. (244) cm, Width up to 94 in. (239 cm)
- Module Weight (Imperial)
- 4,900 - 5,900 lb.
- Module Weight (Metric)
- 2222 - 2676 kg
- Configurations
- SH8R, SH12R, SH12F
- Number Of Rows
- Eight or twelve
- On Board Cleaner
- Yes
- On Board Cleaner Type
- Three drum
Powertrain41 details
- Engine
- John Deere JD14P 13.6 L
- Emission Level
- Stage IIIA and Final Tier 4 (FT4)
- Rated Engine Speed
- 1900.0 rpm
- Rated Engine Power (Imperial)
- 515.0 hp
- Rated Engine Power (Metric)
- 384.0 kW
- Maximum Power (Imperial)
- 566.0 hp
- Maximum Power (Metric)
- 422.0 kW
- Power Boost (Imperial)
- 33.0 hp
- Power Boost (Metric)
- 24.6 kW
- Displacement (Imperial)
- 830.0 cu in.
- Displacement (Metric)
- 13.6 L
- Cylinders
- 6
- Turbocharged/Aftercooled
- Yes
- Alternator
- Single 330 amp
- Cooling System
- Variable pitch reversible fan
- Variable Pitch Reversible Fan
- Yes
- Ground Level Access To Coolers
- Yes
- Fuel System Type
- Electronic unit direct injection
- Governor
- Electronic
- On Board Diagnostics
- Yes
- Transmission
- ProDrive™ automatic-shift (AST)
- Gears
- Two range
- Field Range 1 (4 WD) (Imperial)
- 0 - 5 mph
- Field Range 1 (4 WD) (Metric)
- 0 - 8.1 km/h
- Field Range 2 (4 WD) (Imperial)
- 0 - 9 mph
- Field Range 2 (4 WD) (Metric)
- 0 - 14.5 km/h
- Field Mode 1 (4 WD) (Imperial)
- 0 - 5 mph
- Field Mode 1 (4 WD) (Metric)
- 0 - 8.1 km/h
- Field Mode 2 (4 WD) (Imperial)
- 0 - 9 mph
- Field Mode 2 (4 WD) (Metric)
- 0 - 14.5 km/h
- Field Transport Mode 3 (4 WD) (Imperial)
- 0 - 9 mph
- Field Transport Mode 3 (4 WD) (Metric)
- 0 - 14.5 km/h
- Road Transport Mode 4 (4 WD) (Imperial)
- 0 - 20 mph
- Road Transport Mode 4 (4 WD) (Metric)
- 0 - 32.2 km/h
- Hydrostatic System Type
- Hydrostatic/mechanical drive
- Brake Type
- Wet, multiple disc
- Standard Drive Tire
- 520/85R42 (20.8R42) R1W
- Dual Wheels
- Yes
- Dual Tire Size (Standard)
- 520/85R42 (20.8R42) R1W
- Standard Steering Tire
- IF580/80R34 R1W
- Rear Wheel Drive
- Yes (full time)
On-Board Module Builder6 details
- Module Shape
- Round/cylindrical
- Module Dimensions
- Diameter up to 96 in. (244) cm, Width up to 94 in. (239 cm)
- Module Weight (Imperial)
- 4,900 - 5,900 lb.
- Module Weight (Metric)
- 2222 - 2676 kg
- Unload On The Go
- Yes
- Wrap System Carrying Capacity
- 120 portions
Row Units14 details
- Configurations
- SH8R, SH12R, SH12F
- Number Of Rows
- Eight or twelve
- Spacings (Imperial)
- 30, 32, 36, 38, 40 in.
- Spacings (Metric)
- 76.2, 81.3, 91.4, 96.5, 101.6 cm
- Stripping Units Style
- Bat/brush stripping units
- Stripping Unit Drive Protection
- Slip clutch – one per unit
- Row Guidance
- Manual RowSense™ system / AutoTrac™ RowSense system
- On Board Cleaner
- Yes
- On Board Cleaner Type
- Three drum
- Drum Diameter (Imperial)
- 33.7 in.
- Drum Diameter (Metric)
- 85.6 cm
- Drum Width (Imperial)
- 75.0 in.
- Drum Width (Metric)
- 190.5 cm
- Bypass System
- Yes
Tank Capacities6 details
- Fuel Tank Capacity (Imperial)
- 270.0 gal.
- Fuel Tank Capacity (Metric)
- 1022.0 L
- Water Solution Tank Capacity (Imperial)
- 68.0 gal.
- Water Solution Tank Capacity (Metric)
- 257.0 L
- Diesel Exhaust Fluid Tank Capacity (Imperial)
- 27.5 gal.
- Diesel Exhaust Fluid Tank Capacity (Metric)
- 104.4 L
Hydraulic System5 details
- Hydraulic Pump Type
- Pressure/flow compensated
- Hydraulic Pressure (Imperial)
- 3050.0 psi
- Hydraulic Pressure (Metric)
- 210.0 bar
- Hydraulic Flow (Imperial)
- 59.0 gpm
- Hydraulic Flow (Metric)
- 223.0 L/min
Dimensions16 details
- Overall Length (Imperial)
- 36.5 ft
- Overall Length (Metric)
- 11.1 m
- Wheelbase (Imperial)
- 14.2 ft
- Wheelbase (Metric)
- 4.3 m
- Transport Position Height (Imperial)
- 15.7 ft
- Transport Position Height (Metric)
- 4.8 m
- Full Height Position (Imperial)
- 17.5 ft
- Full Height Position (Metric)
- 5.3 m
- Less Header Weight (Imperial)
- 60200.0 lb.
- Less Header Weight (Metric)
- 27300.0 kg
- SH8 R 8 Row Rigid (8 Row, 101.6 cm [40 in.]) (Imperial)
- 67200.0 lb.
- SH8 R 8 Row Rigid (8 Row, 101.6 cm [40 in.]) (Metric)
- 30481.0 kg
- SH12 R 12 Row Rigid (12 Row, 76.2 cm [30 in.]) (Imperial)
- 70000.0 lb.
- SH12 R 12 Row Rigid (12 Row, 76.2 cm [30 in.]) (Metric)
- 31797.0 kg
- SH12 F 12 Row Folding (12 Row, 101.6 cm [40 in.]) (Imperial)
- 71600.0 lb.
- SH12 F 12 Row Folding (12 Row, 101.6 cm [40 in.]) (Metric)
- 32477.0 kg
