John Deere

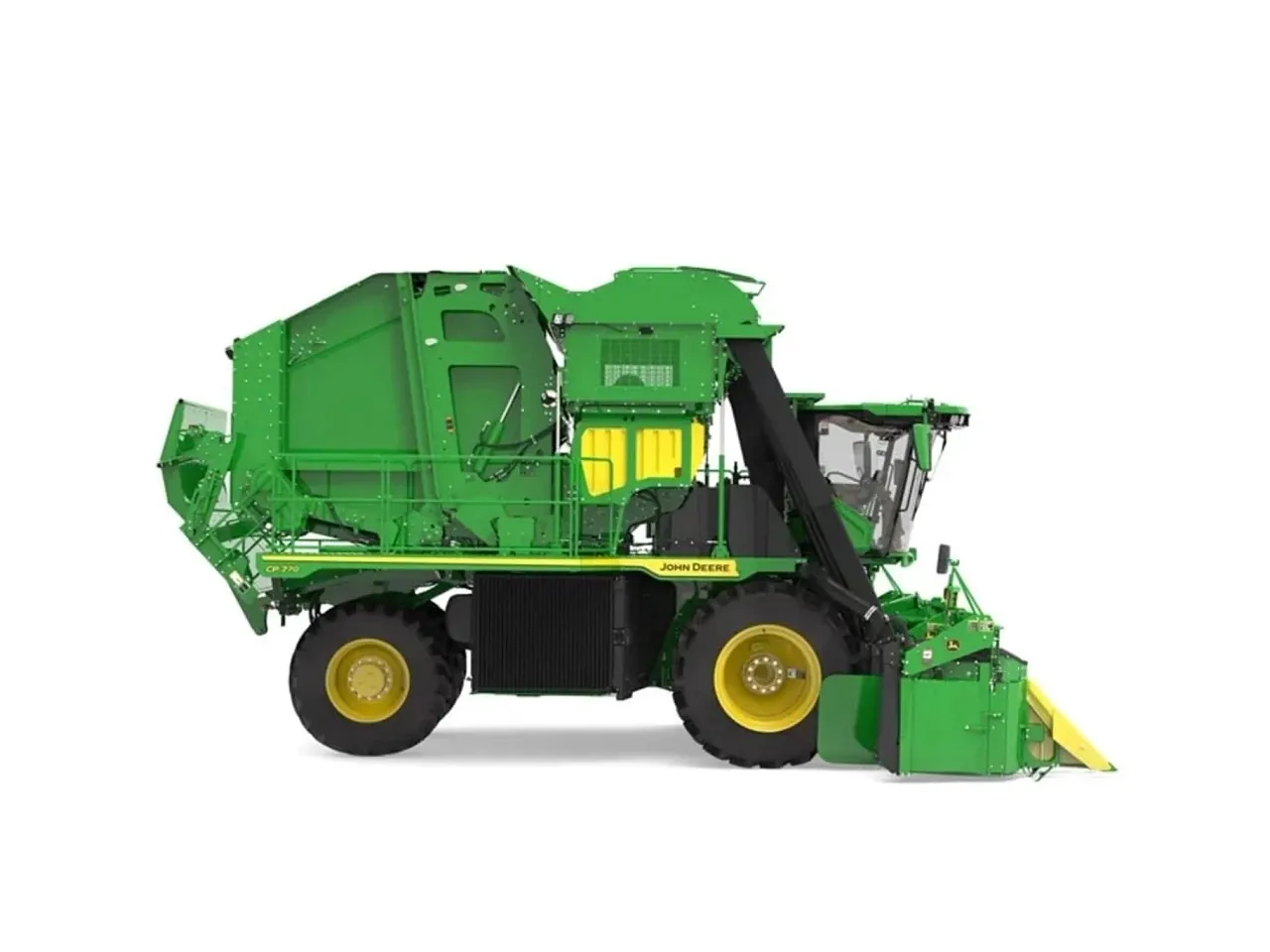

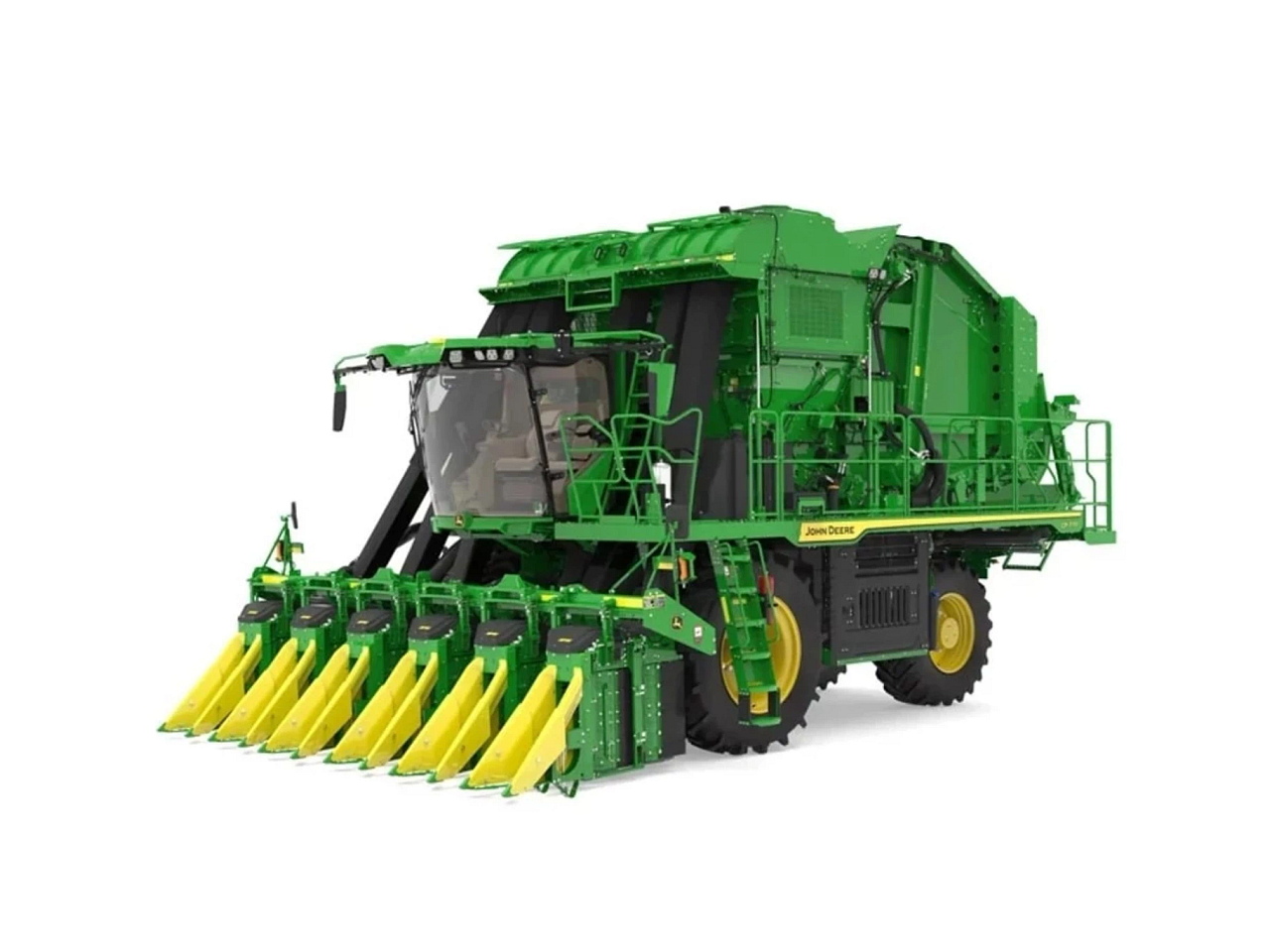

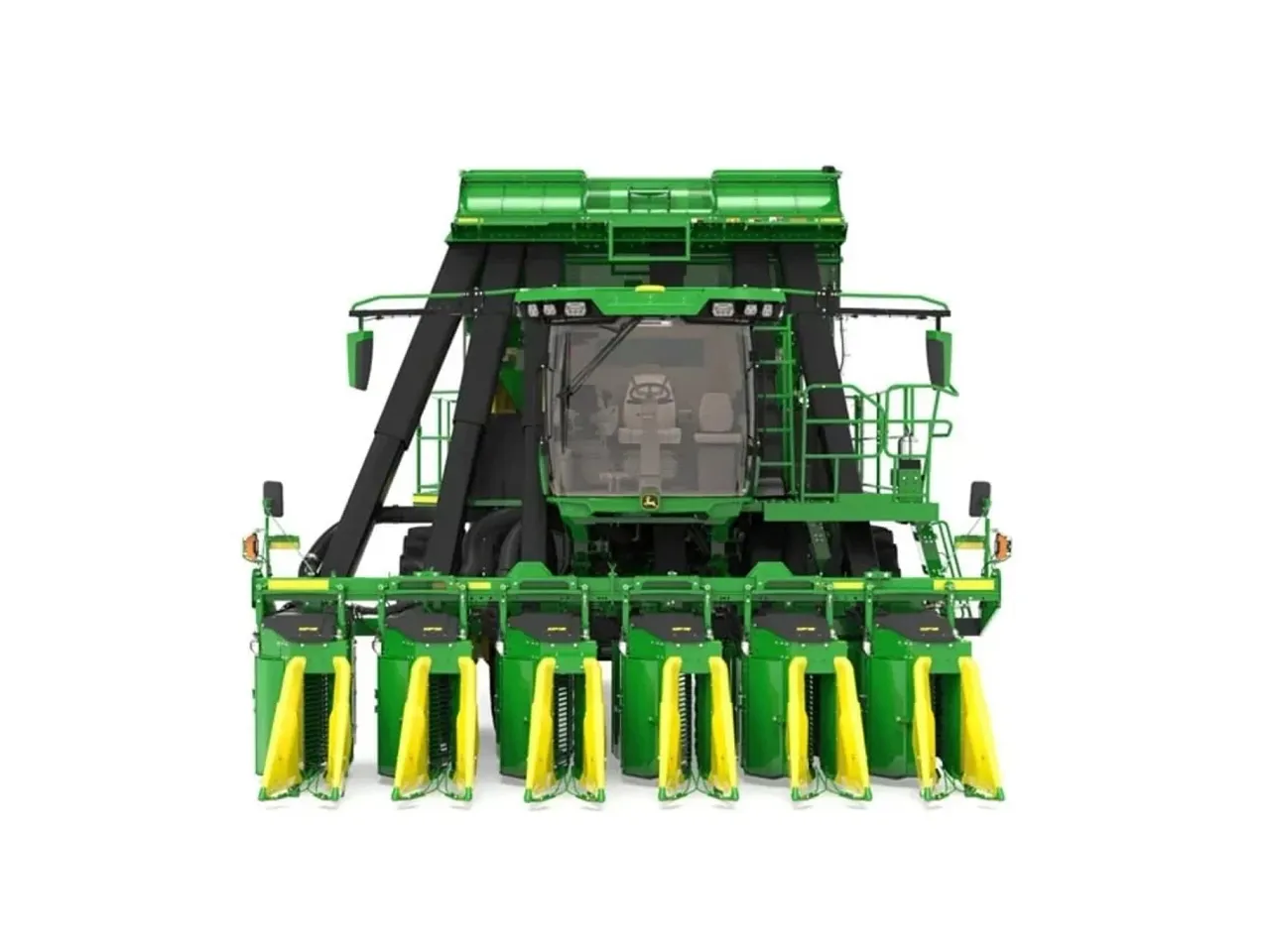

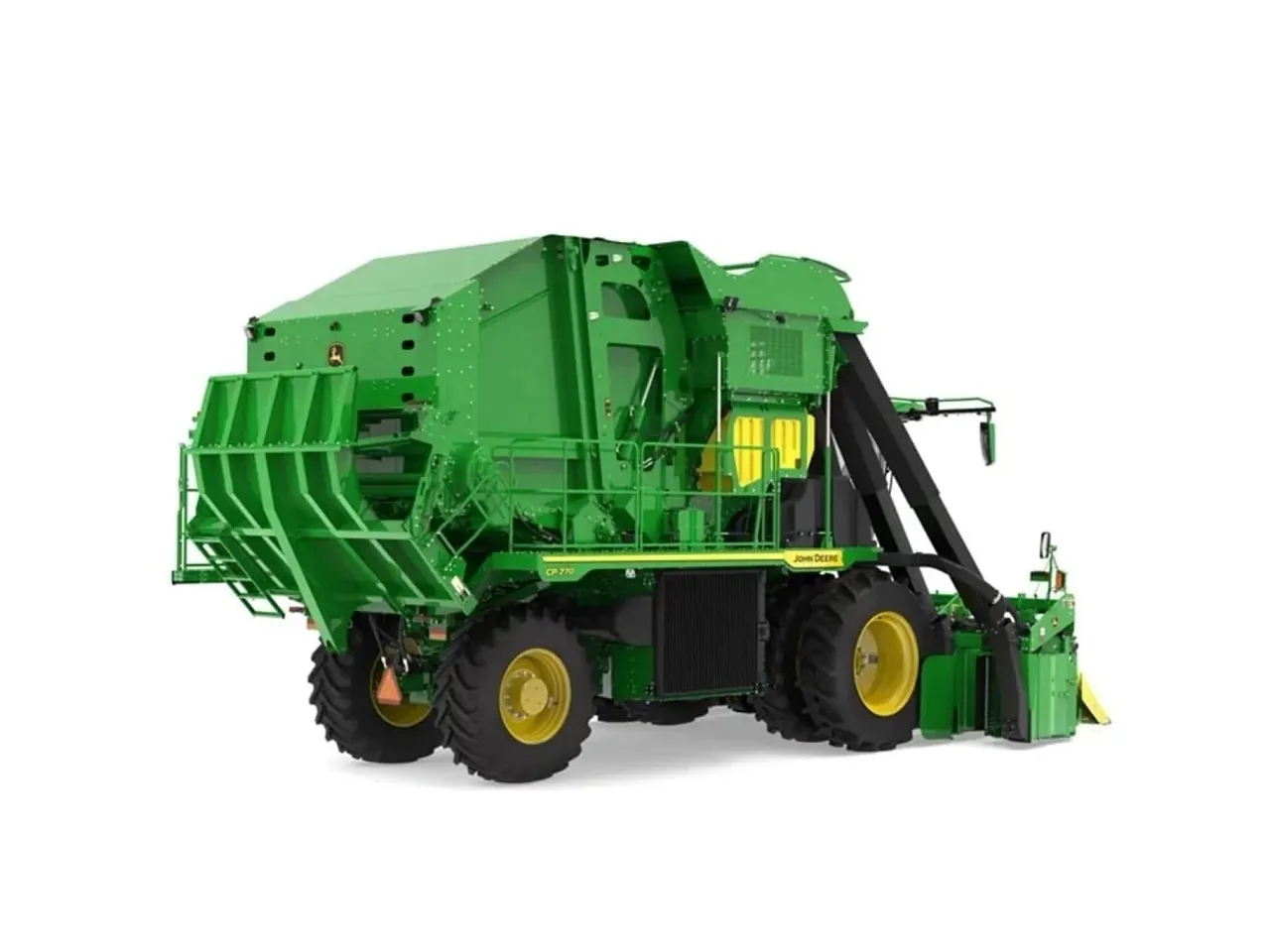

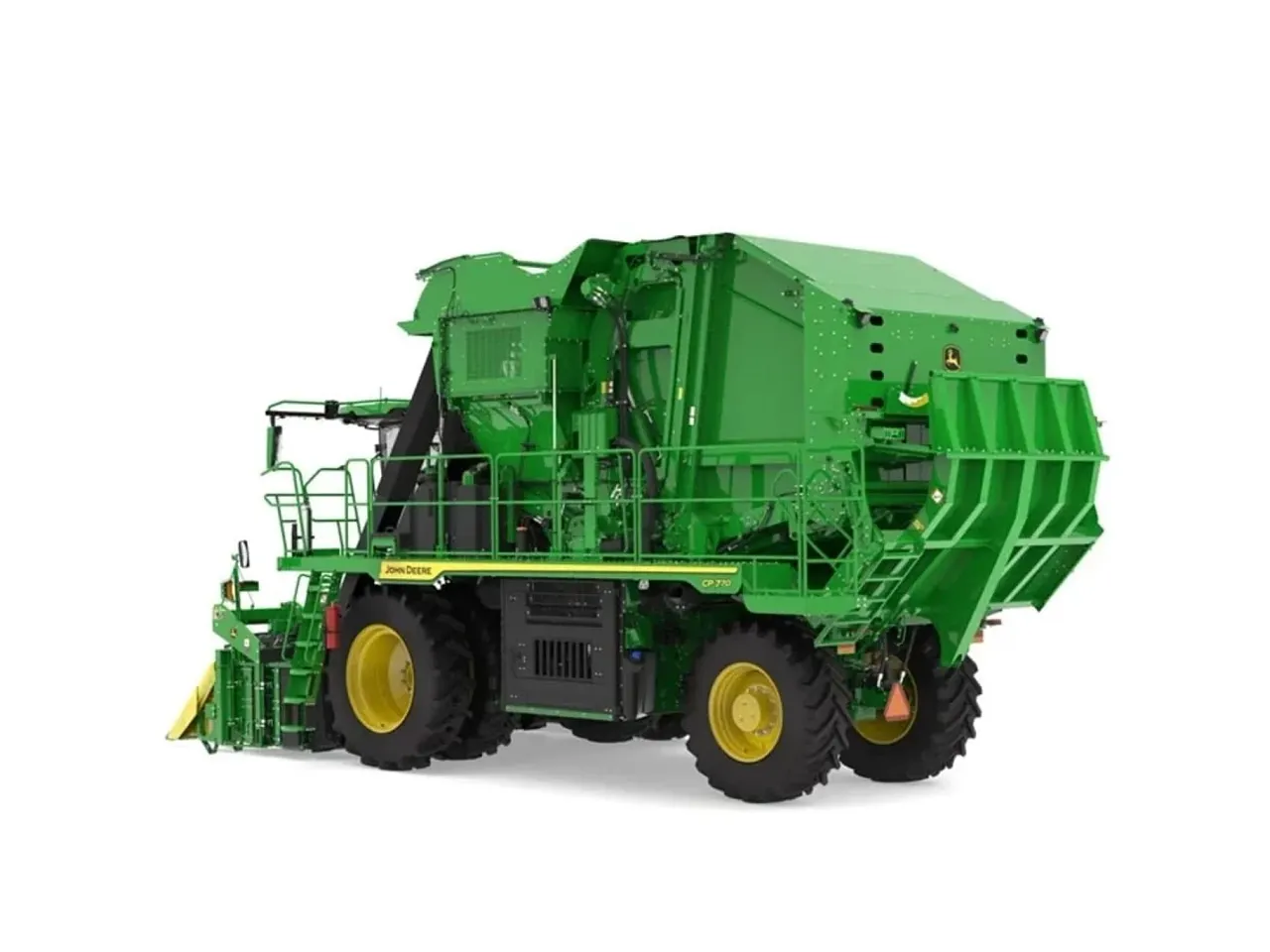

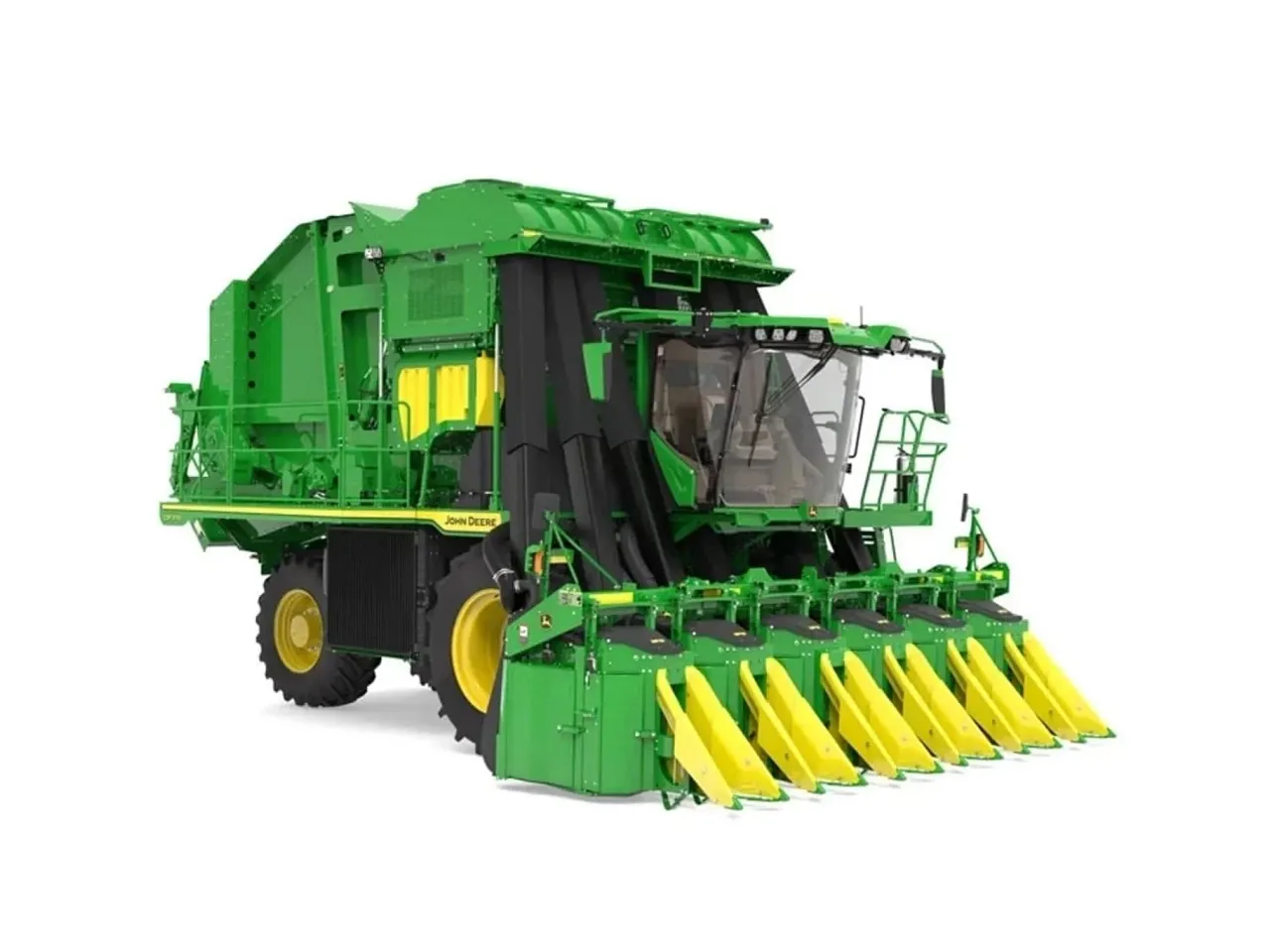

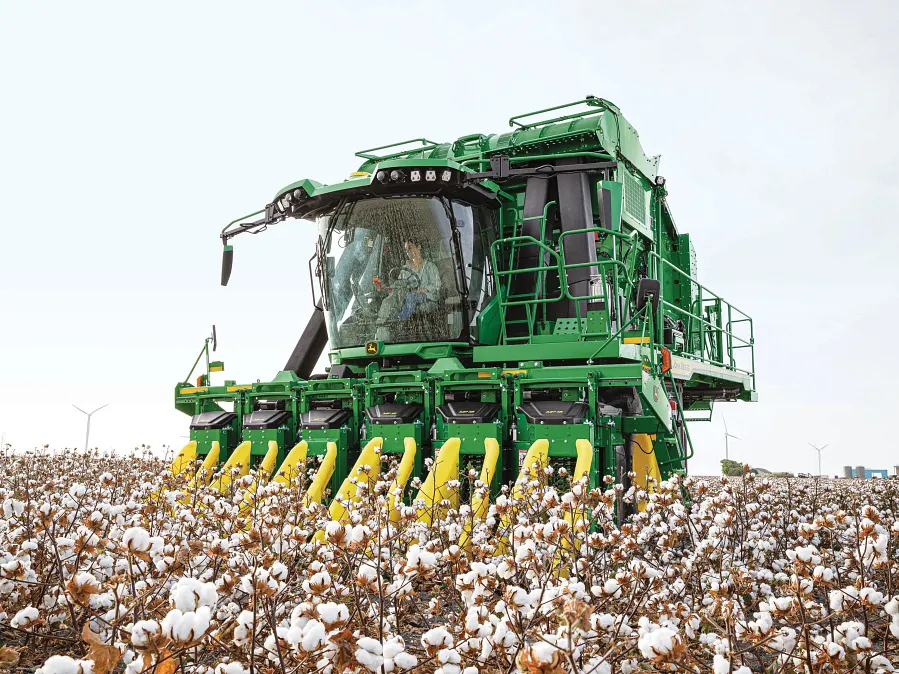

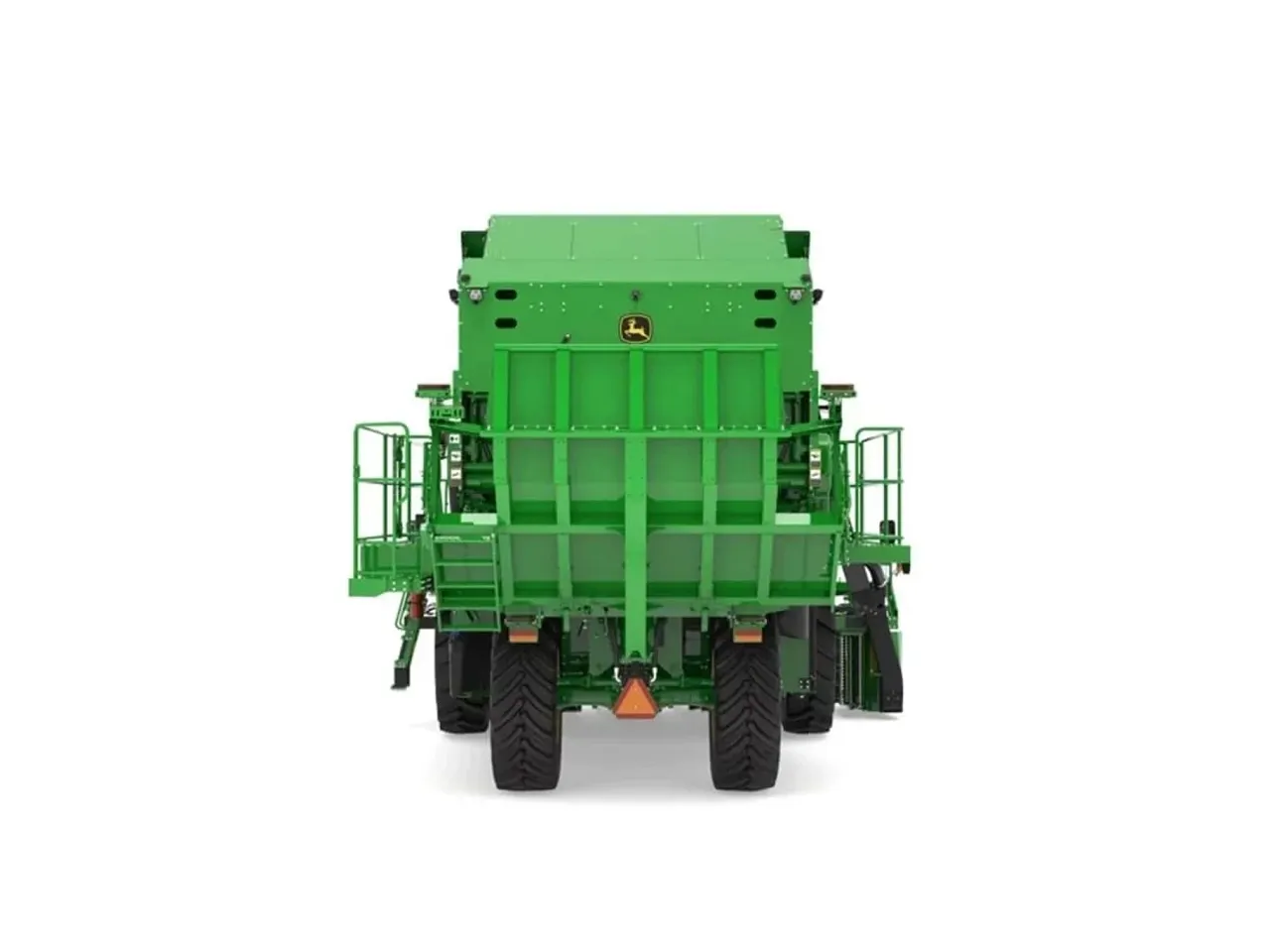

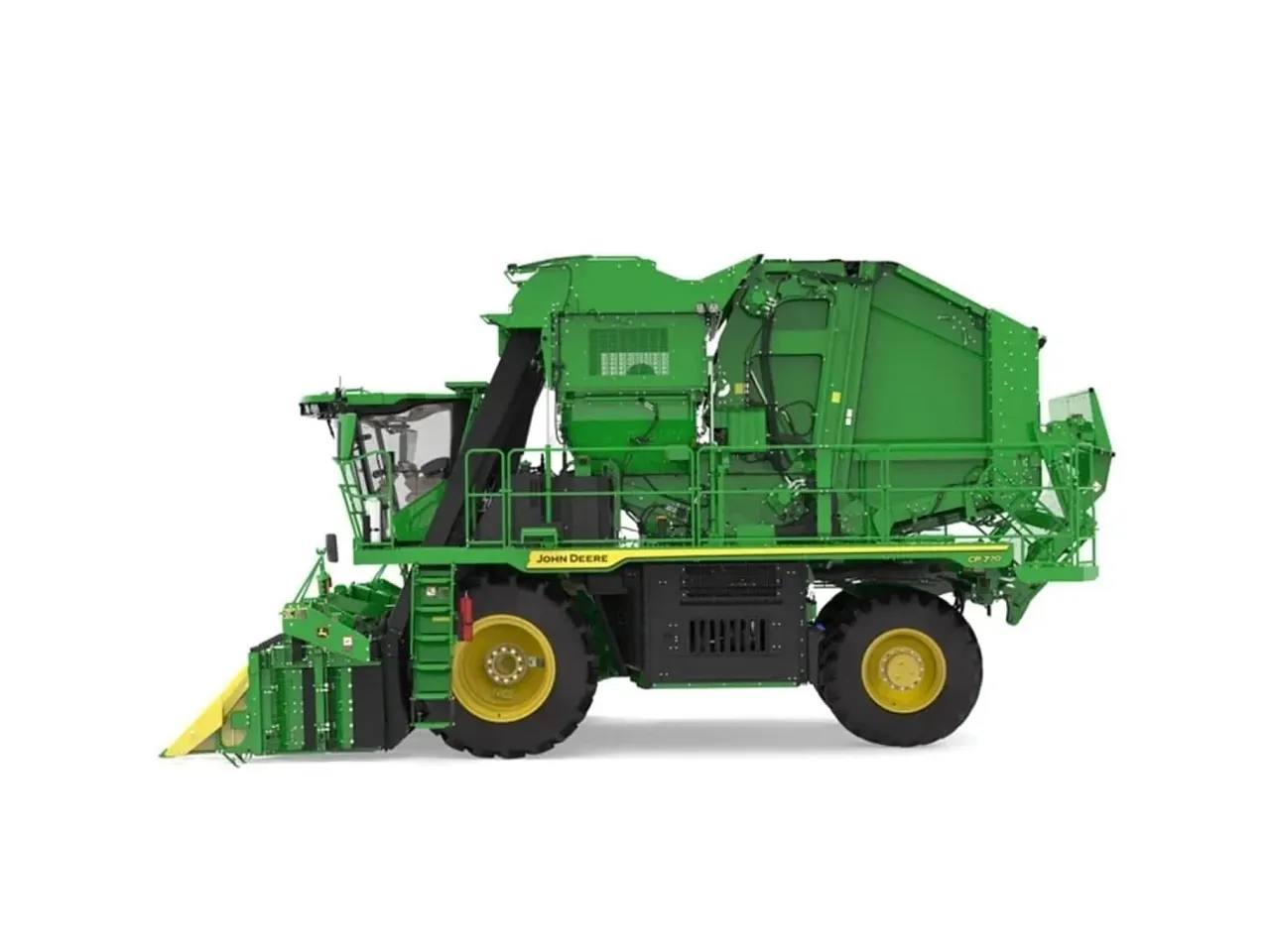

CP770 Cotton Picker
Cotton
The John Deere CP770 reduces costs with denser modules, boosts productivity with faster harvests, enhances decision-making via precision tech, and saves fuel.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 48A6N
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs13 specifications
- Engine
- John Deere JD14P 13.6 L
- Rated Engine Power (Imperial)
- 555.0 hp
- Rated Engine Power (Metric)
- 414.0 kW
- Power Boost
- 25 kW / 34 hp
- Module Shape
- Round/cylindrical
- Module Dimensions
- Diameter up to 96 in. (244) cm, Width up to 94 in. (239 cm)
- Module Weight (Imperial)
- 4,900-5,900 lb.
- Module Weight (Metric)
- 2,222-2,676 kg
- Row Spacings (Imperial)
- 30, 36, 38, 40 in.
- Row Spacings (Metric)
- 76.2, 91.4, 96.5, 101.6 cm
- Picking Units Style
- In-line spindle-type picking units
- Picking Units Available
- MP16
- Bars Front And Rear
- 16 front drum, 12 rear drum
Powertrain41 specifications
- Engine
- John Deere JD14P 13.6 L
- Emission Level
- Stage II, Stage IIIA, Final Tier 4 (FT4), and Stage V
- Rated Engine Speed
- 1900.0 rpm
- Rated Engine Power (Imperial)
- 555.0 hp
- Rated Engine Power (Metric)
- 414.0 kW
- Maximum Power (Imperial)
- 610.0 hp
- Maximum Power (Metric)
- 455.0 kW
- Power Boost
- 25 kW / 34 hp
- Displacement (Imperial)
- 824.0 cu in.
- Displacement (Metric)
- 13.6 L
- Cylinders
- 6
- Turbocharged/Aftercooled
- Yes
- Alternator
- Single 330 amp
- Variable Pitch Reversible Fan
- Yes
- Rotary Screen
- Yes
- Ground Level Access To Coolers
- Yes
- Fuel System Type
- High-pressure common rail
- Governor
- Electronic
- On Board Diagnostics
- Yes
- Transmission
- ProDrive™ automatic shift (AST)
- Gears
- Two range
- Sync Mode 1 (4 WD) (Imperial)
- 0 - 4.6 mph
- Sync Mode 1 (4 WD) (Metric)
- 0 - 7.4 km/h
- Scrapping Mode 2 (4 WD) (Imperial)
- 0 - 5.5 mph
- Scrapping Mode 2 (4 WD) (Metric)
- 0 - 9 km/h
- Field Transport Mode 3 (4 WD) (Imperial)
- 0 - 9 mph
- Field Transport Mode 3 (4 WD) (Metric)
- 0 - 14.5 km/h
- Road Transport Mode 4 (4 WD) (Imperial)
- 0 - 20 mph
- Road Transport Mode 4 (4 WD) (Metric)
- 0 - 32.2 km/h
- Unit Configuration
- Hydrostatic/mechanical drive
- Hydrostatic System Type
- Hydrostatic/mechanical drive
- Brake Type
- Wet, multiple disc
- Tires
- Standard Drive Tire
- Standard Drive Tires
- 520/85R42 (20.8R42) R1W
- Optional Drive Tires
- VF520/85R42 (20.8R42) R2
- Dual Wheels
- Yes
- Standard Dual Tire Size
- 520/85R42 (20.8R42) R1W
- Optional Dual Tire Size
- VF520/85R42 (20.8R42) R2
- Standard Steering Tire
- IF580/80R34 (R1W)
- Optional Steering Tire
- VF520/85R42 (20.8R42) R1W
- Tire Size
- 520/85R42 (20.8R42) R1W
On-Board Module Builder6 specifications
- Module Shape
- Round/cylindrical
- Module Dimensions
- Diameter up to 96 in. (244) cm, Width up to 94 in. (239 cm)
- Module Weight (Imperial)
- 4,900-5,900 lb.
- Module Weight (Metric)
- 2,222-2,676 kg
- Unload On The Go
- Yes
- Wrap System Carrying Capacity
- 120 portions
Row Units15 specifications
- Number Of Rows
- Six
- Row Spacings (Imperial)
- 30, 36, 38, 40 in.
- Row Spacings (Metric)
- 76.2, 91.4, 96.5, 101.6 cm

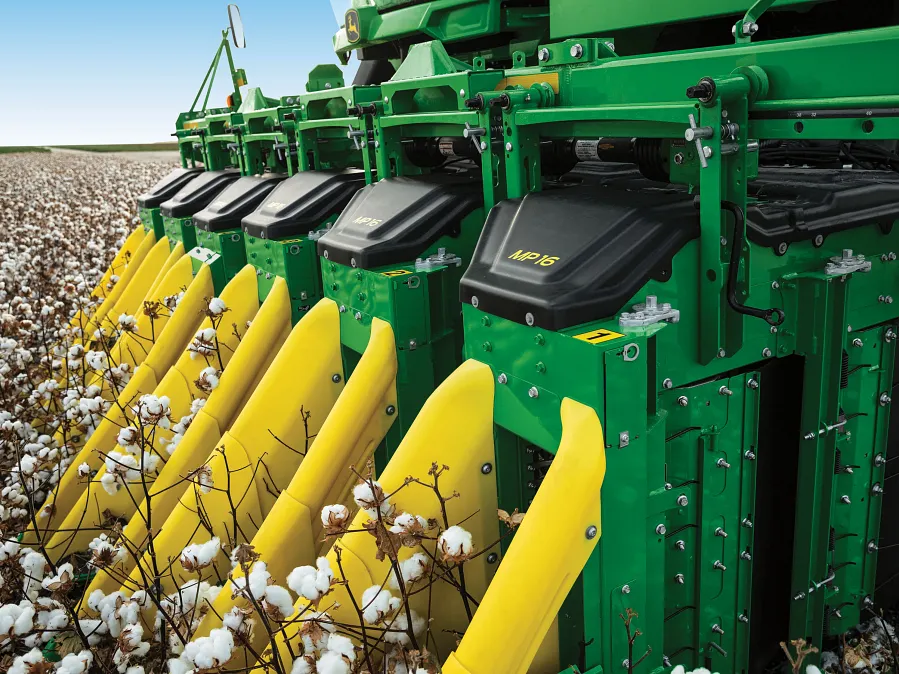

- Picking Units Style
- In-line spindle-type picking units
- Picking Units Available
- MP16
- Drums
- 2
- Bars Front And Rear
- 16 front drum, 12 rear drum
- Spindles Per Bar
- 20 (MP16)
- Doffer Pads
- Urethane
- Moistener Pads
- 20
- Unit Drive Protection
- Slip clutch
- Lubrication
- High-pressure common rail
- Bars
- 16 front drum, 12 rear drum
- Upper Gears
- 20 (MP16)
- Row Guidance
- Manual RowSense™ / AutoTrac™ RowSense
Tank Capacities9 specifications
- Fuel Tank (Imperial)
- 330.0 gal.
- Fuel Tank (Metric)
- 1250.0 L
- Moistener System (Imperial)
- 360.0 gal.
- Moistener System (Metric)
- 1363.0 L
- Quick Fill
- Yes
- Lube (Imperial)
- 68.0 gal.
- Lube (Metric)
- 257.0 L
- Diesel Exhaust Fluid Tank (Imperial)
- 27.5 gal.
- Diesel Exhaust Fluid Tank (Metric)
- 104.4 L
Hydraulic System5 specifications
- Pump Type
- Pressure/flow compensated
- Pressure (Imperial)
- 3050.0 psi
- Pressure (Metric)
- 210.0 bar
- Flow (Imperial)
- 59.0 gpm
- Flow (Metric)
- 223.0 L/min
Dimensions14 specifications
- Lengths (Imperial)
- 33.4 ft
- Lengths (Metric)
- 10.2 m
- Overall Length (Imperial)
- 33.4 ft
- Overall Length (Metric)
- 10.2 m
- Wheel Base (Imperial)
- 14.2 ft
- Wheel Base (Metric)
- 4.3 m
- Transport Position Height (Imperial)
- 4.4 ft
- Transport Position Height (Metric)
- 14.5 m
- Full Height Position (Imperial)
- 5.2 ft
- Full Height Position (Metric)
- 17.2 m
- Weights (Imperial)
- 31257.0 lb.
- Weights (Metric)
- 68900.0 kg
- 6 Row Weight (Imperial)
- 31257.0 lb.
- 6 Row Weight (Metric)
- 44410.0 kg
