John Deere
X9 1100 Combine Harvester
Combines
John Deere 7M 230 tractor with PowerTech™ engine, G5Plus Display, CommandQuad™ transmission, TLS™ suspension, and JDLink™ readiness.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 401GH
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs21 specifications
- Engine Make
- John Deere
- Rated Engine Power (Imperial)
- 603 hp
- Rated Engine Power (Metric)
- 450 kW
- Maximum Engine Power (Imperial)
- 690 hp
- Maximum Engine Power (Metric)
- 515 kW
- Rotor Length (Imperial)
- 138.2 in.
- Rotor Length (Metric)
- 351.0 cm
- Rotor Diameter (Imperial)
- 24.0 in.
- Rotor Diameter (Metric)
- 60.1 cm
- Concave Area (Imperial)
- 17.2 sq ft
- Concave Area (Metric)
- 1.6 m²
- Separating Area (Imperial)
- 38.8 sq ft
- Separating Area (Metric)
- 3.6 m²
- Total Cleaning Area (Louvered) (Imperial)
- 75.0 sq ft
- Total Cleaning Area (Louvered) (Metric)
- 6.97 m²
- Grain Tank Size (Imperial)
- 0 bu
- Grain Tank Size (Metric)
- 16 L
- Peak Unloading Rate (Imperial)
- 5.3 bu/sec
- Peak Unloading Rate (Metric)
- 186.0 L/s
- Fuel Tank Capacity (Imperial)
- 330 gal.
- Fuel Tank Capacity (Metric)
- 1250 L
Engine12 specifications
- Engine Make
- John Deere
- Engine Model
- PowerTech™ PSS 13.6 L
- Rated Engine Speed
- 1900 rpm
- Rated Engine Power (Imperial)
- 603 hp
- Rated Engine Power (Metric)
- 450 kW
- Rated Engine Power (Other)
- 611 PS
- Maximum Engine Power (Imperial)
- 690 hp
- Maximum Engine Power (Metric)
- 515 kW
- Maximum Engine Power (Other)
- 700 PS
- Power Boost @ Rated Speed (Imperial)
- 53 hp
- Power Boost @ Rated Speed (Metric)
- 40 kW
- Power Boost @ Rated Speed (Other)
- 53 PS
Feeding2 specifications
- Feeding Width (Imperial)
- 67.7 in.
- Feeding Width (Metric)
- 172.0 cm

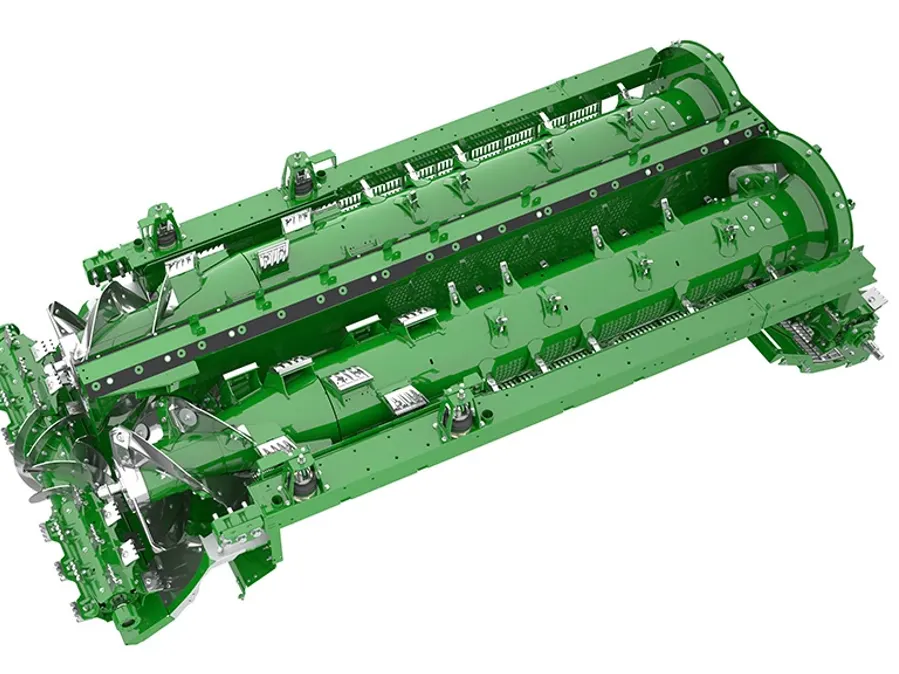

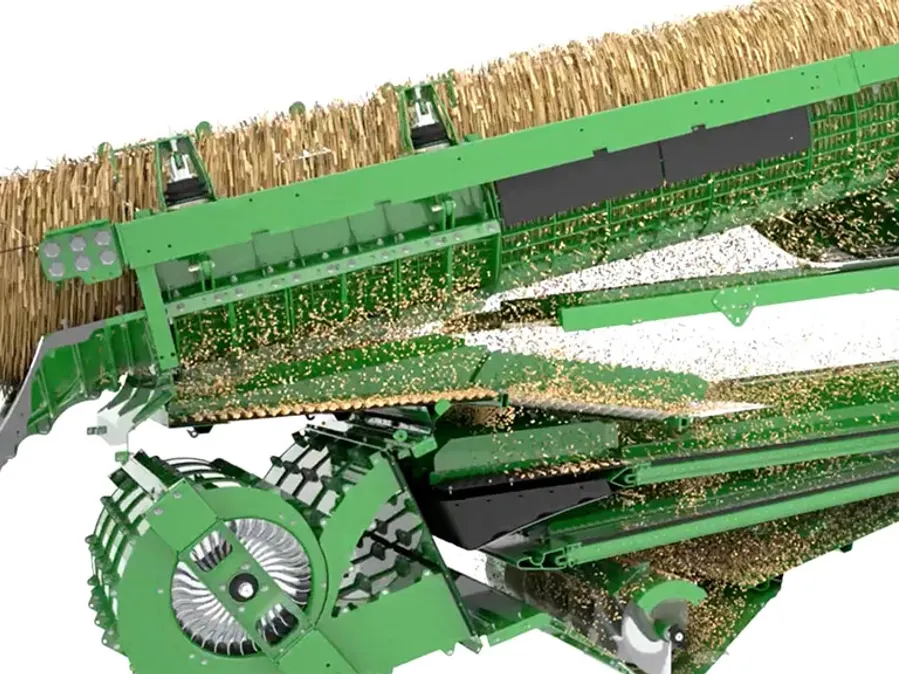

Threshing / Separating12 specifications
- Rotor Length (Imperial)
- 138.2 in.
- Rotor Length (Metric)
- 351.0 cm
- Rotor Diameter (Imperial)
- 24.0 in.
- Rotor Diameter (Metric)
- 60.1 cm
- Rotor Speed Range Low
- 300 rpm
- Rotor Speed Range High
- 1300 rpm
- Concave Area (Imperial)
- 17.2 sq ft
- Concave Area (Metric)
- 1.6 m²
- Separating Area (Imperial)
- 38.8 sq ft
- Separating Area (Metric)
- 3.6 m²
- Discharge Grate Area (Imperial)
- 4.85 sq ft
- Discharge Grate Area (Metric)
- 0.45 m²

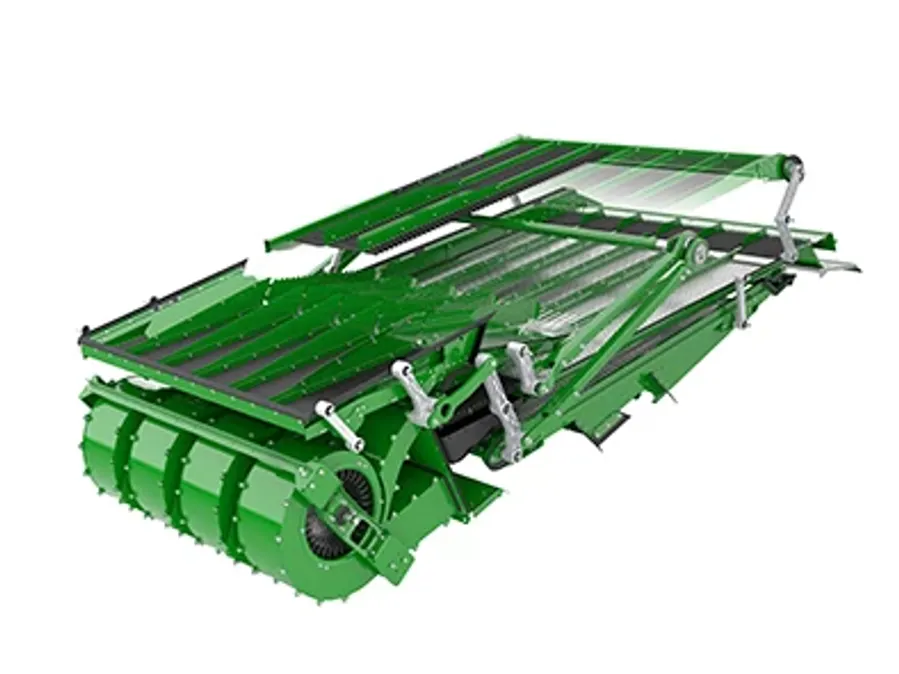

Cleaning10 specifications
- Front Chaffer (Imperial)
- 10.5 sq ft
- Front Chaffer (Metric)
- 0.98 m²
- Chaffer Area (Imperial)
- 33.8 sq ft
- Chaffer Area (Metric)
- 3.14 m²
- Sieve Area (Imperial)
- 31.0 sq ft
- Sieve Area (Metric)
- 2.88 m²
- Total Cleaning Area (Louvered) (Imperial)
- 75.0 sq ft
- Total Cleaning Area (Louvered) (Metric)
- 6.97 m²
- Cleaning Fan Speed Minimum
- 570 rpm
- Cleaning Fan Speed Maximum
- 1430 rpm
Grain Handling8 specifications
- Grain Tank Size (Imperial)
- 0 bu
- Grain Tank Size (Metric)
- 16 L
- Optional Grain Tank Size (Imperial)
- 550 bu
- Optional Grain Tank Size (Metric)
- 19382 L
- Unloading Auger Length (Imperial)
- 27. 28.5. 31. or 35 ft
- Unloading Auger Length (Metric)
- 7.9. 8.7. 9.45. or 10.7 m
- Peak Unloading Rate (Imperial)
- 5.3 bu/sec
- Peak Unloading Rate (Metric)
- 186.0 L/s
Capacities4 specifications
- Fuel Tank Capacity (Imperial)
- 330 gal.
- Fuel Tank Capacity (Metric)
- 1250 L
- Diesel Exhaust Fluid (DEF) Tank Capacity (Imperial)
- 21.9 gal.
- Diesel Exhaust Fluid (DEF) Tank Capacity (Metric)
- 83.0 L
Additional Information1 specifications
- Date Collected
- 2020-06-15
