John Deere
S7 700 Combine
Combines

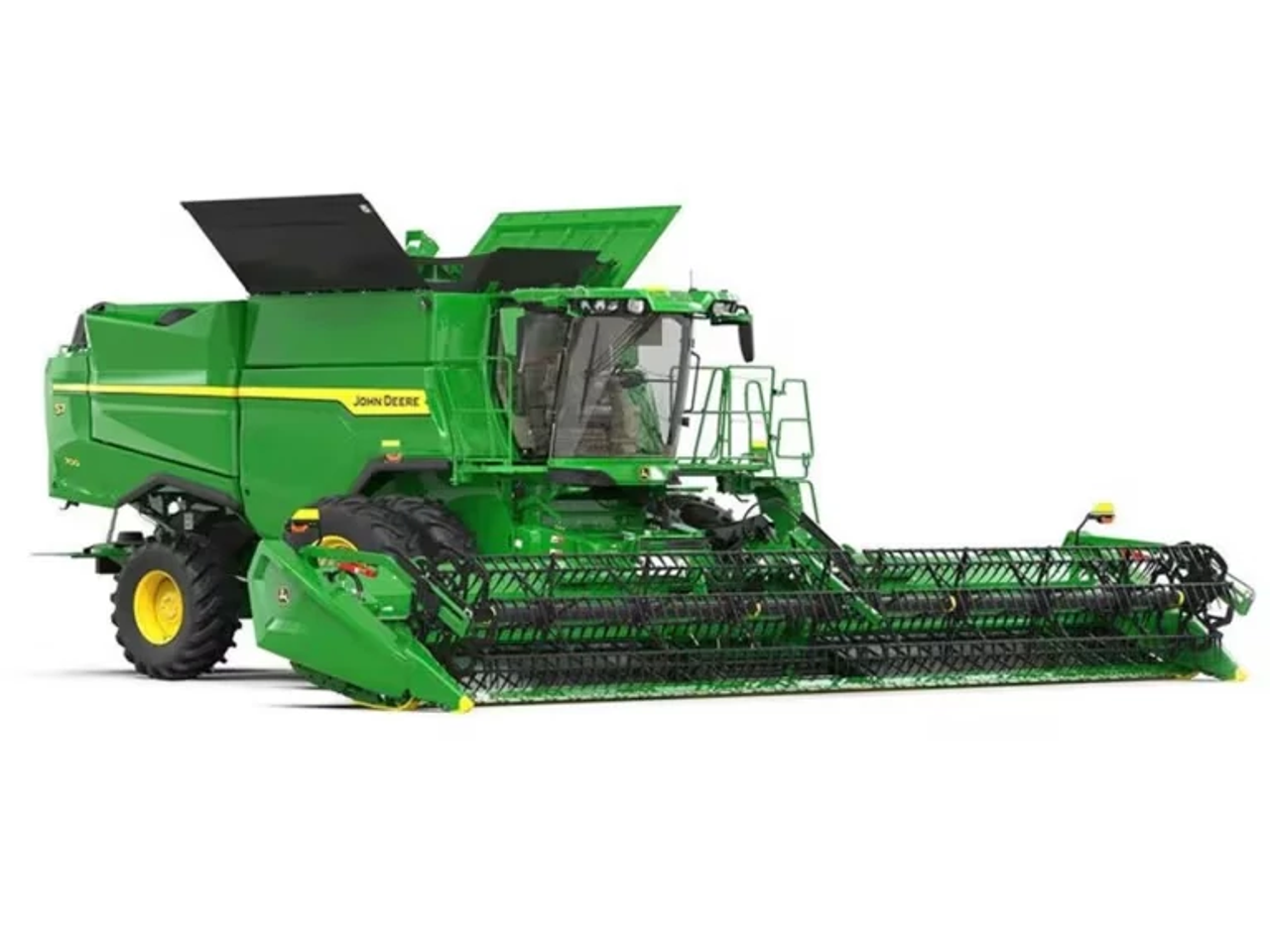

John Deere S7 700 combine with advanced harvest automation, crop sensing, predictive controls, and high-capacity performance.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 328CZ
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs21 specifications
- Engine Make
- John Deere
- Rated Engine Power (Imperial)
- 402 hp
- Rated Engine Power (Metric)
- 300 kW
- Maximum Engine Power (Imperial)
- 460 hp
- Maximum Engine Power (Metric)
- 343 kW
- Rotor Length (Imperial)
- 123.0 in.
- Rotor Length (Metric)
- 312.0 cm
- Rotor Diameter (Imperial)
- 30.0 in.
- Rotor Diameter (Metric)
- 76.2 cm
- Concave Area (Imperial)
- 11.8 sq ft
- Concave Area (Metric)
- 1.1 m²
- Separating Area (Imperial)
- 16.6 sq ft
- Separating Area (Metric)
- 1.54 m²
- Total Cleaning Area (Louvered) (Imperial)
- 54.9 sq ft
- Total Cleaning Area (Louvered) (Metric)
- 5.1 m²
- Grain Tank Size (Imperial)
- 300 bu
- Grain Tank Size (Metric)
- 10 L
- Peak Unloading Rate (Imperial)
- 4.2 bu/sec
- Peak Unloading Rate (Metric)
- 150.0 L/s
- Fuel Tank Capacity (Imperial)
- 305 gal.
- Fuel Tank Capacity (Metric)
- 1155 L
Machine Configuration1 specifications
- Drive Type
- Fixed or variable or multi-speed
Engine12 specifications
- Engine Make
- John Deere
- Engine Model
- PowerTech 9.0 L 549 cu in.
- Rated Engine Speed
- 2 rpm
- Rated Engine Power (Imperial)
- 402 hp
- Rated Engine Power (Metric)
- 300 kW
- Rated Engine Power (Other)
- 378 PS
- Maximum Engine Power (Imperial)
- 460 hp
- Maximum Engine Power (Metric)
- 343 kW
- Maximum Engine Power (Other)
- 431 PS
- Power Boost @ Rated Speed (Imperial)
- 34 hp
- Power Boost @ Rated Speed (Metric)
- 25 kW
- Power Boost @ Rated Speed (Other)
- 34 PS
Feeding7 specifications
- Feeding Drive Type
- Fixed or variable or multi-speed
- Conveyor Chain Slat Type
- Cast iron
- Feeding Width (Imperial)
- 55.0 in.
- Feeding Width (Metric)
- 139.7 cm
- Feeding Length (Imperial)
- 67.9 in.
- Feeding Length (Metric)
- 172.5 cm
- Feed Accelerator, Stone Trap (FAST)
- Standard
Threshing / Separating13 specifications
- Separator Type
- Rotary
- Rotor Length (Imperial)
- 123.0 in.
- Rotor Length (Metric)
- 312.0 cm
- Rotor Diameter (Imperial)
- 30.0 in.
- Rotor Diameter (Metric)
- 76.2 cm
- Rotor Speed Range Low
- 210 rpm
- Rotor Speed Range High
- 1 rpm
- Concave Area (Imperial)
- 11.8 sq ft
- Concave Area (Metric)
- 1.1 m²
- Separating Area (Imperial)
- 16.6 sq ft
- Separating Area (Metric)
- 1.54 m²
- Discharge Grate Area (Imperial)
- 3.9 sq ft
- Discharge Grate Area (Metric)
- 0.36 m²
Cleaning8 specifications
- Front Chaffer (Imperial)
- 5.4 sq ft
- Front Chaffer (Metric)
- 0.5 m²
- Chaffer Area (Imperial)
- 26.9 sq ft
- Chaffer Area (Metric)
- 2.5 m²
- Total Cleaning Area (Louvered) (Imperial)
- 54.9 sq ft
- Total Cleaning Area (Louvered) (Metric)
- 5.1 m²
- Cleaning Fan Speed Minimum
- 620 rpm
- Cleaning Fan Speed Maximum
- 1.35 rpm
Grain Handling6 specifications
- Grain Tank Size (Imperial)
- 300 bu
- Grain Tank Size (Metric)
- 10 L
- Unloading Auger Length (Imperial)
- 28.5 ft
- Unloading Auger Length (Metric)
- 8.7 m
- Peak Unloading Rate (Imperial)
- 4.2 bu/sec
- Peak Unloading Rate (Metric)
- 150.0 L/s
Capacities2 specifications
- Fuel Tank Capacity (Imperial)
- 305 gal.
- Fuel Tank Capacity (Metric)
- 1155 L
Dimensions & Weights4 specifications
- Front Axle Weight (Imperial)
- 22 lb.
- Front Axle Weight (Metric)
- 10 kg
- Base Machine Weight (Imperial)
- 43 lb.
- Base Machine Weight (Metric)
- 19 kg
Additional Information1 specifications
- Date Collected
- 14-November-2023
