John Deere

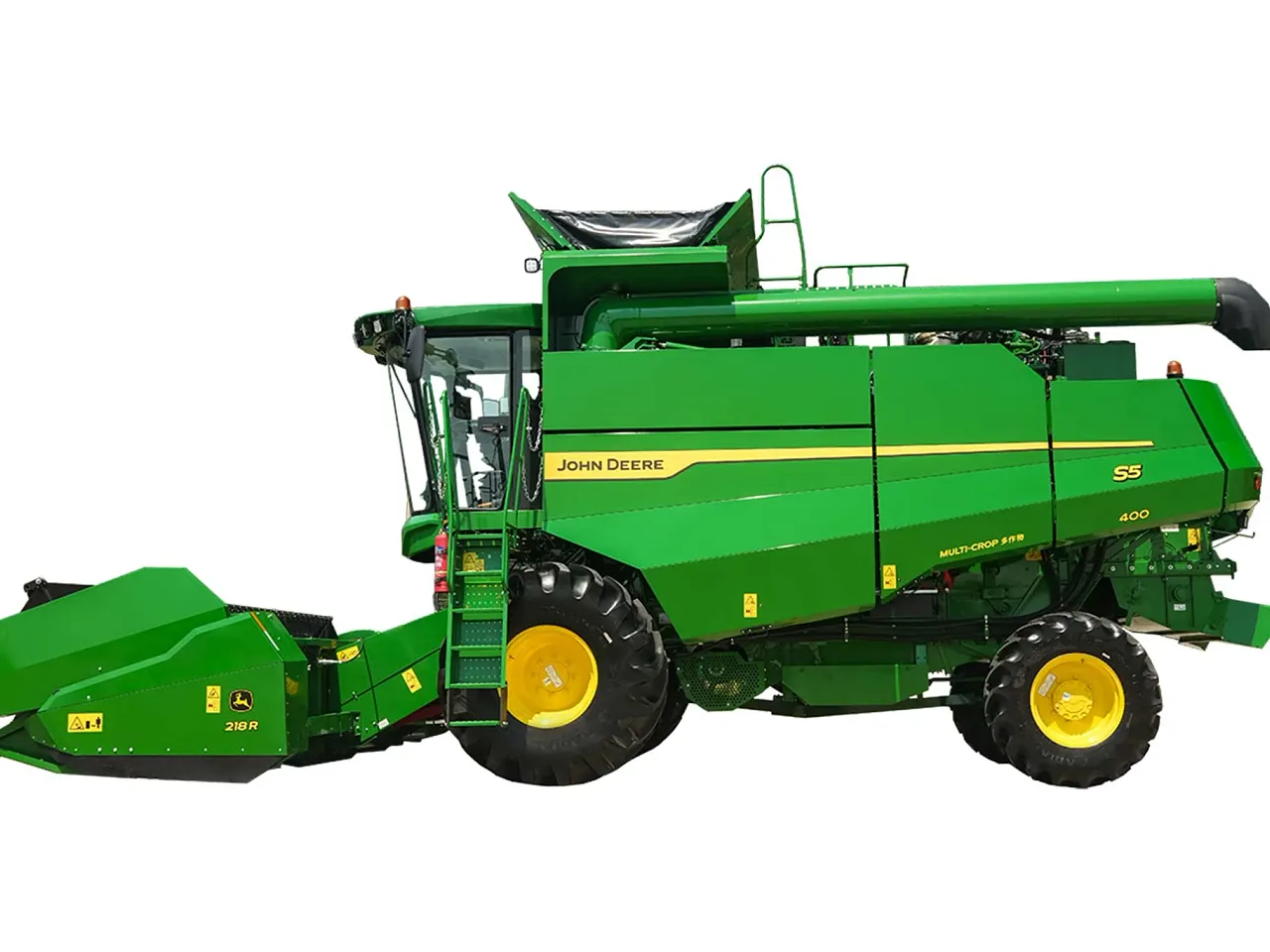

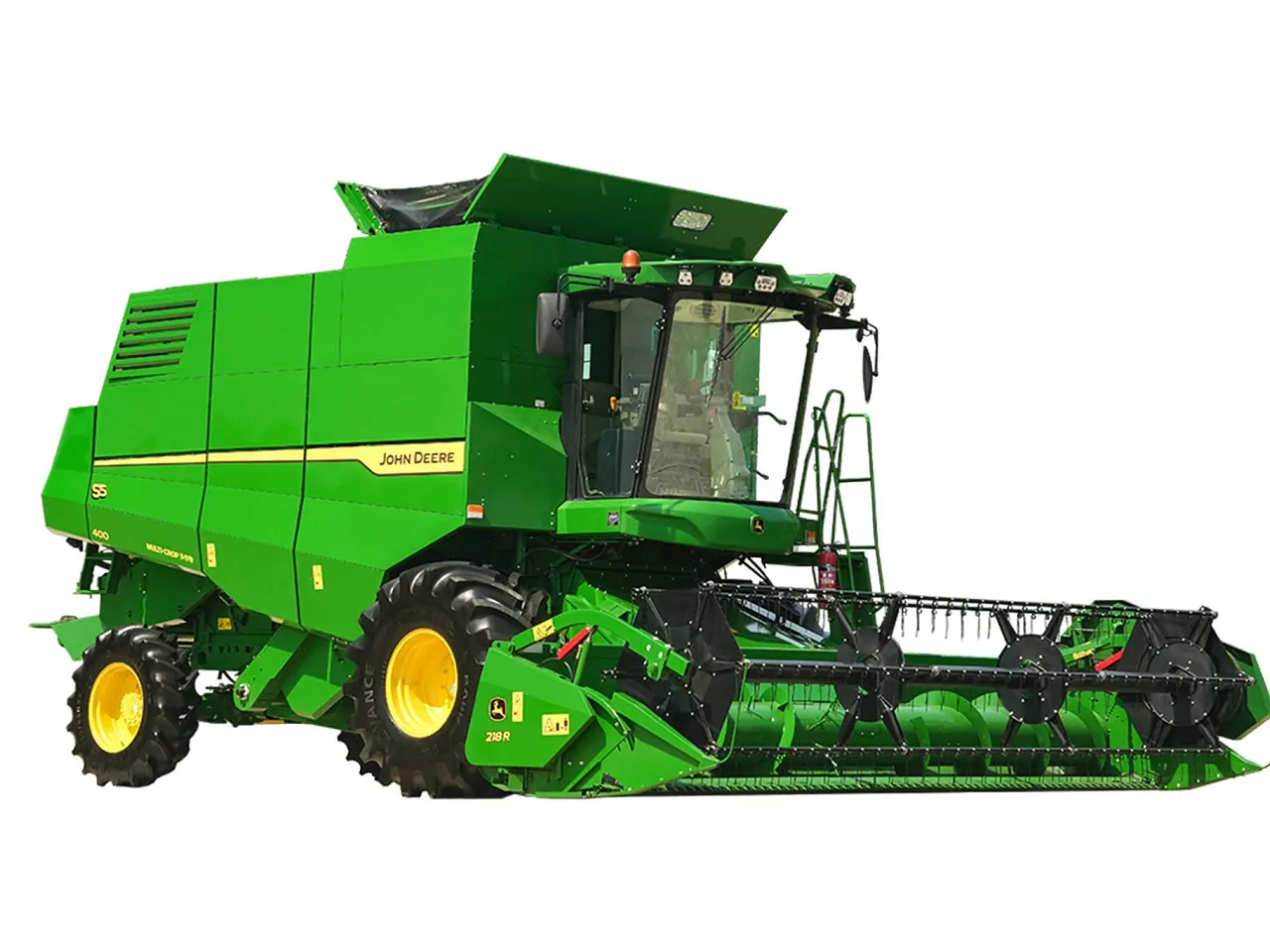

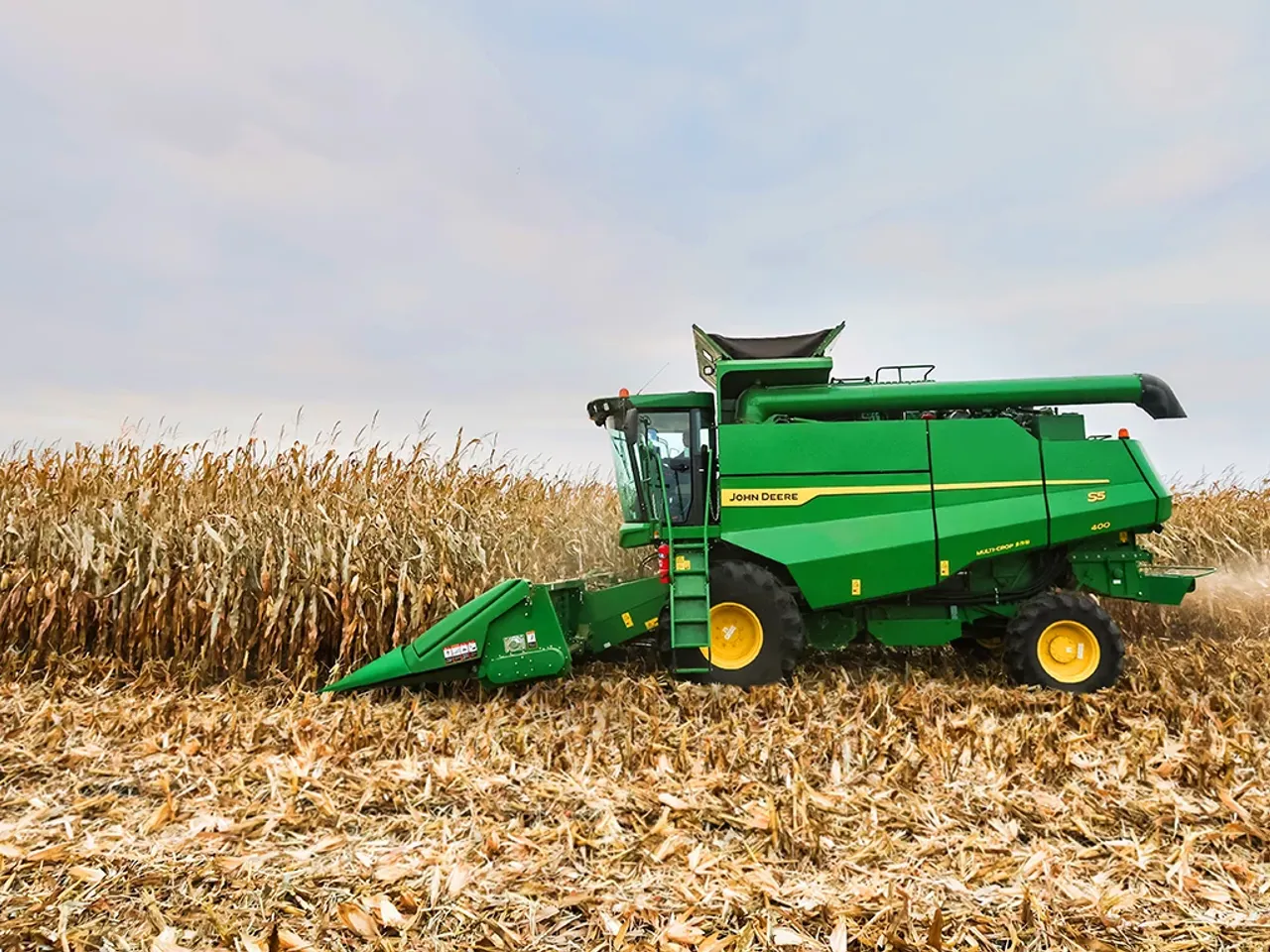

S5 300 Combine Harvester
Combines

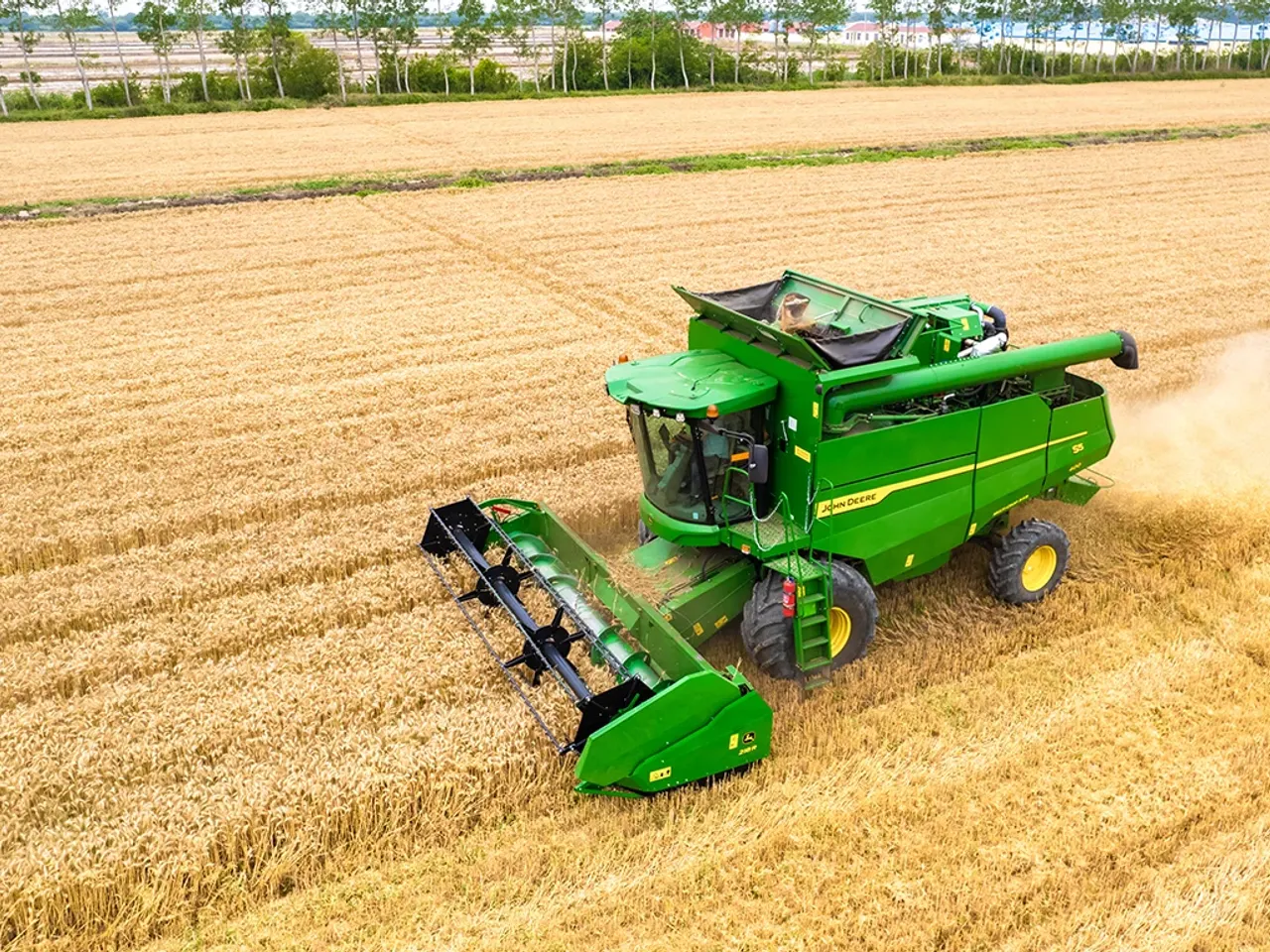

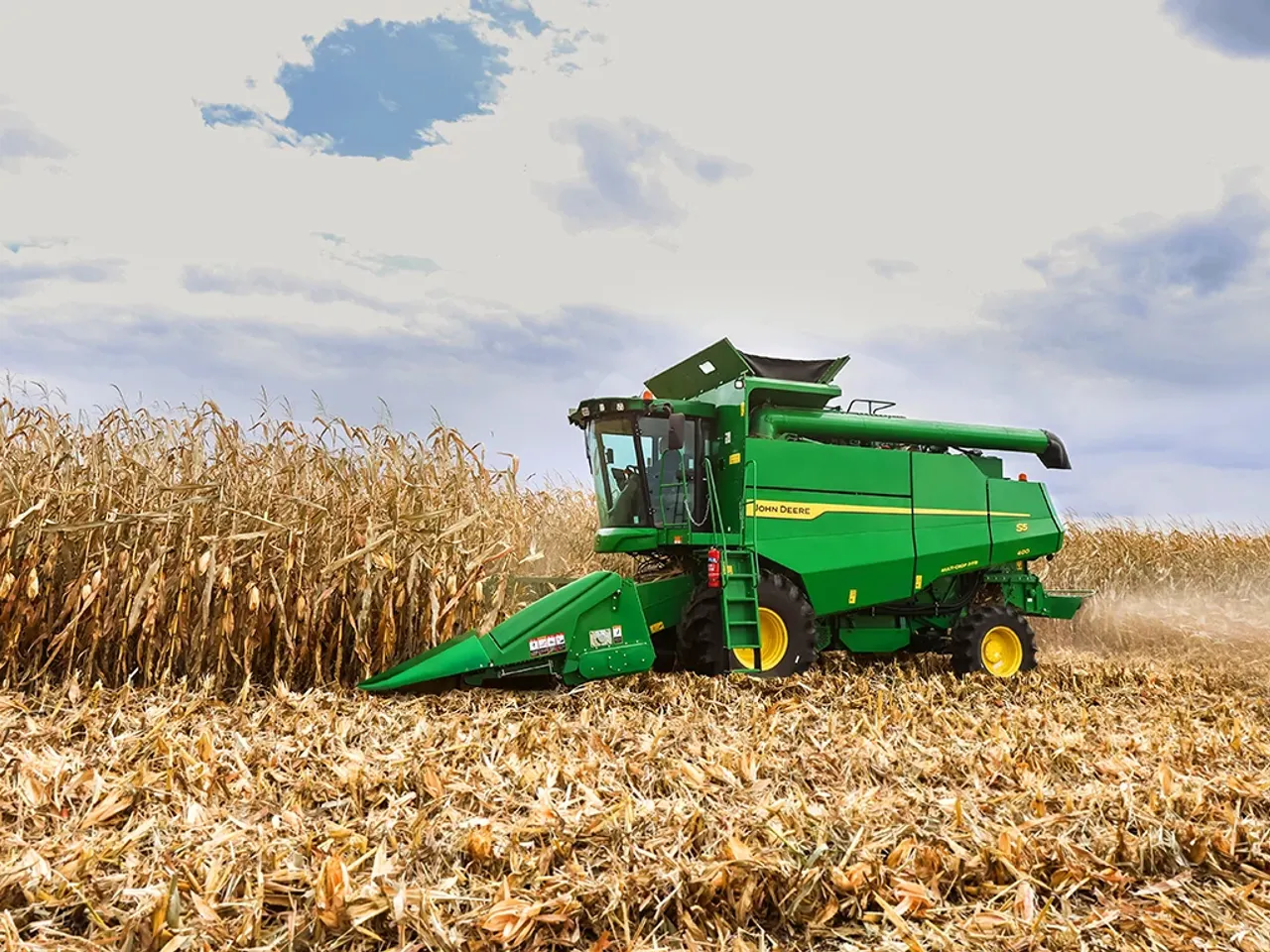

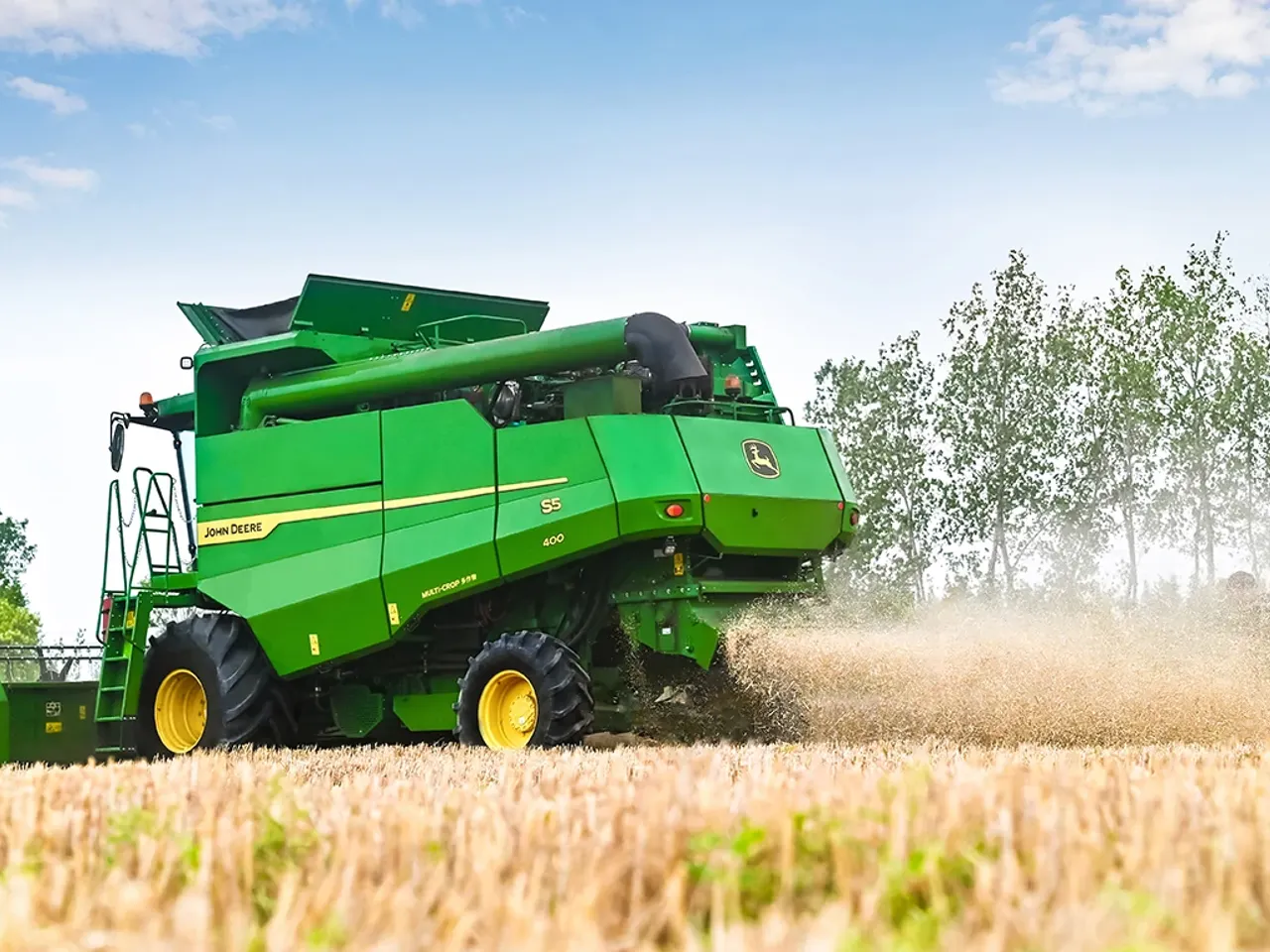

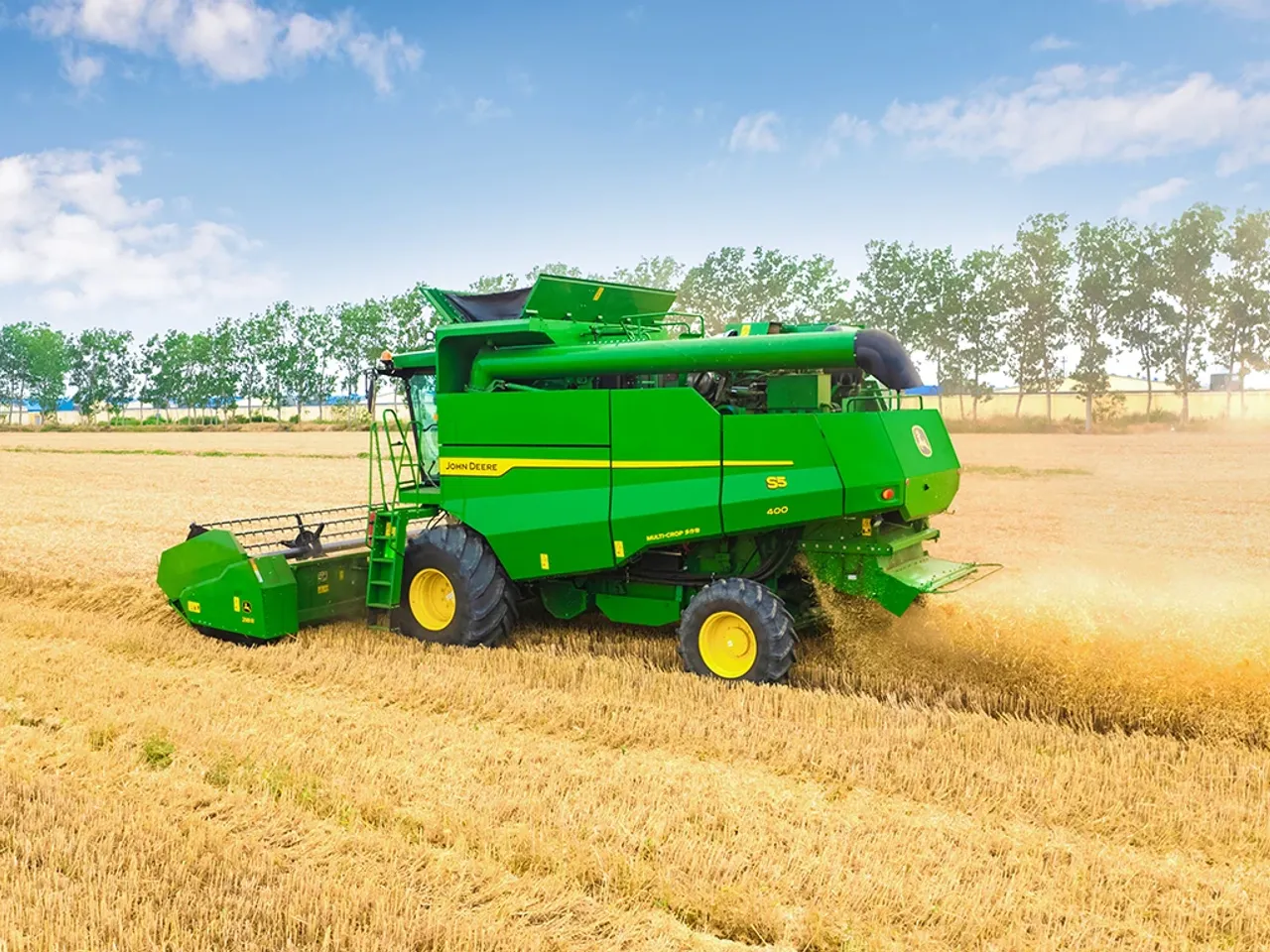

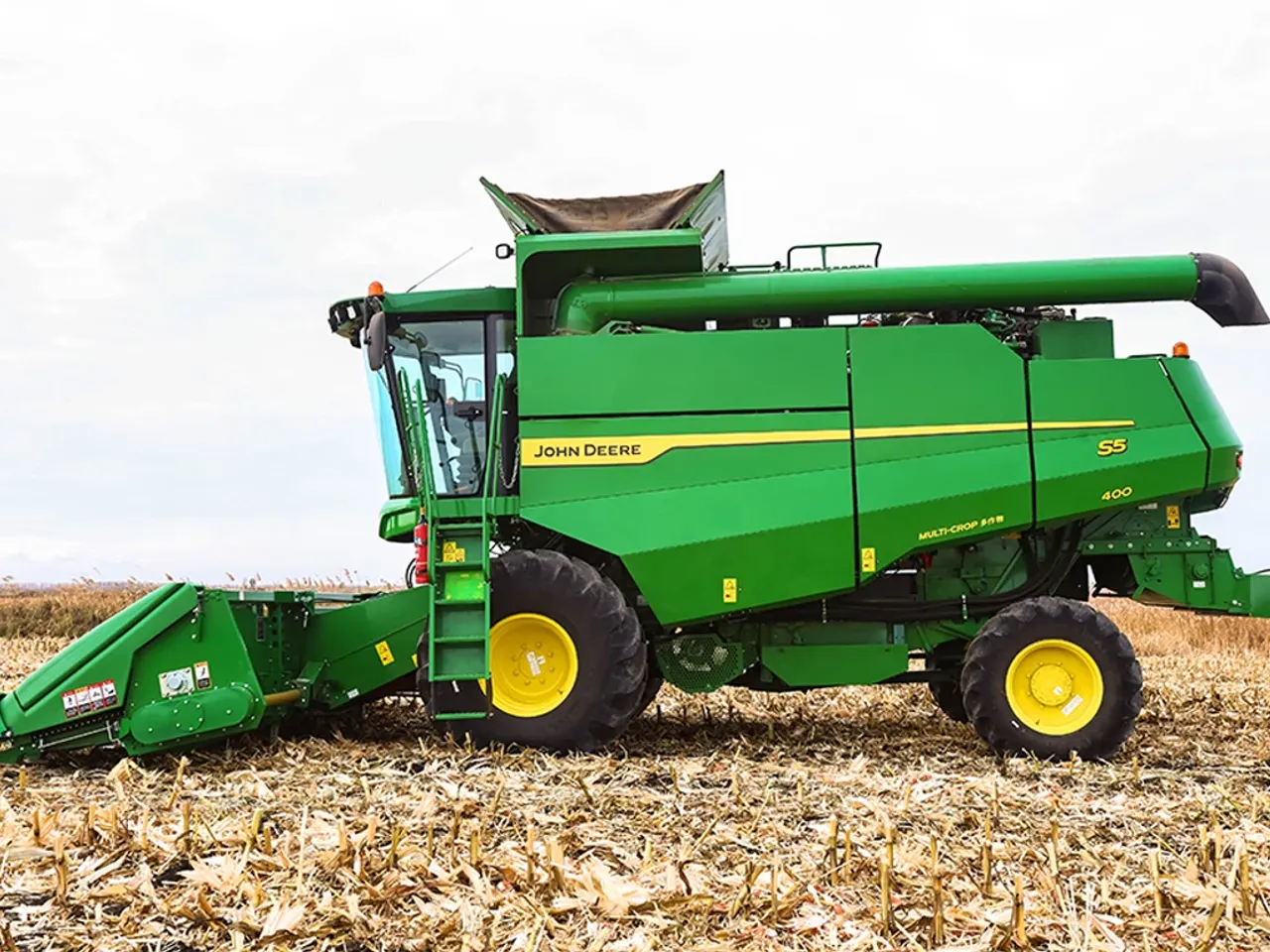

The new John Deere S5 Series combines deliver maximum performance for small and mixed farms with fast multi-crop changeovers, easy setup, gentle TriStream™ rotor threshing, and a large cleaning shoe area for excellent grain separation, reduced damage, and minimal field losses.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 0241YC
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs10 specifications
- Engine Make
- John Deere PowerTech™ Plus 6.8 L
- Rated Engine Power
- 213 hp
- Maximum Engine Power
- 225 hp
- Rotor Length
- 313.0 cm
- Rotor Diameter
- 61.0 cm
- Separating Area
- 1.26 m²
- Total Cleaning Area (Louvered)
- 4.3 m²
- Grain Tank Size
- 6000 L
- Peak Unloading Rate
- 75.0 L/s
- Fuel Tank Capacity
- 400 L
Engine6 specifications
- Engine Make
- John Deere PowerTech™ Plus 6.8 L
- Engine Model
- 6068HYC67
- Emissions Certifications
- Tier 3
- Rated Engine Speed
- 2400 rpm
- Rated Engine Power
- 213 hp
- Maximum Engine Power
- 225 hp
Feeding4 specifications
- Feeding Drive Type
- Fixed
- Feeding Width
- 124.0 cm
- Feeding Length
- 214.0 cm
- Feed Accelerator, Stone Trap (FAST)
- Reverser - Optional

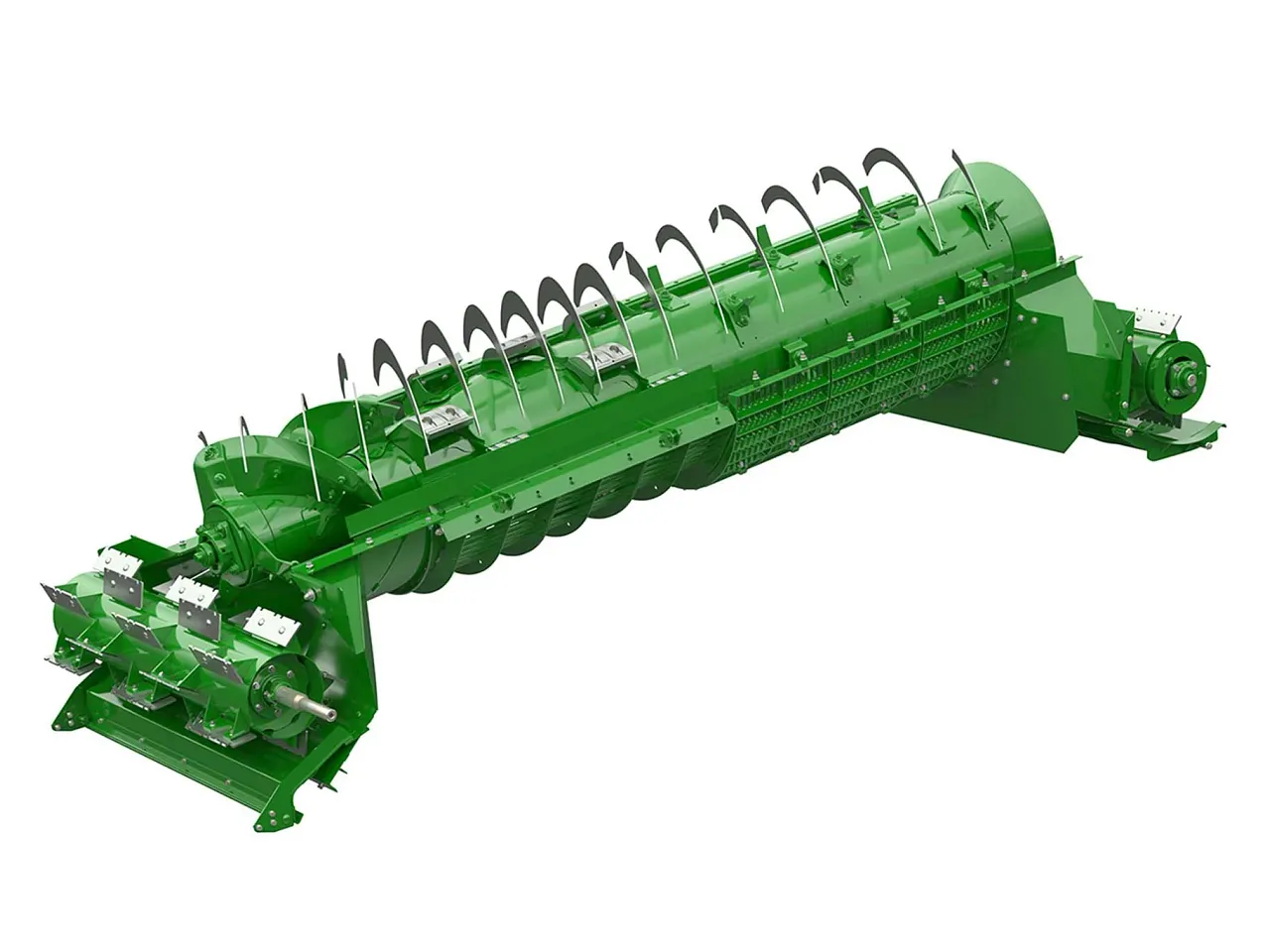

Threshing / Separating6 specifications
- Separator Type
- Rotor
- Rotor Length
- 313.0 cm
- Rotor Diameter
- 61.0 cm
- Rotor Speed Range Low
- 380 rpm
- Rotor Speed Range High
- 1210 rpm
- Separating Area
- 1.26 m²
Cleaning3 specifications
- Total Cleaning Area (Louvered)
- 4.3 m²
- Cleaning Fan Speed Minimum
- 550 rpm
- Cleaning Fan Speed Maximum
- 1250 rpm
Grain Handling3 specifications
- Grain Tank Size
- 6000 L
- Unloading Auger Length
- 5.1 m
- Peak Unloading Rate
- 75.0 L/s
Capacities1 specifications
- Fuel Tank Capacity
- 400 L
Additional Information2 specifications
- Country of Manufacture
- Jiamusi, China
- Date Collected
- 2026-06-09
