John Deere

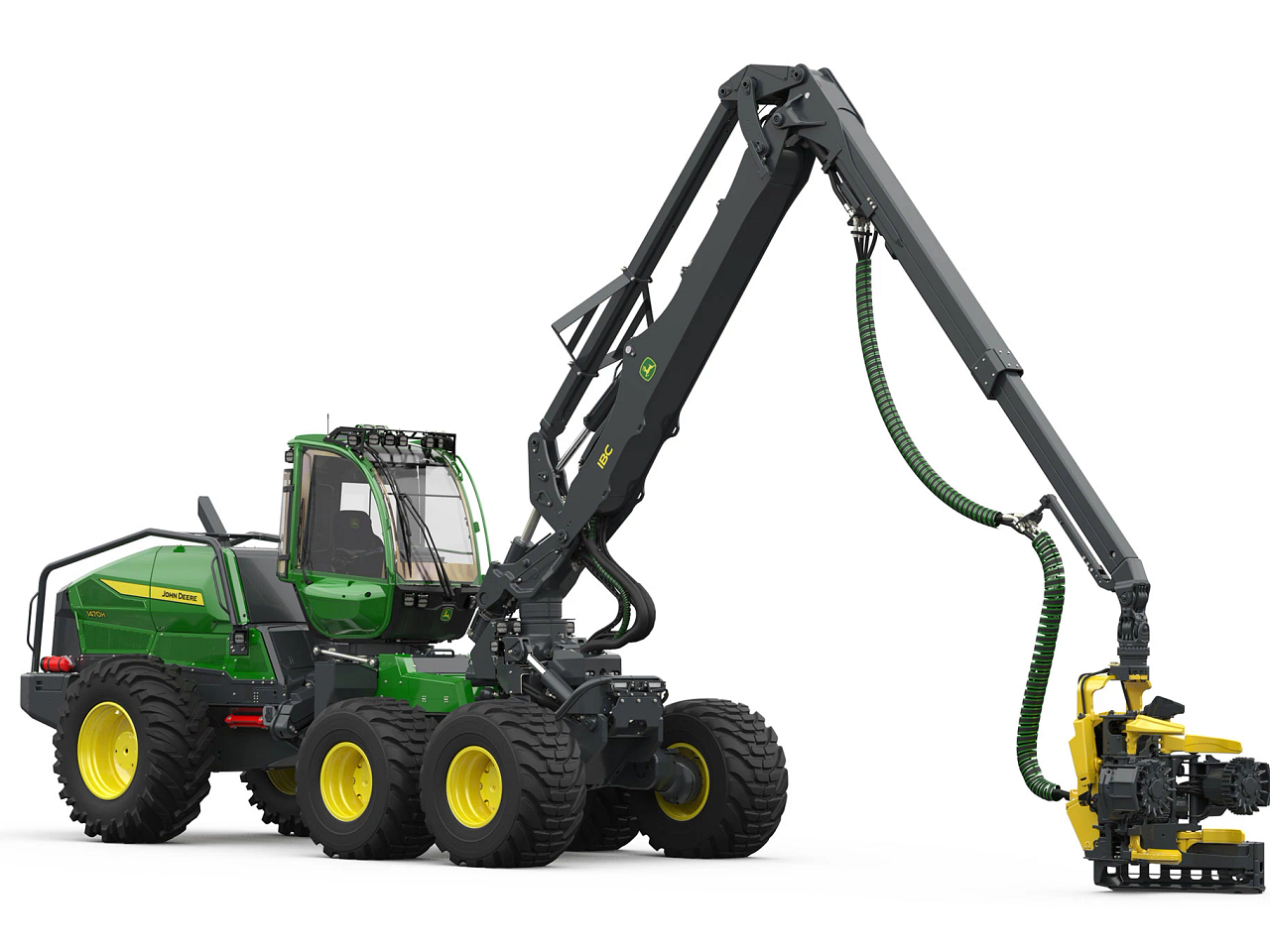

1470H Wheeled Harvester
Wheeled Harvesters
The 1470H Wheeled Harvester is a powerful and all-around versatile harvester for large trees.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 0910WJ
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs4 specifications
- Maximum Power (Metric)
- 220.0 kW
- Maximum Power (Imperial)
- 295.0 hv
- Net Peak Torque (Metric)
- 1445.0 Nm
- Net Peak Torque (Imperial)
- 1065.0 lb-ft
Engine13 specifications
- Manufacturer
- John Deere
- Model
- JD9
- Speed Maximum Power Measured At
- 2000.0 r/min
- Maximum Power (Metric)
- 220.0 kW
- Maximum Power (Imperial)
- 295.0 hv
- Speed Net Peak Torque Measured At
- 1400.0 r/min
- Net Peak Torque (Metric)
- 1445.0 Nm
- Net Peak Torque (Imperial)
- 1065.0 lb-ft
- Fuel Tank Capacity (Metric)
- 465.6
- Fuel Tank Capacity (Imperial)
- 123.0
- Diesel Exhaust Fluid (DEF) Tank Total Capacity (Metric)
- 25.0 L
- Diesel Exhaust Fluid (DEF) Tank Total Capacity (Imperial)
- 6.6 .gal
- DEF Tank Usable Capacity
- 25.0 L
Transmission With 6-Wheel (6W) Model2 specifications
- Tractive Force (Metric)
- 210.0 kN
- Tractive Force (Imperial)
- 47210.0 lbf
Transmission With 8-Wheel (8W) Model2 specifications
- Tractive Force (Metric)
- 260.0 kN
- Tractive Force (Imperial)
- 58450.0 lbf
Steering & Brakes1 specifications
- Turning Angle
- 44.0 degrees
Electrical2 specifications
- Number Of Batteries
- 2
- Battery Capacity Per Each
- 174.0 amp-h
Hydraulics7 specifications
- Oil Flow @ 1700 RPM
- 669 l/min
- Working Pressure Option 1 (Metric)
- 28.0 MPa
- Working Pressure Option 1 (Imperial)
- 4061.0 psi
- Working Pressure Option 2 (Metric)
- 35.0 MPa
- Working Pressure Option 2 (Imperial)
- 5076.3 psi
- Hydraulic Tank (Metric)
- 302.8 l
- Hydraulic Tank (Imperial)
- 80.0
Boom13 specifications
- Maximum Reach Length Option 1, Head Included (Metric)
- 8.6 m
- Maximum Reach Length Option 1, Head Included (Imperial)
- 28.2 ft
- Maximum Reach Length Option 2, Head Included (Metric)
- 10.0 m
- Maximum Reach Length Option 2, Head Included (Imperial)
- 32.8 ft
- Maximum Reach Length Option 3, Head Included (Metric)
- 11.0 m
- Maximum Reach Length Option 3, Head Included (Imperial)
- 36.1 ft
- Gross Lifting Torque (Metric)
- 240.0 kNm
- Gross Lifting Torque (Imperial)
- 177014.6 lb-ft
- Slewing Torque (Metric)
- 62.0 kNm
- Slewing Torque (Imperial)
- 45729.0 lb-ft
- Slewing Angle
- 220.0 degrees
- Forward Tilt Angle
- 25.0 degrees
- Backward Tilt Angle
- 18.0 degrees
Cabin2 specifications
- Type
- Rotating and Leveling Cabin
- Rotating Angle
- 220.0 degrees
Measuring And Control System1 specifications
- Type
- TimberMatic™ H
Harvester Heads1 specifications
- Models
- H225E, H425,H425HD, H427, H216, H219, HTH616C Series III
Dimensions With 6 Wheels (6W)19 specifications
- Length (Metric)
- 8.15 m
- Length (Imperial)
- 26.7 ft
- Wheelbase, Front Plus Rear Axle Middle Joint (Metric)
- 4.4 m
- Wheelbase, Front Plus Rear Axle Middle Joint (Imperial)
- 14.4 ft
- Front Tire Size Option 1 (Metric)
- 650.0 mm
- Front Tire Size Option 1 (Imperial)
- 26.5 sisään
- Front Tire Size Option 2 (Metric)
- 723.9 mm
- Front Tire Size Option 2 (Imperial)
- 28.5 sisään
- Rear Tire Size (Metric)
- 863.6 mm
- Rear Tire Size (Imperial)
- 34.0 sisään
- Minimum Width With 710 Series Tires
- 3000.0 mm
- Outer Turning Radius 710 Series Tires
- 7000.0 mm
- Transport Height (Metric)
- 4.0 m
- Transport Height (Imperial)
- 13.0 ft
- Transport Length (Metric)
- 12.0 m
- Transport Length (Imperial)
- 39.4 ft
- Ground Clearance Middle Joint (Metric)
- 0.804 m
- Ground Clearance Middle Joint (Imperial)
- 31.65 sisään
- Minimum Machine Weight With Harvester Head
- 24689.0 kg
Dimensions With 8 Wheels (8W)12 specifications
- Length (Metric)
- 8.81 m
- Length (Imperial)
- 41.5 ft
- Wheelbase, Front Plus Rear Axle Middle Joint (Metric)
- 4.85 m
- Wheelbase, Front Plus Rear Axle Middle Joint (Imperial)
- 15.9 ft
- Front Tires
- 26.5 in (673 mm)
- Rear Tires
- 26.5 in (673 mm)
- Transport Height (Metric)
- 4.0 m
- Transport Height (Imperial)
- 13.0 ft
- Ground Clearance Middle Joint (Metric)
- 0.813 m
- Ground Clearance Middle Joint (Imperial)
- 28.5 sisään
- Minimum Machine Weight With Harvester Head (Metric)
- 8576.32 kg
- Minimum Machine Weight With Harvester Head (Imperial)
- 63000.0 lb.
