John Deere

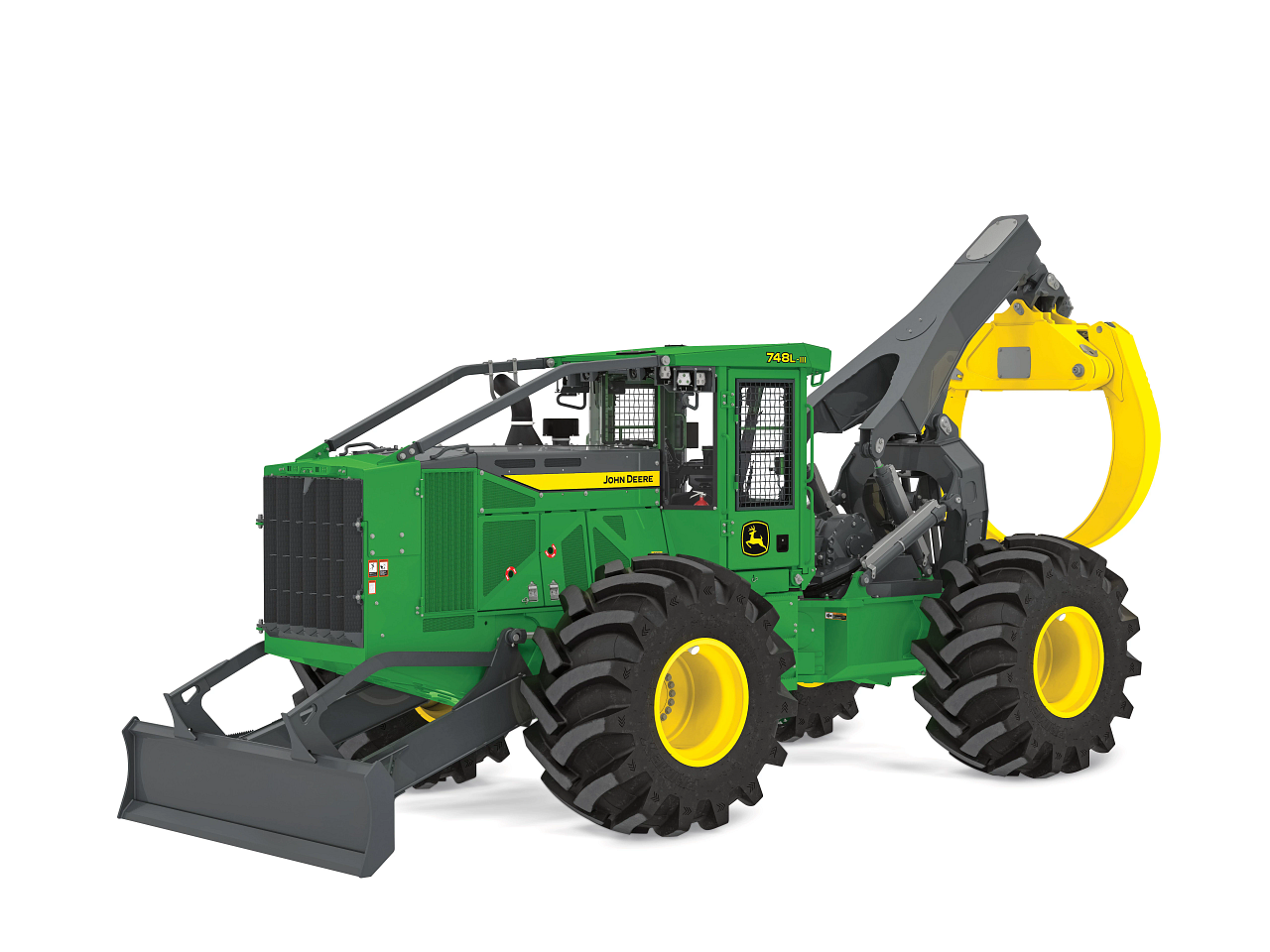

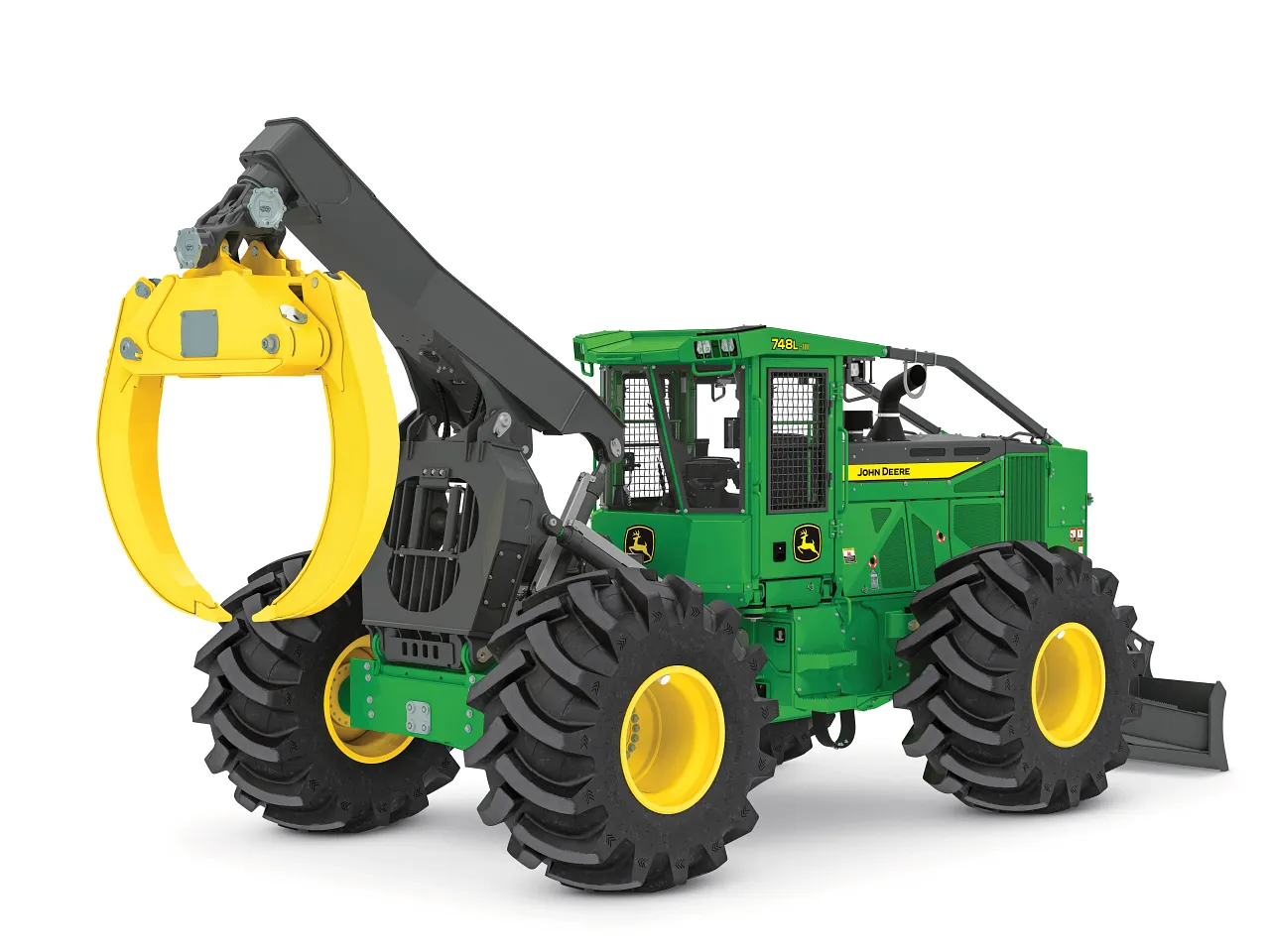

748L-III Grapple Skidder
Skidders
Power through tough timber with the 748L‑III and its high tractive effort, smooth CVT control, rugged axles, and visibility‑rich cab to maximize timber production.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 1240DW
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs10 specifications
- Engine Manufacturer
- John Deere
- Engine Model
- PowerTech™ PSS 6.8L
- Displacement (Metric)
- 6.8 L
- Displacement (Imperial)
- 415.0 in³
- Engine Torque (Metric)
- 1141.0 Nm
- Engine Torque (Imperial)
- 841.6 lb-ft
- Transmission
- Continuous Variable Transmission
- Steering Articulation Angle
- 45.0 degree (angle)
- Travel Speed (Metric)
- 24.74 km/h
- Travel Speed (Imperial)
- 15.4 mph
Description1 specifications
- Standard Arch Function
- Dual
Driveline12 specifications
- Engine Manufacturer
- John Deere
- Engine Model
- PowerTech™ PSS 6.8L
- Displacement (Metric)
- 6.8 L
- Displacement (Imperial)
- 415.0 in³
- Engine Output (Metric)
- 196.0 kW
- Engine Output (Imperial)
- 262.0 hp
- Engine Torque (Metric)
- 1141.0 Nm
- Engine Torque (Imperial)
- 841.6 lb-ft
- Transmission
- Continuous Variable Transmission
- Planetaries
- Inboard
- Service Brake Type
- Inboard Wet discs
- Parking Brake Type
- Wet multi-disc in Transmission
Dimensions21 specifications
- Overall Length (Metric)
- 9677.0 mm
- Overall Length (Imperial)
- 381.0 in.
- Overall Width (Metric)
- 3239.0 mm
- Overall Width (Imperial)
- 127.5 in.
- Height Over Cab (Metric)
- 3365.0 mm
- Height Over Cab (Imperial)
- 132.5 in.
- Wheelbase (Metric)
- 3925.0 mm
- Wheelbase (Imperial)
- 154.5 in.
- Dozer Blade Height (Metric)
- 687.6 mm
- Dozer Blade Height (Imperial)
- 27.0 in.
- Ground Clearance (Metric)
- 557.0 mm
- Ground Clearance (Imperial)
- 22.0 in.
- Dozer Blade Width (Metric)
- 2962.4 mm
- Dozer Blade Width (Imperial)
- 116.6 in.
- Dozer Blade Dig Depth (Metric)
- 359.0 mm
- Dozer Blade Dig Depth (Imperial)
- 14.0 in.
- Tong Opening at Tips (Metric)
- 3251.0 mm
- Tong Opening at Tips (Imperial)
- 128.0 in.
- Enclosure Area (Metric)
- 1.77 m²
- Enclosure Area (Imperial)
- 19.05 sq ft
- Steering Articulation Angle
- 45.0 degree (angle)
Capacities5 specifications
- Fuel Tank (Metric)
- 391.8 L
- Fuel Tank (Imperial)
- 103.5 gal.
- Hydraulic Tank (Metric)
- 123.6 L
- Hydraulic Tank (Imperial)
- 32.6 gal.
- Alternator Output
- 150.0 amp
Performance Data10 specifications
- Travel Speed (Metric)
- 24.74 km/h
- Travel Speed (Imperial)
- 15.4 mph
- Oscillation Point
- Front axle
- Oscillation Angle
- 15.0 degree (angle)
- Rated Line Pull (Imperial)
- 47997.0 lbf
- Rated Line Pull (Metric)
- 213.5 kN
- Rated Line Speed (Imperial)
- 66.0 fpm
- Rated Line Speed (Metric)
- 20.1 m/min
- System Voltage
- 24.0 V
- Pump
- Var. axial-piston
Weights2 specifications
- Operating Weight (Imperial)
- 44762.0 lb.
- Operating Weight (Metric)
- 20304.0 kg
