John Deere

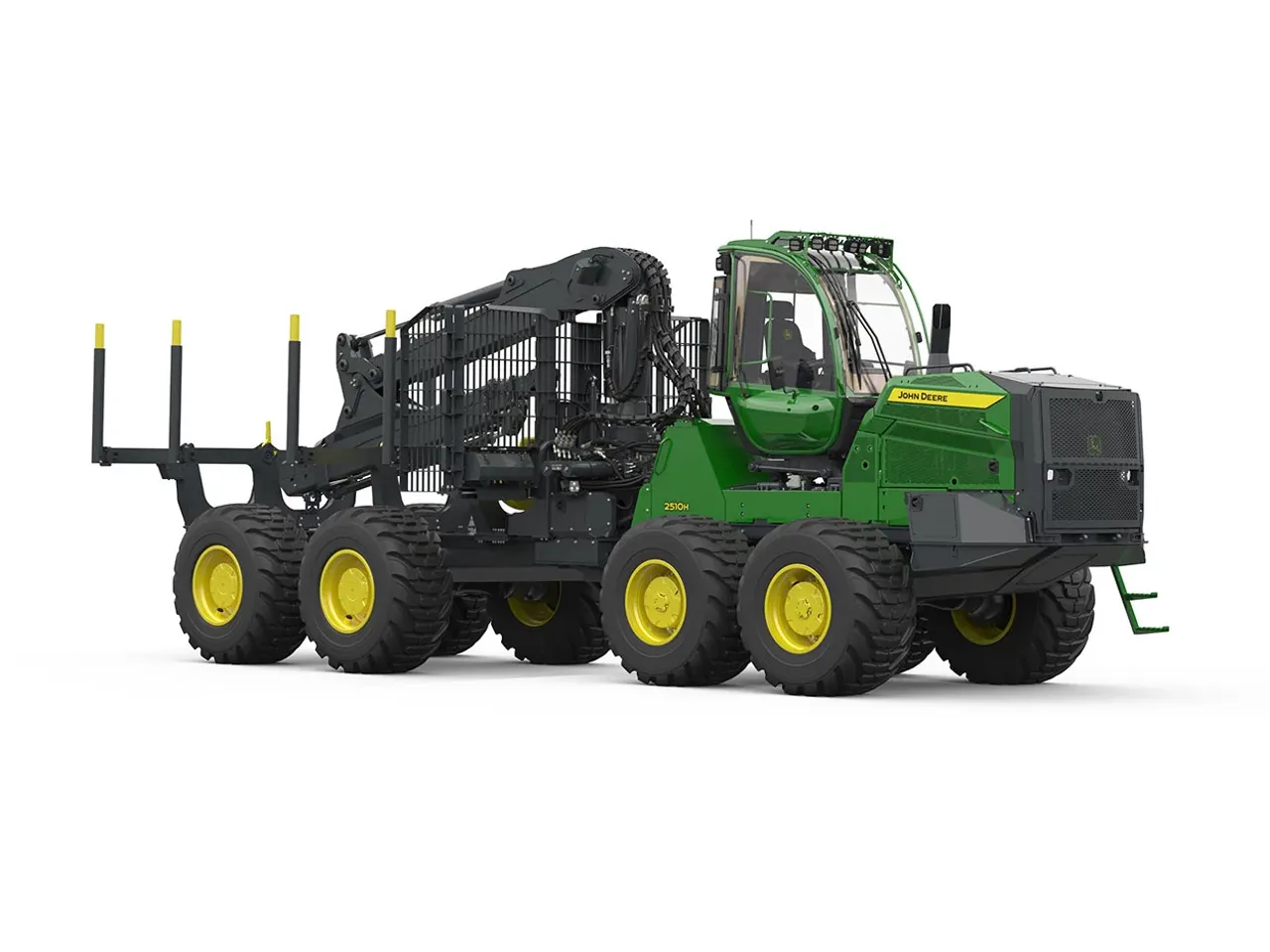

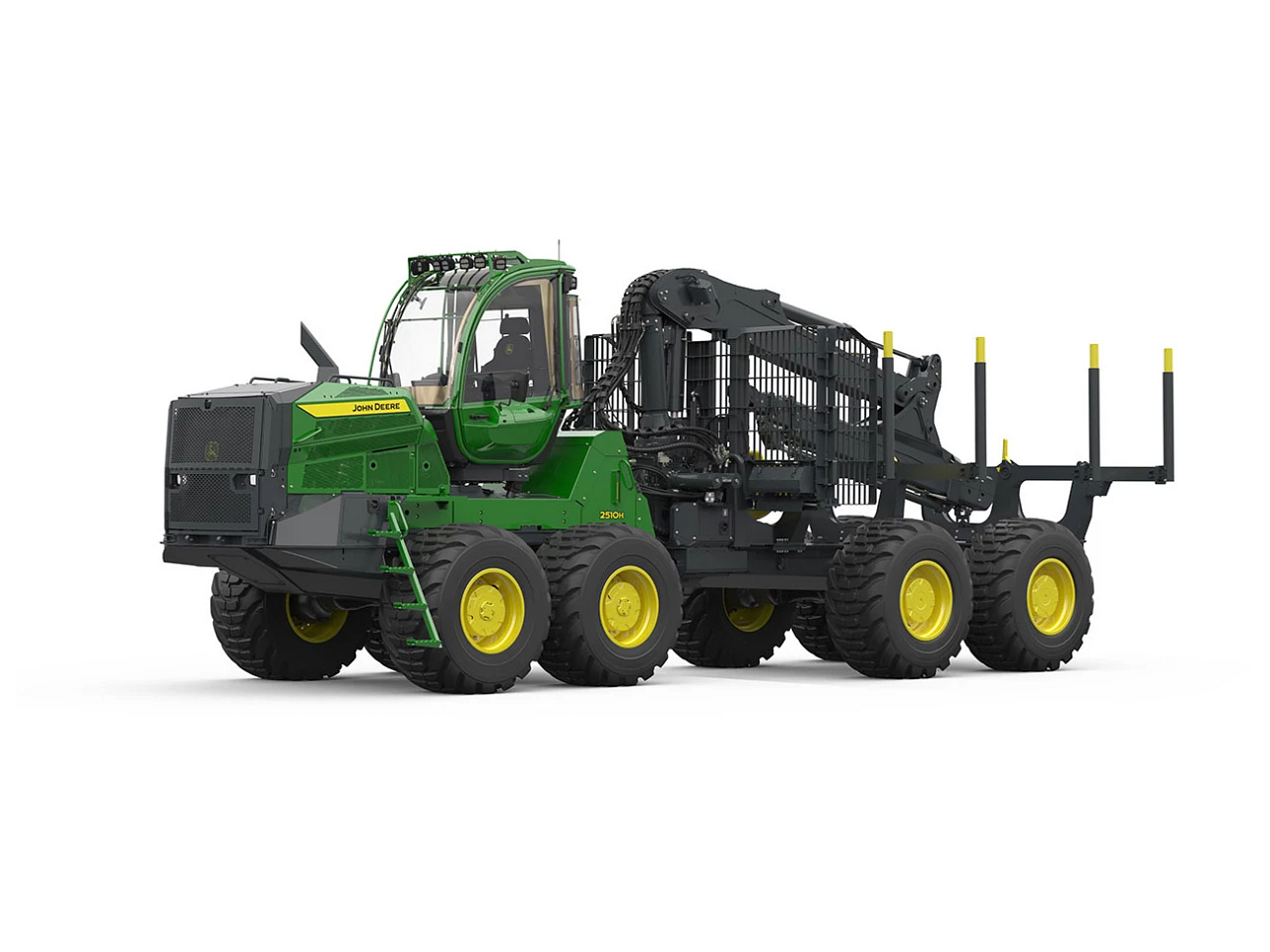

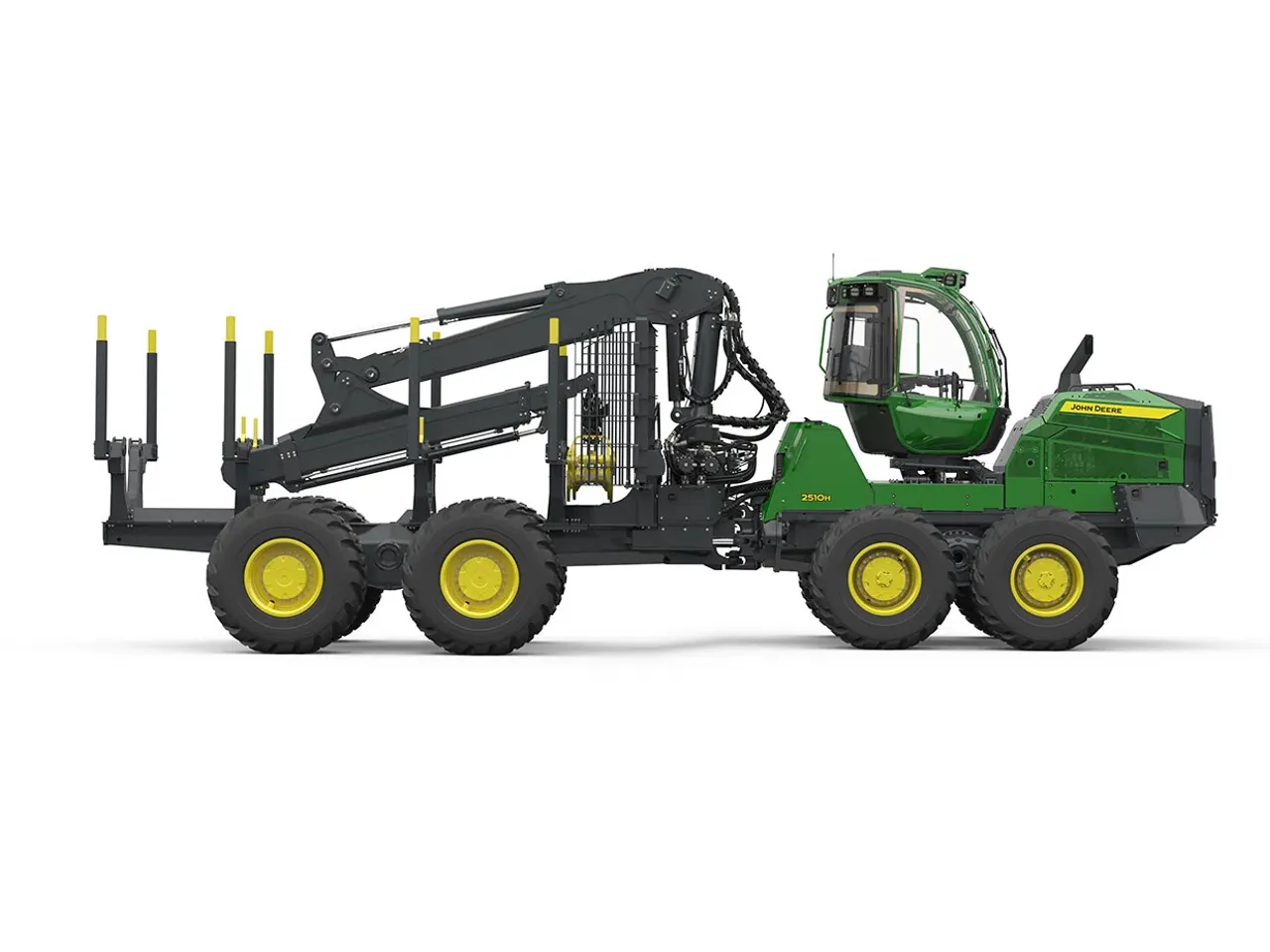

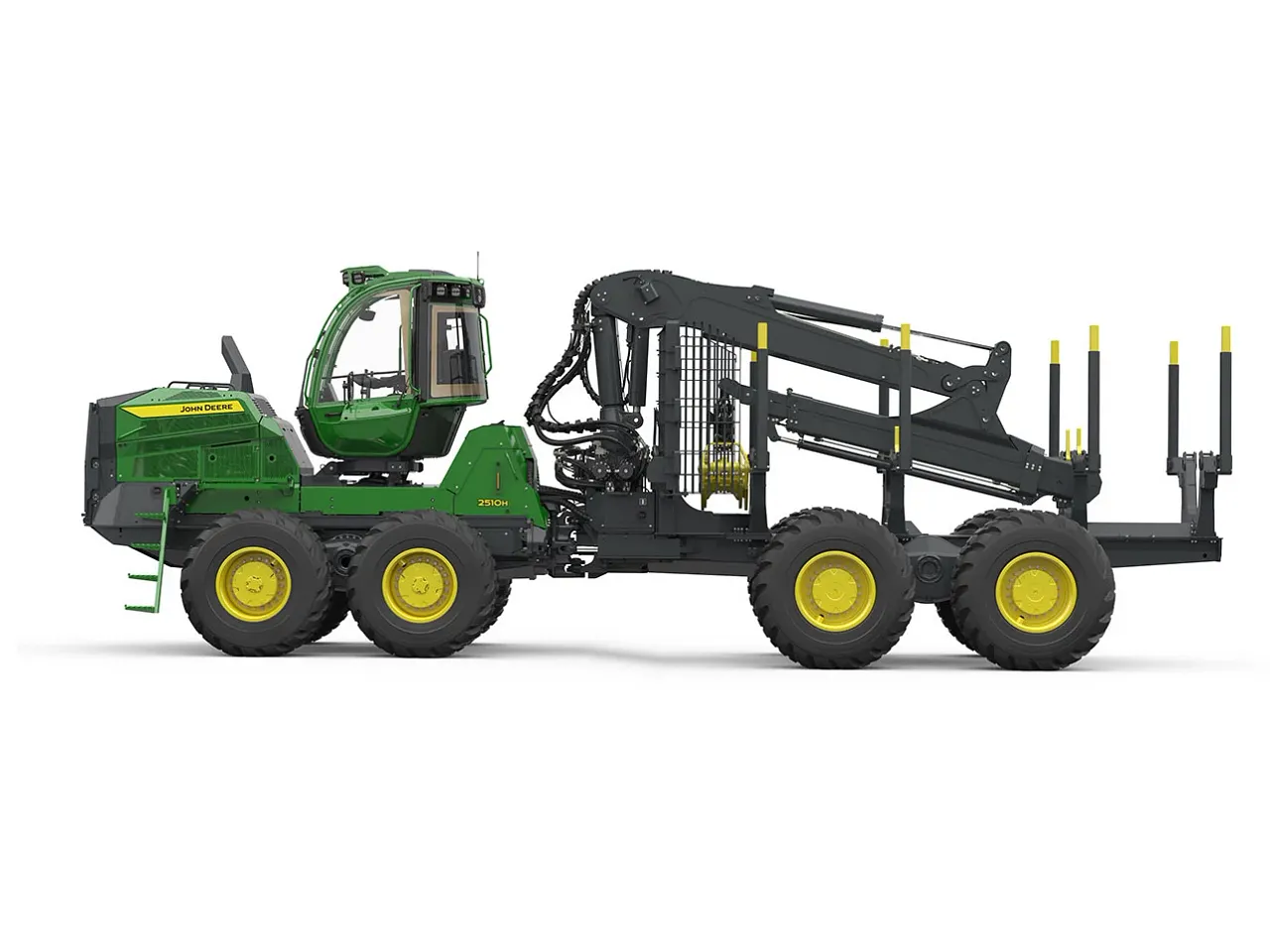

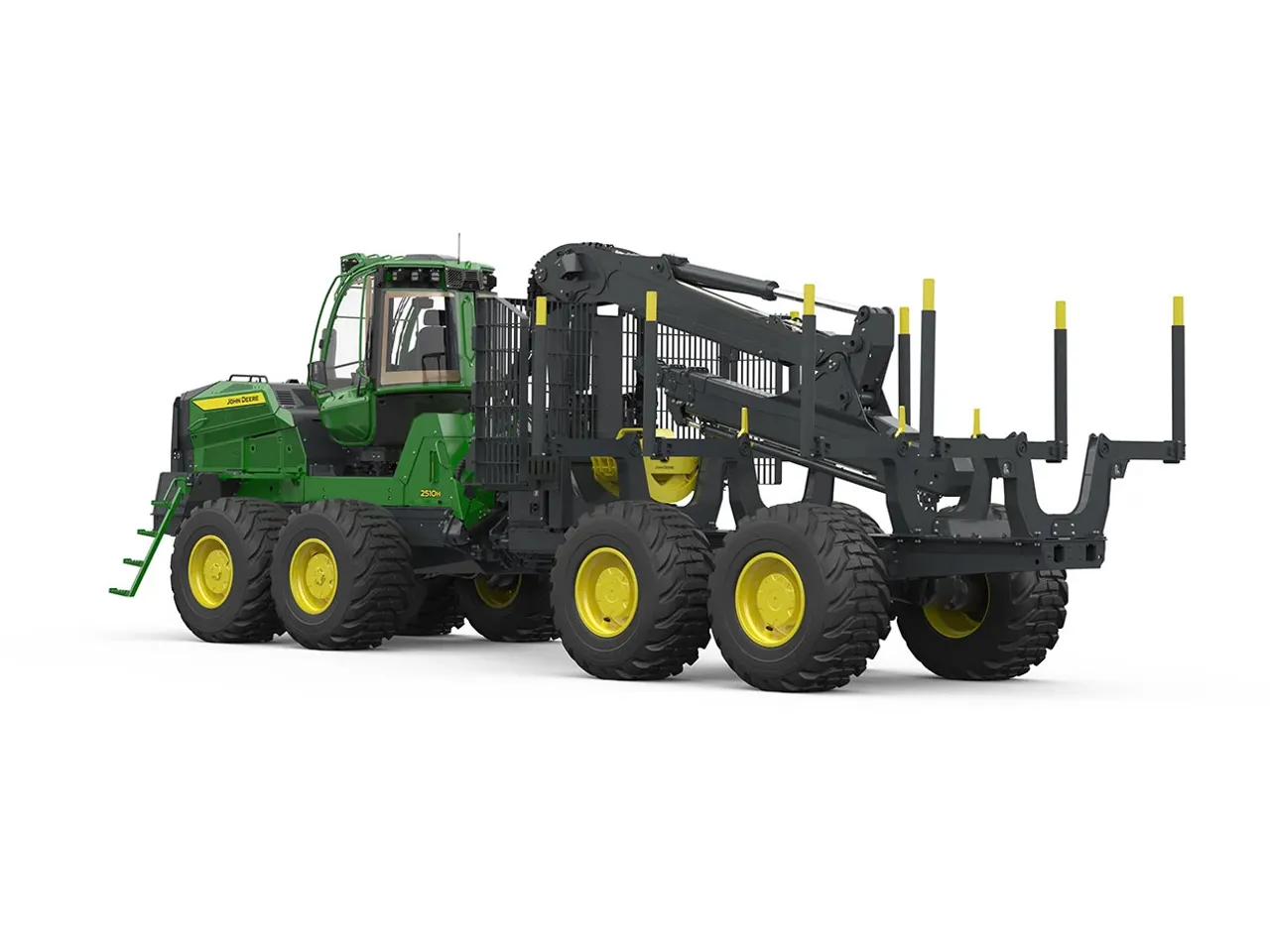

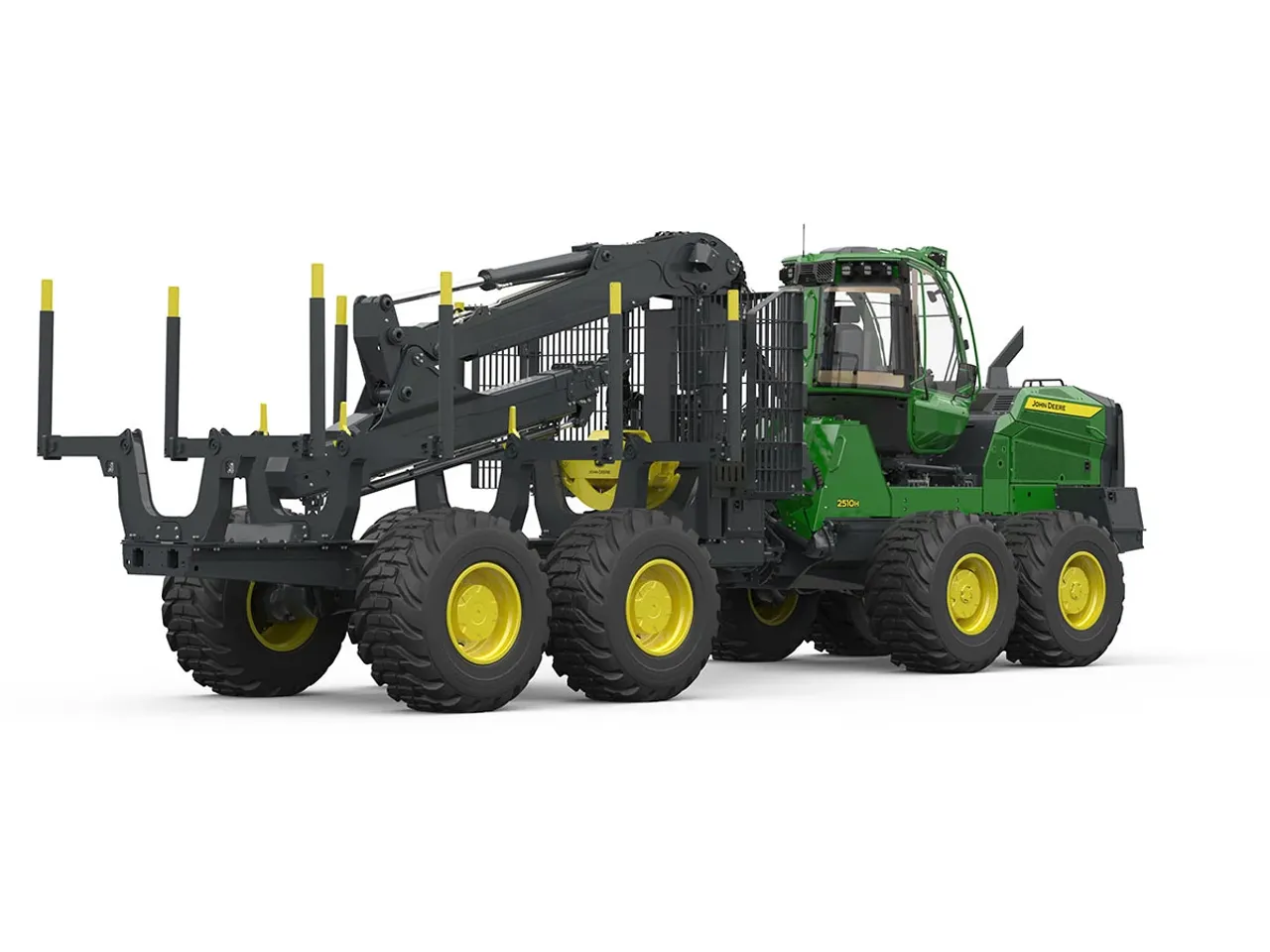

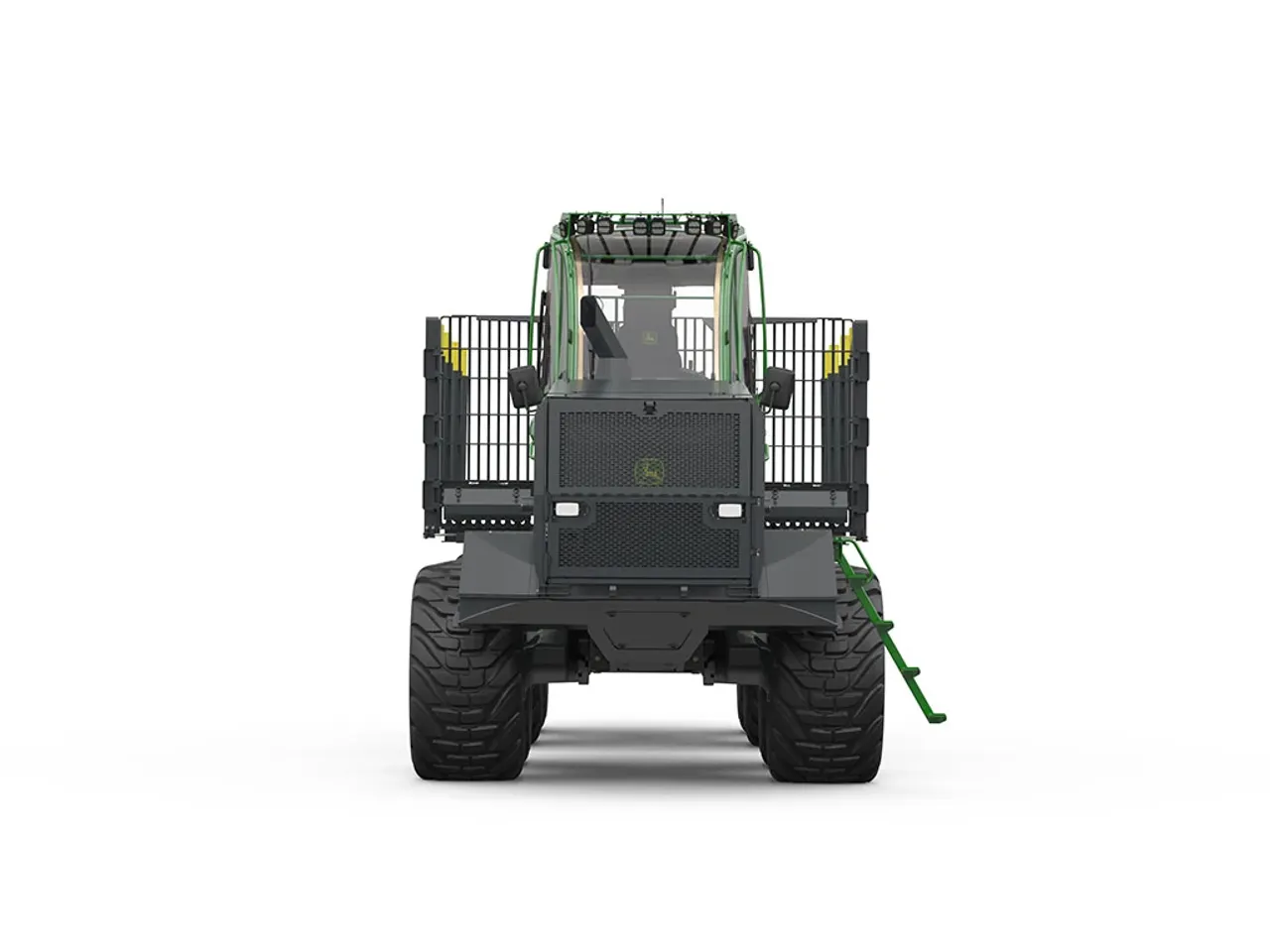

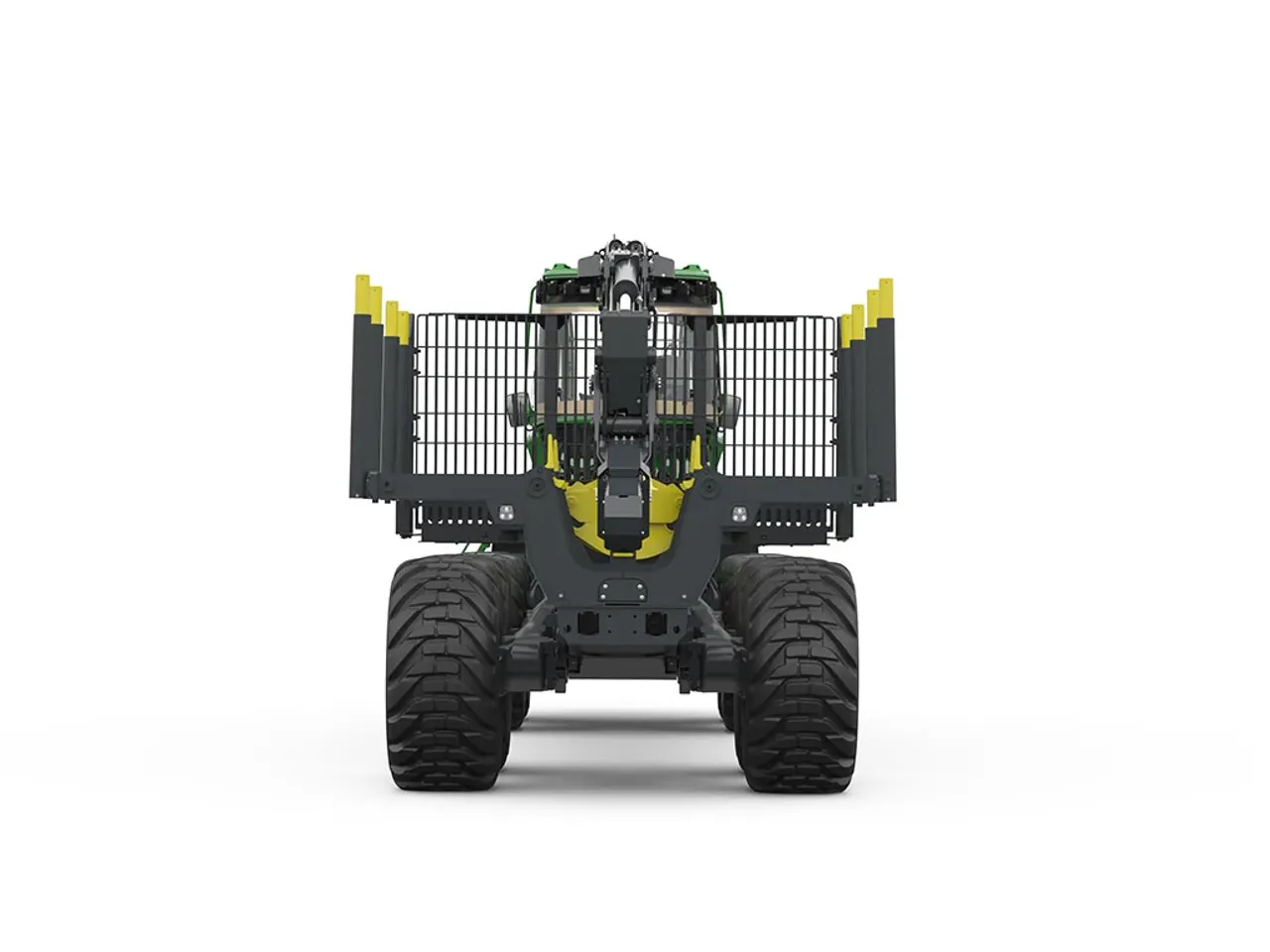

2510H Forwarder
Forwarders
John Deere 2510H Forwarder: Boost productivity with a 337 hp engine, 300 kN tractive force, 25 t load, 30 % more wood per load, rotating suspension cab, and Intelligent Boom Control. Efficiency, power, comfort—all in one.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 0940WJ
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs5 specifications
- Load Rating, Standard (Metric)
- 25000.0 kg
- Load Rating, Standard (Imperial)
- 55115.5 lb.
- Net Peak Power At Engine Speed Power
- 252.0 kW
- Tractive Force (Metric)
- 300.0 kN
- Tractive Force (Imperial)
- 67442.0 lbf
Engine10 specifications
- Load Rating, Standard (Metric)
- 25000.0 kg
- Load Rating, Standard (Imperial)
- 55115.5 lb.
- Manufacturer
- John Deere
- Model
- John Deere 6090
- Engine Speed Used For Net Peak Power
- 1900.0 rpm
- Net Peak Power At Engine Speed Power
- 252.0 kW
- Engine Speed Used For Net Peak Torque
- 1400.0 rpm
- Net Peak Power At Engine Speed Torque
- 1550.0 Nm
- Fuel Tank Capacity
- 380.0 L
- Fuel tank capacity
- 100.4 gal.
Transmission2 specifications
- Tractive Force (Metric)
- 300.0 kN
- Tractive Force (Imperial)
- 67442.0 lbf
Hydraulics4 specifications
- DEF liquid tank (Metric)
- 28.5 L
- DEF liquid tank (Imperial)
- 7.5 gal.
- Hydraulic Tank (Metric)
- 225.0 L
- Hydraulic Tank (Imperial)
- 59.4 gal.
Operator Station2 specifications
- Type
- Rotating and leveling
- Rotating Angle
- 290.0 degrees
Machine Dimensions15 specifications
- Short Wheelbase Length (Metric)
- 5900.0 mm
- Short Wheelbase Length (Imperial)
- 19.4 ft
- Long Wheelbase Length (Metric)
- 6900.0 mm
- Long Wheelbase Length (Imperial)
- 22.6 ft
- Width from (Metric)
- 3200.0 mm
- Width from (Imperial)
- 10.5 ft
- Turning Angle
- 44.0 degrees
- Transport Height With Tires from (Metric)
- 3950.0 mm
- Transport Height With Tires from (Imperial)
- 13.0 ft
- Ground Clearance 8 Wheel (Metric)
- 780.0 mm
- Ground Clearance 8 Wheel (Imperial)
- 2.6 in.
- Front Tires 8 Wheel Options
- 28.5 in.
- Rear Tires Options
- 30.5 in.
- Minimum Machine Weight With 8 Wheels (Metric)
- 29800.0 kg
- Minimum Machine Weight With 8 Wheels (Imperial)
- 65697.7 lb.
Load-Space Options (Measurements Are Guidelines Only And May Vary Depending On Production Tolerances)4 specifications
- Cross Sectional Load Space Area (Metric)
- 8.5 m²
- Cross Sectional Load Space Area (Imperial)
- 91.5 sq ft
- Cross Sectional Area VLS (Metric)
- 6.5 m²
- Cross Sectional Area VLS (Imperial)
- 21.3 sq ft
Boom F96 specifications
- Maximum Reach Length (Metric)
- 10.7 m
- Maximum Reach Length (Imperial)
- 35.1 ft
- Gross Lifting Torque (Metric)
- 170.0 kNm
- Gross Lifting Torque (Imperial)
- 125385.0 lb-ft
- Slewing Torque (Metric)
- 45.0 kNm
- Slewing Torque (Imperial)
- 33190.0 lb-ft
Boom F107 specifications
- Maximum Reach Length (Metric)
- 10.2 m
- Maximum Reach Length (Imperial)
- 33.5 ft
- Gross Lifting Torque (Metric)
- 210.0 kNm
- Gross Lifting Torque (Imperial)
- 154887.0 lb-ft
- Slewing Torque (Metric)
- 50.0 kNm
- Slewing Torque (Imperial)
- 36878.0 lb-ft
- Slewing Angle
- 380.0 degrees
