John Deere

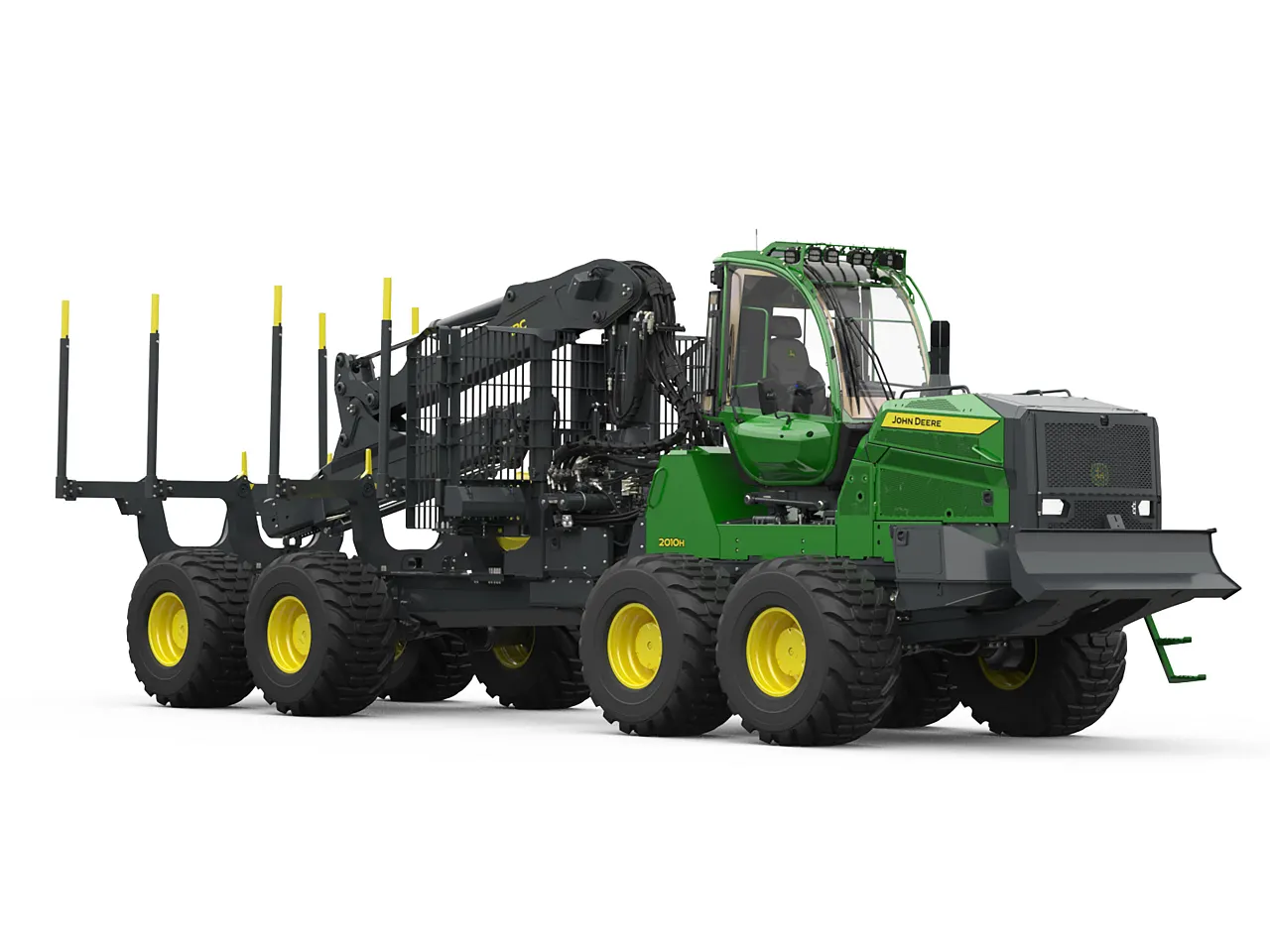

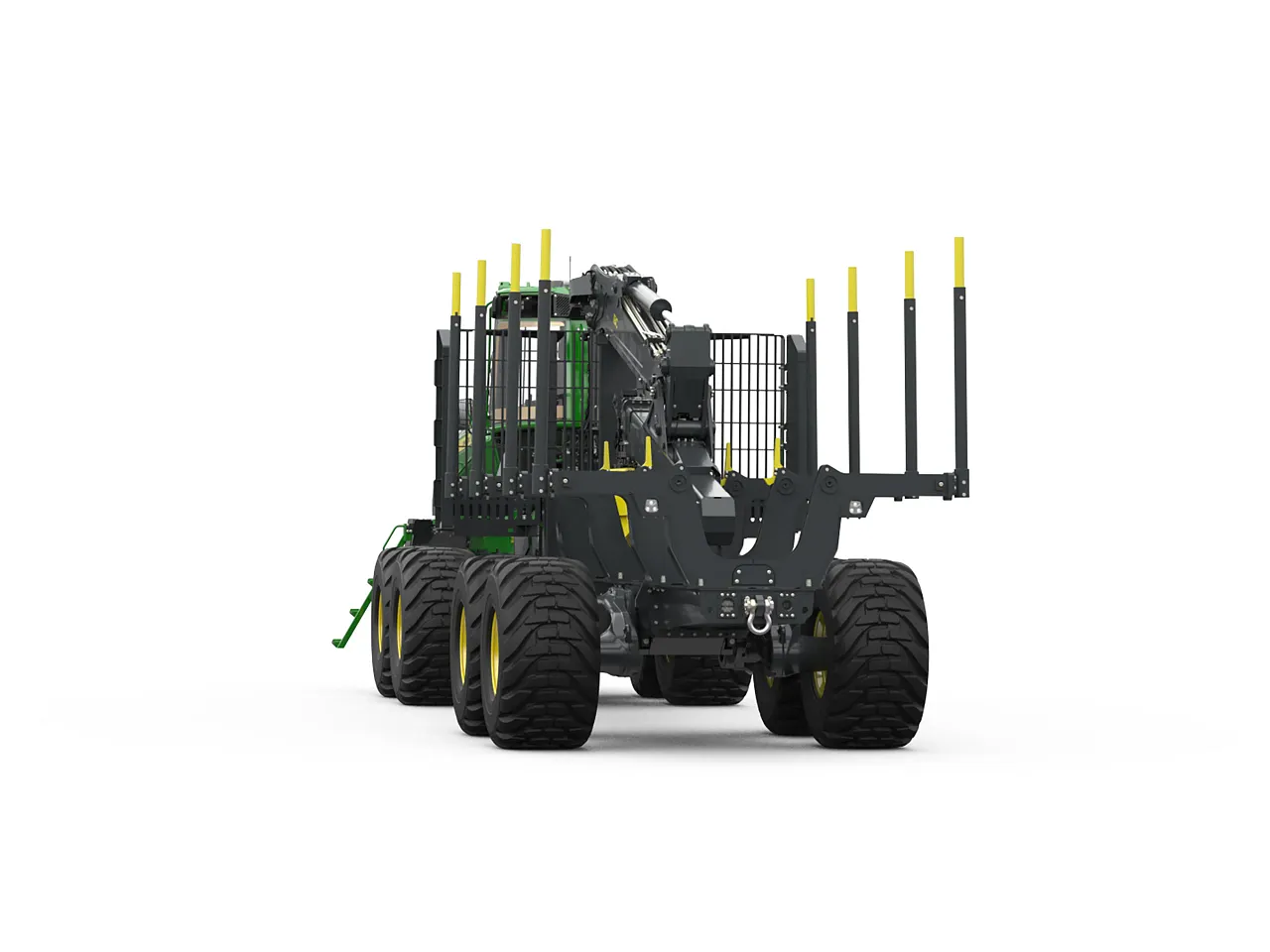

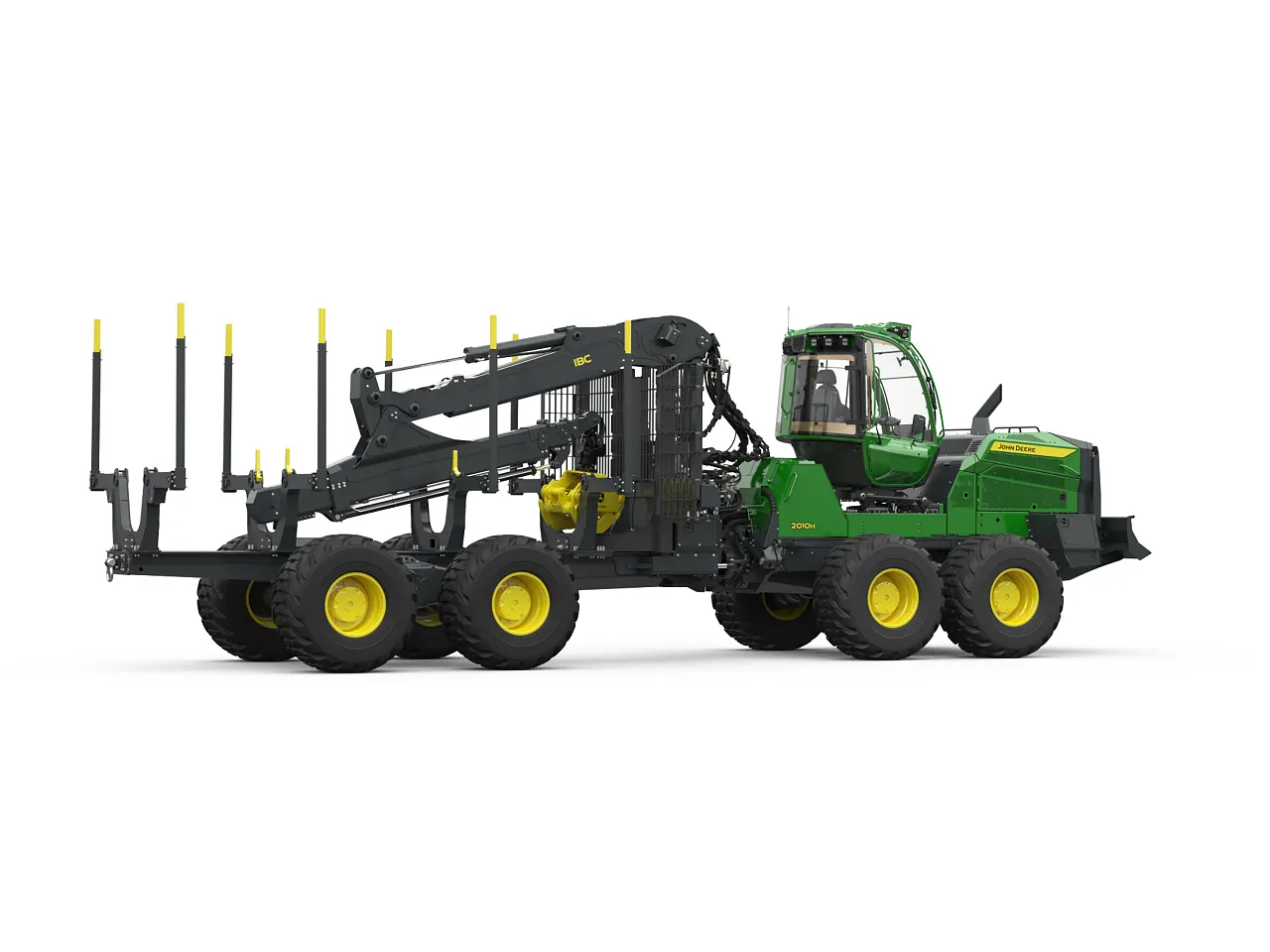

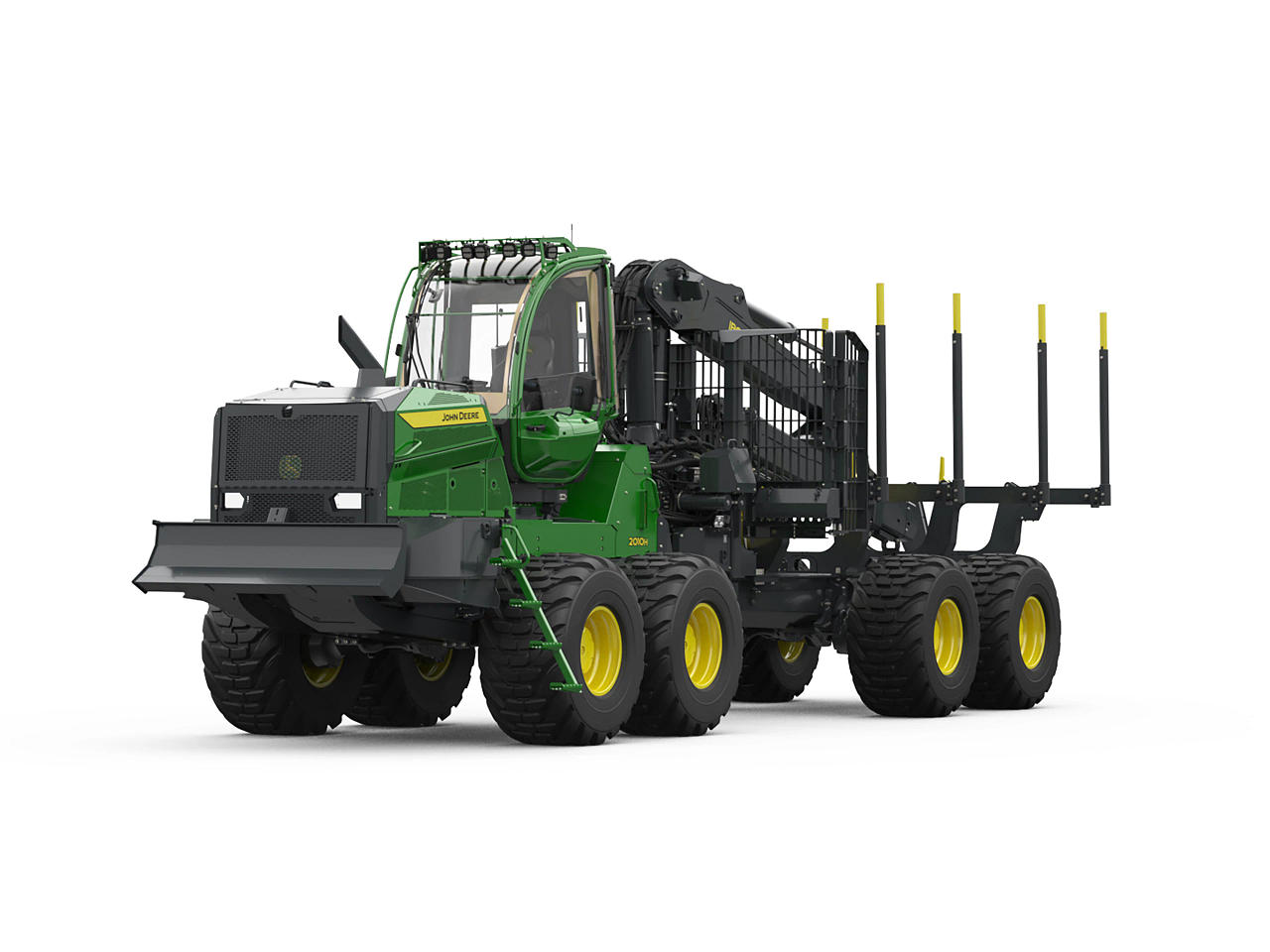

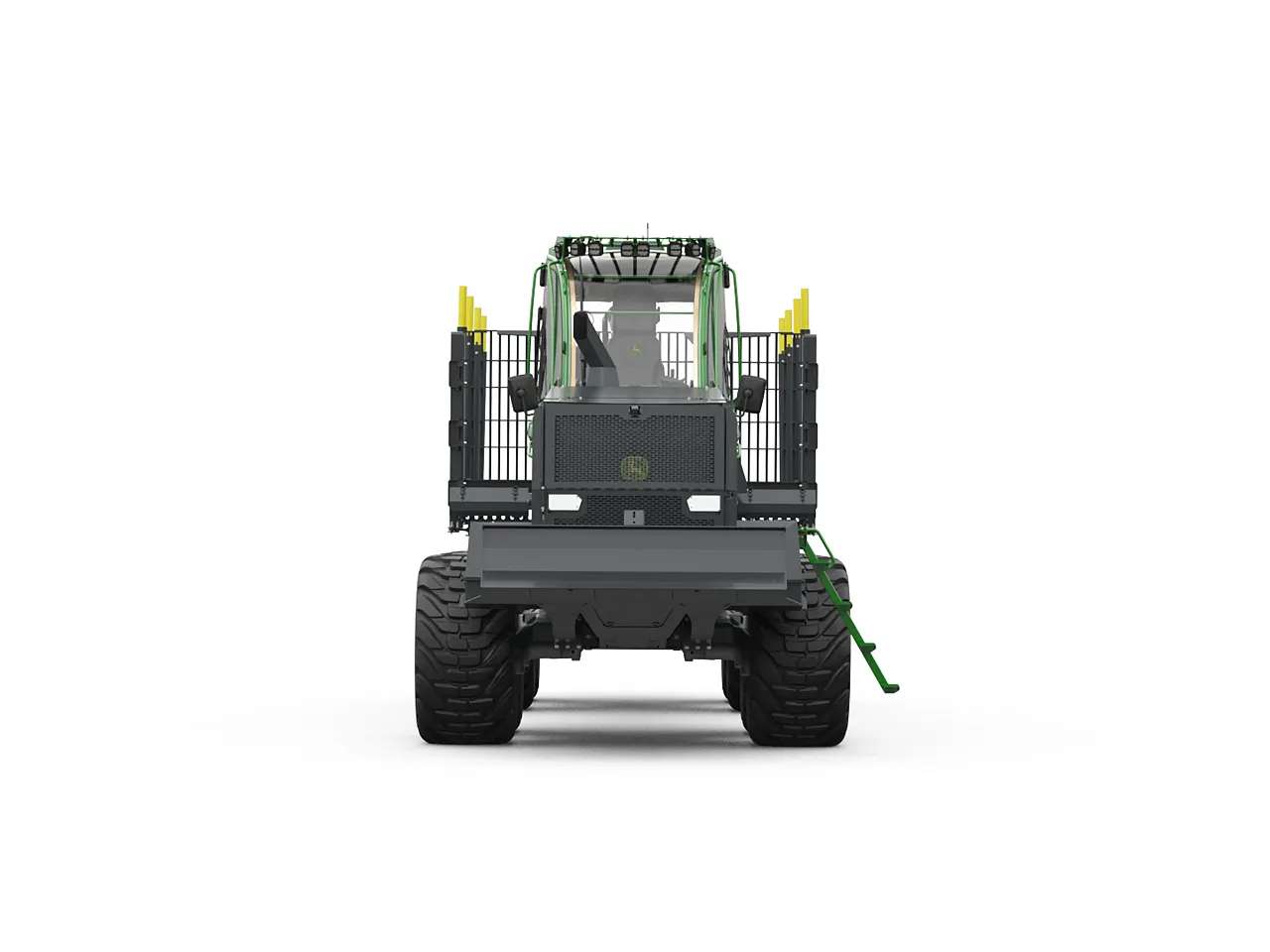

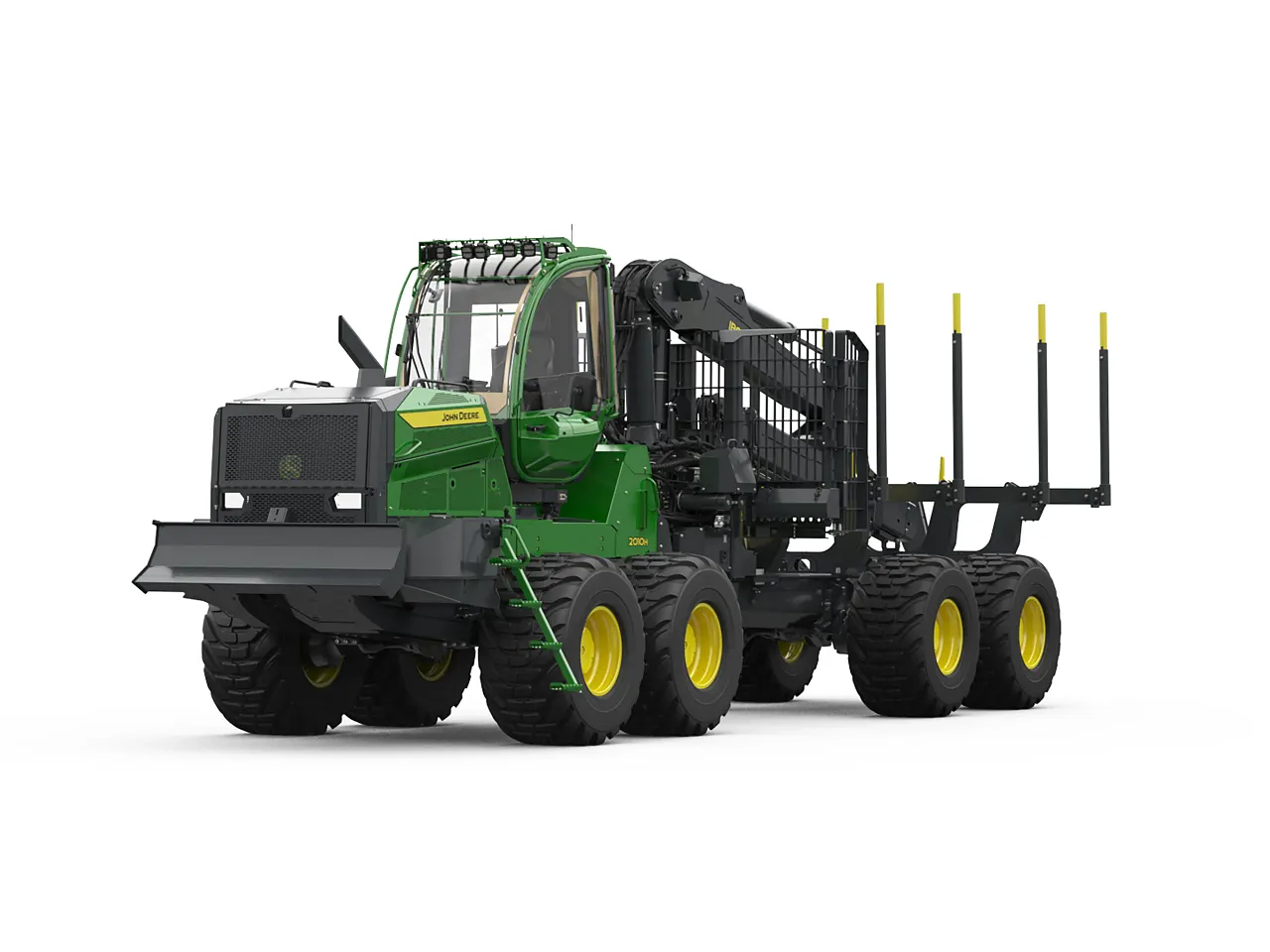

Model2010H Forwarder
Forwarders
John Deere 2010H Forwarder delivers 20-ton payload, powerful traction, rotating‑leveling cab, IBC 3.0 boom control for efficient and reliable forestry operations, and streamlined service for max productivity.
Model / part number: 0930WJ
Key specifications
- Load Rating, Standard (Metric)
- 20000.0 kg
- Net Peak Power At Engine Speed Power (Metric)
- 220.0 kW
- Tractive Force
- 6W: 235 kN (52,830 lbf) 8W: 260 kN (58,450 lbf) 8W heavy-duty (HD) axles: 285 kN (64,070 lbf)
Technical specifications
59 specifications
Key Specs5 details
- Load Rating, Standard (Metric)
- 20000.0 kg
- Load Rating, Standard (Imperial)
- 44092.4 lb.
- Net Peak Power At Engine Speed Power (Metric)
- 220.0 kW
- Net Peak Power At Engine Speed Power (Imperial)
- 295.0 hp
- Tractive Force
- 6W: 235 kN (52,830 lbf) 8W: 260 kN (58,450 lbf) 8W heavy-duty (HD) axles: 285 kN (64,070 lbf)
Engine12 details
- Load Rating, Standard (Metric)
- 20000.0 kg
- Load Rating, Standard (Imperial)
- 44092.4 lb.
- Manufacturer
- John Deere
- Model
- John Deere 6090
- Engine Speed Used For Net Peak Power
- 1900.0 rpm
- Net Peak Power At Engine Speed Power (Metric)
- 220.0 kW
- Net Peak Power At Engine Speed Power (Imperial)
- 295.0 hp
- Engine Speed Used For Net Peak Torque
- 1400.0 rpm
- Net Peak Power At Engine Speed Torque (Metric)
- 1400.0 Nm
- Net Peak Power At Engine Speed Torque (Imperial)
- 1032.6 lb-ft
- Fuel Tank Capacity
- 380.0 L
- Fuel tank capacity
- 100.4 gal.
Transmission1 detail
- Tractive Force
- 6W: 235 kN (52,830 lbf) 8W: 260 kN (58,450 lbf) 8W heavy-duty (HD) axles: 285 kN (64,070 lbf)
Hydraulics4 details
- DEF liquid tank (Metric)
- 28.5 L
- DEF liquid tank (Imperial)
- 7.5 gal.
- Hydraulic Tank (Metric)
- 225.0 L
- Hydraulic Tank (Imperial)
- 59.4 gal.

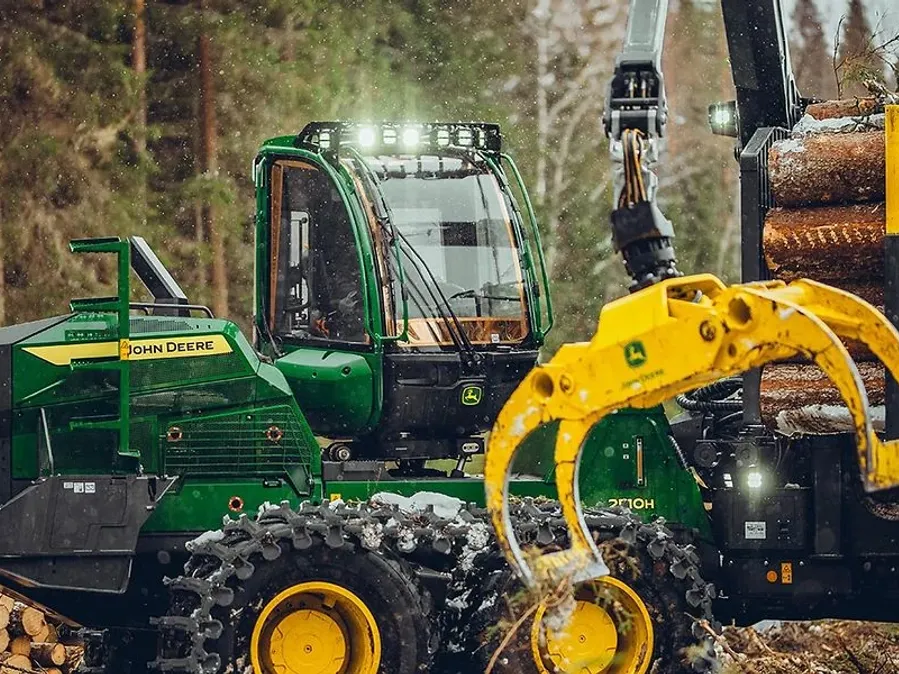

Operator Station2 details
- Type
- Rotating and leveling
- Rotating Angle
- 290.0 degrees
Machine Dimensions18 details
- Short Wheelbase Length (Metric)
- 5900.0 mm
- Short Wheelbase Length (Imperial)
- 19.4 ft
- Long Wheelbase Length (Metric)
- 6900.0 mm
- Long Wheelbase Length (Imperial)
- 22.6 ft
- Width from (Metric)
- 2990.0 mm
- Width from (Imperial)
- 9.8 ft
- Turning Angle
- 44.0 degrees
- Transport Height With Tires from (Metric)
- 3950.0 mm
- Transport Height With Tires from (Imperial)
- 13.0 ft
- Ground Clearance 8 Wheel (Metric)
- 750.0 mm
- Ground Clearance 8 Wheel (Imperial)
- 29.5 in.
- Front Tires 6 Wheel Options
- 34 in.
- Front Tires 8 Wheel Options
- 26.5 in., 28.5 in.
- Rear Tires Options
- 26.5 in., 28.5 in.
- Minimum Machine Weight With 6 Wheels (Metric)
- 25500.0 kg
- Minimum Machine Weight With 6 Wheels (Imperial)
- 56218.0 lb.
- Minimum Machine Weight With 8 Wheels (Metric)
- 28200.0 kg
- Minimum Machine Weight With 8 Wheels (Imperial)
- 62170.0 lb.
Load-Space Options (Measurements Are Guidelines Only And May Vary Depending On Production Tolerances)4 details
- Cross Sectional Load Space Area (Metric)
- 7.5 m²
- Cross Sectional Load Space Area (Imperial)
- 80.7 sq ft
- Cross Sectional Area VLS (Metric)
- 6.5 m²
- Cross Sectional Area VLS (Imperial)
- 70.0 sq ft
Boom F96 details
- Maximum Reach Length (Metric)
- 10.7 m
- Maximum Reach Length (Imperial)
- 35.1 ft
- Gross Lifting Torque (Metric)
- 170.0 kNm
- Gross Lifting Torque (Imperial)
- 125385.0 lb-ft
- Slewing Torque (Metric)
- 45.0 kNm
- Slewing Torque (Imperial)
- 33190.0 lb-ft
Boom F107 details
- Maximum Reach Length (Metric)
- 10.2 m
- Maximum Reach Length (Imperial)
- 33.5 ft
- Gross Lifting Torque (Metric)
- 210.0 kNm
- Gross Lifting Torque (Imperial)
- 154887.0 lb-ft
- Slewing Torque (Metric)
- 50.0 kNm
- Slewing Torque (Imperial)
- 36878.0 lb-ft
- Slewing Angle
- 380.0 degrees
