John Deere
1510G Forwarder
Forwarders

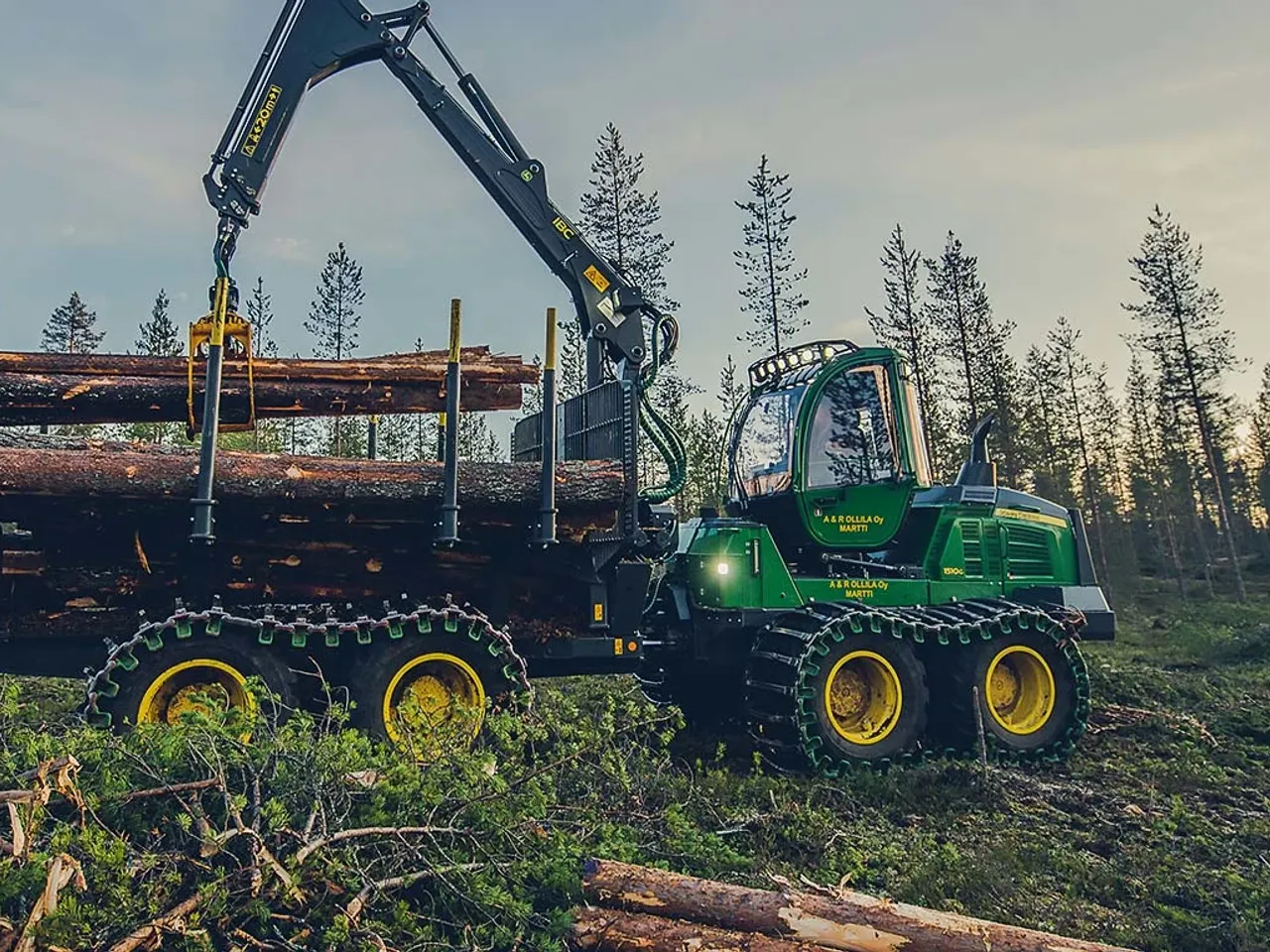

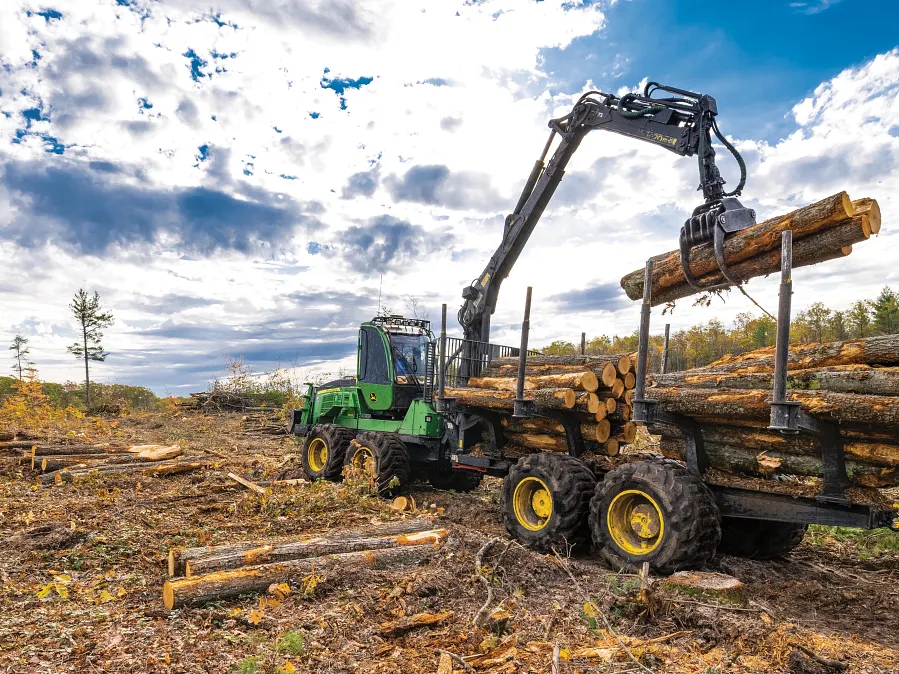

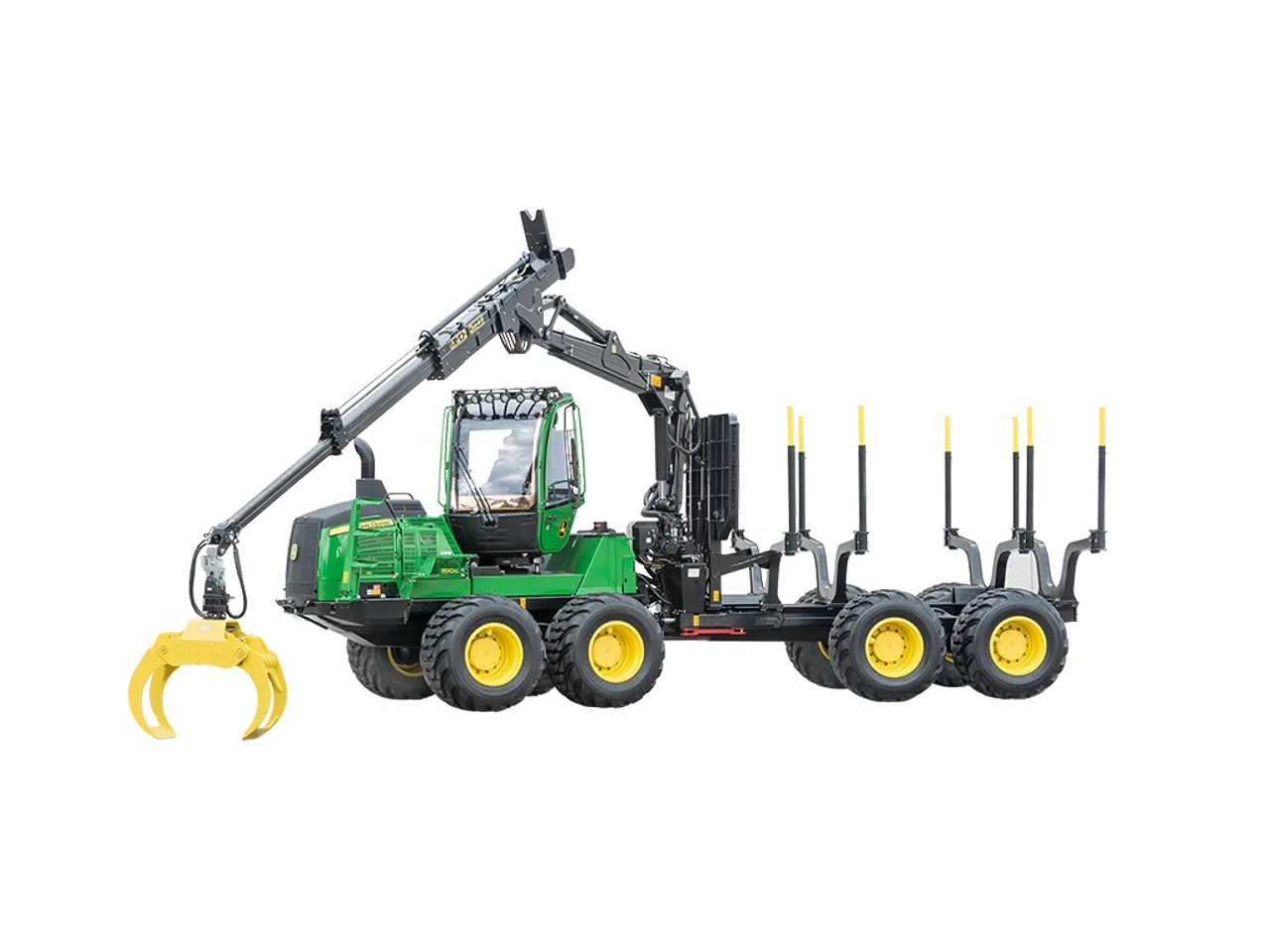

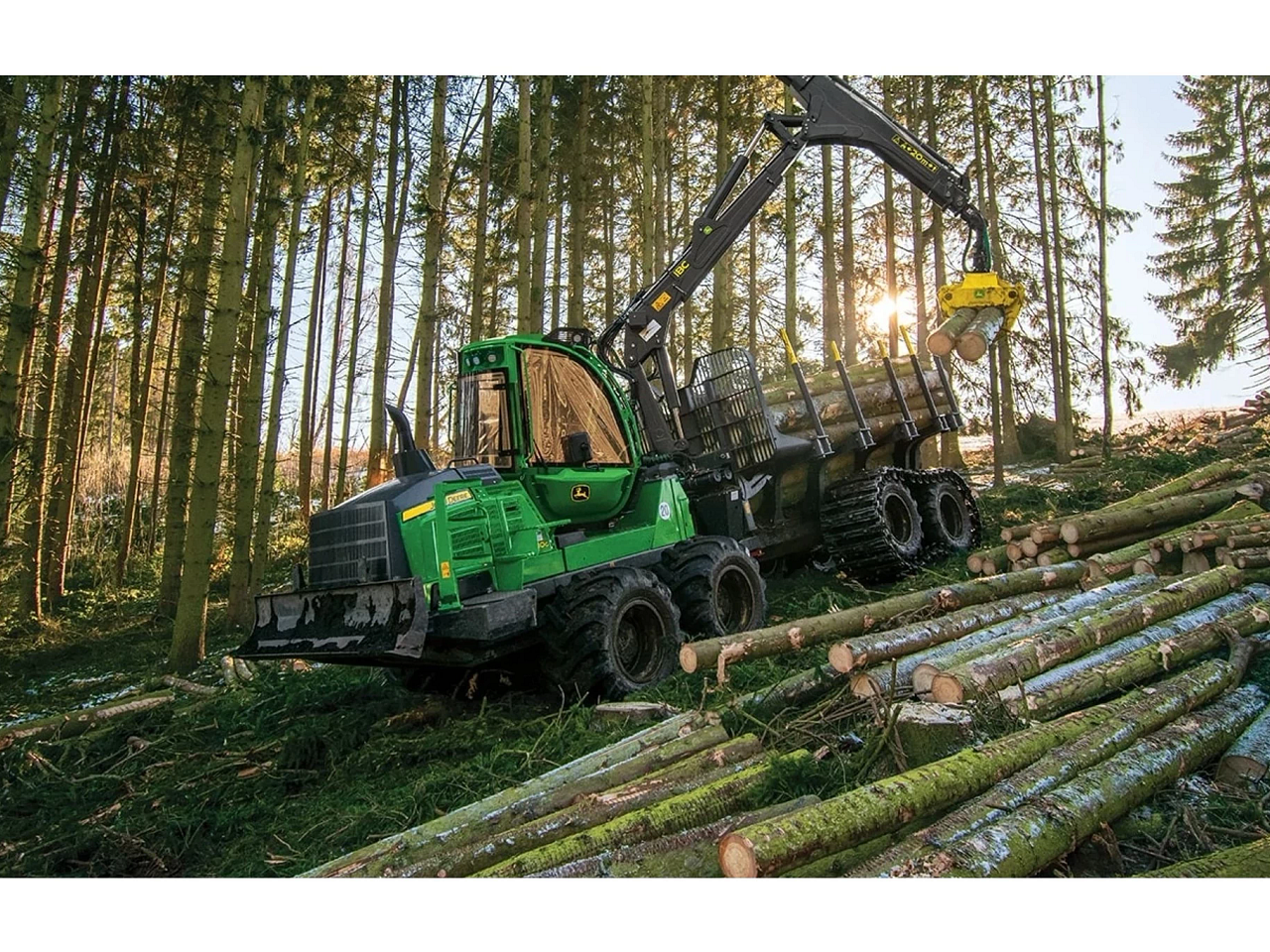

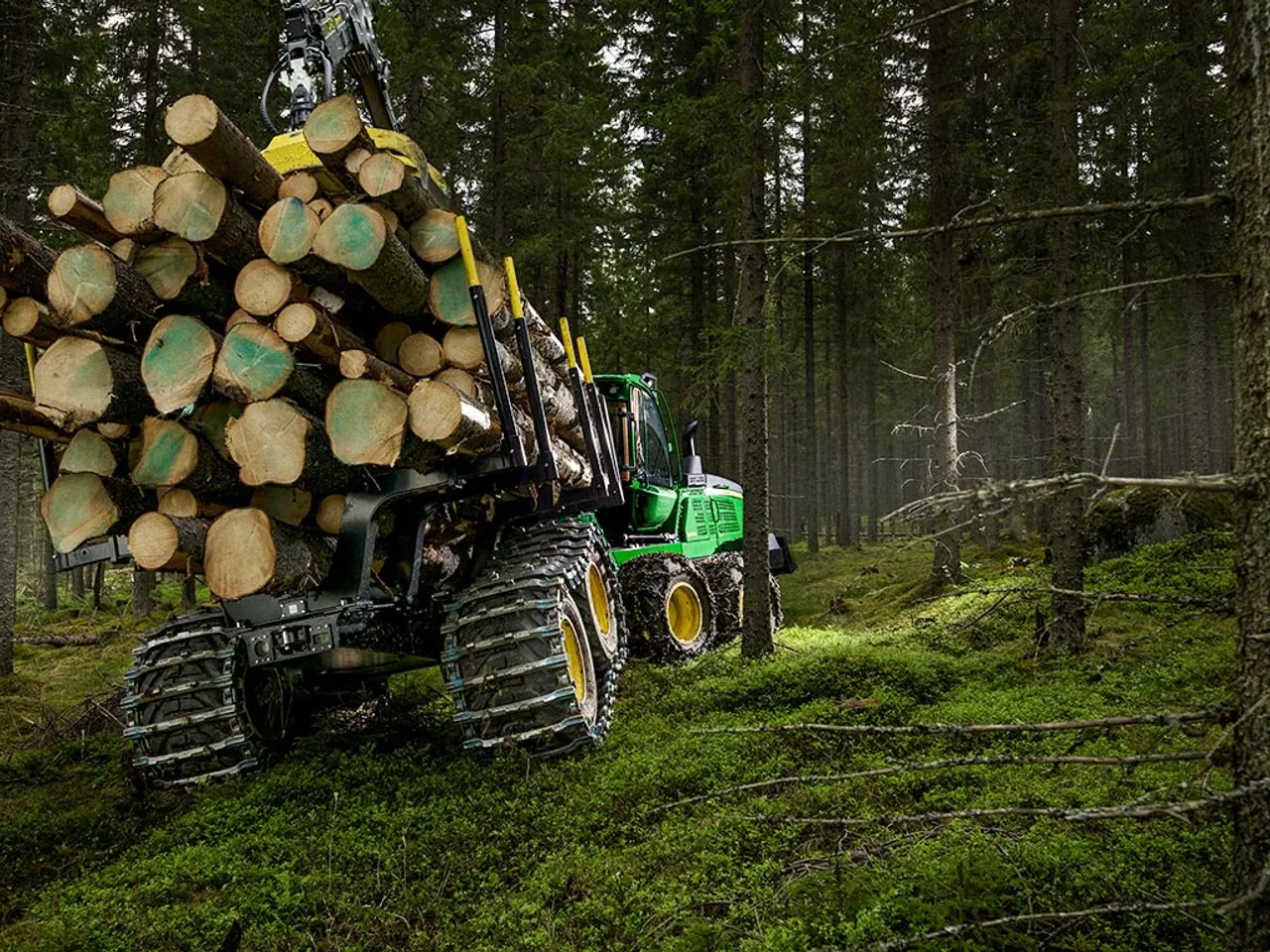

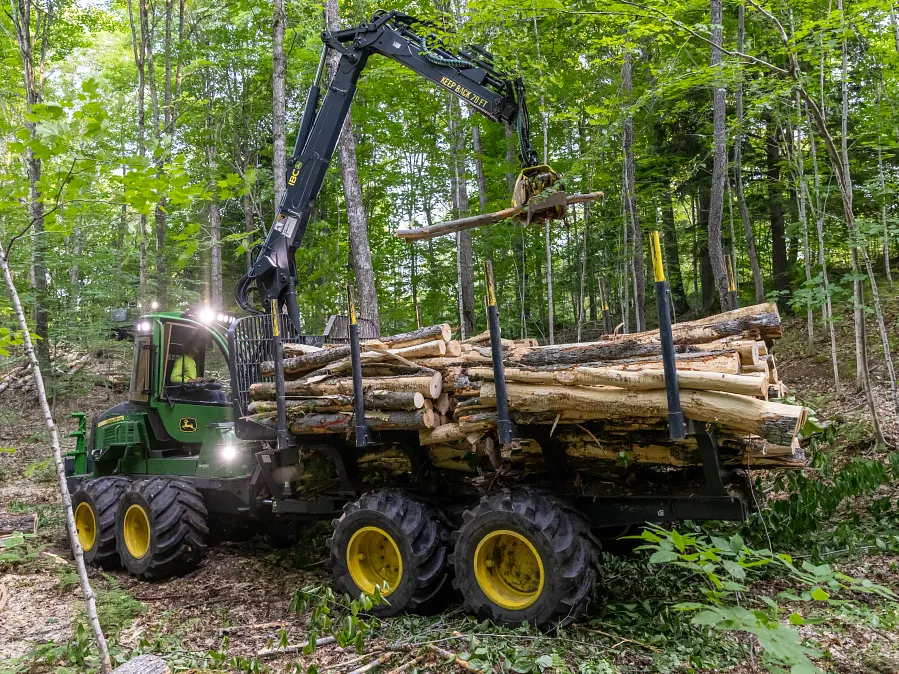

Boasting more slewing angle, the 1510G Forwarder is more nimble than previous models.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 0450WJ
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs6 specifications
- Load Rating, Standard (Metric)
- 15000.0 kg
- Load Rating, Standard (Imperial)
- 33069.0 lb.
- Net Peak Power At Engine Speed Power (Metric)
- 164.0 kW
- Net Peak Power At Engine Speed Power (Imperial)
- 220.0 hp
- Tractive Force (Metric)
- 185.0 kN
- Tractive Force (Imperial)
- 41588.0 lbf
Engine13 specifications
- Load Rating, Standard (Metric)
- 15000.0 kg
- Load Rating, Standard (Imperial)
- 33069.0 lb.
- Manufacturer
- John Deere
- Model
- PowerTech™ Plus 6068
- Non Road Emission Standards
- EPA Final Tier 4/EU Stage V/Tier 3/Stage IIIA /Tier 2/Stage II
- Engine Speed Used For Net Peak Power
- 1900.0 rpm
- Net Peak Power At Engine Speed Power (Metric)
- 164.0 kW
- Net Peak Power At Engine Speed Power (Imperial)
- 220.0 hp
- Engine Speed Used For Net Peak Torque
- 1500.0 rpm
- Net Peak Power At Engine Speed Torque (Metric)
- 978.0 Nm
- Net Peak Power At Engine Speed Torque (Imperial)
- 721.0 lb-ft
- Fuel Tank Capacity
- 167.0 L
- Fuel tank capacity
- 44.0 gal.
Transmission7 specifications
- Type
- Hydrostatic-mechanical, 2-speed gearbox
- Tractive Force (Metric)
- 185.0 kN
- Tractive Force (Imperial)
- 41588.0 lbf
- Gear 1 Travel Speed Range (Metric)
- 7.0 km/h
- Gear 1 Travel Speed Range (Imperial)
- 4.3 mph
- Gear 2 Travel Speed Range (Metric)
- 23.0 km/h
- Gear 2 Travel Speed Range (Imperial)
- 14.3 mph
Brakes3 specifications
- Parking/Emergency
- Spring actuated
- Service
- Hydraulically actuated, oil-immersed, multi-disc
- Frame
- Automated
Steering2 specifications
- Type
- Proportional steering with electrical joystick
- Turning Angle
- 44.0 degrees
Axles And Bogies3 specifications
- Type
- Hydromechanical differential lock in front and rear
- Axles Front
- Single rigid axle, non-balanced- or balanced-gear heavy-duty (HD) bogie axle
- Axles Rear
- Balanced-gear HD bogie axle or unbalanced long bogie (LGP)
Electrical4 specifications
- Voltage
- 24.0 V
- Batteries
- 145.0 amp-hr
- Alternator
- 150.0 amp
- Lights
- Halogen
Hydraulics7 specifications
- Type
- Load sensing
- Pump Capacity (Metric)
- 180.26 cm³
- Pump Capacity (Imperial)
- 11.0 cu in.
- Operating Pressure
- 24.0 MPa
- Operating pressure
- 3480.0 psi
- Hydraulic Tank (Metric)
- 163.0 L
- Hydraulic Tank (Imperial)
- 43.0 gal.
Boom CF77 specifications
- Maximum Reach Length (Metric)
- 10.0 m
- Maximum Reach Length (Imperial)
- 32.8 ft
- Gross Lifting Torque (Metric)
- 125.0 kNm
- Gross Lifting Torque (Imperial)
- 92000.0 lb-ft
- Slewing Torque (Metric)
- 32.5 kNm
- Slewing Torque (Imperial)
- 24000.0 lb-ft
- Slewing Angle
- 380.0 degrees
Boom CF7S7 specifications
- Maximum Reach Length (Metric)
- 10.0 m
- Maximum Reach Length (Imperial)
- 32.8 ft
- Gross Lifting Torque (Metric)
- 143.0 kNm
- Gross Lifting Torque (Imperial)
- 105500.0 lb-ft
- Slewing Torque (Metric)
- 32.5 kNm
- Slewing Torque (Imperial)
- 24000.0 lb-ft
- Slewing Angle
- 380.0 degrees
Operator Station4 specifications
- Type
- Fixed, rotating, or rotating and leveling
- Rotating Angle
- 290.0 degrees
- Sideways Tilt
- 10.0 degrees
- Forward And Backward Tilt
- 6.0 degrees
Precision Forestry3 specifications
- Software/Operating System Type
- PC / Windows®-based TimberMatic™ F-16
- Standard Boom Control Aid
- Smooth Boom Control (SBC) algorithm
- Optional Boom Control Aid
- Intelligent Boom Control (IBC) on CF7, CF7S, and CF8
Machine Dimensions53 specifications
- Short Wheelbase Length (Metric)
- 5300.0 mm
- Short Wheelbase Length (Imperial)
- 17.0 ft
- Long Wheelbase Length (Metric)
- 5900.0 mm
- Long Wheelbase Length (Imperial)
- 19.0 ft
- Bogie Center Middle Joint (Metric)
- 1890.0 mm
- Bogie Center Middle Joint (Imperial)
- 6.2 ft
- Short Wheelbase, Middle Joint Bogie Center (Metric)
- 3414.0 mm
- Short Wheelbase, Middle Joint Bogie Center (Imperial)
- 11.2 ft
- Long Wheelbase, Middle Joint Bogie Center (Metric)
- 3993.0 mm
- Long Wheelbase, Middle Joint Bogie Center (Imperial)
- 13.1 ft
- Bogie Center Middle Joint Plus Short Wheelbase, Middle Joint Bogie Center (Metric)
- 4907.0 mm
- Bogie Center Middle Joint Plus Short Wheelbase, Middle Joint Bogie Center (Imperial)
- 16.1 ft
- Bogie Center Middle Joint Plus Medium Wheelbase, Middle Joint Bogie Center (Metric)
- 5304.0 mm
- Bogie Center Middle Joint Plus Medium Wheelbase, Middle Joint Bogie Center (Imperial)
- 17.4 ft
- Bogie Center Middle Joint Plus Long Wheelbase, Middle Joint Bogie Center (Metric)
- 5913.0 mm
- Bogie Center Middle Joint Plus Long Wheelbase, Middle Joint Bogie Center (Imperial)
- 19.4 ft
- Short Wheelbase, Headboard Bogie Center (Metric)
- 2591.0 mm
- Short Wheelbase, Headboard Bogie Center (Imperial)
- 8.5 ft
- Long Wheelbase, Headboard Bogie Center (Metric)
- 3200.0 mm
- Long Wheelbase, Headboard Bogie Center (Imperial)
- 10.5 ft
- Short Wheelbase, Bogie Center Rear (Metric)
- 1890.0 mm
- Short Wheelbase, Bogie Center Rear (Imperial)
- 6.2 ft
- Long Wheelbase, Bogie Center Rear (Metric)
- 2500.0 mm
- Long Wheelbase, Bogie Center Rear (Imperial)
- 8.2 ft
- 700 Series Width With Tires (Metric)
- 2957.0 mm
- 700 Series Width With Tires (Imperial)
- 9.7 ft
- 800 Series Width With Tires (Metric)
- 3078.0 mm
- 800 Series Width With Tires (Imperial)
- 10.1 ft
- Turning Angle
- 44.0 degrees
- Outer Turning Radius With 700 Series Tires And Short Wheelbase (Metric)
- 8169.0 mm
- Outer Turning Radius With 700 Series Tires And Short Wheelbase (Imperial)
- 26.8 ft
- Outer Turning Radius With 700 Series Tires And Medium Wheelbase (Metric)
- 8748.0 mm
- Outer Turning Radius With 700 Series Tires And Medium Wheelbase (Imperial)
- 28.7 ft
- Outer Turning Radius With 700 Series Tires And Long Wheelbase (Metric)
- 9662.0 mm
- Outer Turning Radius With 700 Series Tires And Long Wheelbase (Imperial)
- 31.7 ft
- Inner Turning Radius With 700 Series Tires And Short Wheelbase (Metric)
- 4694.0 mm
- Inner Turning Radius With 700 Series Tires And Short Wheelbase (Imperial)
- 15.4 ft
- Inner Turning Radius With 700 Series Tires And Medium Wheelbase (Metric)
- 5151.0 mm
- Inner Turning Radius With 700 Series Tires And Medium Wheelbase (Imperial)
- 16.9 ft
- Inner Turning Radius With 700 Series Tires And Long Wheelbase (Metric)
- 5791.0 mm
- Inner Turning Radius With 700 Series Tires And Long Wheelbase (Imperial)
- 19.0 ft
- Transport Height With Tires (Metric)
- 3810.0 mm
- Transport Height With Tires (Imperial)
- 12.5 ft
- Ground Clearance 8 Wheel (Metric)
- 660.0 mm
- Ground Clearance 8 Wheel (Imperial)
- 26.0 in.
- Front Tires 6 Wheel Options
- 34–14
- Front Tires 8 Wheel Options
- 26.5–20
- Rear Tires Options
- 26.5–20
- Minimum Machine Weight With 6 Wheels (Metric)
- 16330.0 kg
- Minimum Machine Weight With 6 Wheels (Imperial)
- 36001.0 lb.
- Minimum Machine Weight With 8 Wheels (Metric)
- 18230.0 kg
- Minimum Machine Weight With 8 Wheels (Imperial)
- 40190.0 lb.
- Approach Angle 8 Wheel
- 35.0 degrees
Load-Space Options (Measurements Are Guidelines Only And May Vary Depending On Production Tolerances)18 specifications
- Headboard Bogie Center, Plus Bogie Center Rear, Short Wheelbase Load Space (Metric)
- 4511.0 mm
- Headboard Bogie Center, Plus Bogie Center Rear, Short Wheelbase Load Space (Imperial)
- 14.8 ft
- Headboard Bogie Center, Plus Bogie Center Rear, Medium Wheelbase Load Space (Metric)
- 4511.0 mm
- Headboard Bogie Center, Plus Bogie Center Rear, Medium Wheelbase Load Space (Imperial)
- 14.8 ft
- Headboard Bogie Center, Plus Bogie Center Rear, Long Wheelbase Load Space (Metric)
- 5700.0 mm
- Headboard Bogie Center, Plus Bogie Center Rear, Long Wheelbase Load Space (Imperial)
- 18.7 ft
- Variable Load Space (VLS) (Metric)
- 4511.0 mm
- Variable Load Space (VLS) (Imperial)
- 14.8 ft
- Load Space Width Minimum (Metric)
- 2713.0 mm
- Load Space Width Minimum (Imperial)
- 8.9 ft
- Load Space Width Maximum (Metric)
- 3414.0 mm
- Load Space Width Maximum (Imperial)
- 11.2 ft
- Load Space Width VLS (Metric)
- 2950.0 mm
- Load Space Width VLS (Imperial)
- 9.0 ft
- Cross Sectional Load Space Area (Metric)
- 5.3 m²
- Cross Sectional Load Space Area (Imperial)
- 57.05 sq ft
- Cross Sectional Area VLS (Metric)
- 5.4 m²
- Cross Sectional Area VLS (Imperial)
- 58.1 sq ft
