John Deere

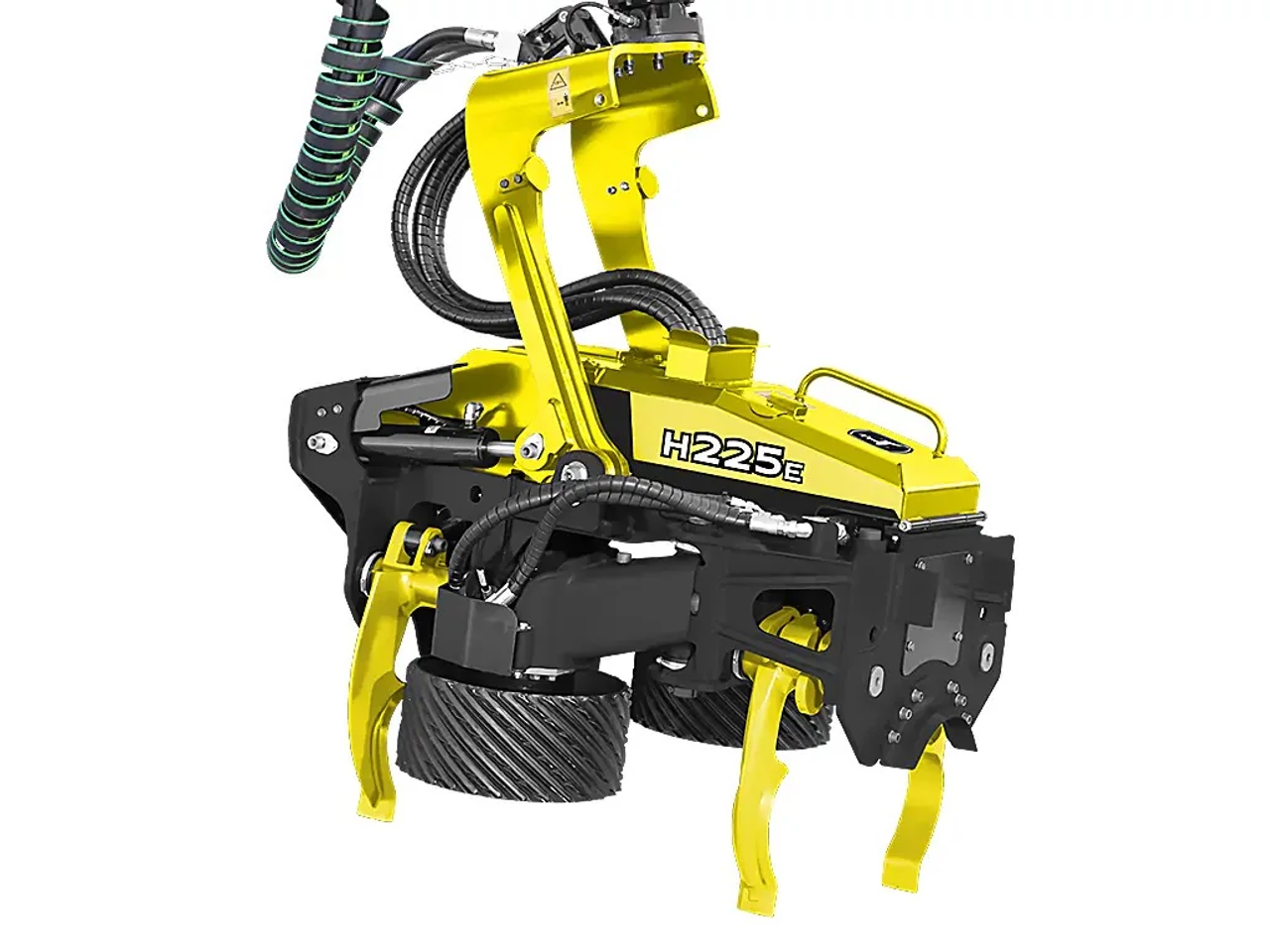

H225E Harvester Head
Forestry Attachments
The H225E is a powerful, single-pass, high-capacity harvester head purpose-built for eucalyptus debarking and designed for use on large wheel harvesters.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 06A0WJ
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs5 specifications
- Weight Without Rotator and Link
- 1690 kg
- Maximum Cut Diameter (Metric)
- 550 mm
- Maximum Cut Diameter (Imperial)
- 21.65 in.
- Maximum Roller Opening (Metric)
- 550 mm
- Maximum Roller Opening (Imperial)
- 22 in.
Dimensions8 specifications
- Width, Head Open (Metric)
- 1650 mm
- Width, Head Open (Imperial)
- 65 in.
- Width, Head Closed (Metric)
- 1200 mm
- Width, Head Closed (Imperial)
- 47.25 in.
- Height Without Rotator and Link (Metric)
- 1900 mm
- Height Without Rotator and Link (Imperial)
- 74.8 in.
- Weight Without Rotator and Link (Metric)
- 1690 kg
- Weight Without Rotator and Link (Imperial)
- 66.5 lb.
Felling/Cutting8 specifications
- Super Cut 100 S Saw Unit, Automatic Chain Tensioning
- Standard
- Maximum Cut Diameter (Metric)
- 550 mm
- Maximum Cut Diameter (Imperial)
- 21.65 in.
- Length Of Saw Bar (Metric)
- 670 mm
- Length Of Saw Bar (Imperial)
- 26.4 in.
- Chain Type
- 0.404
- Chain Speed (Metric)
- 40 m/s
- Chain Speed (Imperial)
- 131 fpm
Feed System, Two-Wheel-Drive6 specifications
- Gross Feed Force (Metric)
- 25 kN
- Gross Feed Force (Imperial)
- 5620.2 lb-ft
- Maximum Feed Speed (Metric)
- 5 m/s
- Maximum Feed Speed (Imperial)
- 16.4 fps
- Maximum Roller Opening (Metric)
- 550 mm
- Maximum Roller Opening (Imperial)
- 22 in.
Delimbing7 specifications
- Delimbing Knives
- 4 moving, 1 fixed knife and 2 fixed debarking tool
- Delimbing Diameter, Tip To Tip (Metric)
- 340 mm
- Delimbing Diameter, Tip To Tip (Imperial)
- 13 in.
- Maximum Opening Upper Knives (Metric)
- 580 mm
- Maximum Opening Upper Knives (Imperial)
- 23 in.
- Maximum Opening Lower Knives (Metric)
- 610 mm
- Maximum Opening Lower Knives (Imperial)
- 24 in.
Hydraulic System4 specifications
- Maximum Operating Pressure (Metric)
- 28 MPa
- Maximum Operating Pressure (Imperial)
- 4061.1 psi
- Recommended Pump Capacity (Metric)
- 260-340 L/min
- Recommended Pump Capacity (Imperial)
- 68.7-89.8 gpm
Tank Capacities3 specifications
- Color Marking
- No
- Chain Oil (Metric)
- 10.0 L
- Chain Oil (Imperial)
- 2.6 gal.
Optional Equipment8 specifications
- Stump Treatment
- No
- Multi Tree Handling (MTH)
- No
- Mense Feed Rollers
- No
- Steel Thumbnail Feed Rollers
- No
- Steel Ribbed Feed Rollers
- No
- Chain And Saw Bar Kits
- Yes
- Hydraulic Hose Kit
- No
- Top Saw
- No
