John Deere
H219 Harvester Head
Forestry Attachments

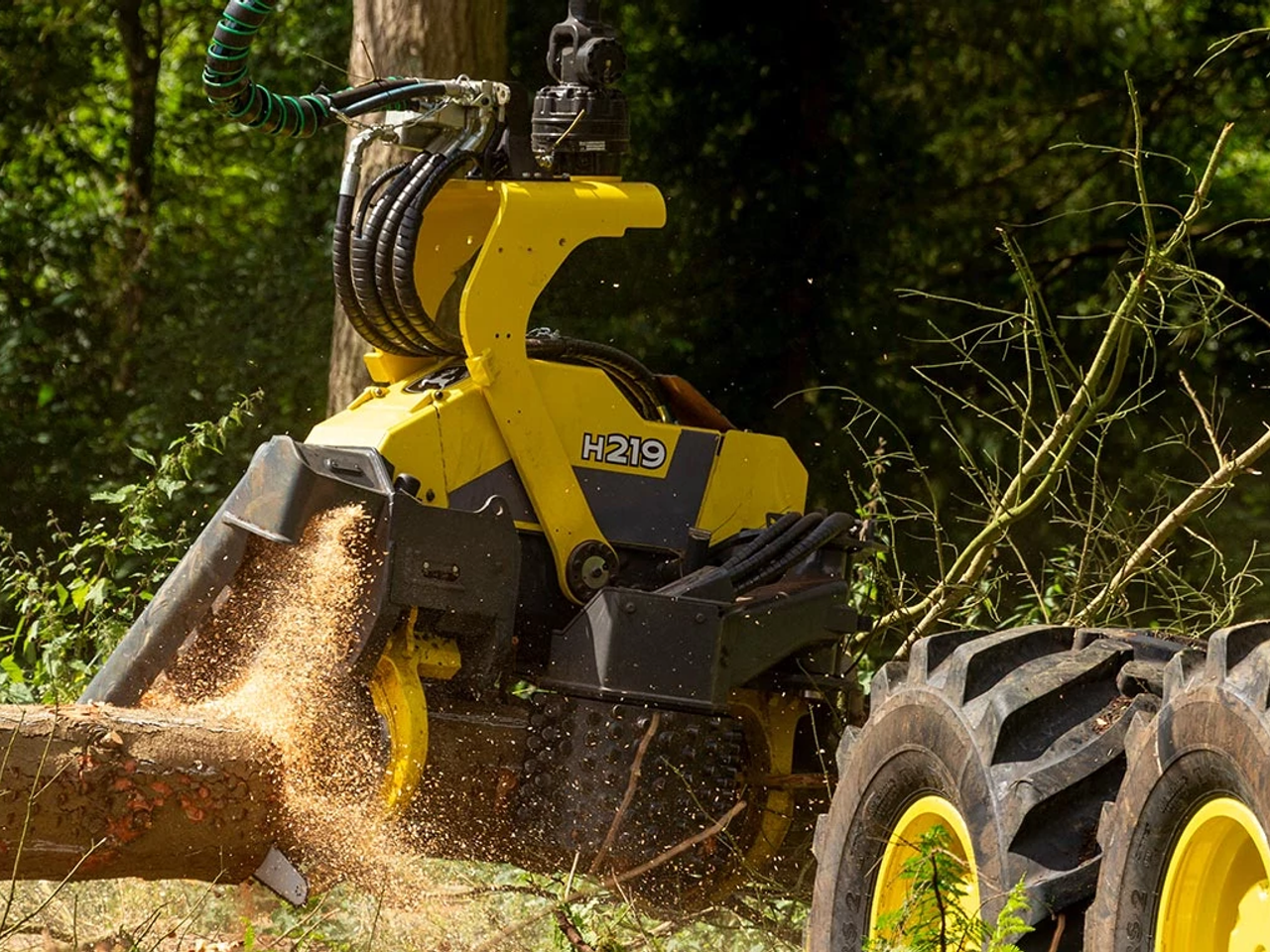

H219 harvester head is built for big harvesters and tracked carriers for harvesting large trees.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 0560WJ
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs5 specifications
- Weight Without Rotator and Link
- 1930 kg
- Maximum Cut Diameter (Metric)
- mm
- Maximum Cut Diameter (Imperial)
- in.
- Maximum Roller Opening (Metric)
- 760 mm
- Maximum Roller Opening (Imperial)
- 30 in.
Dimensions8 specifications
- Width, Head Open (Metric)
- 1900 mm
- Width, Head Open (Imperial)
- 75 in.
- Width, Head Closed (Metric)
- 1190 mm
- Width, Head Closed (Imperial)
- 46.9 in.
- Height Without Rotator and Link (Metric)
- 1970 mm
- Height Without Rotator and Link (Imperial)
- 77.6 in.
- Weight Without Rotator and Link (Metric)
- 1930 kg
- Weight Without Rotator and Link (Imperial)
- 4255 lb.
Felling/Cutting8 specifications
- Super Cut 100 S Saw Unit, Automatic Chain Tensioning
- Standard
- Maximum Cut Diameter (Metric)
- mm
- Maximum Cut Diameter (Imperial)
- in.
- Length Of Saw Bar (Metric)
- 900 mm
- Length Of Saw Bar (Imperial)
- 35.4 in.
- Chain Type
- 404
- Chain Speed (Metric)
- 40 m/s
- Chain Speed (Imperial)
- 131 fpm
Feed System, Two-Wheel-Drive6 specifications
- Gross Feed Force (Metric)
- 944 / 1295-cc motors: 28.1 / 37.7 kN 1050 / 1404-cc motors: 31.2 / 41.6 kN
- Gross Feed Force (Imperial)
- 944 / 1295-cc motors: 6317.1 / 8475.3 lb-ft 1050 / 1404-cc motors: 7014 / 9352.1 lb-ft
- Maximum Feed Speed (Metric)
- 4.5-6.0 m/s
- Maximum Feed Speed (Imperial)
- 14.8-19.7 fps
- Maximum Roller Opening (Metric)
- 760 mm
- Maximum Roller Opening (Imperial)
- 30 in.
Delimbing7 specifications
- Delimbing Knives
- 4 moving, 1 fixed
- Delimbing Diameter, Tip To Tip (Metric)
- 510 mm
- Delimbing Diameter, Tip To Tip (Imperial)
- 20 in.
- Maximum Opening Upper Knives (Metric)
- 800 mm
- Maximum Opening Upper Knives (Imperial)
- 32 in.
- Maximum Opening Lower Knives (Metric)
- 870 mm
- Maximum Opening Lower Knives (Imperial)
- 34 in.
Hydraulic System4 specifications
- Maximum Operating Pressure (Metric)
- 28 MPa
- Maximum Operating Pressure (Imperial)
- 4061.1 psi
- Recommended Pump Capacity (Metric)
- 320-380 L/min
- Recommended Pump Capacity (Imperial)
- 84.5-100.4 gpm
Tank Capacities5 specifications
- Color Marking (Other)
- Yes
- Color Marking (Metric)
- 1.9 L
- Color Marking (Imperial)
- 0.5 gal.
- Chain Oil (Metric)
- 8.8 L
- Chain Oil (Imperial)
- 2.3 gal.
Optional Equipment7 specifications
- Stump Treatment
- Yes
- Multi Tree Handling (MTH)
- No
- Mense Feed Rollers
- Yes
- Steel Thumbnail Feed Rollers
- Yes
- Steel Ribbed Feed Rollers
- No
- Hydraulic Hose Kit
- Yes
- Top Saw
- Yes
