John Deere

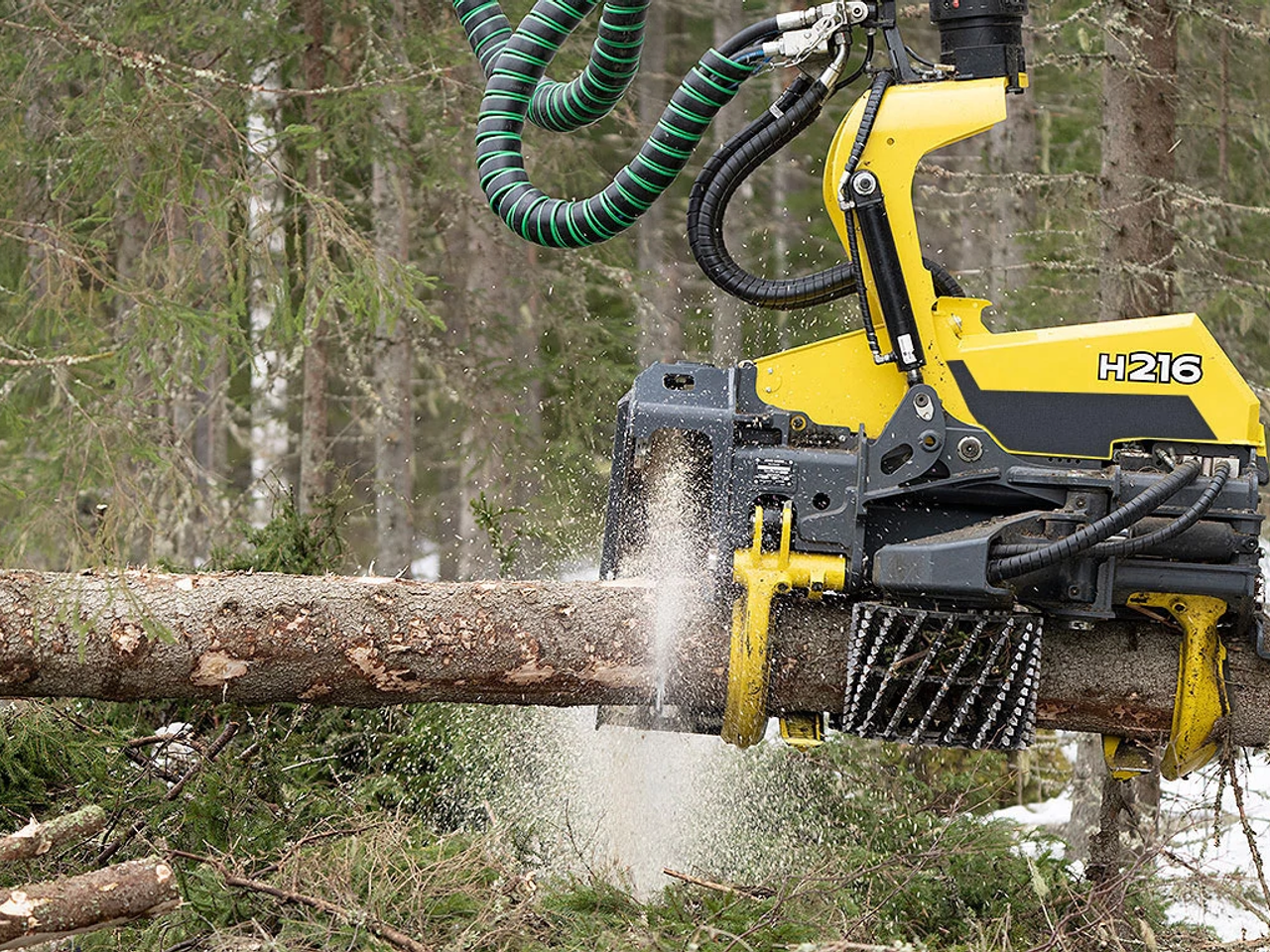

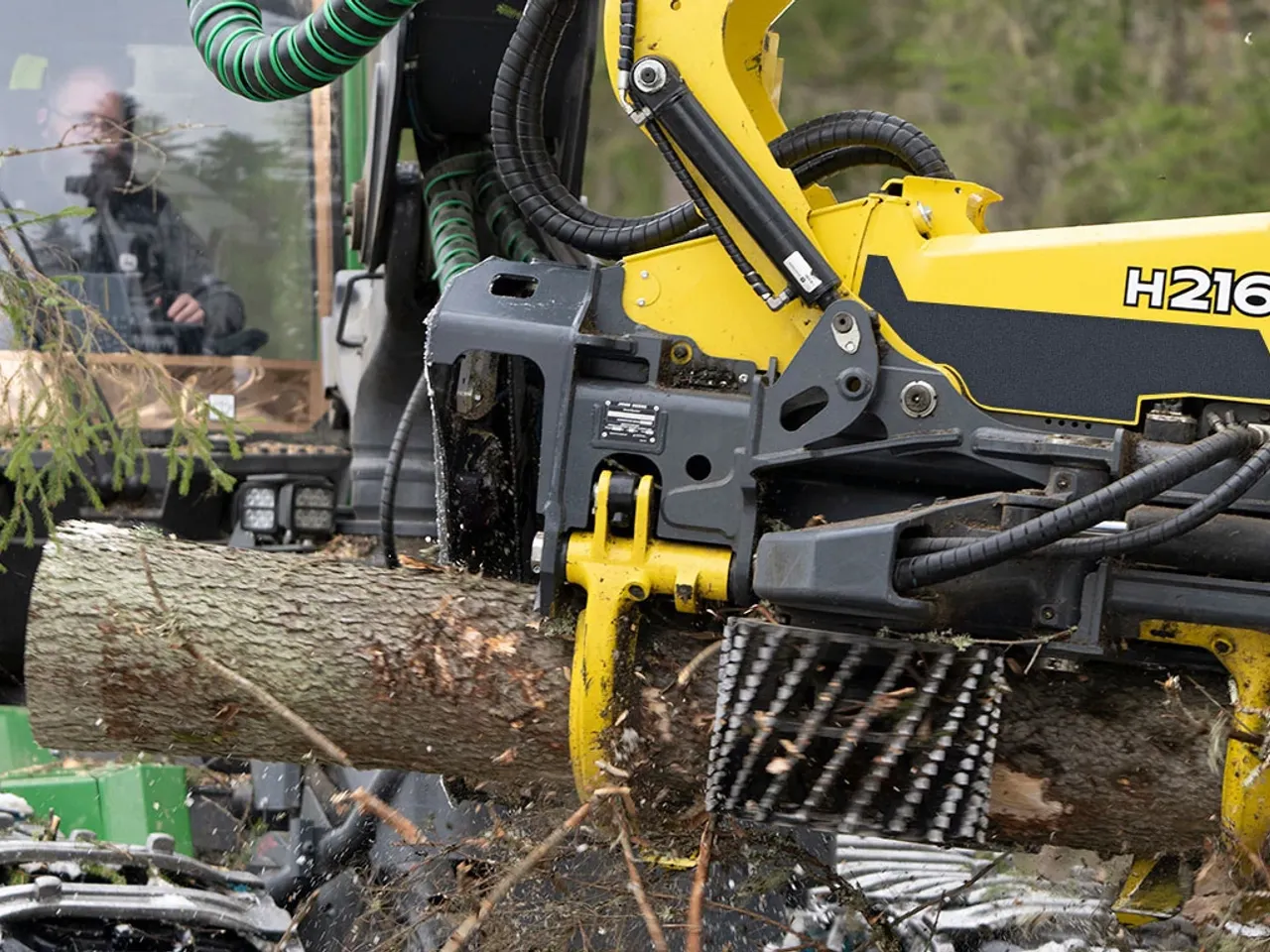

H216 Harvester Head
Forestry Attachments
Maximize timber harvest efficiency with the John Deere H216 Harvesting Head, delivering fast, accurate delimbing and cutting performance with rugged reliability for high uptime.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 0520WJ
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs5 specifications
- Weight Without Rotator and Link
- 1490 kg
- Maximum Cut Diameter (Metric)
- Standard: 750 Top Saw: 400 mm
- Maximum Cut Diameter (Imperial)
- Standard: 29.5 Top Saw: 15.7 in.
- Maximum Roller Opening (Metric)
- 700 mm
- Maximum Roller Opening (Imperial)
- 26 in.
Dimensions8 specifications
- Width, Head Open (Metric)
- 1695 mm
- Width, Head Open (Imperial)
- 67 in.
- Width, Head Closed (Metric)
- 1335 mm
- Width, Head Closed (Imperial)
- 52.6 in.
- Height Without Rotator and Link (Metric)
- 1845 mm
- Height Without Rotator and Link (Imperial)
- 72.6 in.
- Weight Without Rotator and Link (Metric)
- 1490 kg
- Weight Without Rotator and Link (Imperial)
- 3285 lb.
Felling/Cutting8 specifications

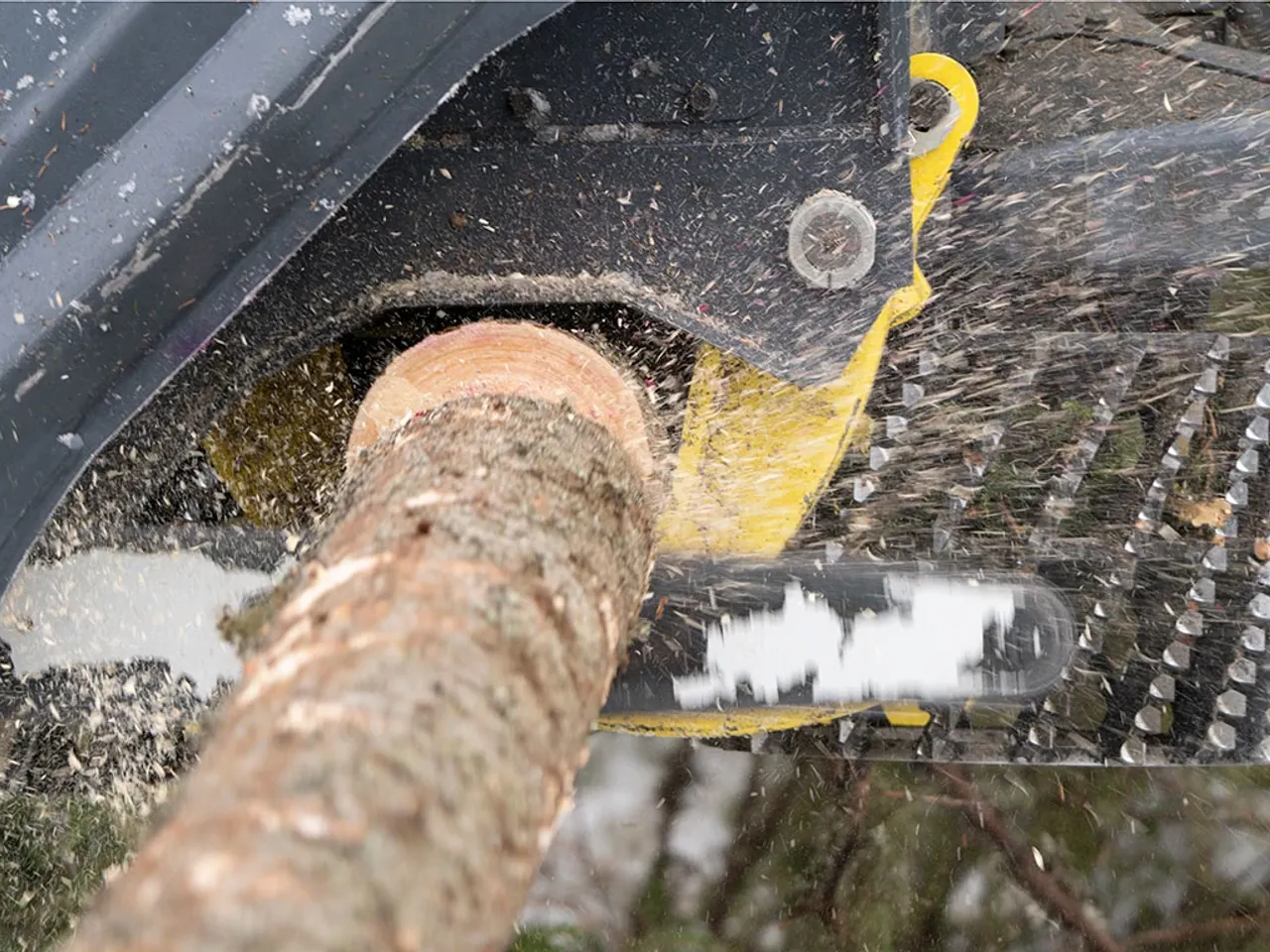

- Super Cut 100 S Saw Unit, Automatic Chain Tensioning
- Standard, Top Saw
- Maximum Cut Diameter (Metric)
- Standard: 750 Top Saw: 400 mm
- Maximum Cut Diameter (Imperial)
- Standard: 29.5 Top Saw: 15.7 in.
- Length Of Saw Bar (Metric)
- Standard: 900; Top Saw: 600 mm
- Length Of Saw Bar (Imperial)
- Standard: 35.4; Top Saw: 23.6 in.
- Chain Type
- 404
- Chain Speed (Metric)
- 40 m/s
- Chain Speed (Imperial)
- 131 fpm
Feed System, Two-Wheel-Drive4 specifications
- Maximum Feed Speed (Metric)
- 4,2-6,3 m/s
- Maximum Feed Speed (Imperial)
- 13.8-20.7 fps
- Maximum Roller Opening (Metric)
- 700 mm
- Maximum Roller Opening (Imperial)
- 26 in.
Delimbing7 specifications
- Delimbing Knives
- 4 moving and 1 fixed
- Delimbing Diameter, Tip To Tip (Metric)
- 450 mm
- Delimbing Diameter, Tip To Tip (Imperial)
- 18 in.
- Maximum Opening Upper Knives (Metric)
- 700 mm
- Maximum Opening Upper Knives (Imperial)
- 28 in.
- Maximum Opening Lower Knives (Metric)
- 760 mm
- Maximum Opening Lower Knives (Imperial)
- 30 in.
Hydraulic System4 specifications
- Maximum Operating Pressure (Metric)
- 28/35 (option) MPa
- Maximum Operating Pressure (Imperial)
- 4061/5076 (option) psi
- Recommended Pump Capacity (Metric)
- 260-370 L/min
- Recommended Pump Capacity (Imperial)
- 68.7-97.7 gpm
Tank Capacities7 specifications
- Color Marking (Other)
- Yes
- Color Marking (Metric)
- 1.4 L
- Color Marking (Imperial)
- 0.37 gal.
- Chain Oil (Metric)
- 14.0 L
- Chain Oil (Imperial)
- 3.7 gal.
- Chain Grease (Metric)
- 1.2 kg
- Chain Grease (Imperial)
- 2.6 lb.
Optional Equipment8 specifications
- Stump Treatment
- Yes
- Multi Tree Handling (MTH)
- Yes
- Mense Feed Rollers
- Yes
- Steel Thumbnail Feed Rollers
- Yes
- Steel Ribbed Feed Rollers
- Yes
- Chain And Saw Bar Kits
- Yes
- Hydraulic Hose Kit
- Yes
- Top Saw
- Yes
