John Deere

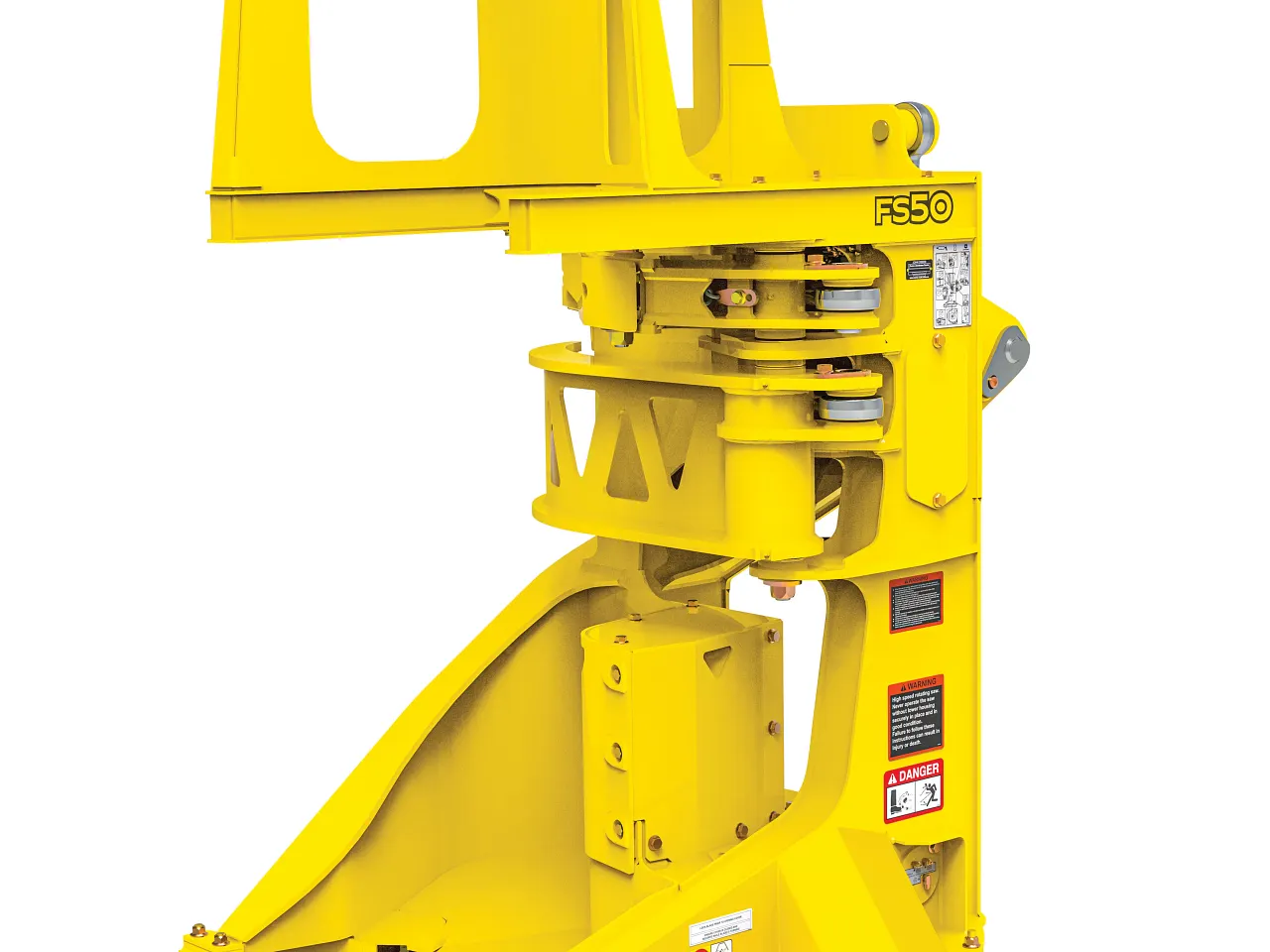

FS50 Felling Head
Forestry Attachments
John Deere FS50 felling head provides high accumulation capacity and multi-stem productivity, built for thinning and high-production plantation harvesting.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 4011DW
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Dimensions18 specifications
- Maximum Cutting Capacity (Imperial)
- 20.0 in.
- Maximum Cutting Capacity (Metric)
- 508.0 mm
- Maximum Accumulation Capacity (Imperial)
- 6.9 sq ft
- Maximum Accumulation Capacity (Metric)
- 0.64 m²
- Opening At Front Of Housing (Imperial)
- 34.3 in.
- Opening At Front Of Housing (Metric)
- 871.2 mm
- Blade Diameter (Imperial)
- 53.0 in.
- Blade Diameter (Metric)
- 1346.2 mm
- Number Of Teeth
- 18
- Saw Speed
- 1250.0 rpm
- Wrist Rotation
- 30.0 degree (angle)
- Width At Saw Housing (Imperial)
- 65.0 in.
- Width At Saw Housing (Metric)
- 1651.0 mm
- Height (Imperial)
- 112.0 in.
- Height (Metric)
- 2844.8 mm
- Weight Measure Inclusions Or Exclusions
- Adapter and wrist
- Weight (Imperial)
- 7430.0 lb.
- Weight (Metric)
- 3370.2 kg
