John Deere

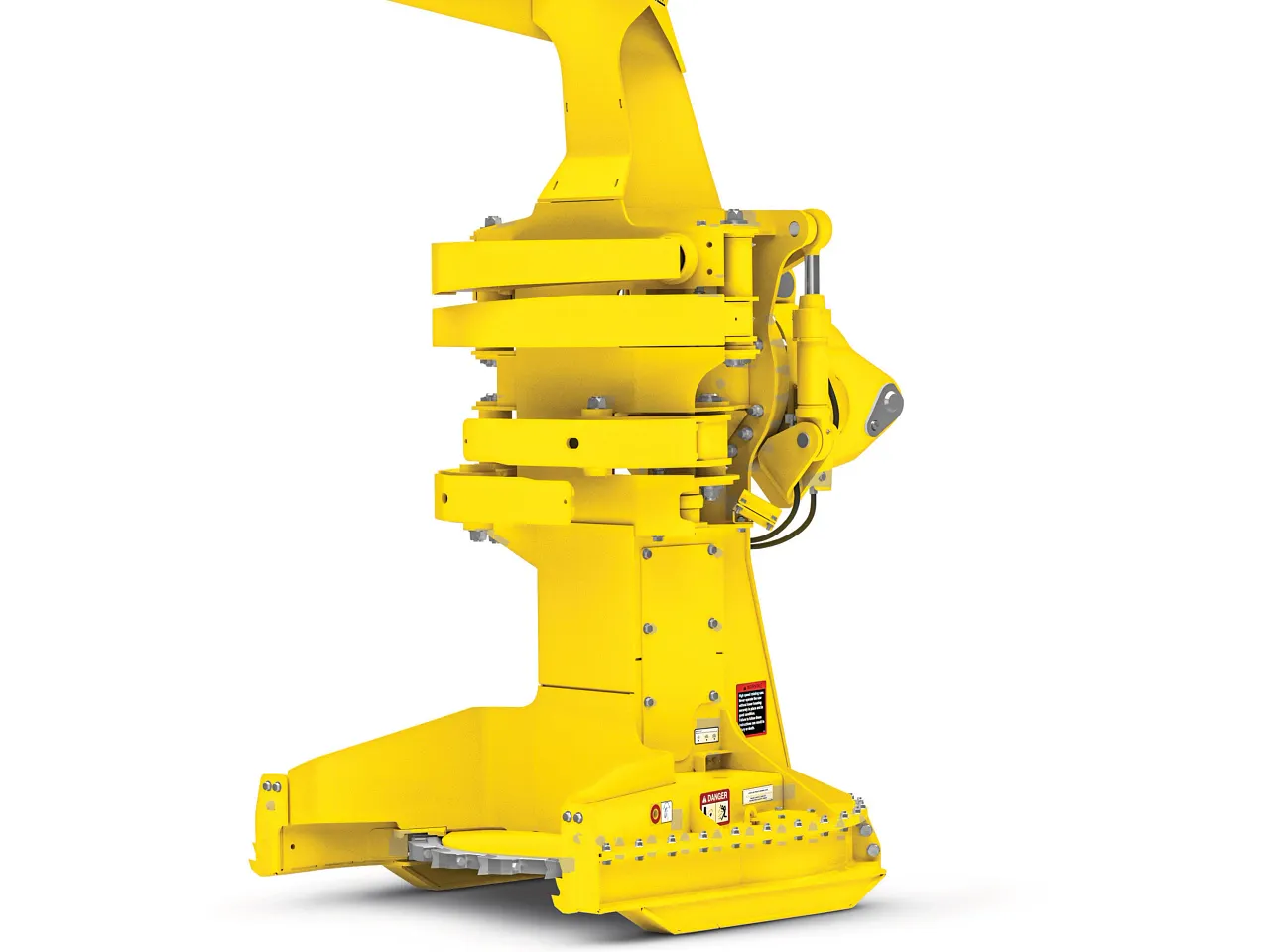

FS22B Felling Head
Forestry Attachments
John Deere FS22B felling head delivers versatile cutting and accumulation performance, ideal for mid-sized timber in selective and final harvest operations.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 7911T
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Dimensions18 specifications
- Maximum Cutting Capacity (Imperial)
- 22.0 in.
- Maximum Cutting Capacity (Metric)
- 838.2 mm
- Maximum Accumulation Capacity (Imperial)
- 5.2 sq ft
- Maximum Accumulation Capacity (Metric)
- 0.48 m²
- Opening At Front Of Housing (Imperial)
- 50.4 in.
- Opening At Front Of Housing (Metric)
- 1280.2 mm
- Blade Diameter (Imperial)
- 56.0 in.
- Blade Diameter (Metric)
- 1422.4 mm
- Number Of Teeth
- 15
- Saw Speed
- 1150.0 rpm
- Wrist Rotation
- 30.0 degree (angle)
- Width At Saw Housing (Imperial)
- 63.8 in.
- Width At Saw Housing (Metric)
- 1620.5 mm
- Height (Imperial)
- 120.8 in.
- Height (Metric)
- 3068.3 mm
- Weight Measure Inclusions Or Exclusions
- Adapter and wrist
- Weight (Imperial)
- 7830.0 lb.
- Weight (Metric)
- 3551.6 kg
