John Deere

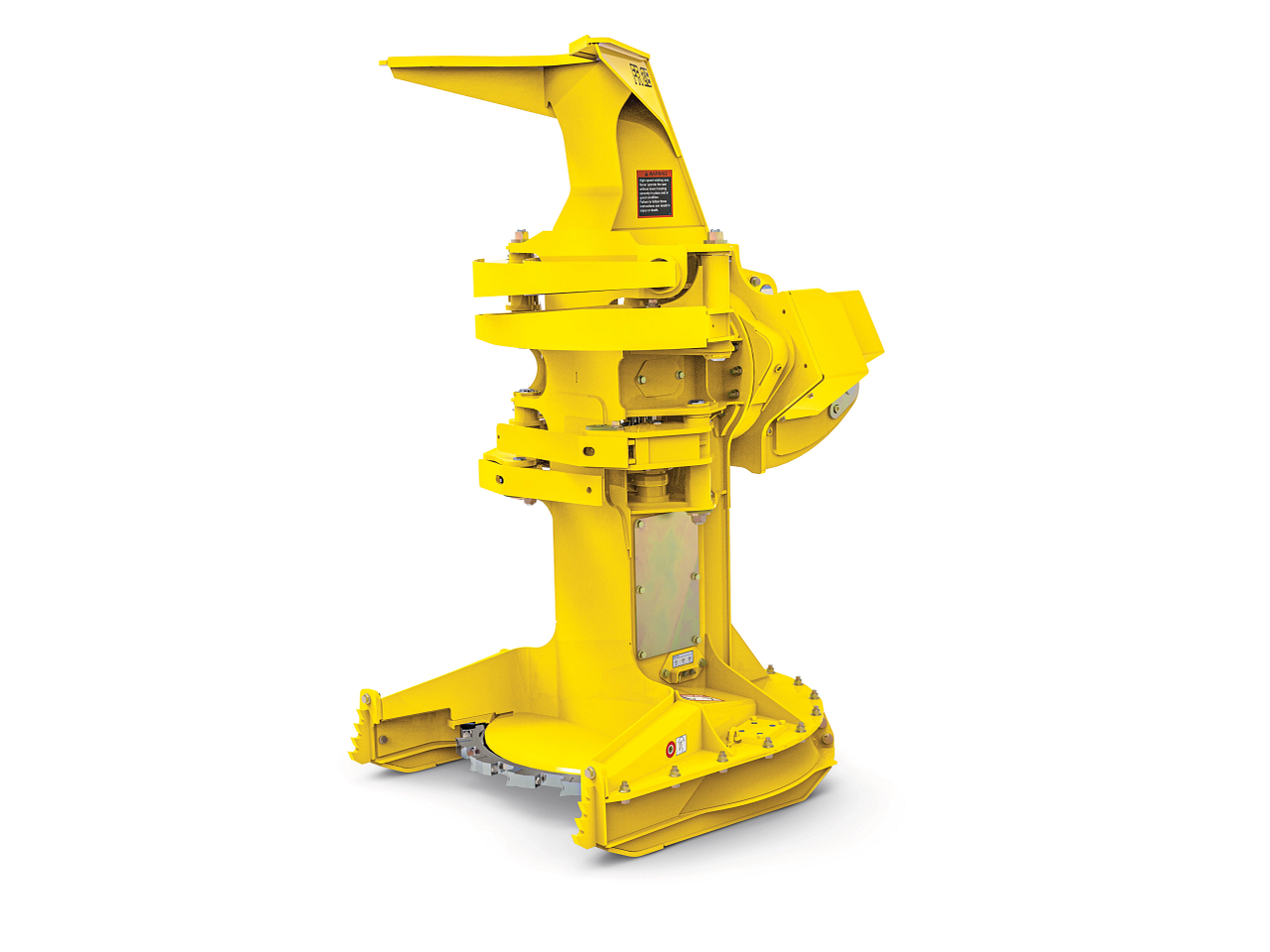

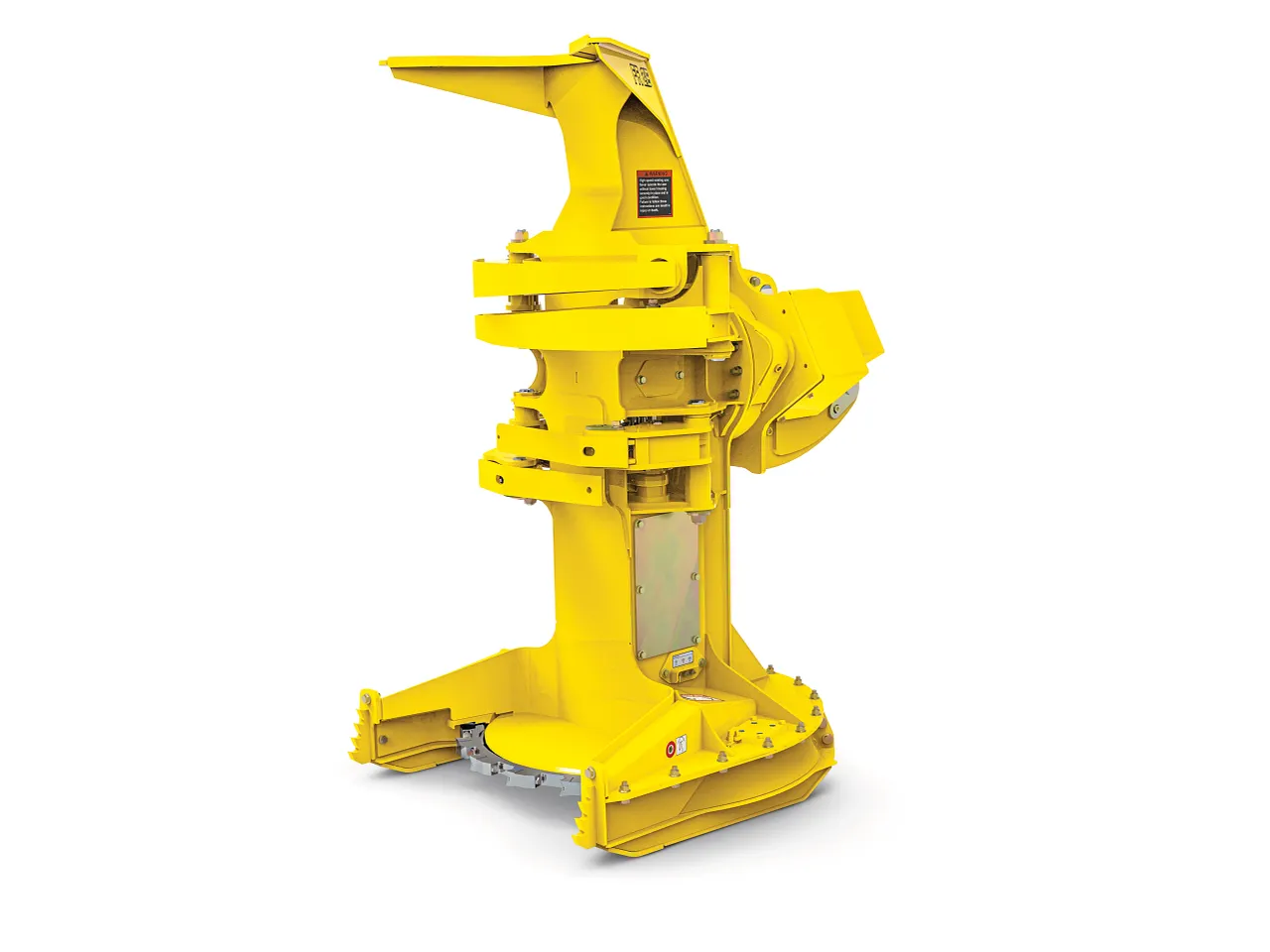

FR21B Felling Head
Forestry Attachments
John Deere FR21B felling head delivers efficient cutting and accumulation for small to mid-sized timber, offering versatile performance across thinning and harvesting jobs.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 02V0T
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Dimensions17 specifications
- Maximum Cutting Capacity (Imperial)
- 21.5 in.
- Maximum Cutting Capacity (Metric)
- 546.1 mm
- Maximum Accumulation Capacity (Imperial)
- 5.0 sq ft
- Maximum Accumulation Capacity (Metric)
- 53.8 m²
- Opening At Front Of Housing (Imperial)
- 46.5 in.
- Opening At Front Of Housing (Metric)
- 1181.1 mm
- Blade Diameter (Imperial)
- 54.0 in.
- Blade Diameter (Metric)
- 1371.6 mm
- Number Of Teeth
- 18
- Width At Saw Housing (Imperial)
- 61.0 in.
- Width At Saw Housing (Metric)
- 1549.4 mm
- Height (Imperial)
- 111.0 in.
- Height (Metric)
- 2819.4 mm
- Weight Measure Inclusions Or Exclusions
- Adapter and wrist
- Weight (Imperial)
- 6920.0 lb.
- Weight (Metric)
- 3140.0 kg
- Boom Requirements
- 6.71-m (22-ft) boom only
