John Deere
FD45 Felling Head
Forestry Attachments

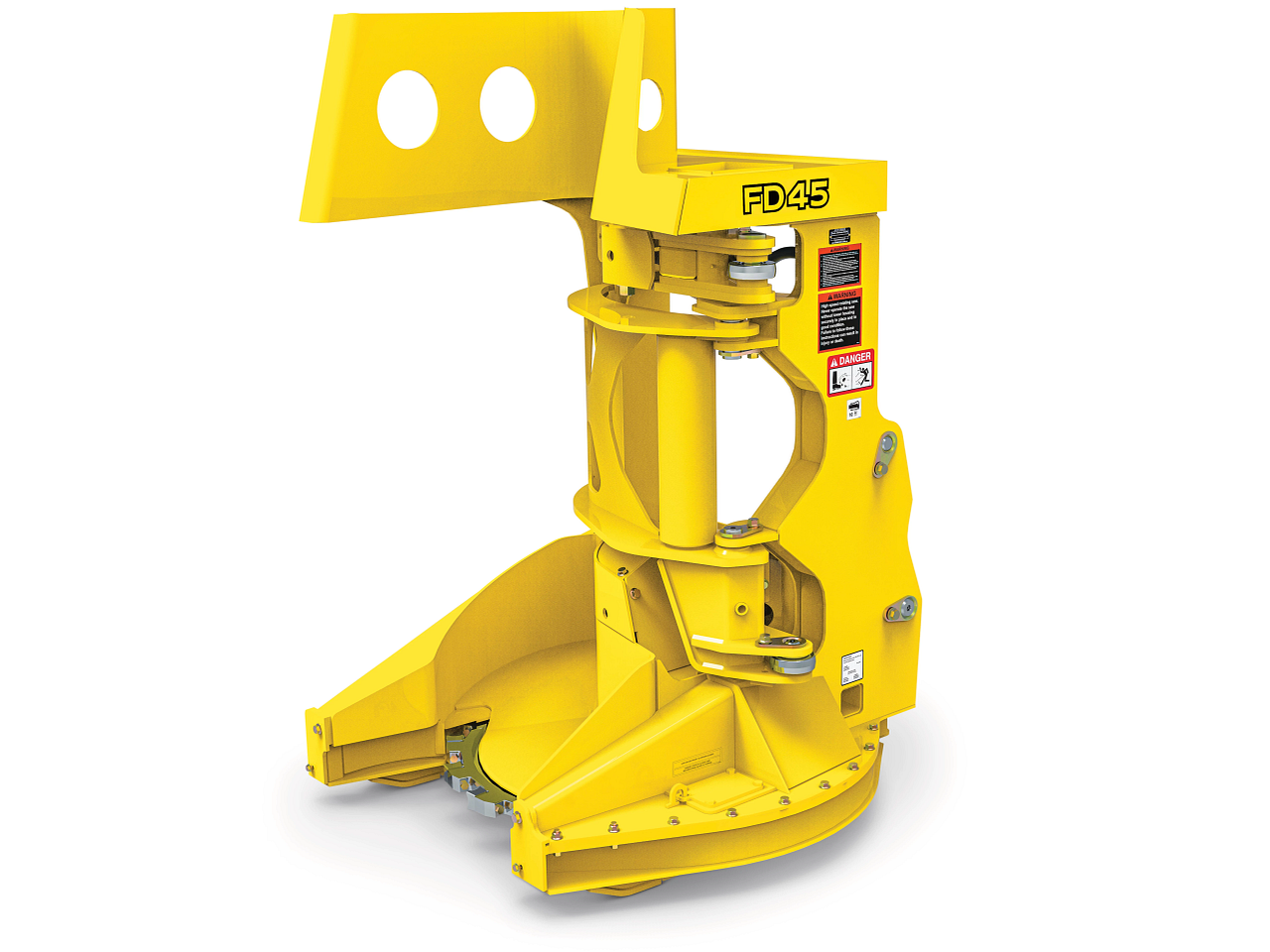

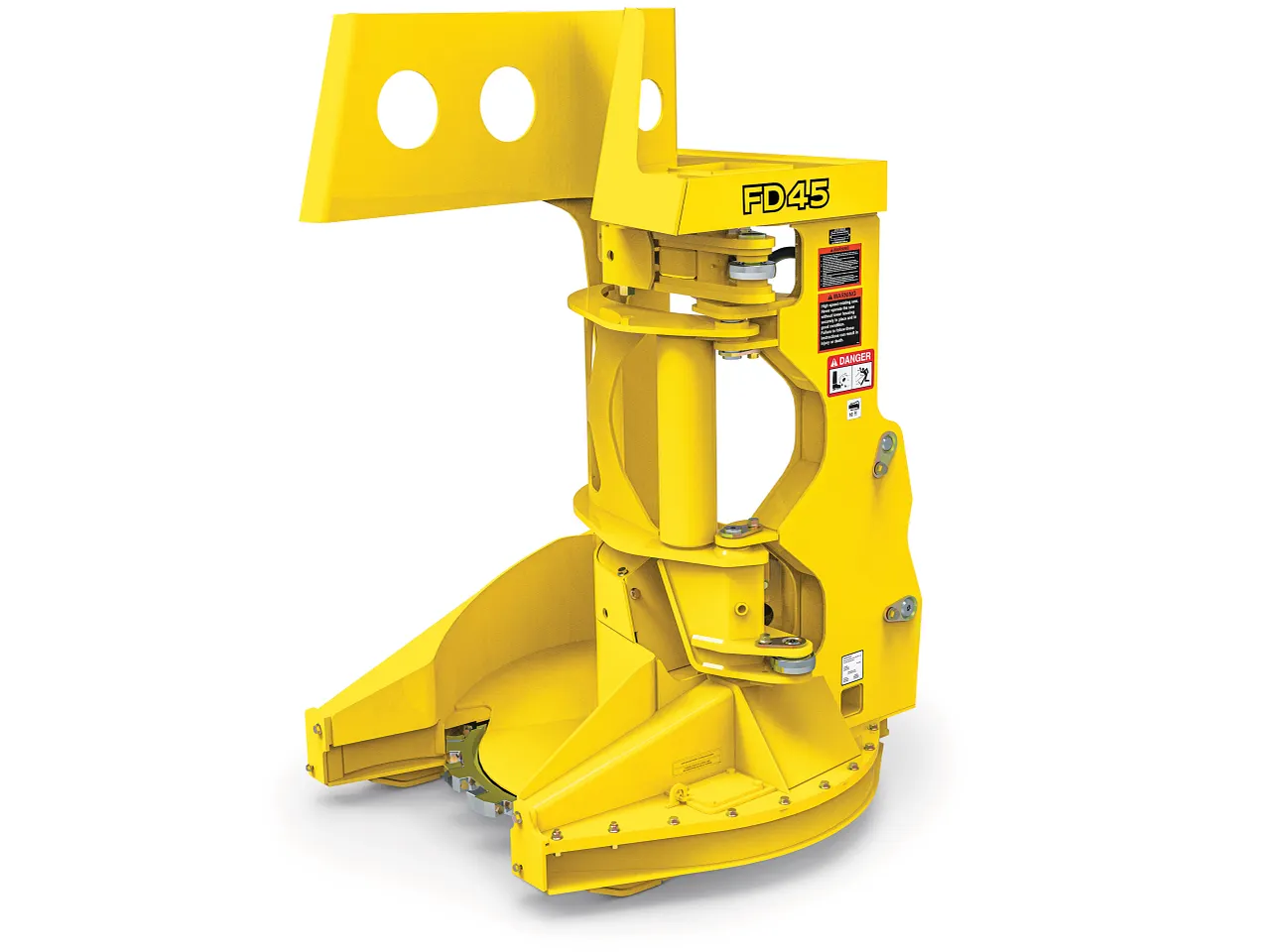

John Deere FD45 felling head combines high accumulation capacity with a lightweight design, helping increase productivity in small-to-mid timber applications.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 7931T
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Dimensions16 specifications
- Maximum Cutting Capacity (Imperial)
- 20.0 in.
- Maximum Cutting Capacity (Metric)
- 508.0 mm
- Maximum Accumulation Capacity (Imperial)
- 7.0 sq ft
- Maximum Accumulation Capacity (Metric)
- 75.3 m²
- Opening At Front Of Housing (Imperial)
- 34.0 in.
- Opening At Front Of Housing (Metric)
- 863.6 mm
- Blade Diameter (Imperial)
- 53.0 in.
- Blade Diameter (Metric)
- 1346.2 mm
- Number Of Teeth
- 18
- Width At Saw Housing (Imperial)
- 62.3 in.
- Width At Saw Housing (Metric)
- 1582.4 mm
- Height (Imperial)
- 99.0 in.
- Height (Metric)
- 2514.6 mm
- Weight Measure Inclusions Or Exclusions
- No blade cover or tilt links
- Weight (Imperial)
- 5345.0 lb.
- Weight (Metric)
- 2424.5 kg
