John Deere

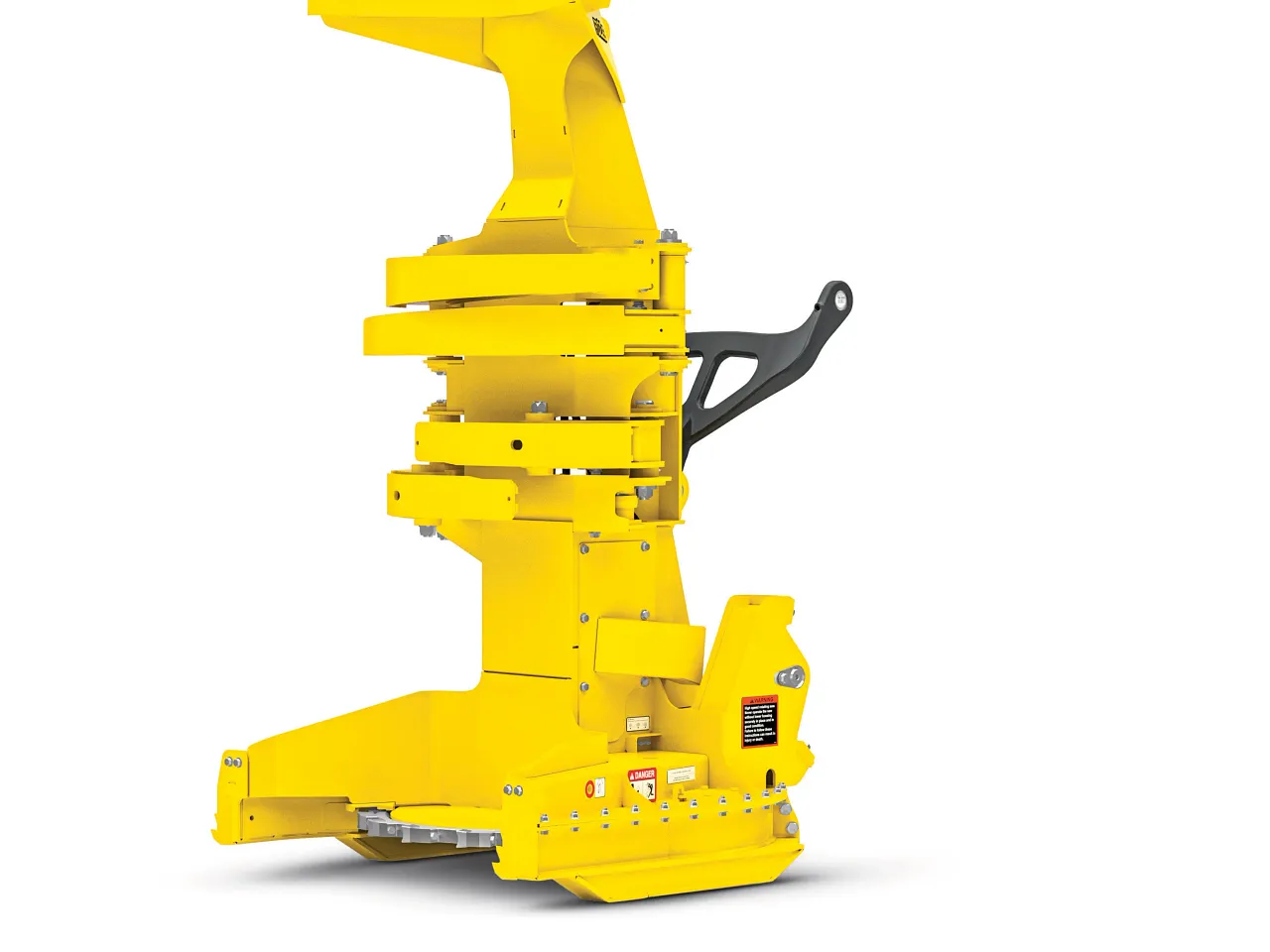

ModelFD22B Felling Head
Forestry Attachments
John Deere FD22B felling head delivers efficient cutting and accumulation for mid-sized timber, offering versatile performance across thinning and harvesting jobs.
Model / part number: 7890T
Key specifications
- Maximum Cutting Capacity (Imperial)
- 22.0 in.
- Maximum Accumulation Capacity (Imperial)
- 5.2 sq ft
- Width At Saw Housing (Imperial)
- 63.7 in.
- Blade Diameter (Imperial)
- 56.0 in.
Technical specifications
16 specifications
Dimensions16 details
- Maximum Cutting Capacity (Imperial)
- 22.0 in.
- Maximum Cutting Capacity (Metric)
- 559.0 mm
- Maximum Accumulation Capacity (Imperial)
- 5.2 sq ft
- Maximum Accumulation Capacity (Metric)
- 0.48 m²
- Opening At Front Of Housing (Imperial)
- 50.8 in.
- Opening At Front Of Housing (Metric)
- 1290.3 mm
- Blade Diameter (Imperial)
- 56.0 in.
- Blade Diameter (Metric)
- 1422.4 mm
- Number Of Teeth
- 18
- Width At Saw Housing (Imperial)
- 63.7 in.
- Width At Saw Housing (Metric)
- 1618.0 mm
- Height (Imperial)
- 120.8 in.
- Height (Metric)
- 3068.3 mm
- Weight Measure Inclusions Or Exclusions
- No blade cover or tilt links
- Weight (Imperial)
- 6770.0 lb.
- Weight (Metric)
- 3070.8 kg
