John Deere

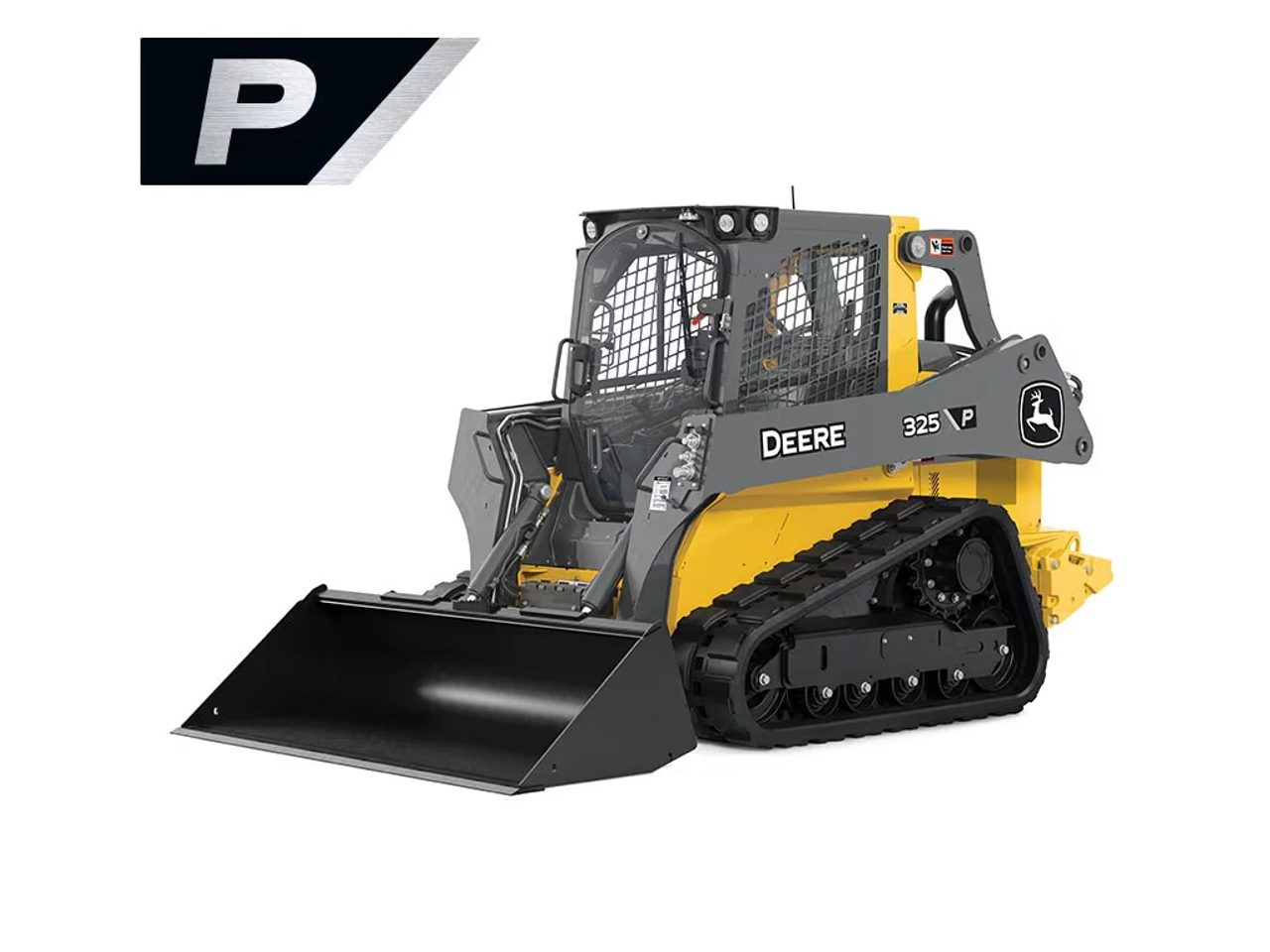

325 P-Tier Compact Track Loader

Name: 325 P-Tier Compact Track Loader
Brand: John Deere
SKU: 00Z0T

Compact Track Loaders

Explore the 74 HP mid frame 325 P-Tier Compact Track Loader, view a list of available attachments and compare competitive specifications.

Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.

The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.

Model / part number: 00Z0T

Technical specification source: Official manufacturer technical data

Enquire about this model View manufacturer listing

Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04

Specifications

Key Specs9 specifications

Displacement (Imperial): 203.0 cu in.
Displacement (Metric): 3.33 L
Rated engine speed: 2500.0 rpm
Travel speed low (Imperial): 5.2 mph
Travel speed low (Metric): 8.37 km/h
Travel speed high (Imperial): 8.2 mph
Travel speed high (Metric): 13.2 km/h
Hydraulic horsepower standard flow (calculated) (Imperial): 41.7 hp
Hydraulic horsepower standard flow (calculated) (Metric): 31.1 kW

Engine13 specifications

Engine cylinders: 4
Net power (SAE J1349, ISO 9249) at 2500 rpm (Imperial): 70.0 hp
Net power (SAE J1349, ISO 9249) at 2500 rpm (Metric): 52.2 kW
Rated gross power (ISO 14396) at 2500 rpm (Imperial): 74.0 hp
Rated gross power (ISO 14396) at 2500 rpm (Metric): 55.2 kW
Rated gross power (ISO 14396) at 2600 rpm (Imperial): 74.0 hp
Rated gross power (ISO 14396) at 2600 rpm (Metric): 54.9 kW
Peak torque at 1800 rpm (Imperial): 207.0 lb-ft
Peak torque at 1800 rpm (Metric): 280.7 Nm
Displacement (Imperial): 203.0 cu in.
Displacement (Metric): 3.33 L
Rated engine speed: 2500.0 rpm
Torque rise percent at 1800 rpm: 34.0 %

Powertrain6 specifications

Single speed (Imperial): 5.8 mph
Single speed (Metric): 9.34 km/h
Travel speed low (Imperial): 5.2 mph
Travel speed low (Metric): 8.37 km/h
Travel speed high (Imperial): 8.2 mph
Travel speed high (Metric): 13.2 km/h

Undercarriage10 specifications

Standard track width (Imperial): 12.6 in.
Standard track width (Metric): 320.0 mm
Optional track width (Imperial): 15.8 in.
Optional track width (Metric): 401.3 mm
Ground pressure standard track (Imperial): 5.7 psi
Ground pressure standard track (Metric): 39.3 kPa
Ground pressure optional track (Imperial): 4.7 psi
Ground pressure optional track (Metric): 32.4 kPa
Tractive effort (Imperial): 8500.0 lbf
Tractive effort (Metric): 3855.5 kgf

Hydraulics10 specifications

Standard pump flow (Imperial): 21.0 gpm
Standard pump flow (Metric): 79.5 L/min
High flow option total pump flow (Imperial): 32.0 gpm
High flow option total pump flow (Metric): 121.1 L/min
System pressure at couplers (Imperial): 3450.0 psiPerMin
System pressure at couplers (Metric): 23787.0 kPa
Hydraulic horsepower standard flow (calculated) (Imperial): 41.7 hp
Hydraulic horsepower standard flow (calculated) (Metric): 31.1 kW
Hydraulic horsepower high flow (calculated) (Imperial): 63.6 hp
Hydraulic horsepower high flow (calculated) (Metric): 47.4 kW

Electrical3 specifications

Voltage: 12.0 V
Battery Capacity: 750 standard / 925 optional CCA
Alternator rating with A/C: 75.0 amp

Serviceability10 specifications

Fuel tank (Imperial): 21.0 gal.
Fuel tank (Metric): 79.5 L
Cooling system (Imperial): 13.2 qt
Cooling system (Metric): 12.5 L
Engine oil capacity with filter (Imperial): 13.2 qt
Engine oil capacity with filter (Metric): 12.5 L
Hydraulic reservoir (Imperial): 7.0 gal.
Hydraulic reservoir (Metric): 26.5 L
Hydraulic planetary gearbox (Imperial): 0.84 gal.
Hydraulic planetary gearbox (Metric): 3.18 L

Operating Weights4 specifications

Standard track (Imperial): 9500.0 lb.
Standard track (Metric): 4309.1 kg
Optional track (Imperial): 9650.0 lb.
Optional track (Metric): 4377.2 kg

Machine Dimensions35 specifications

Length without bucket (Imperial): 112.3 in.
Length without bucket (Alternative 2): 9, 4 ft, in.
Length without bucket (Metric): 2.85 m
Length with foundry bucket (Imperial): 136.3 in.
Length with foundry bucket (Alternative 2): 11, 4 ft, in.
Length with foundry bucket (Metric): 3.46 m
Width without bucket with 12.6 in. tracks (Imperial): 71.5 in.
Width without bucket with 12.6 in. tracks (Alternative 2): 6, 0 ft, in.
Width without bucket with 320 mm tracks: 1.82 m
Width without bucket with 15.8 in. tracks (Imperial): 74.7 in.
Width without bucket with 15.8 in. tracks (Alternative 2): 6, 3 ft, in.
Width without bucket with 400 mm tracks: 1.9 m
Height to top of rollover protective structure (ROPS) (Imperial): 81.1 in.
Height to top of rollover protective structure (ROPS) (Alternative 2): 6, 9 ft, in.
Height to top of rollover protective structure (ROPS) (Metric): 2.06 m
Height to hinge pin (Imperial): 126.1 in.
Height to hinge pin (Alternative 2): 10, 6 ft, in.
Height to hinge pin (Metric): 3.2 m
Dump height, foundry bucket (Imperial): 102.1 in.
Dump height, foundry bucket (Alternative 2): 8, 6 ft, in.
Dump height, foundry bucket (Metric): 2.59 m
Dump reach, foundry bucket (Imperial): 29.7 in.
Dump reach, foundry bucket (Alternative 2): 2, 6 ft, in.
Dump reach, foundry bucket (Metric): 0.75 m
Dump reach, construction bucket, no edge (Imperial): 37.0 in.
Dump reach, construction bucket, no edge (Alternative 2): 3, 1 ft, in.
Dump reach, construction bucket, no edge (Metric): 0.94 m
Ground clearance (Imperial): 9.3 in.
Ground clearance (Metric): 0.24 m
Angle of departure degree: 30.5 degree (angle)
Front turn radius, foundry bucket (Imperial): 80.0 in.
Front turn radius, foundry bucket (Metric): 2.03 m
Front turn radius, foundry bucket (Alternative 3): 6, 8 ft, in.
Dump angle (full lift height) degree: 41.0 degree (angle)
Bucket rollback (ground level) degree: 34.0 degree (angle)

Loader Performance12 specifications

SAE rated operating capacity at 35% tipping load (construction bucket) (Imperial): 2590.0 lb.
SAE rated operating capacity at 35% tipping load (construction bucket) (Metric): 1175.6 kg
SAE rated operating capacity at 50% tipping load (construction bucket) (Imperial): 3700.0 lb.
SAE rated operating capacity at 50% tipping load (construction bucket) (Metric): 1678.3 kg
Boom breakout force with foundry bucket (Imperial): 5250.0 lb.
Boom breakout force with foundry bucket (Metric): 2381.4 kg
Boom breakout force with construction bucket (Imperial): 4750.0 lb.
Boom breakout force with construction bucket (Metric): 2154.2 kg
Bucket breakout force with foundry bucket (Imperial): 8750.0 lb.
Bucket breakout force with foundry bucket (Metric): 3968.3 kg
Bucket breakout force with heavy duty construction bucket (Imperial): 6000.0 lb.
Bucket breakout force with heavy duty construction bucket (Metric): 2721.6 kg
