John Deere

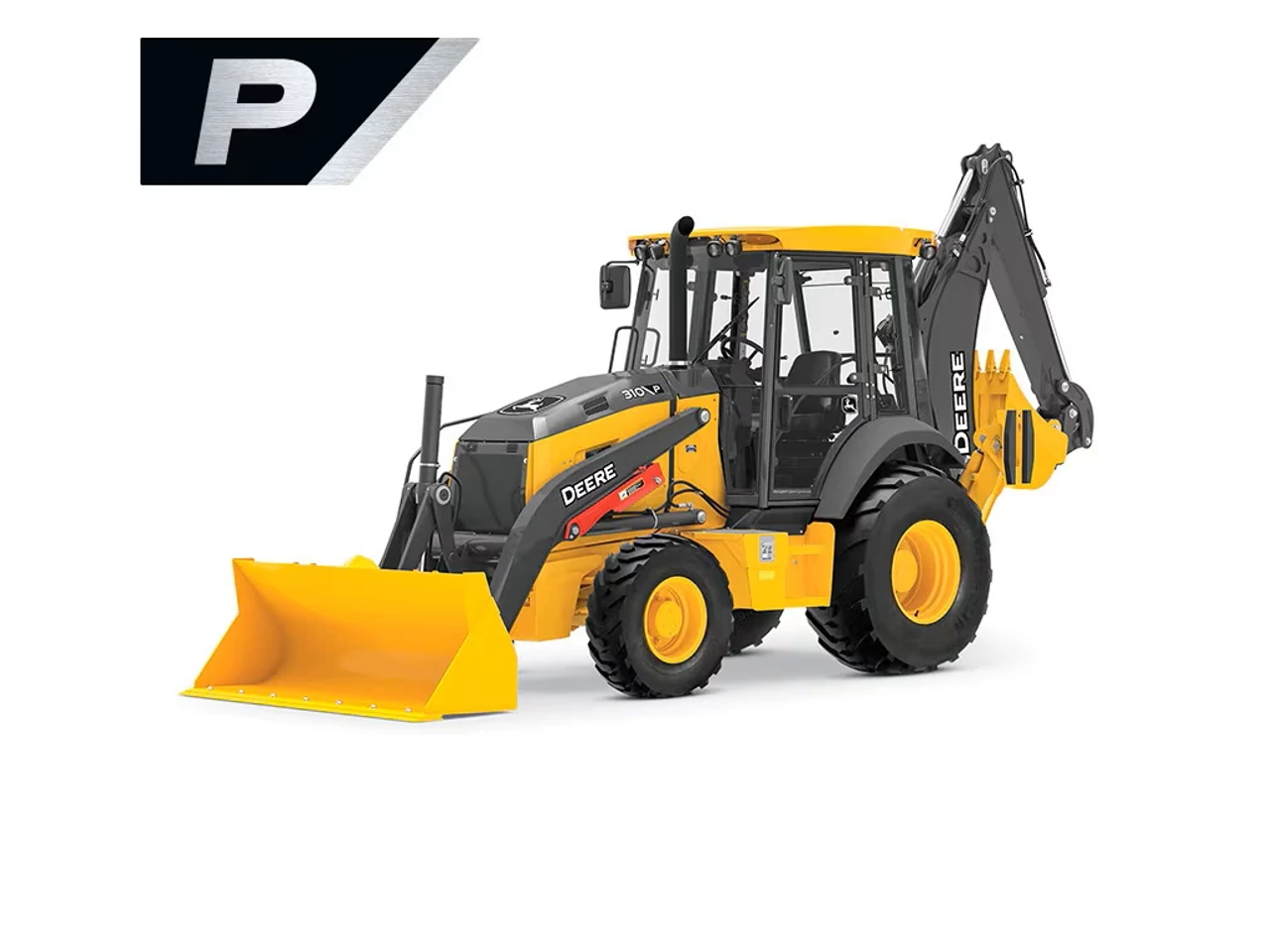

310 P-Tier Backhoe
Backhoes
Explore the 310 P-Tier backhoe loader with 4.5L John Deere PowerTech™ engine, clutchless gear changes, and redesigned pilot tower. View more features and specifications.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 17B0YN
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Engine21 specifications
- Cylinders
- 4
- Valves Per Cylinder
- 2
- Displacement (Imperial)
- 276.0 cu in.
- Displacement (Metric)
- 4.52 L
- Bore and Stroke (Imperial)
- 4.19 x 5.00 in.
- Bore and Stroke (Metric)
- 106.43 x 127.00 mm
- Rated Speed
- 2200.0 rpm
- Gross Power At Rated Speed (Imperial)
- 96.0 hp
- Gross Power At Rated Speed (Metric)
- 71.58 kW
- Peak Power Speed
- 1600.0 rpm
- Gross Peak Power At Peak Power Speed (Imperial)
- 102.0 hp
- Gross Peak Power At Peak Power Speed (Metric)
- 76.08 kW
- Peak Torque Speed
- 1500.0 rpm
- Gross Peak Torque At Peak Torque Speed (Imperial)
- 344.0 lb-ft
- Gross Peak Torque At Peak Torque Speed (Metric)
- 466.55 Nm
- Net Power At Rated Speed (ISO9249) (Imperial)
- 94.0 hp
- Net Power At Rated Speed (ISO9249) (Metric)
- 70.08 kW
- Net Peak Power At Peak Power Speed (ISO9249)
- 74.57 kW
- Net Peak Torque At Peak Torque Speed (ISO9249) (Imperial)
- 338.0 lb-ft
- Net Peak Torque At Peak Torque Speed (ISO9249) (Metric)
- 458.47 Nm
- Net Torque Rise
- 51.0 %
Cooling3 specifications
- Engine Coolant Rating (Imperial)
- -40.0 °F
- Engine Coolant Rating (Metric)
- -40.0 ℃
- Engine Radiator (Fins Per In.)
- 10
Powertrain62 specifications
- Number Of Gears Forward
- 4
- Number Of Gears Reverse
- 2
- Torque Converter (Imperial)
- 11.0 in.
- Torque Converter (Metric)
- 279.4 mm
- Gear 1, Forward Maximum Speed (Imperial)
- 3.4 mph
- Gear 1, Forward Maximum Speed (Metric)
- 5.47 km/h
- Gear 1, Reverse Maximum Speed (Imperial)
- 4.2 mph
- Gear 1, Reverse Maximum Speed (Metric)
- 6.76 km/h
- Gear 2, Forward Maximum Speed (Imperial)
- 6.2 mph
- Gear 2, Forward Maximum Speed (Metric)
- 9.98 km/h
- Gear 2, Reverse Maximum Speed (Imperial)
- 7.8 mph
- Gear 2, Reverse Maximum Speed (Metric)
- 12.55 km/h
- Gear 3, Forward Maximum Speed (Imperial)
- 12.6 mph
- Gear 3, Forward Maximum Speed (Metric)
- 20.29 km/h
- Gear 4, Forward Maximum Speed (Imperial)
- 22.7 mph
- Gear 4, Forward Maximum Speed (Metric)
- 36.53 km/h
- Axle Oscillation Stop To Stop, Front Axle
- 22.0 degree (angle)
- Front Axle, Sae J43 Rating (Imperial)
- 11000.0 lb.
- Front Axle, Sae J43 Rating (Metric)
- 4989.52 kg
- Front Axle, Dynamic Rating (Imperial)
- 19800.0 lb.
- Front Axle, Dynamic Rating (Metric)
- 8981.45 kg
- Front Axle, Static Rating (Imperial)
- 54000.0 lb.
- Front Axle, Static Rating (Metric)
- 24493.52 kg
- Front Axle, Ultimate Rating (Imperial)
- 91500.0 lb.
- Front Axle, Ultimate Rating (Metric)
- 41518.58 kg
- Rear Axle, SAE J43 Rating (Imperial)
- 13200.0 lb.
- Rear Axle, SAE J43 Rating (Metric)
- 5987.39 kg
- Rear Axle, Dynamic Rating (Imperial)
- 22000.0 lb.
- Rear Axle, Dynamic Rating (Metric)
- 9979.03 kg
- Rear Axle, Static Rating (Imperial)
- 58400.0 lb.
- Rear Axle, Static Rating (Metric)
- 26496.91 kg
- Rear Axle, Ultimate Rating (Imperial)
- 91500.0 lb.
- Rear Axle, Ultimate Rating (Metric)
- 41518.58 kg
- Maximum Axle Torque (Imperial)
- 46100.0 lb.
- Maximum Axle Torque (Metric)
- 20913.91 kg
- Rear Differential Lock Pressure (Imperial)
- 305.0 psi
- Rear Differential Lock Pressure (Metric)
- 2102.72 kPa
- Steering Pressure (Imperial)
- 3625.0 psi
- Steering Pressure (Metric)
- 24987.5 kPa
- Maximum Steer Angle, Mechanical Front Wheel Drive (MFWD) Axle
- 52.0 degree (angle)
- Maximum Steer Angle, Non Powered Front Axle
- 55.0 degree (angle)
- Curb Turning Radius, With Brakes, With MFWD Axle (Imperial)
- 11, 4 ft, in.
- Curb Turning Radius, With Brakes, With MFWD Axle (Metric)
- 3.45 m
- Curb Turning Radius, With Brakes, With Non Powered Front Axle (Imperial)
- 11, 3 ft, in.
- Curb Turning Radius, With Brakes, With Non Powered Front Axle (Metric)
- 3.43 m
- Curb Turning Radius, Without Brakes, With MFWD Axle (Imperial)
- 13, 0 ft, in.
- Curb Turning Radius, Without Brakes, With MFWD Axle (Metric)
- 3.96 m
- Curb Turning Radius, Without Brakes, With Non Powered Front Axle (Imperial)
- 12, 10 ft, in.
- Curb Turning Radius, Without Brakes, With Non Powered Front Axle (Metric)
- 3.91 m
- Bucket Clearance Circle, With Brakes, With MFWD Axle (Imperial)
- 32, 4 ft, in.
- Bucket Clearance Circle, With Brakes, With MFWD Axle (Metric)
- 9.86 m
- Bucket Clearance Circle, With Brakes, With Non Powered Front Axle (Imperial)
- 32, 2 ft, in.
- Bucket Clearance Circle, With Brakes, With Non Powered Front Axle (Metric)
- 9.8 m
- Bucket Clearance Circle, Without Brakes, With MFWD Axle (Imperial)
- 34, 10 ft, in.
- Bucket Clearance Circle, Without Brakes, With MFWD Axle (Metric)
- 10.62 m
- Bucket Clearance Circle, Without Brakes, With Non Powered Front Axle (Imperial)
- 34, 5 ft, in.
- Bucket Clearance Circle, Without Brakes, With Non Powered Front Axle (Metric)
- 10.49 m
- Number Of Steering Wheel Turns (Lock To Lock) With MFWD Axle
- 2.7
- Number Of Steering Wheel Turns (Lock To Lock) With Non Powered Front Axle
- 3.2
- MFWD Axle Total Ratio
- 12.574:1 (14.759:1 optional with 12.5/80-18 front tires)
- Rear Axle Total Ratio
- 19.911:1
- Service Brakes Friction Disc Area Per Side
- 141900.0 mmByMm
Hydraulics9 specifications
- Rated Rpm
- 2200.0 rpm
- Backhoe Pump Flow (Imperial)
- 28.0 gpm
- Backhoe Pump Flow (Metric)
- 105.99 L/min
- Loader Pump Flow (Imperial)
- 28.0 gpm
- Loader Pump Flow (Metric)
- 105.99 L/min
- Backhoe System Relief Pressure (Imperial)
- 3625.0 psi
- Backhoe System Relief Pressure (Metric)
- 24987.5 kPa
- Loader System Relief Pressure (Imperial)
- 3200.0 psi
- Loader System Relief Pressure (Metric)
- 22063.0 kPa
Electrical5 specifications
- Voltage
- 12.0 V
- Number Of Batteries
- 1.0
- Battery Capacity (1 Battery)
- 950.0 CCA
- Reserve Capacity (1 Battery)
- 175.0 min.
- Alternator Rating
- 145.0 amp
Serviceability22 specifications
- Refill Capacity Cooling System (Cab) (Imperial)
- 29.1 qt
- Refill Capacity Cooling System (Cab) (Metric)
- 27.54 L
- Refill Capacity Cooling System (Canopy) (Imperial)
- 27.2 qt
- Refill Capacity Cooling System (Canopy) (Metric)
- 25.74 L
- Refill Capacity Rear Axle Differential Housing (Imperial)
- 19.0 qt
- Refill Capacity Rear Axle Differential Housing (Metric)
- 17.98 L
- Refill Capacity Engine Oil (Imperial)
- 13.7 qt
- Refill Capacity Engine Oil (Metric)
- 12.97 L
- Refill Capacity Torque Converter And Transmission (Imperial)
- 16.0 qt
- Refill Capacity Torque Converter And Transmission (Metric)
- 15.14 L
- Refill Capacity Fuel Tank (Imperial)
- 34.0 gal.
- Refill Capacity Fuel Tank (Metric)
- 128.7 L
- Refill Capacity Diesel Exhaust Fluid (DEF) Tank (Imperial)
- 3.6 gal.
- Refill Capacity Diesel Exhaust Fluid (DEF) Tank (Metric)
- 13.63 L
- Refill Capacity Hydraulic System (Imperial)
- 33.5 gal.
- Refill Capacity Hydraulic System (Metric)
- 126.87 L
- Refill Capacity Hydraulic Reservoir (Imperial)
- 11.9 gal.
- Refill Capacity Hydraulic Reservoir (Metric)
- 45.06 L
- Refill Capacity Mechanical Front Wheel Drive Housing Axle (Imperial)
- 6.9 qt
- Refill Capacity Mechanical Front Wheel Drive Housing Axle (Metric)
- 6.53 L
- Refill Capacity Mechanical Front Wheel Drive Housing Planetary Each (Imperial)
- 1.0 qt
- Refill Capacity Mechanical Front Wheel Drive Housing Planetary Each (Metric)
- 0.95 L
Operating Weights15 specifications
- Operator And Standard Equipment With Full Fuel Tank
- 16217.0 lb.
- Standard With Bumper (Imperial)
- 14669.0 lb.
- Standard With Bumper (Metric)
- 6654.0 kg
- Typical With Cab, Extendible Dipperstick, And 405 Lb Counterweight
- 15119.0 lb.
- Typical With Cab, Extendible Dipperstick, And 204 Kg Counterweight
- 6856.0 kg
- Cab (Imperial)
- 580.0 lb.
- Cab (Metric)
- 263.1 kg
- Mechanical Front Wheel Drive With Tires (Imperial)
- 370.0 lb.
- Mechanical Front Wheel Drive With Tires (Metric)
- 167.8 kg
- Extendable Dipperstick (Imperial)
- 420.0 lb.
- Extendable Dipperstick (Metric)
- 190.5 kg
- Front Loader Coupler (Imperial)
- 566.0 lb.
- Front Loader Coupler (Metric)
- 256.7 kg
- Backhoe Bucket Coupler (Imperial)
- 130.0 lb.
- Backhoe Bucket Coupler (Metric)
- 59.0 kg
Lift Capacity with Quick-Coupler Forks24 specifications
- Hydraulic Capacity Minimum Tines (Imperial)
- 48.0 in.
- Hydraulic Capacity Minimum Tines (Metric)
- 1219.2 mm
- At Maximum Height With Minimum Tines (Imperial)
- 3772.0 lb.
- At Maximum Height With Minimum Tines (Metric)
- 1711.4 kg
- At Maximum Reach With Minimum Tines (Imperial)
- 5931.0 lb.
- At Maximum Reach With Minimum Tines (Metric)
- 2690.5 kg
- At Ground Line With Minimum Tines (Imperial)
- 7480.0 lb.
- At Ground Line With Minimum Tines (Metric)
- 3392.3 kg
- Below Ground Line With Minimum Tines (Imperial)
- 7.3 in.
- Below Ground Line With Minimum Tines (Metric)
- 185.4 mm
- Rated Capacity Of Minimum Tines (Imperial)
- 8598.0 lb.
- Rated Capacity Of Minimum Tines (Metric)
- 3900.0 kg
- Hydraulic Capacity Maximum Tines (Imperial)
- 60.0 in.
- Hydraulic Capacity Maximum Tines (Metric)
- 1524.0 mm
- At Maximum Height With Maximum Tines (Imperial)
- 3510.0 lb.
- At Maximum Height With Maximum Tines (Metric)
- 1592.6 kg
- At Maximum Reach With Maximum Tines (Imperial)
- 5578.0 lb.
- At Maximum Reach With Maximum Tines (Metric)
- 2529.3 kg
- At Ground Line With Maximum Tines (Imperial)
- 7061.0 lb.
- At Ground Line With Maximum Tines (Metric)
- 3203.0 kg
- Below Ground Line With Maximum Tines (Imperial)
- 7.3 in.
- Below Ground Line With Maximum Tines (Metric)
- 185.4 mm
- Rated Capacity Of Maximum Tines (Imperial)
- 8598.0 lb.
- Rated Capacity Of Maximum Tines (Metric)
- 3900.0 kg
