John Deere

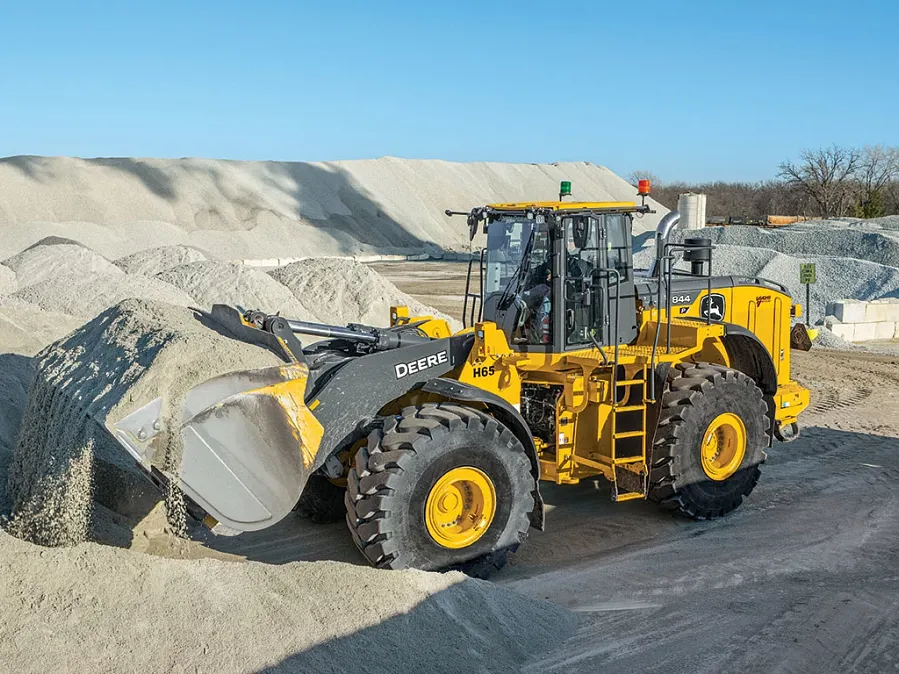

844 P-Tier Large Wheel Loader
Wheel Loaders
The latest features on the 844 P-Tier focus on helping increase productivity and uptime. Download specs, compare models, and view brochure.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 6101DW
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs6 specifications
- Net Peak Power
- 1400.0 rpm
- Net Peak Power At Rated RPM (ISO 9249) (Metric)
- 311.0 kW
- Net Peak Power At Rated RPM (ISO 9249) (Imperial)
- 417.0 hp
- Net Peak Torque
- 1400.0 rpm
- Net Peak Torque At Rated RPM (ISO 9249) (Metric)
- 2119.0 Nm
- Net Peak Torque At Rated RPM (ISO 9249) (Imperial)
- 1563.0 lb-ft
Engine18 specifications
- Manufacturer
- John Deere
- Model
- John Deere JD14
- Non Road Emission Standards
- EPA Final Tier 4 (FT4)/EU Stage V
- Cylinders
- 6
- Valves Per Cylinder
- 4
- Displacement (Metric)
- 13.55 L
- Displacement (Imperial)
- 824.0 cu in.
- Net Peak Power
- 1400.0 rpm
- Net Peak Power At Rated RPM (ISO 9249) (Metric)
- 311.0 kW
- Net Peak Power At Rated RPM (ISO 9249) (Imperial)
- 417.0 hp
- Net Peak Torque
- 1400.0 rpm
- Net Peak Torque At Rated RPM (ISO 9249) (Metric)
- 2119.0 Nm
- Net Peak Torque At Rated RPM (ISO 9249) (Imperial)
- 1563.0 lb-ft
- Net Torque Rise
- 44.0 %
- Fuel System (Electronically Controlled)
- Electronic High Pressure Common Rail (HPCR)
- Lubrication
- Full-flow spin-on filter and integral cooler
- Aspiration
- Single turbocharged, charge air cooled
- Air Cleaner
- Dual-element dry type, restriction indicator in cab monitor for service; additional centrifugal engine pre-cleaner
Cooling1 specifications
- Fan Drive Type
- Hydraulically driven, proportionally controlled, fan aft of coolers; automatic reversing fan drive
Electrical And Lighting5 specifications
- System Type
- 24 volt with 145-amp alternator
- Battery Voltage
- 12.0 V
- Number Of Batteries
- 2
- Battery Capacity Per Each
- 1400.0 CCA
- Standard Alternator Rating
- 150.0 amp
Transmission System5 specifications
- Type
- Countershaft-type PowerShift™ with lockup torque converter
- Torque Converter
- Single stage, dual phase with freewheeling stator with lockup clutch
- Shift Control
- Electronically modulated, adaptive, load and speed dependent
- Operator Interface
- Steering-column or joystick-mounted F-N-R and gear-select lever; Quick-Shift button on hydraulic lever
- Shift Modes
- Manual/auto (1st–5th or 2nd–5th); Quick-Shift button with 2 selectable modes: kick-down or kick-up/down; and 4 settings for clutch cutoff
Maximum Forward Travel Speeds (Standard 5-Speed With Lockup Torque Converter)11 specifications
- Tire Size Used To Measure Travel Speeds
- 875/65R29 L3
- Range 1 (Metric)
- 6.4 km/h
- Range 1 (Imperial)
- 4.0 mph
- Range 2 (Metric)
- 11.4 km/h
- Range 2 (Imperial)
- 7.1 mph
- Range 3 (Metric)
- 17.4 km/h
- Range 3 (Imperial)
- 10.8 mph
- Range 4 (Metric)
- 24.8 km/h
- Range 4 (Imperial)
- 15.4 mph
- Range 5 (Metric)
- 40.1 km/h
- Range 5 (Imperial)
- 24.9 mph
Axles And Brakes9 specifications
- Final Drives
- Heavy-duty mid-board planetary
- Standard Differentials Front
- Conventional differential front
- Standard Differentials Rear
- Conventional differential rear
- Optional Differentials Front
- Dual locking
- Optional Differentials Rear
- Dual locking
- Tire Size Used To Measure Oscillation
- 29.5 R 25, 1
- Rear Axle Oscillation, Distance Each Direction
- 8.0 degrees
- Service Brakes (ISO 3450)
- Outboard, forced oil cooled, multi disc
- Parking Brake (ISO 3450)
- Automatic spring applied, hydraulically released, sealed wet multi disc
Wheels And Tires5 specifications
- Tire Size Used To Measure
- Michelin 875/65R29, 1 Star L-3
- Tread Width On Standard Tires (Metric)
- 2441.0 mm
- Tread Width On Standard Tires (Imperial)
- 96.1 in.
- Width Over Tires On Standard Tires (Metric)
- 3409.0 mm
- Width Over Tires On Standard Tires (Imperial)
- 134.2 in.
Serviceability16 specifications
- Fuel Tank (With Lockable Cap) Refill Capacity (Metric)
- 533.0 L
- Fuel Tank (With Lockable Cap) Refill Capacity (Imperial)
- 141.0 gal.
- Cooling System Refill Capacity (Metric)
- 57.3 L
- Cooling System Refill Capacity (Imperial)
- 60.5 qt
- Diesel Exhaust Fluid (DEF) Refill Capacity (Metric)
- 26.3 L
- Diesel Exhaust Fluid (DEF) Refill Capacity (Imperial)
- 27.8 qt
- Engine Oil With Vertical Spin On Filter Refill Capacity (Metric)
- 40.0 L
- Engine Oil With Vertical Spin On Filter Refill Capacity (Imperial)
- 42.3 qt
- Transmission Reservoir With Vertical Filter Refill Capacity (Metric)
- 28.0 L
- Transmission Reservoir With Vertical Filter Refill Capacity (Imperial)
- 7.4 gal.
- Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity (Metric)
- 68.1 L
- Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity (Imperial)
- 18.0 gal.
- Hydraulic Reservoir With Filter Refill Capacity (Metric)
- 181.7 L
- Hydraulic Reservoir With Filter Refill Capacity (Imperial)
- 48.0 gal.
- Parking Brake Oil (Wet Disc) Refill Capacity (Metric)
- 0.7 L
- Parking Brake Oil (Wet Disc) Refill Capacity (Imperial)
- 24.0 oz.
Hydraulic System And Steering19 specifications
- Pump Type And System (Loader And Steering)
- 2 variable-displacement, load-sensing axial-piston pumps; closed-center system
- Rated RPM
- 2000.0 rpm
- System Pressure At Max Rated Flow (Metric)
- 6895.0 kPa
- System Pressure At Max Rated Flow (Imperial)
- 1000.0 psi
- Pump (Steering)
- 1 variable-displacement, load-sensing axial-piston pump; closed-center system
- Max Rated Flow At Rated RPM (Metric)
- 199.4 L/min
- Max Rated Flow At Rated RPM (Imperial)
- 52.7 gpm
- System Relief Pressure (Loader And Steering) (Metric)
- 24890.0 kPa
- System Relief Pressure (Loader And Steering) (Imperial)
- 3611.0 psi
- Loader Controls
- 2-function valve; single- or dual-lever controls; control lever lockout feature; optional 3rd-function valve with auxiliary levers
- Steering Type (ISO 5010)
- Power, fully hydraulic; single-lever control and adjustable wristrest with conventional steering wheel override
- Steering Articulation Full Arc Angle
- 80.0 degrees
- Steering Articulation Angle Each Direction
- 40.0 degrees
- Turning Radius (Measured To Centerline Of Outside Tire) (Metric)
- 6.3 m
- Turning Radius (Measured To Centerline Of Outside Tire) (Imperial)
- 20.67 ft, in.
- Hydraulic Raise Cycle Time
- 5.9 seconds
- Hydraulic Dump Cycle Time
- 1.9 seconds
- Hydraulic Lower (Power Down) Cycle Time
- 3.6 seconds
- Hydraulic Total Cycle Time
- 11.4 seconds
