John Deere

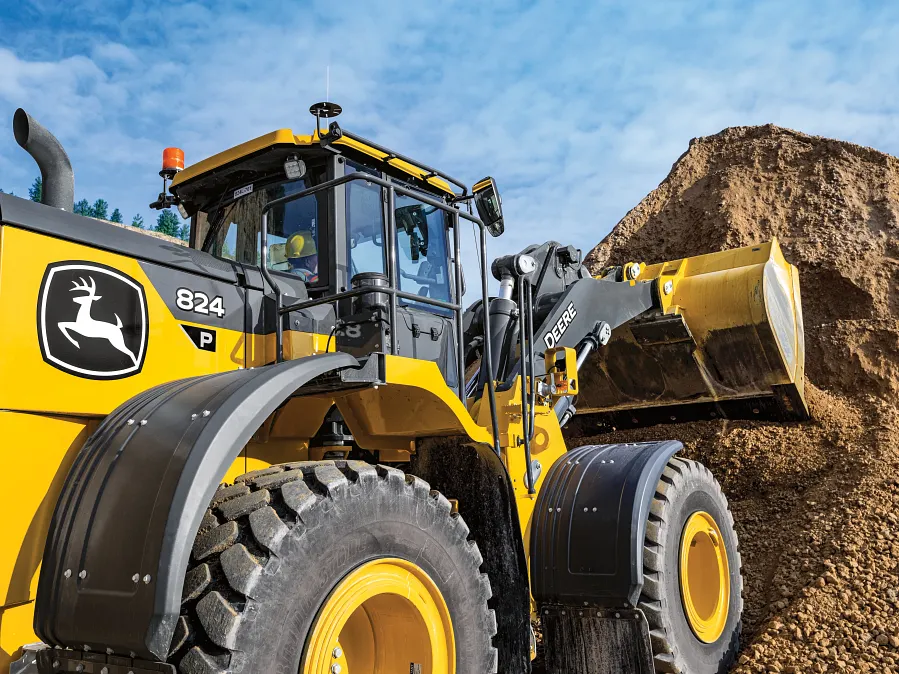

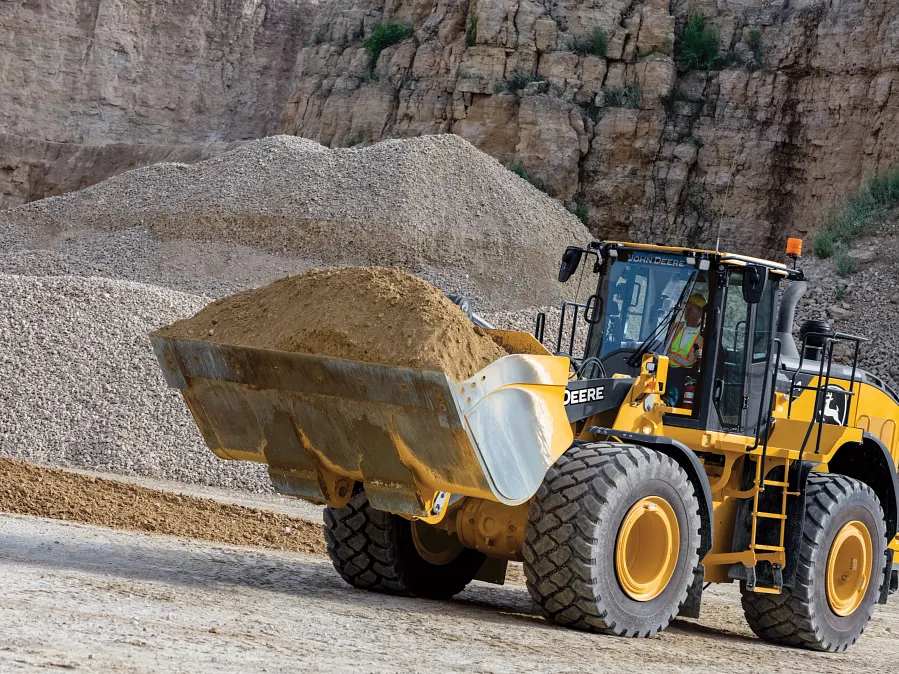

824 P-Tier Large Wheel Loader

Name: 824 P-Tier Large Wheel Loader
Brand: John Deere
SKU: 6090DW

Wheel Loaders

All features incorporated into the 824 P-Tier help increase productivity and uptime, while lowering daily operating costs.

Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.

The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.

Model / part number: 6090DW

Technical specification source: Official manufacturer technical data

Enquire about this model View manufacturer listing

Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04

Specifications

Key Specs6 specifications

Net Peak Power: 1600.0 rpm
Net Peak Power At Rated RPM (ISO 9249) (Metric): 256.0 kW
Net Peak Power At Rated RPM (ISO 9249) (Imperial): 343.0 hp
Net Peak Torque: 1300.0 rpm
Net Peak Torque At Rated RPM (ISO 9249) (Metric): 1627.0 Nm
Net Peak Torque At Rated RPM (ISO 9249) (Imperial): 1200.0 lb-ft

Engine19 specifications

Manufacturer: John Deere
Model: PowerTech™ PSS 6090
Non Road Emission Standards: EPA Final Tier 4 (FT4)/EU Stage V
Cylinders: 6
Valves Per Cylinder: 4
Displacement (Metric): 9.0 L
Displacement (Imperial): 548.0 cu in.
Net Peak Power: 1600.0 rpm
Net Peak Power At Rated RPM (ISO 9249) (Metric): 256.0 kW
Net Peak Power At Rated RPM (ISO 9249) (Imperial): 343.0 hp
Net Peak Torque: 1300.0 rpm
Net Peak Torque At Rated RPM (ISO 9249) (Metric): 1627.0 Nm
Net Peak Torque At Rated RPM (ISO 9249) (Imperial): 1200.0 lb-ft
Net Torque Rise: 57.0 %
Rated Speed: 1600.0 rpm
Fuel System (Electronically Controlled): High-pressure common rail
Lubrication: Full-flow spin-on filter and integral cooler
Aspiration: Series turbocharged, charge air cooled
Air Cleaner: Under-hood, dual-element dry type, restriction indicator in cab monitor for service

Cooling1 specifications

Fan Drive Type: Hydraulically driven, proportionally controlled, fan aft of coolers

Electrical And Lighting5 specifications

System Type: 24 volt with 150-amp alternator
Battery Voltage: 12.0 V
Number Of Batteries: 2
Battery Capacity Per Each: 1400.0 CCA
Standard Alternator Rating: 150.0 amp

Transmission System5 specifications

Type: Countershaft-type PowerShift™ with lockup torque converter
Torque Converter: Single stage, dual phase with freewheeling stator with lockup clutch
Shift Control: Electronically modulated, adaptive, load and speed dependent
Operator Interface: Steering-column or joystick-mounted F-N-R and gear-select lever; Quick-Shift button on hydraulic lever
Shift Modes: Manual/auto (1st–5th or 2nd–5th); Quick-Shift button with 2 selectable modes: kick-down or kick-up/down; and 4 settings for clutch cutoff

Maximum Forward Travel Speeds (Standard 5-Speed With Lockup Torque Converter)11 specifications

Tire Size Used To Measure Travel Speeds: 26.5 R 25, 1 Star L3
Range 1 (Metric): 7.0 km/h
Range 1 (Imperial): 4.4 mph
Range 2 (Metric): 13.4 km/h
Range 2 (Imperial): 8.3 mph
Range 3 (Metric): 20.3 km/h
Range 3 (Imperial): 12.6 mph
Range 4 (Metric): 29.0 km/h
Range 4 (Imperial): 18.0 mph
Range 5 (Metric): 40.1 km/h
Range 5 (Imperial): 24.9 mph

Maximum Reverse Travel Speeds (Standard 5-Speed With Lockup Torque Converter)7 specifications

Tire Size Used To Measure Travel Speeds: 26.5 R 25, 1 Star L3
Range 1 (Metric): 7.1 km/h
Range 1 (Imperial): 4.4 mph
Range 2 (Metric): 13.3 km/h
Range 2 (Imperial): 8.3 mph
Range 3 (Metric): 29.0 km/h
Range 3 (Imperial): 18.0 mph

Axles And Brakes11 specifications

Final Drives: Heavy-duty inboard-mounted planetary
Standard Differentials Front: Hydraulic locking
Standard Differentials Rear: conventional
Optional Differentials Front: Dual locking
Optional Differentials Rear: Dual locking
Tire Size Used To Measure Oscillation: 26.5 R 25, 1 Star L3
Rear Axle Oscillation, Stop To Stop: 26.0 degrees
Rear Axle Oscillation, Distance Each Direction: 13.0 degrees
Rear Axle Oscillation, Distance Each Direction, With 17.5 R 25 Tires: 13.0 degrees
Service Brakes (ISO 3450): Hydraulically actuated, spring released, inboard, sun-gear mounted, pressure oil cooled, self-adjusting, single disc
Parking Brake (ISO 3450): Automatic spring applied, hydraulically released, oil cooled, multi disc

Wheels And Tires5 specifications

Tire Size Used To Measure: 26.5 R 25, 1 Star L3
Tread Width On Standard Tires (Metric): 2299.0 mm
Tread Width On Standard Tires (Imperial): 90.5 in.
Width Over Tires On Standard Tires (Metric): 3084.0 mm
Width Over Tires On Standard Tires (Imperial): 121.4 in.

Serviceability16 specifications

Fuel Tank (With Lockable Cap) Refill Capacity (Metric): 476.2 L
Fuel Tank (With Lockable Cap) Refill Capacity (Imperial): 126.0 gal.
Cooling System Refill Capacity (Metric): 48.0 L
Cooling System Refill Capacity (Imperial): 50.7 qt
Diesel Exhaust Fluid (DEF) Refill Capacity (Metric): 26.1 L
Diesel Exhaust Fluid (DEF) Refill Capacity (Imperial): 27.6 qt
Engine Oil With Vertical Spin On Filter Refill Capacity (Metric): 34.1 L
Engine Oil With Vertical Spin On Filter Refill Capacity (Imperial): 36.0 qt
Transmission Reservoir With Vertical Filter Refill Capacity (Metric): 27.9 L
Transmission Reservoir With Vertical Filter Refill Capacity (Imperial): 7.37 gal.
Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity (Metric): 55.3 L
Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity (Imperial): 14.6 gal.
Hydraulic Reservoir With Filter Refill Capacity (Metric): 141.9 L
Hydraulic Reservoir With Filter Refill Capacity (Imperial): 37.5 gal.
Parking Brake Oil (Wet Disc) Refill Capacity (Metric): 0.7 L
Parking Brake Oil (Wet Disc) Refill Capacity (Imperial): 24.0 oz.

Hydraulic System And Steering19 specifications

Pump Type And System (Loader And Steering): 2 variable-displacement, load-sensing axial-piston pumps; closed-center system
Rated RPM: 2250.0 rpm
System Pressure At Max Rated Flow (Metric): 6895.0 kPa
System Pressure At Max Rated Flow (Imperial): 1000.0 psi
Pump (Steering): 1 variable-displacement, load-sensing axial-piston pump; closed-center system
Max Rated Flow At Rated RPM (Metric): 484.5 L/min
Max Rated Flow At Rated RPM (Imperial): 128.0 gpm
System Relief Pressure (Loader And Steering) (Metric): 24879.0 kPa
System Relief Pressure (Loader And Steering) (Imperial): 3610.0 psi
Loader Controls: 2-function valve; single- or dual-lever controls; control lever lockout feature; optional 3rd- and 4th-function valve with auxiliary levers
Steering Type (ISO 5010): Power, fully hydraulic
Steering Articulation Full Arc Angle: 80.0 degrees
Steering Articulation Angle Each Direction: 40.0 degrees
Turning Radius (Measured To Centerline Of Outside Tire) (Metric): 5.9 m
Turning Radius (Measured To Centerline Of Outside Tire) (Imperial): 19.4 ft, in.
Hydraulic Raise Cycle Time: 5.9 seconds
Hydraulic Dump Cycle Time: 1.3 seconds
Hydraulic Lower (Power Down) Cycle Time: 2.5 seconds
Hydraulic Total Cycle Time: 9.7 seconds

Maximum Forward Travel Speeds11 specifications

Tire Size Used To Measure Travel Speeds: 26.5 R 25, 1 Star L3
Range 1 (Metric): 7.1 km/h
Range 1 (Imperial): 4.4 mph
Range 2 (Metric): 13.3 km/h
Range 2 (Imperial): 8.3 mph
Range 3 (Metric): 20.3 km/h
Range 3 (Imperial): 12.6 mph
Range 4 (Metric): 29.0 km/h
Range 4 (Imperial): 18.0 mph
Range 5 (Metric): 40.0 km/h
Range 5 (Imperial): 24.85 mph
