John Deere

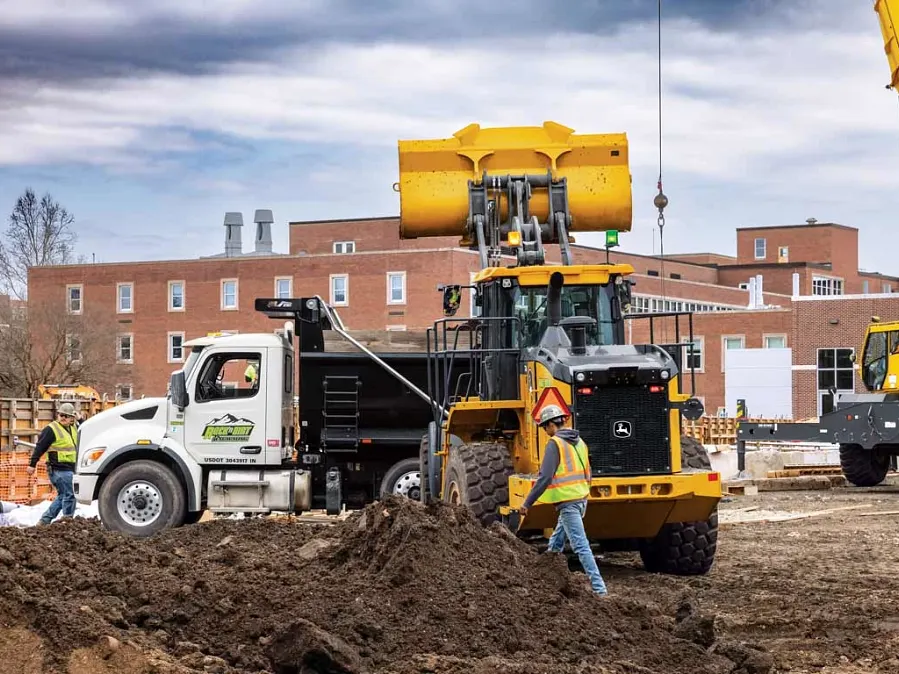

Model724 P-Tier Mid-Size Wheel Loader
Wheel Loaders
The 268 hp 724 P-Tier with 4-5 cubic yard bucket is designed to help you reach your potential and elevate your productivity.
Model / part number: 6070BZ
Key specifications
- Displacement (Metric)
- 9.0 L
Technical specifications
17 specifications
Engine6 details
- Manufacturer
- John Deere
- Model
- PowerTech™ 6090H
- Non Road Emission Standards
- EPA Tier 3/EU Stage IIIA
- Cylinders
- 6
- Displacement (Metric)
- 9.0 L
- Displacement (Imperial)
- 548.0 cu in.
Transmission System1 detail
- Type
- Countershaft-type PowerShift™
Maximum Forward Travel Speeds (Standard 5-Speed With Lockup Torque Converter)2 details
- Maximum Forward Travel Speeds (Standard)
- 4.0
- Maximum Forward Travel Speeds (Optional)
- 5.0
Maximum Reverse Travel Speeds (Standard 5-Speed With Lockup Torque Converter)2 details
- Maximum Reverse Travel Speeds (Standard)
- 3
- Maximum Reverse Travel Speeds (Optional)
- 3
Axles And Brakes6 details
- Standard Differentials Front
- Hydraulic locking front
- Standard Differentials Rear
- Conventional rear
- Optional Differentials Front
- dual locking
- Optional Differentials Rear
- dual locking
- Service Brakes (ISO 3450)
- Hydraulically actuated, spring retracted, self-adjusting, inboard sunshaft mounted, oil cooled, single disc
- Parking Brake (ISO 3450)
- Automatic spring applied, hydraulically released, oil cooled, multi-disc
