John Deere

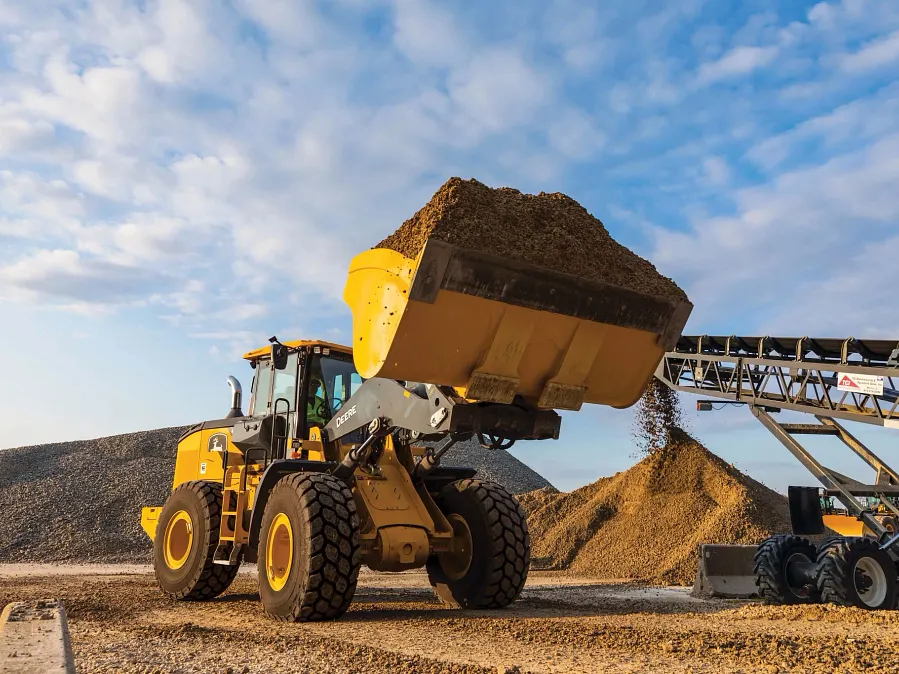

Model644 P-Tier Mid-Size Wheel Loader
Wheel Loaders
The 249 hp 644 P-Tier with 4-4.75 cubic yard bucket will help you put your best foot forward with optimal comfort.
Model / part number: 6050BZ
Key specifications
- Displacement (Metric)
- 6.8 L
- Fuel Tank (With Lockable Cap) Refill Capacity (Metric)
- 352.0 L
Technical specifications
18 specifications
Engine6 details
- Manufacturer
- John Deere
- Model
- PowerTech™ Plus 6068H
- Non Road Emission Standards
- EPA Tier 3/EU Stage IIIA
- Cylinders
- 6
- Displacement (Metric)
- 6.8 L
- Displacement (Imperial)
- 414.0 cu in.
Transmission System1 detail
- Type
- Countershaft-type PowerShift™
Axles And Brakes6 details
- Standard Differentials Front
- Hydraulic locking front
- Standard Differentials Rear
- Conventional rear
- Optional Differentials Front
- dual locking
- Optional Differentials Rear
- dual locking
- Service Brakes (ISO 3450)
- Hydraulically actuated, spring retracted, self-adjusting, inboard sunshaft mounted, oil cooled, single disc
- Parking Brake (ISO 3450)
- Automatic spring applied, hydraulically released, oil cooled, multi-disc
Serviceability2 details
- Fuel Tank (With Lockable Cap) Refill Capacity (Metric)
- 352.0 L
- Fuel Tank (With Lockable Cap) Refill Capacity (Imperial)
- 93.0 gal.
Hydraulic System And Steering3 details
- Pump Type And System (Loader And Steering)
- Variable-displacement, axial-piston pump; closed-center, pressure-compensating system
- Max Rated Flow At Rated RPM (Metric)
- 311.0 L/min
- Max Rated Flow At Rated RPM (Imperial)
- 83.0 gpm
