John Deere

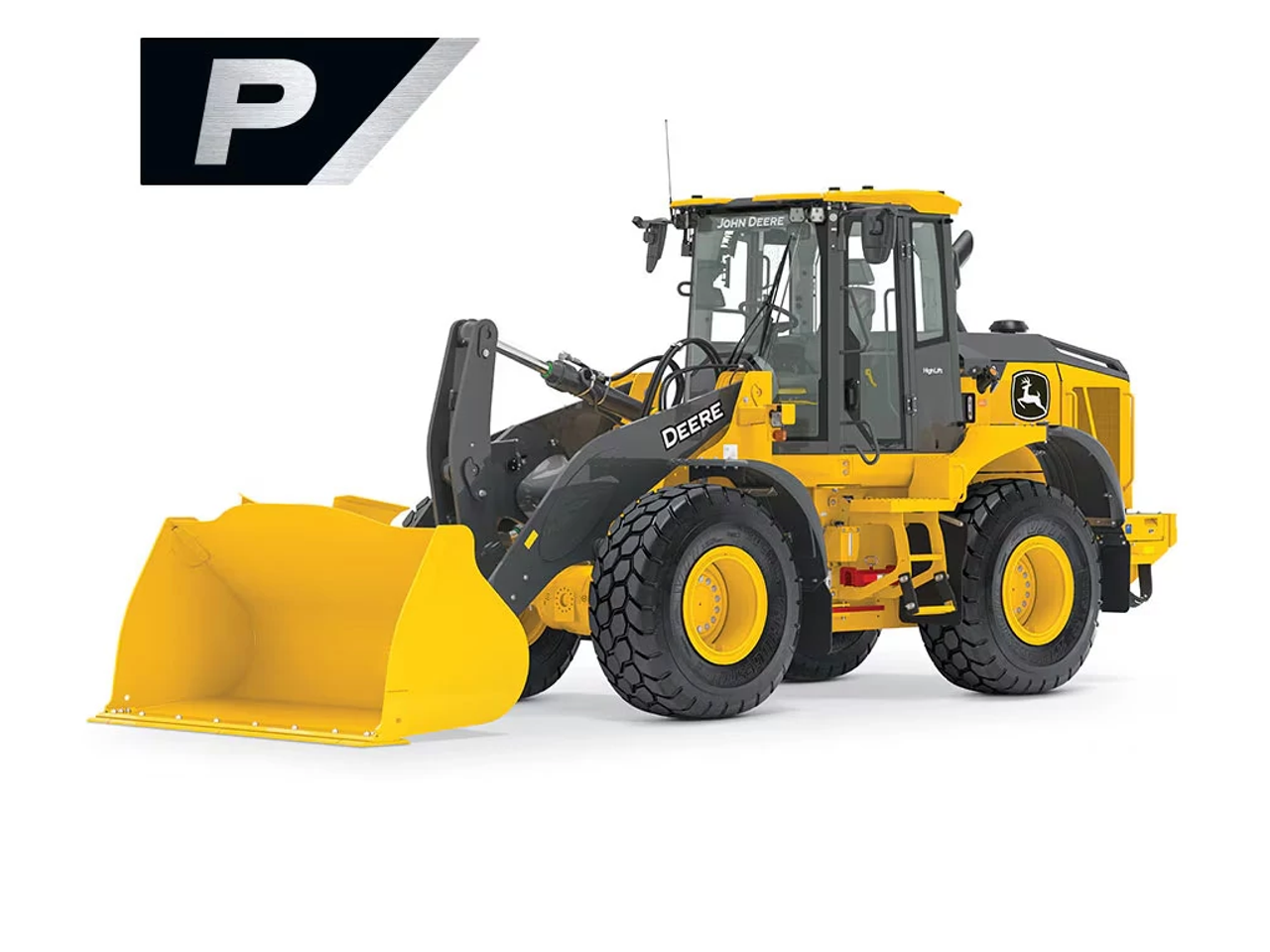

544 P-Tier Mid-Size Wheel Loader
Wheel Loaders
The 166 hp 544 P-Tier with 2.5-5.25 cubic yard bucket provides hand front-end features and plenty of productivity-boosting enhancements.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 6030BZ
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs6 specifications
- Net Peak Power
- 1700.0 rpm
- Net Peak Power At Rated RPM (ISO 9249) (Metric)
- 123.0 kW
- Net Peak Power At Rated RPM (ISO 9249) (Imperial)
- 166.0 hp
- Net Peak Torque
- 1300.0 rpm
- Net Peak Torque At Rated RPM (ISO 9249) (Metric)
- 737.0 Nm
- Net Peak Torque At Rated RPM (ISO 9249) (Imperial)
- 544.0 lb-ft
Engine25 specifications
- Manufacturer
- John Deere
- Model
- PowerTech™ PSS 4045
- Non Road Emission Standards
- EPA Final Tier 4/EU Stage V
- Cylinders
- 4
- Valves Per Cylinder
- 4
- Displacement (Metric)
- 4.5 L
- Displacement (Imperial)
- 276.0 cu in.
- Net Peak Power
- 1700.0 rpm
- Net Peak Power At Rated RPM (ISO 9249) (Metric)
- 123.0 kW
- Net Peak Power At Rated RPM (ISO 9249) (Imperial)
- 166.0 hp
- Gross Peak Power
- 1700.0 rpm
- Gross Peak Power At Rated RPM (ISO 9249) (Metric)
- 130.0 kW
- Gross Peak Power At Rated RPM (ISO 9249) (Imperial)
- 174.0 hp
- Net Peak Torque
- 1300.0 rpm
- Net Peak Torque At Rated RPM (ISO 9249) (Metric)
- 737.0 Nm
- Net Peak Torque At Rated RPM (ISO 9249) (Imperial)
- 544.0 lb-ft
- Gross Peak Torque
- 1600.0 rpm
- Gross Peak Torque At Rated RPM (ISO 9249) (Metric)
- 770.0 Nm
- Gross Peak Torque At Rated RPM (ISO 9249) (Imperial)
- 568.0 lb-ft
- Net Torque Rise
- 47.0 %
- Rated Speed
- 2200.0 rpm
- Fuel System (Electronically Controlled)
- High-pressure common rail
- Lubrication
- Full-flow spin-on filter and integral cooler
- Aspiration
- Turbocharged, charge air cooled
- Air Cleaner
- Under-hood, dual-element dry type, restriction indicator in cab monitor for service

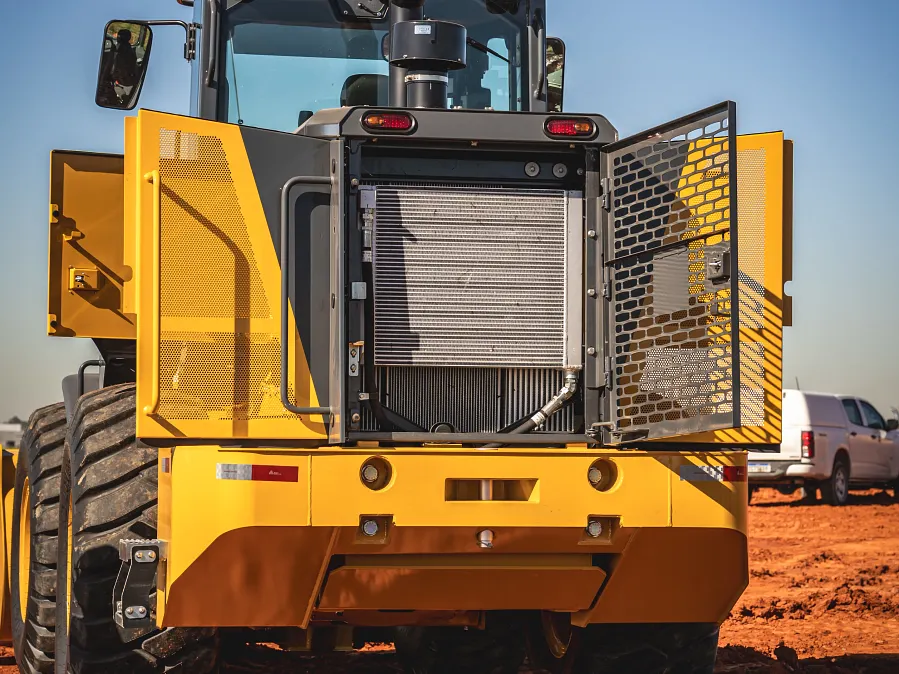

Cooling1 specifications
- Fan Drive Type
- Hydraulically driven, proportionally controlled, fan aft of coolers
Electrical And Lighting4 specifications
- System Type
- 24 volt with 145-amp alternator
- Battery Voltage
- 12.0 V
- Number Of Batteries
- 2
- Battery Capacity Per Each
- 950.0 CCA
Transmission System5 specifications
- Type
- Countershaft-type PowerShift™
- Torque Converter
- Single stage, single phase
- Shift Control
- Electronically modulated, adaptive, load and speed dependent
- Operator Interface
- Steering-column or joystick-mounted F-N-R and gear-select lever; kick-down button on hydraulic lever
- Shift Modes
- Manual/auto (1st–D or 2nd–D); Quick-Shift button with 2 selectable modes: kick-down or kick-up/down; and 4 clutch cutoff settings
Axles And Brakes4 specifications
- Final Drives
- Heavy-duty inboard-mounted planetary
- Standard Differentials Front
- Hydraulic locking front with conventional rear — standard; dual locking front and rear — optional
- Service Brakes (ISO 3450)
- Hydraulically actuated, spring-retracted, self-adjusting, inboard sun-shaft mounted, oil cooled, single disc
- Parking Brake (ISO 3450)
- Automatic spring applied, hydraulically released, driveline mounted, sealed wet multi disc
Wheels And Tires4 specifications
- Tread Width On Standard Tires (Metric)
- 1950.0 mm
- Tread Width On Standard Tires (Imperial)
- 76.8 in.
- Width Over Tires On Standard Tires (Metric)
- 2546.0 mm
- Width Over Tires On Standard Tires (Imperial)
- 100.2 in.
Serviceability14 specifications
- Fuel Tank (With Lockable Cap) Refill Capacity (Metric)
- 265.0 L
- Fuel Tank (With Lockable Cap) Refill Capacity (Imperial)
- 70.0 gal.
- Cooling System Refill Capacity (Metric)
- 24.3 L
- Cooling System Refill Capacity (Imperial)
- 25.7 qt
- Diesel Exhaust Fluid (DEF) Refill Capacity (Metric)
- 15.6 L
- Diesel Exhaust Fluid (DEF) Refill Capacity (Imperial)
- 16.5 qt
- Engine Oil With Vertical Spin On Filter Refill Capacity (Metric)
- 14.5 L
- Engine Oil With Vertical Spin On Filter Refill Capacity (Imperial)
- 15.3 qt
- Transmission Reservoir With Vertical Filter Refill Capacity
- 21.0 L
- Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity
- 16.6 L
- Hydraulic Reservoir With Filter Refill Capacity (Metric)
- 90.5 L
- Hydraulic Reservoir With Filter Refill Capacity (Imperial)
- 23.9 gal.
- Parking Brake Oil (Wet Disc) Refill Capacity (Metric)
- 0.3 L
- Parking Brake Oil (Wet Disc) Refill Capacity (Imperial)
- 10.0 oz.
Hydraulic System And Steering13 specifications
- Pump Type And System (Loader And Steering)
- Variable-displacement, axial-piston pump; closed-center, pressure-compensating system
- Rated RPM
- 2200.0 rpm
- System Pressure At Max Rated Flow (Metric)
- 6895.0 kPa
- System Pressure At Max Rated Flow (Imperial)
- 1000.0 psi
- Max Rated Flow At Rated RPM (Metric)
- 170.0 L/min
- Max Rated Flow At Rated RPM (Imperial)
- 45.0 gpm
- System Relief Pressure (Loader And Steering) (Metric)
- 27370.0 kPa
- System Relief Pressure (Loader And Steering) (Imperial)
- 3970.0 psi
- Loader Controls
- 2-function valve, joystick control or fingertip controls, hydraulic-function enable/disable, optional 3rd- and 4th-function valve from factory, 5th and 6th functions available by field kit
- Steering Type (ISO 5010)
- Power, fully hydraulic
- Steering Articulation Full Arc Angle
- 80.0 degrees
- Steering Articulation Angle Each Direction
- 40.0 degrees
- Turning Radius (Measured To Centerline Of Outside Tire)
- 5.0 m
