John Deere

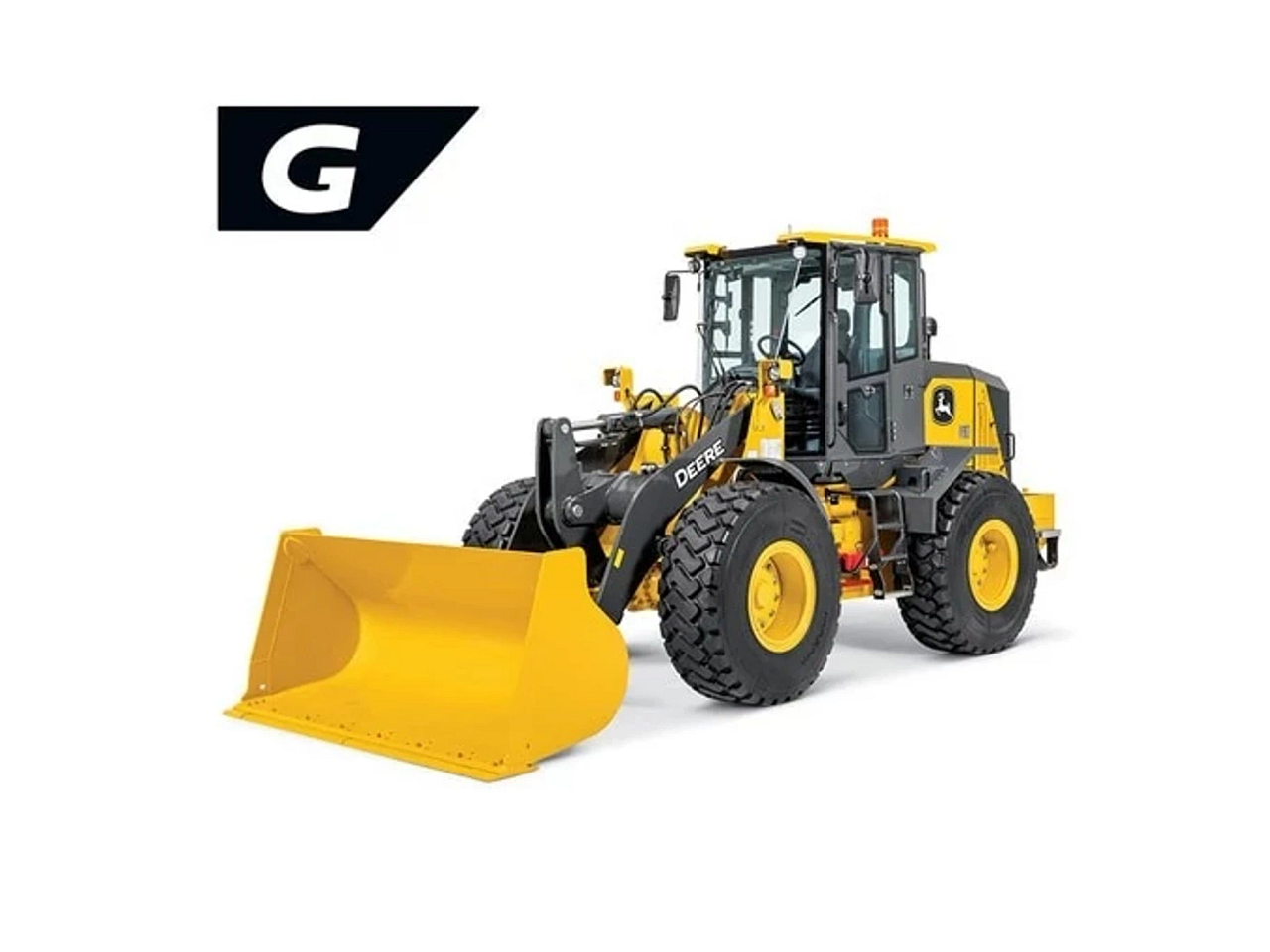

Model444 G-Tier Mid-Size Wheel Loader
Wheel Loaders
The 124 hp 444 G-Tier with 2.5 cubic yard bucket, agility and capability combine with performance and reliability to help keep you productive all day long.
Model / part number: 9001BZ
Key specifications
- Net Peak Power
- 2100.0 rpm
- Net Peak Power At Rated RPM (ISO 9249) (Metric)
- 89.0 kW
- Net Peak Torque
- 1400.0 rpm
- Net Peak Torque At Rated RPM (ISO 9249) (Metric)
- 721.3 Nm
Technical specifications
73 specifications
Key Specs6 details
- Net Peak Power
- 2100.0 rpm
- Net Peak Power At Rated RPM (ISO 9249) (Metric)
- 89.0 kW
- Net Peak Power At Rated RPM (ISO 9249) (Imperial)
- 118.0 hp
- Net Peak Torque
- 1400.0 rpm
- Net Peak Torque At Rated RPM (ISO 9249) (Metric)
- 721.3 Nm
- Net Peak Torque At Rated RPM (ISO 9249) (Imperial)
- 532.0 lb-ft
Engine22 details
- Manufacturer
- John Deere
- Model
- PowerTech™ E 4045H
- Non Road Emission Standards
- EPA Tier 3/EU Stage IIIA
- Cylinders
- 4
- Valves Per Cylinder
- 4
- Displacement (Metric)
- 4.5 L
- Displacement (Imperial)
- 276.0 cu in.
- Net Peak Power
- 2100.0 rpm
- Net Peak Power At Rated RPM (ISO 9249) (Metric)
- 89.0 kW
- Net Peak Power At Rated RPM (ISO 9249) (Imperial)
- 118.0 hp
- Gross Peak Power
- 2100.0 rpm
- Gross Peak Power At Rated RPM (ISO 9249) (Metric)
- 97.0 kW
- Gross Peak Power At Rated RPM (ISO 9249) (Imperial)
- 130.0 hp
- Net Peak Torque
- 1400.0 rpm
- Net Peak Torque At Rated RPM (ISO 9249) (Metric)
- 721.3 Nm
- Net Peak Torque At Rated RPM (ISO 9249) (Imperial)
- 532.0 lb-ft
- Gross Peak Torque
- 550.0 rpm
- Net Torque Rise
- 34.0 %
- Fuel System (Electronically Controlled)
- High-pressure common rail
- Lubrication
- Full-flow spin-on filter and integral cooler
- Aspiration
- Turbocharged, charge air cooled
- Air Cleaner
- Under-hood, dual-element dry type, restriction indicator in cab monitor for service
Cooling1 detail
- Fan Drive Type
- Fix-fan drive standard / hydraulically driven, proportionally controlled optional
Electrical And Lighting3 details
- System Type
- 24 volt with 80-amp alternator
- Battery Voltage
- 12.0 V
- Battery Capacity Per Each
- 950.0 CCA
Transmission System5 details
- Type
- Countershaft-type PowerShift™
- Torque Converter
- Single stage, single phase
- Shift Control
- Electronically modulated, adaptive, load and speed dependent
- Operator Interface
- Steering-column or joystick-mounted F-N-R and gear-select lever; kick-down button on hydraulic lever
- Shift Modes
- Manual/auto (1st–D or 2nd–D); Quick-Shift button with 2 selectable modes: kick-down or kick-up/down; and 4 clutch cutoff settings
Axles And Brakes4 details
- Final Drives
- Heavy-duty mid-board planetary
- Rear Axle Oscillation, Stop To Stop
- 24.0 degrees
- Service Brakes (ISO 3450)
- Outboard, forced oil cooled, multi disc
- Parking Brake (ISO 3450)
- Automatic spring applied, hydraulically released, driveline mounted, sealed wet multi disc
Wheels And Tires4 details
- Tread Width On Standard Tires (Metric)
- 1900.0 mm
- Tread Width On Standard Tires (Imperial)
- 74.8 in.
- Width Over Tires On Standard Tires (Metric)
- 2415.5 mm
- Width Over Tires On Standard Tires (Imperial)
- 95.1 in.
Serviceability14 details
- Fuel Tank (With Lockable Cap) Refill Capacity (Metric)
- 189.3 L
- Fuel Tank (With Lockable Cap) Refill Capacity (Imperial)
- 50.0 gal.
- Cooling System Refill Capacity (Metric)
- 18.9 L
- Cooling System Refill Capacity (Imperial)
- 20.0 qt
- Engine Oil With Vertical Spin On Filter Refill Capacity (Metric)
- 17.5 L
- Engine Oil With Vertical Spin On Filter Refill Capacity (Imperial)
- 18.5 qt
- Transmission Reservoir With Vertical Filter Refill Capacity (Metric)
- 73.8 L
- Transmission Reservoir With Vertical Filter Refill Capacity (Imperial)
- 19.5 gal.
- Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity (Metric)
- 87.1 L
- Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity (Imperial)
- 23.0 gal.
- Hydraulic Reservoir With Filter Refill Capacity (Metric)
- 92.0 L
- Hydraulic Reservoir With Filter Refill Capacity (Imperial)
- 24.3 gal.
- Parking Brake Oil (Wet Disc) Refill Capacity (Metric)
- 0.35 L
- Parking Brake Oil (Wet Disc) Refill Capacity (Imperial)
- 12.0 oz.
Hydraulic System And Steering14 details
- Pump Type And System (Loader And Steering)
- Variable-displacement, axial-piston pump; closed-center, pressure-compensating system
- Max Rated Flow At Rated RPM (Metric)
- 140.0 L/min
- Max Rated Flow At Rated RPM (Imperial)
- 37.0 gpm
- System Relief Pressure (Loader And Steering) (Metric)
- 24821.2 kPa
- System Relief Pressure (Loader And Steering) (Imperial)
- 3600.0 psi
- Loader Controls
- 2-function valve; joystick control; hydraulic-function enable/disable; optional 3rd- and 4th-function valve with auxiliary leve
- Steering Articulation Full Arc Angle
- 80.0 degrees
- Steering Articulation Angle Each Direction
- 40.0 degrees
- Turning Radius (Measured To Centerline Of Outside Tire) (Metric)
- 4.75 m
- Turning Radius (Measured To Centerline Of Outside Tire) (Imperial)
- 15.58 ft, in.
- Hydraulic Raise Cycle Time
- 5.9 seconds
- Hydraulic Dump Cycle Time
- 1.0 seconds
- Hydraulic Lower (Power Down) Cycle Time
- 2.4 seconds
- Hydraulic Total Cycle Time
- 9.3 seconds
