John Deere

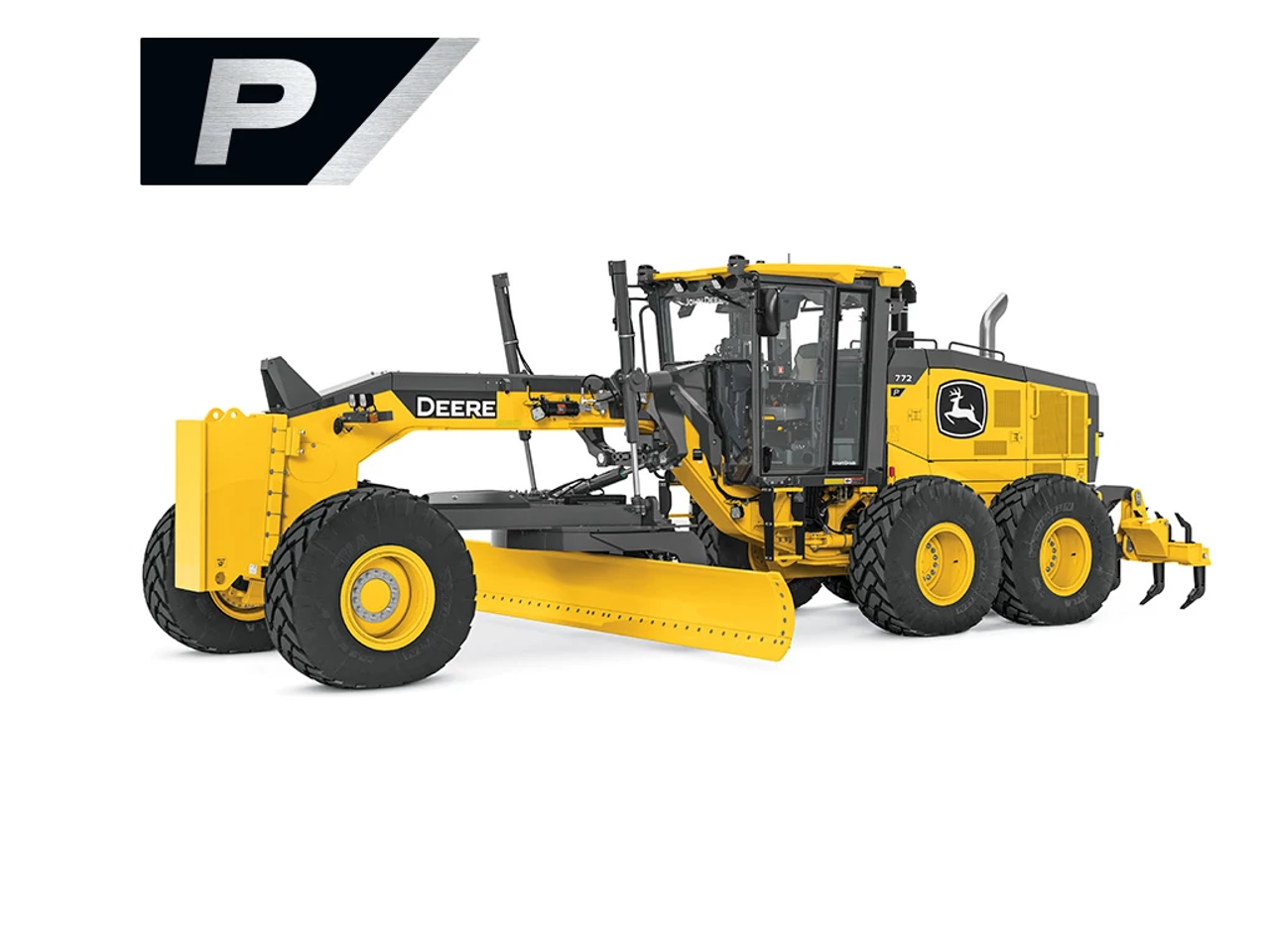

Model772 P-Tier Motor Grader
Motor Graders
Our competitively priced 772 P-Tier offers just the right amount of power and fuel savings of up to 10 percent over our larger models.
Model / part number: 8050BZ
Key specifications
- Net Engine Power Gear 8 (Metric)
- 194.0 kW
- Net Torque Rise
- 57.0 %
- Blade Pull At Maximum Operating Weight (Metric)
- 22453.0 kg
- Typical Maximum Operating Weight (Metric)
- 24948.0 kg
Technical specifications
266 specifications
Key Specs7 details
- Net Engine Power Gear 8 (Metric)
- 194.0 kW
- Net Engine Power Gear 8 (Imperial)
- 260.0 hp
- Net Torque Rise
- 57.0 %
- Blade Pull At Maximum Operating Weight (Metric)
- 22453.0 kg
- Blade Pull At Maximum Operating Weight (Imperial)
- 49500 lb.
- Typical Maximum Operating Weight (Metric)
- 24948.0 kg
- Typical Maximum Operating Weight (Imperial)
- 55000 lb.
Engine27 details
- Non Road Emission Standards
- EPA Tier 3/EU Stage IIIA
- Manufacturer And Model
- John Deere PowerTech™ Plus 9.0L
- Cylinders
- 6
- Displacement (Metric)
- 9.0 L
- Displacement (Imperial)
- 548.0 cu in.
- Net Engine Power Gear 1 (Metric)
- 164.0 kW
- Net Engine Power Gear 1 (Imperial)
- 220.0 hp
- Net Engine Power Gear 2 (Metric)
- 172.0 kW
- Net Engine Power Gear 2 (Imperial)
- 230.0 hp
- Net Engine Power Gear 3 (Metric)
- 179.0 kW
- Net Engine Power Gear 3 (Imperial)
- 240.0 hp
- Net Engine Power Gear 4 (Metric)
- 183.0 kW
- Net Engine Power Gear 4 (Imperial)
- 245.0 hp
- Net Engine Power Gear 5 (Metric)
- 187.0 kW
- Net Engine Power Gear 5 (Imperial)
- 250.0 hp
- Net Engine Power Gear 6 (Metric)
- 194.0 kW
- Net Engine Power Gear 6 (Imperial)
- 260.0 hp
- Net Engine Power Gear 7 (Metric)
- 201.0 kW
- Net Engine Power Gear 7 (Imperial)
- 270.0 hp
- Net Engine Power Gear 8 (Metric)
- 194.0 kW
- Net Engine Power Gear 8 (Imperial)
- 260.0 hp
- Net Peak Torque (Metric)
- 1300.0 Nm
- Net Peak Torque (Imperial)
- 959.0 lb-ft
- Net Torque Rise
- 57.0 %
- Aspiration
- Turbocharged, charge-air cooled
- Lubrication
- Full-flow spin-on filter and integral cooler
- Air Cleaner With Restriction Indicator
- Dual element, dry
Cooling2 details
- Engine Coolant Rating (Metric)
- 37.0 ℃
- Engine Coolant Rating (Imperial)
- 34.0 °F
Powertrain43 details
- Six Wheel Drive
- Automatic dual-path hydrostatic drive; increases tractive effort and front-end control; includes separate left and right systems with variable-displacement pumps, axial-piston wheel motors, and freewheel at transport speeds; operator-selectable 15-position rotary aggressiveness control and inching capability down to 0 mph; precision mode (propelled by front wheels only)
- Six Wheel Drive Effective Gears
- 1–7 forward and reverse
- Precision Mode Effective Gears
- 1–3 forward only
- Precision Mode Operating Speeds (Metric)
- 8.0 km/h
- Precision Mode Operating Speeds (Imperial)
- 5.0 mph
- Hydrostatic Pumps (2) Each (Metric)
- 60.0 cm³
- Hydrostatic Pumps (2) Each (Imperial)
- 3.7 cu in.
- Wheel Motors (Metric)
- 60.0 cm³
- Wheel Motors (Imperial)
- 3.7 cu in.
- Final Reduction
- 38.7:1
- Transmission Type
- Direct-drive John Deere PowerShift Plus™, modulated shift-on-the-go, Event-Based Shifting (EBS), inching pedal; independent transmission reservoir with separate filtration and cooling system with 117-L/min. (31 gpm) gear pump
- Transmission Gears Forward
- 8
- Transmission Gears Reverse
- 8
- Maximum Travel Speeds
- No tire slip at 2,180 rpm, 14.0-R24 tires
- Maximum Travel Speeds Gear 1 (Metric)
- 4.0 km/h
- Maximum Travel Speeds Gear 1 (Imperial)
- 2.5 mph
- Maximum Travel Speeds Gear 2 (Metric)
- 5.6 km/h
- Maximum Travel Speeds Gear 2 (Imperial)
- 3.5 mph
- Maximum Travel Speeds Gear 3 (Metric)
- 7.7 km/h
- Maximum Travel Speeds Gear 3 (Imperial)
- 4.8 mph
- Maximum Travel Speeds Gear 4 (Metric)
- 10.9 km/h
- Maximum Travel Speeds Gear 4 (Imperial)
- 6.8 mph
- Maximum Travel Speeds Gear 5 (Metric)
- 16.4 km/h
- Maximum Travel Speeds Gear 5 (Imperial)
- 10.2 mph
- Maximum Travel Speeds Gear 6 (Metric)
- 23.2 km/h
- Maximum Travel Speeds Gear 6 (Imperial)
- 14.4 mph
- Maximum Travel Speeds Gear 7 (Metric)
- 32.3 km/h
- Maximum Travel Speeds Gear 7 (Imperial)
- 20.1 mph
- Maximum Travel Speeds Gear 8 (Metric)
- 45.5 km/h
- Maximum Travel Speeds Gear 8 (Imperial)
- 28.3 mph
- Front Axle
- Heavy-duty welded fabrication
- Front Axle Oscillation, Total
- 32.0 degrees
- Front Axle Wheel Lean Angle, Each Direction
- 20.0 degrees
- Differentials
- Spiral bevel; hydraulically actuated, clutch type can be applied on-the-go; selectable manual or automatic differential lock
- Steering (All Models Include Steering Wheel)
- All-hydraulic power-frame articulation for maneuverability and productivity; crab steering reduces side drift, positions tandems on firm ground, and increases side-slope stability; return-to-straight control included in Grade Pro option
- Turning Radius: Front Steer And Articulation (Metric)
- 7.21 m
- Turning Radius: Front Steer And Articulation (Imperial)
- 284.0 in.
- Turning Radius: Front Steer And Articulation (Alternative 3)
- 23.67 ft
- Articulation (Both Right And Left)
- 22.0 degrees
- Final Drives
- Inboard-mounted planetary sealed in cooled, filtered oil
- Brakes
- Foot-controlled, hydraulically operated, multiple wet-disc brakes sealed in pressurized, cooled, filtered oil; both independent systems effective on all 4 tandem wheels
- Primary And Secondary Brakes
- Hydraulically actuated, inboard of tandem pivot, self-adjusting, sealed in cooled and filtered oil, multi-disc (ISO 3450)
- Parking Brake
- Automatically spring applied, hydraulically released, oil cooled, self-adjusting (ISO 3450)
Hydraulics7 details
- Type
- Closed-center, pressure-compensated load-sensing (PCLS), variable-displacement piston pump
- Maximum Pump Flow (Metric)
- 212.0 L/min
- Maximum Pump Flow (Imperial)
- 56.0 gpm
- Maximum System Pressure (Metric)
- 18961.0 kPa
- Maximum System Pressure (Imperial)
- 2750 psi
- Pump Displacement (cm3)
- 90.0 cm³
- Pump Displacement
- 5.5 cu in.
Blade Function11 details
- Blade Type
- All-hydraulic, industry-standard lever placement of blade-function controls; includes float position; 7 discrete saddle positions
- Blade Range Lift Above Ground (Metric)
- 490.0 mm
- Blade Range Lift Above Ground (Imperial)
- 19.3 in.
- Blade Range Blade Side Shift, Right Or Left (Metric)
- 683.0 mm
- Blade Range Blade Side Shift, Right Or Left (Imperial)
- 26.9 in.
- Pitch At Ground Line Forward
- 42.0 degrees
- Pitch At Ground Line Back
- 5.0 degrees
- Shoulder Reach Outside Wheels (Frame Straight), Right Or Left (Metric)
- 2083.0 mm
- Shoulder Reach Outside Wheels (Frame Straight), Right Or Left (Imperial)
- 82.0 in.
- Shoulder Reach Outside Wheels (Frame Straight), Right Or Left (Alternative 3)
- 6.83 ft
- Bank Cut Angle, Right Or Left
- 90.0 degrees
Blade Pull2 details
- Blade Pull At Maximum Operating Weight (Metric)
- 22453.0 kg
- Blade Pull At Maximum Operating Weight (Imperial)
- 49500 lb.
Electrical9 details
- Voltage
- 24.0 V
- Number Of Batteries
- 2
- Battery Capacity
- 1.01 CCA
- Reserve Capacity
- 190.0 min.
- Amp Hour Rating
- 110.0 amp-hr
- Base Alternator Rating
- 100.0 amp
- Optional Alternator Rating
- 130.0 amp
- Solid State Load Center And Sealed Switch Module
- EPA Tier 3/EU Stage IIIA and EPA Tier 2/EU Stage II
- Lights
- LED driving lights; 2 high- and 2 low-beam LED headlights; front and rear LED turn signals and marker lights; LED brake and hazard warning lights
Mainframe13 details
- Mainframe Types
- Welded box construction
- Width, Minimum (Metric)
- 307.0 mm
- Width, Minimum (Imperial)
- 12.1 in.
- Height, Minimum (Metric)
- 307.0 mm
- Height, Minimum (Imperial)
- 12.1 in.
- Thickness, Side (Metric)
- 16.0 mm
- Thickness, Side (Imperial)
- 0.63 in.
- Thickness, Top And Bottom Plate (Metric)
- 23.0 mm
- Thickness, Top And Bottom Plate (Imperial)
- 0.89 in.
- Modules, Minimum Vertical Section (cm3)
- 1770.0 cm³
- Modules, Minimum Vertical Section
- 108.0 cu in.
- Modules, Average Vertical Section At Saddle (cm3)
- 2245.0 cm³
- Modules, Average Vertical Section At Saddle
- 137.0 cu in.
Draft Frame (Drawbar)1 detail
- Draft Frame Type
- Welded box construction machined for flatness with double ball-and-socket pivot connection
Circle19 details
- Circle Type
- Welded construction, heat-treated, machined for flatness
- Standard Circle Diameter (Metric)
- 1524.0 mm
- Standard Circle Diameter (Imperial)
- 60.0 in.
- Premium Circle Diameter (Metric)
- 1524.0 mm
- Premium Circle Diameter (Imperial)
- 60.0 in.
- Standard Circle Rotation
- 360.0 degrees
- Premium Circle Rotation
- 360.0 degrees
- Standard Circle Rotation Surface
- Quick-change bronze or nylon wear inserts
- Premium Circle Rotation Surface
- Sealed and lubricated roller element slewing bearing
- Standard Circle Pinion/Ring Gear Connection
- Adjustable backlash and open for serviceability
- Premium Circle Pinion/Ring Gear Connection
- No adjustment; fully sealed and lubricated
- Standard Circle Drive
- Hydraulic motor and worm gear with positive lock
- Premium Circle Drive
- Hydraulic motor and worm gear with positive lock
- Standard Circle Slip Clutch
- Option
- Premium Circle Slip Clutch
- Standard
- Standard Circle Circle Side Shift Right (Metric)
- 787.0 mm
- Standard Circle Circle Side Shift Right (Imperial)
- 31.0 in.
- Premium Circle Circle Side Shift Right (Metric)
- 787.0 mm
- Premium Circle Circle Side Shift Right (Imperial)
- 31.0 in.
Moldboard8 details
- Moldboard Material
- High-strength, pre-stressed for higher strength, wear-resistant, high-carbon steel and reversible end bits
- Moldboard Type
- blade side-shift wear system includes quick-change replaceable wear inserts and quick-adjust jackscrew system
- Base Length (Metric)
- 3.66 m
- Base Length (Imperial)
- 144.0 in.
- Height (Metric)
- 609.6 mm
- Height (Imperial)
- 24.0 in.
- Thickness (Metric)
- 22.0 mm
- Thickness (Imperial)
- 0.88 in.
Cutting Edge5 details
- Cutting Edge Type
- Dura-Max™ through-hardened steel edge
- Thickness (Metric)
- 16.0 mm
- Thickness (Imperial)
- 0.62 in.
- Width (Metric)
- 152.0 mm
- Width (Imperial)
- 6.0 in.
Scarifier27 details
- Front Type
- V-type toolbar with 2 pitch positions and hydraulic float
- Midmount Type
- Radial linkage, with NeverGrease™ pin joints; V-type manual 3-pitch positions and hydraulic float
- Front Width Of Cut (Metric)
- 1.2 m
- Front Width Of Cut (Imperial)
- 48.0 in.
- Front Width Of Cut (Alternative 3)
- 4.0 ft
- Midmount Width Of Cut (Metric)
- 1.19 m
- Midmount Width Of Cut (Imperial)
- 46.7 in.
- Midmount Width Of Cut (Alternative 3)
- 3.92 ft
- Front Number Of Shanks/Teeth
- 5
- Front Number Of Shanks/Teeth (Maximum)
- 9
- Midmount Number Of Shanks/Teeth
- 11
- Front Lift Above Ground (Metric)
- 589.0 mm
- Front Lift Above Ground (Imperial)
- 23.2 in.
- Midmount Lift Above Ground (Metric)
- 335.0 mm
- Midmount Lift Above Ground (Imperial)
- 13.2 in.
- Front Maximum Depth
- 335.0 mm
- Front Maximum Depth (in.)
- 13.2 in.
- Midmount Maximum Depth (Metric)
- 325.0 mm
- Midmount Maximum Depth (Imperial)
- 12.8 in.
- Front Shank Spacing (Metric)
- 146.0 mm
- Front Shank Spacing (Imperial)
- 5.75 in.
- Midmount Shank Spacing (Metric)
- 117.0 mm
- Midmount Shank Spacing (Imperial)
- 4.6 in.
- Front Shank Size (mm x mm)
- 25 x 76
- Front Shank Size (in. x in.)
- 1 x 3
- Midmount Shank Size (mm x mm)
- 25 x 76
- Midmount Shank Size (in. x in.)
- 1 x 3
Front Lift Group (Balderson-Style)5 details
- Front Lift Group Type
- Parallel linkage, mechanical pins, and hydraulic float
- Lift Above Ground (Top Of Tube) (Metric)
- 1864.0 mm
- Lift Above Ground (Top Of Tube) (Imperial)
- 73.4 in.
- Lift Range (Metric)
- 988.0 mm
- Lift Range (Imperial)
- 38.9 in.
Rear Ripper/Scarifier26 details
- Type
- Parallel linkage, with NeverGrease pin joints, hydraulic float, and integrated hitch
- Ripper Width Of Cut (Metric)
- 2.21 m
- Ripper Width Of Cut (Imperial)
- 87.2 in.
- Ripper Width Of Cut (ft. in)
- 7.25 ft
- Scarifier Width Of Cut (Metric)
- 2.18 m
- Scarifier Width Of Cut (Imperial)
- 86.0 in.
- Scarifier Width Of Cut (Alternative 3)
- 7.17 ft
- Ripper Number Of Shanks/Teeth
- 3
- Ripper Number Of Shanks/Teeth Maximum Capacity
- 5
- Scarifier Number Of Shanks/Teeth Maximum Capacity
- 9
- Ripper Lift Above Ground (Metric)
- 602.0 mm
- Ripper Lift Above Ground (Imperial)
- 23.7 in.
- Scarifier Lift Above Ground (Metric)
- 810.0 mm
- Scarifier Lift Above Ground (Imperial)
- 31.9 in.
- Ripper Maximum Depth (Metric)
- 426.0 mm
- Ripper Maximum Depth (Imperial)
- 16.8 in.
- Scarifier Maximum Depth (Metric)
- 323.0 mm
- Scarifier Maximum Depth (Imperial)
- 12.7 in.
- Ripper Penetration Force (Metric)
- 9863.0 kg
- Ripper Penetration Force (Imperial)
- 21745 lb.
- Ripper Pryout Force (Metric)
- 14368.0 kg
- Ripper Pryout Force (Imperial)
- 31676 lb.
- Ripper Shank Size (mm x mm)
- 61.5 x 133
- Ripper Shank Size (in. x in.)
- 2.42 x 5.25
- Scarifier Shank Size (mm x mm)
- 25 x 76
- Scarifier Shank Size (in. x in.)
- 1 x 3
Operator Station2 details
- Rollover Protective Structure
- ROPS (ISO 3471-2008)
- Falling Object Protective Structure
- FOPS (ISO 3449-2005)
Wheels And Tires Option 17 details
- Wheel Size
- 14R24 on 254-mm (10 in.) Rim
- Wheel Size Wheel Tread On Ground (Metric)
- 2.08 m
- Wheel Size Wheel Tread On Ground (Imperial)
- 82.0 in.
- Wheel Size Overall Width (Metric)
- 2.49 m
- Wheel Size Overall Width (Imperial)
- 98.0 in.
- Wheel Size Ground Clearance (Front Axle) (Metric)
- 587.0 mm
- Wheel Size Ground Clearance (Front Axle) (Imperial)
- 23.1 in.
Wheels And Tires Option 27 details
- Wheel Size
- 17.5R25 on 356-mm (14 in.) Rim
- Wheel Size Wheel Tread On Ground (Metric)
- 2.16 m
- Wheel Size Wheel Tread On Ground (Imperial)
- 85.0 in.
- Wheel Size Overall Width (Metric)
- 2.64 m
- Wheel Size Overall Width (Imperial)
- 104.0 in.
- Wheel Size Ground Clearance (Front Axle) (Metric)
- 587.0 mm
- Wheel Size Ground Clearance (Front Axle) (Imperial)
- 23.1 in.
Wheels And Tires Option 37 details
- Wheel Size
- 550/65R25 on 432-mm (17 in.) Rim
- Wheel Size Wheel Tread On Ground (Metric)
- 2.21 m
- Wheel Size Wheel Tread On Ground (Imperial)
- 87.0 in.
- Wheel Size Overall Width (Metric)
- 2.82 m
- Wheel Size Overall Width (Imperial)
- 111.0 in.
- Wheel Size Ground Clearance (Front Axle) (Metric)
- 612.0 mm
- Wheel Size Ground Clearance (Front Axle) (Imperial)
- 24.1 in.
Refill Capacities17 details
- Engine Type
- EPA Tier 3/EU Stage IIIA and EPA Tier 2/EU Stage II
- Fuel Tank (Metric)
- 416.5 L
- Fuel Tank (Imperial)
- 110.0 gal.
- Cooling System (Metric)
- 48.5 L
- Cooling System (Imperial)
- 12.8 gal.
- Engine Oil With Filter (Metric)
- 28.0 L
- Engine Oil With Filter (Imperial)
- 7.4 gal.
- Transmission Fluid (Metric)
- 28.4 L
- Transmission Fluid (Imperial)
- 7.5 gal.
- Differential Housing (Metric)
- 38.0 L
- Differential Housing (Imperial)
- 10.0 gal.
- Tandem Housings (Each) (Metric)
- 74.0 L
- Tandem Housings (Each) (Imperial)
- 19.5 gal.
- Circle Gearbox (Metric)
- 5.7 L
- Circle Gearbox (Imperial)
- 1.5 gal.
- Hydraulic Reservoir (Metric)
- 53.0 L
- Hydraulic Reservoir (Imperial)
- 14.0 gal.
Operating Weights6 details
- Front (Metric)
- 4944.0 kg
- Front (Imperial)
- 10900 lb.
- Rear (Metric)
- 11948.0 kg
- Rear (Imperial)
- 26340 lb.
- Total (Metric)
- 16892.0 kg
- Total (Imperial)
- 37240 lb.
Typical Operating Weight With Equipment8 details
- Front (Metric)
- 6343.0 kg
- Front (Imperial)
- 13985 lb.
- Rear (Metric)
- 13547.0 kg
- Rear (Imperial)
- 29865 lb.
- Total (Metric)
- 19890.0 kg
- Total (Imperial)
- 43850 lb.
- Typical Maximum Operating Weight (Metric)
- 24948.0 kg
- Typical Maximum Operating Weight (Imperial)
- 55000 lb.
