John Deere

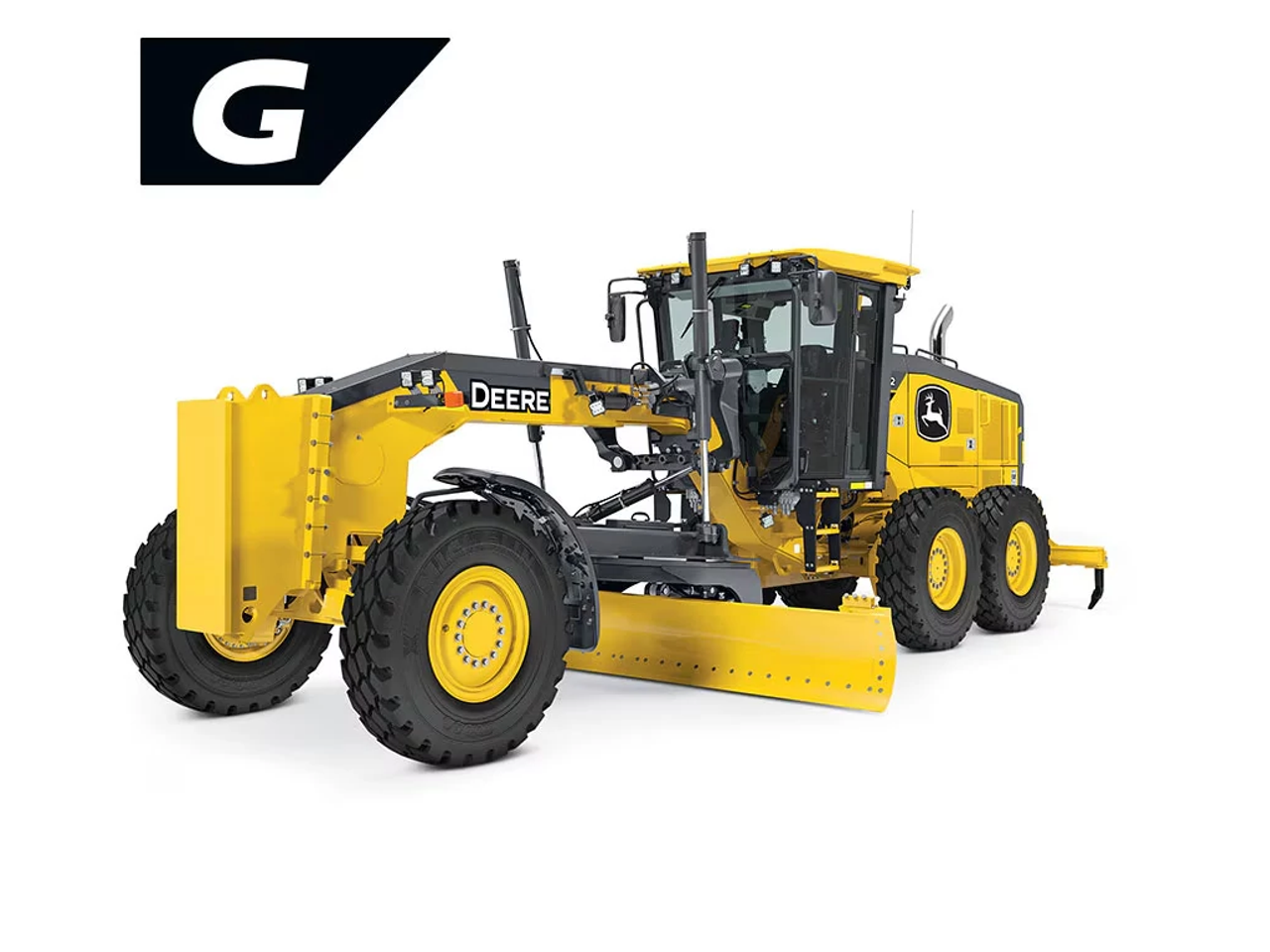

772 G-Tier Motor Grader
Motor Graders
Putting its entire weight and all six tires to work, the 772 G-Tier’s dual-path hydrostatic drive boosts productivity. Download a brochure and view features.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 8430BZ
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs7 specifications
- Net Engine Power Gear 8 (Metric)
- 205.0 kW
- Net Engine Power Gear 8 (Imperial)
- 275.0 hp
- Net Torque Rise
- 50.0 %
- Blade Pull At Maximum Operating Weight (Metric)
- 22453.0 kg
- Blade Pull At Maximum Operating Weight (Imperial)
- 49500.0 lb.
- Typical Maximum Operating Weight (Metric)
- 24948.0 kg
- Typical Maximum Operating Weight (Imperial)
- 55000.0 lb.
Engine27 specifications
- Non Road Emission Standards
- EPA Tier 3/EU Stage IIIA
- Manufacturer And Model
- John Deere PowerTech™ Plus 9.0L
- Cylinders
- 6
- Displacement (Metric)
- 9.0 L
- Displacement (Imperial)
- 548.0 cu in.
- Net Engine Power Gear 1 (Metric)
- 164.0 kW
- Net Engine Power Gear 1 (Imperial)
- 220.0 hp
- Net Engine Power Gear 2 (Metric)
- 172.0 kW
- Net Engine Power Gear 2 (Imperial)
- 230.0 hp
- Net Engine Power Gear 3 (Metric)
- 183.0 kW
- Net Engine Power Gear 3 (Imperial)
- 245.0 hp
- Net Engine Power Gear 4 (Metric)
- 187.0 kW
- Net Engine Power Gear 4 (Imperial)
- 250.0 hp
- Net Engine Power Gear 5 (Metric)
- 194.0 kW
- Net Engine Power Gear 5 (Imperial)
- 260.0 hp
- Net Engine Power Gear 6 (Metric)
- 201.0 kW
- Net Engine Power Gear 6 (Imperial)
- 270.0 hp
- Net Engine Power Gear 7 (Metric)
- 205.0 kW
- Net Engine Power Gear 7 (Imperial)
- 275.0 hp
- Net Engine Power Gear 8 (Metric)
- 205.0 kW
- Net Engine Power Gear 8 (Imperial)
- 275.0 hp
- Net Peak Torque (Metric)
- 1379.0 Nm
- Net Peak Torque (Imperial)
- 1017.0 lb-ft
- Net Torque Rise
- 50.0 %
- Aspiration
- Turbocharged, charge-air cooled
- Lubrication
- Full-flow spin-on filter and integral cooler
- Air Cleaner With Restriction Indicator
- Dual element, dry
Cooling2 specifications
- Engine Coolant Rating (Metric)
- -37.0 ℃
- Engine Coolant Rating (Imperial)
- -34.0 °F
Powertrain42 specifications
- Six Wheel Drive
- Automatic dual-path hydrostatic drive; increases tractive effort and front-end control; includes separate left and right systems with variable-displacement pumps, axial-piston wheel motors, and freewheel at transport speeds; operator-selectable 15-position rotary aggressiveness control and inching capability down to 0 mph; precision mode (propelled by front wheels only)
- Six Wheel Drive Effective Gears
- 1–7 forward and reverse
- Precision Mode Effective Gears
- 1–3 forward only
- Precision Mode Operating Speeds (Metric)
- 8.0 km/h
- Precision Mode Operating Speeds (Imperial)
- 5.0 mph
- Hydrostatic Pumps (2) Each (Metric)
- 60.0 cm³
- Hydrostatic Pumps (2) Each (Imperial)
- 3.7 cu in.
- Wheel Motors (Metric)
- 60.0 cm³
- Wheel Motors (Imperial)
- 3.7 cu in.
- Final Reduction
- 38.7:1
- Transmission Type
- Direct-drive John Deere PowerShift Plus™, modulated shift-on-the-go, Event-Based Shifting (EBS), inching pedal; independent transmission reservoir with separate filtration and cooling system
- Transmission Gears Forward
- 8
- Transmission Gears Reverse
- 8
- Maximum Travel Speeds
- No tire slip at 2,180 rpm, 14.0-R24 tires
- Maximum Travel Speeds Gear 1 (Metric)
- 4.0 km/h
- Maximum Travel Speeds Gear 1 (Imperial)
- 2.5 mph
- Maximum Travel Speeds Gear 2 (Metric)
- 5.6 km/h
- Maximum Travel Speeds Gear 2 (Imperial)
- 3.5 mph
- Maximum Travel Speeds Gear 3 (Metric)
- 7.7 km/h
- Maximum Travel Speeds Gear 3 (Imperial)
- 4.8 mph
- Maximum Travel Speeds Gear 4 (Metric)
- 10.9 km/h
- Maximum Travel Speeds Gear 4 (Imperial)
- 6.8 mph
- Maximum Travel Speeds Gear 5 (Metric)
- 16.4 km/h
- Maximum Travel Speeds Gear 5 (Imperial)
- 10.2 mph
- Maximum Travel Speeds Gear 6 (Metric)
- 23.2 km/h
- Maximum Travel Speeds Gear 6 (Imperial)
- 14.4 mph
- Maximum Travel Speeds Gear 7 (Metric)
- 32.3 km/h
- Maximum Travel Speeds Gear 7 (Imperial)
- 20.1 mph
- Maximum Travel Speeds Gear 8 (Metric)
- 45.5 km/h
- Maximum Travel Speeds Gear 8 (Imperial)
- 28.3 mph
- Front Axle
- Heavy-duty welded fabrication
- Front Axle Oscillation, Total
- 32.0 degrees
- Front Axle Wheel Lean Angle, Each Direction
- 20.0 degrees
- Differentials
- Spiral bevel; hydraulically actuated, clutch type can be applied on-the-go; selectable manual or automatic differential lock
- Turning Radius: Front Steer And Articulation (Metric)
- 7.21 m
- Turning Radius: Front Steer And Articulation (Imperial)
- 284.0 in.
- Turning Radius: Front Steer And Articulation (Alternative 3)
- 23.67 ft
- Articulation (Both Right And Left)
- 22.0 degrees
- Final Drives
- Inboard-mounted planetary sealed in cooled, filtered oil
- Brakes
- Foot-controlled, hydraulically operated, multiple wet-disc brakes sealed in pressurized, cooled, filtered oil; both independent systems effective on all 4 tandem wheels
- Primary And Secondary Brakes
- Hydraulically actuated, inboard of tandem pivot, self-adjusting, sealed in cooled and filtered oil, multi-disc (ISO 3450)
- Parking Brake
- Automatically spring applied, hydraulically released, oil cooled, self-adjusting (ISO 3450)
Hydraulics7 specifications
- Type
- Closed-center, pressure-compensated load-sensing (PCLS), variable-displacement piston pump
- Maximum Pump Flow (Metric)
- 212.0 L/min
- Maximum Pump Flow (Imperial)
- 56.0 gpm
- Maximum System Pressure (Metric)
- 18961.0 kPa
- Maximum System Pressure (Imperial)
- 2750.0 psi
- Pump Displacement (cm3)
- 90.0 cm³
- Pump Displacement
- 5.5 cu in.
Blade Function11 specifications
- Blade Type
- All-hydraulic, industry-standard lever placement of blade-function controls; includes float position; 7 discrete saddle positions
- Blade Range Lift Above Ground (Metric)
- 490.0 mm
- Blade Range Lift Above Ground (Imperial)
- 19.3 in.
- Blade Range Blade Side Shift, Right Or Left (Metric)
- 683.0 mm
- Blade Range Blade Side Shift, Right Or Left (Imperial)
- 26.9 in.
- Pitch At Ground Line Forward
- 42.0 degrees
- Pitch At Ground Line Back
- 5.0 degrees
- Shoulder Reach Outside Wheels (Frame Straight), Right Or Left (Metric)
- 2083.0 mm
- Shoulder Reach Outside Wheels (Frame Straight), Right Or Left (Imperial)
- 82.0 in.
- Shoulder Reach Outside Wheels (Frame Straight), Right Or Left (Alternative 3)
- 6.83 ft
- Bank Cut Angle, Right Or Left
- 90.0 degrees
Blade Pull2 specifications
- Blade Pull At Maximum Operating Weight (Metric)
- 22453.0 kg
- Blade Pull At Maximum Operating Weight (Imperial)
- 49500.0 lb.
Electrical7 specifications
- Voltage
- 24.0 V
- Number Of Batteries
- 2
- Battery Capacity
- 1400.0 CCA
- Reserve Capacity
- 440.0 min.
- Amp Hour Rating
- 224.0 amp-hr
- Base Alternator Rating
- 130.0 amp
- Lights
- Driving lights; 2 high- and 2 low-beam halogen headlights; front and rear LED turn signals and marker lights; LED brake and hazard warning light
Mainframe9 specifications
- Mainframe Types
- Welded box construction
- Width, Minimum (Metric)
- 307.0 mm
- Width, Minimum (Imperial)
- 12.1 in.
- Height, Minimum (Metric)
- 307.0 mm
- Height, Minimum (Imperial)
- 12.1 in.
- Thickness, Side (Metric)
- 16.0 mm
- Thickness, Side (Imperial)
- 0.63 in.
- Thickness, Top And Bottom Plate (Metric)
- 23.0 mm
- Thickness, Top And Bottom Plate (Imperial)
- 0.89 in.
Draft Frame (Drawbar)1 specifications
- Draft Frame Type
- Welded box construction machined for flatness with double ball-and-socket pivot connection
Circle23 specifications
- Circle Type
- Welded construction, heat-treated, machined for flatness
- Standard Circle Diameter (Metric)
- 1524.0 mm
- Standard Circle Diameter (Imperial)
- 60.0 in.
- Premium Circle Diameter (Metric)
- 1524.0 mm
- Premium Circle Diameter (Imperial)
- 60.0 in.
- Standard Circle Rotation
- 360.0 degrees
- Premium Circle Rotation
- 360.0 degrees
- Standard Circle Rotation Surface
- Quick-change bronze or nylon wear inserts
- Premium Circle Rotation Surface
- Sealed and lubricated roller element slewing bearing
- Standard Circle Pinion/Ring Gear Connection
- Adjustable backlash and open for serviceability
- Premium Circle Pinion/Ring Gear Connection
- No adjustment; fully sealed and lubricated
- Standard Circle Drive
- Hydraulic motor and worm gear with positive lock
- Premium Circle Drive
- Hydraulic motor and worm gear with positive lock
- Standard Circle Slip Clutch
- Option
- Premium Circle Slip Clutch
- Standard
- Standard Circle Circle Side Shift Right (Metric)
- 787.0 mm
- Standard Circle Circle Side Shift Right (Imperial)
- 31.0 in.
- Premium Circle Circle Side Shift Right (Metric)
- 787.0 mm
- Premium Circle Circle Side Shift Right (Imperial)
- 31.0 in.
- Standard Circle Circle Side Shift Left (Metric)
- 787.0 mm
- Standard Circle Circle Side Shift Left (Imperial)
- 31.0 in.
- Premium Circle Circle Side Shift Left (Metric)
- 787.0 mm
- Premium Circle Circle Side Shift Left (Imperial)
- 31.0 in.
Moldboard8 specifications
- Moldboard Material
- High-strength, pre-stressed for higher strength, wear-resistant, high-carbon steel and reversible end bits
- Moldboard Type
- blade side-shift wear system includes quick-change replaceable wear inserts and quick-adjust jackscrew system
- Base Length (Metric)
- 3.66 m
- Base Length (Imperial)
- 144.0 in.
- Height (Metric)
- 610.0 m
- Height (Imperial)
- 24.0 in.
- Thickness (Metric)
- 22.0 mm
- Thickness (Imperial)
- 0.88 in.
Cutting Edge5 specifications
- Cutting Edge Type
- Dura-Max™ through-hardened steel edge
- Thickness (Metric)
- 16.0 mm
- Thickness (Imperial)
- 0.62 in.
- Width (Metric)
- 152.0 mm
- Width (Imperial)
- 6.0 in.
Scarifier27 specifications
- Front Type
- V-type toolbar with 2-pitch positions and hydraulic float
- Midmount Type
- Radial linkage, with NeverGrease™ pin joints; V-type manual 3-pitch positions and hydraulic float
- Front Width Of Cut (Metric)
- 1.2 m
- Front Width Of Cut (Imperial)
- 84.0 in.
- Front Width Of Cut (Alternative 3)
- 4.0 ft
- Midmount Width Of Cut (Metric)
- 1.19 m
- Midmount Width Of Cut (Imperial)
- 46.7 in.
- Midmount Width Of Cut (Alternative 3)
- 3.92 ft
- Front Number Of Shanks/Teeth
- 5
- Front Number Of Shanks/Teeth (Maximum)
- 9
- Midmount Number Of Shanks/Teeth
- 11
- Front Lift Above Ground (Metric)
- 589.0 mm
- Front Lift Above Ground (Imperial)
- 23.2 in.
- Midmount Lift Above Ground (Metric)
- 335.0 mm
- Midmount Lift Above Ground (Imperial)
- 13.2 in.
- Front Maximum Depth
- 335.0 mm
- Front Maximum Depth (in.)
- 13.2 in.
- Midmount Maximum Depth (Metric)
- 325.0 mm
- Midmount Maximum Depth (Imperial)
- 12.8 in.
- Front Shank Spacing (Metric)
- 146.0 mm
- Front Shank Spacing (Imperial)
- 5.75 in.
- Midmount Shank Spacing (Metric)
- 117.0 mm
- Midmount Shank Spacing (Imperial)
- 4.9 in.
- Front Shank Size (mm x mm)
- 25 x 76
- Front Shank Size (in. x in.)
- 1 x 3
- Midmount Shank Size (mm x mm)
- 25 x 76
- Midmount Shank Size (in. x in.)
- 1 x 3
Front Lift Group (Balderson-Style)5 specifications
- Front Lift Group Type
- Parallel linkage, mechanical pins, and hydraulic float
- Lift Above Ground (Top Of Tube) (Metric)
- 1864.0 mm
- Lift Above Ground (Top Of Tube) (Imperial)
- 73.4 in.
- Lift Range (Metric)
- 988.0 mm
- Lift Range (Imperial)
- 38.9 in.
Dozer Blade3 specifications
- Front Dozer Blade Type
- Parallel linkage and hydraulic float
- Lift Above Ground (Metric)
- 706.0 mm
- Lift Above Ground (Imperial)
- 27.8 in.
Rear Ripper/Scarifier22 specifications
- Type
- Parallel linkage, with NeverGrease pin joints, hydraulic float, and integrated hitch
- Ripper Width Of Cut (Metric)
- 2.21 m
- Ripper Width Of Cut (Imperial)
- 87.2 in.
- Ripper Width Of Cut (ft. in)
- 7.25 ft
- Scarifier Width Of Cut (Metric)
- 2.18 m
- Scarifier Width Of Cut (Imperial)
- 86.0 in.
- Scarifier Width Of Cut (Alternative 3)
- 7.17 ft
- Ripper Number Of Shanks/Teeth
- 3
- Ripper Number Of Shanks/Teeth Maximum Capacity
- 5
- Scarifier Number Of Shanks/Teeth Maximum Capacity
- 9
- Ripper Lift Above Ground (Metric)
- 602.0 mm
- Ripper Lift Above Ground (Imperial)
- 23.7 in.
- Scarifier Lift Above Ground (Metric)
- 810.0 mm
- Scarifier Lift Above Ground (Imperial)
- 31.9 in.
- Ripper Maximum Depth (Metric)
- 426.0 mm
- Ripper Maximum Depth (Imperial)
- 16.8 in.
- Scarifier Maximum Depth (Metric)
- 323.0 mm
- Scarifier Maximum Depth (Imperial)
- 12.7 in.
- Ripper Shank Size (mm x mm)
- 61.5 x 133
- Ripper Shank Size (in. x in.)
- 2.42 x 5.25
- Scarifier Shank Size (mm x mm)
- 25 x 76
- Scarifier Shank Size (in. x in.)
- 1 x 3
Operator Station2 specifications
- Rollover Protective Structure
- ROPS (ISO 3471-2008)
- Falling Object Protective Structure
- FOPS (ISO 3449-2005)
Wheels And Tires Option 15 specifications
- Wheel Size
- 14R24 on 254-mm (10 in.) Rim
- Wheel Size Wheel Tread On Ground (Metric)
- 2.08 m
- Wheel Size Wheel Tread On Ground (Imperial)
- 82.0 in.
- Wheel Size Ground Clearance (Front Axle) (Metric)
- 587.0 mm
- Wheel Size Ground Clearance (Front Axle) (Imperial)
- 23.1 in.
Wheels And Tires Option 25 specifications
- Wheel Size
- 17.5R25 on 356-mm (14 in.) Rim
- Wheel Size Wheel Tread On Ground (Metric)
- 2.16 m
- Wheel Size Wheel Tread On Ground (Imperial)
- 85.0 in.
- Wheel Size Ground Clearance (Front Axle) (Metric)
- 587.0 mm
- Wheel Size Ground Clearance (Front Axle) (Imperial)
- 23.1 in.
Wheels And Tires Option 35 specifications
- Wheel Size
- 550/65R25 on 432-mm (17 in.) Rim
- Wheel Size Wheel Tread On Ground (Metric)
- 2.21 m
- Wheel Size Wheel Tread On Ground (Imperial)
- 87.0 in.
- Wheel Size Ground Clearance (Front Axle) (Metric)
- 612.0 mm
- Wheel Size Ground Clearance (Front Axle) (Imperial)
- 24.1 in.
Refill Capacities19 specifications
- Engine Type
- EPA Tier 3/EU Stage IIIA and EPA Tier 2/EU Stage II
- Fuel Tank (Metric)
- 397.0 L
- Fuel Tank (Imperial)
- 105.0 gal.
- Diesel Exhaust Fluid (DEF) Tank (Metric)
- 22.5 L
- Diesel Exhaust Fluid (DEF) Tank (Imperial)
- 6.0 gal.
- Cooling System (Metric)
- 55.0 L
- Cooling System (Imperial)
- 14.5 gal.
- Engine Oil With Filter (Metric)
- 28.4 L
- Engine Oil With Filter (Imperial)
- 7.5 gal.
- Transmission Fluid (Metric)
- 28.4 L
- Transmission Fluid (Imperial)
- 7.5 gal.
- Differential Housing (Metric)
- 38.0 L
- Differential Housing (Imperial)
- 10.0 gal.
- Tandem Housings (Each) (Metric)
- 47.0 L
- Tandem Housings (Each) (Imperial)
- 19.5 gal.
- Circle Gearbox (Metric)
- 5.7 L
- Circle Gearbox (Imperial)
- 1.5 gal.
- Hydraulic Reservoir (Metric)
- 60.5 L
- Hydraulic Reservoir (Imperial)
- 16.0 gal.
Operating Weights6 specifications
- Front (Metric)
- 4946.0 kg
- Front (Imperial)
- 10904.0 lb.
- Rear (Metric)
- 12086.0 kg
- Rear (Imperial)
- 26645.0 lb.
- Total (Metric)
- 17528.0 kg
- Total (Imperial)
- 38643.0 lb.
Typical Operating Weight With Equipment8 specifications
- Front (Metric)
- 6439.0 kg
- Front (Imperial)
- 15196.0 lb.
- Rear (Metric)
- 14447.0 kg
- Rear (Imperial)
- 31850.0 lb.
- Total (Metric)
- 20885.0 kg
- Total (Imperial)
- 46044.0 lb.
- Typical Maximum Operating Weight (Metric)
- 24948.0 kg
- Typical Maximum Operating Weight (Imperial)
- 55000.0 lb.
Option Weights62 specifications
- 4.27 m x 686 mm x 25 mm Moldboards With 203 mm x 19 mm Cutting Edge And 19 mm Hardware
- 261.0 kg
- 14 ft x 27 in. x 1 in. Moldboards With 8 in. x 3/4 in. Cutting Edge And 3/4 in. Hardware
- 575.0 lb.
- Extensions 610 mm Right Or Left
- 116.0 kg
- Extensions 24 in. Right Or Left
- 255.0 lb.
- Extensions 686 mm Right Or Left
- 120.0 kg
- Extensions 27 in. Right Or Left
- 265.0 lb.
- Overlay End Bits, Reversible (One Pair) For 152 mm Cutting Edge
- 19.5 kg
- Overlay End Bits, Reversible (One Pair) For 6 in. Cutting Edge
- 43.0 lb.
- Overlay End Bits, Reversible (One Pair) For 203 mm Cutting Edge
- 23.0 kg
- Overlay End Bits, Reversible (One Pair) For 8 in. Cutting Edge
- 51.0 lb.
- Heavy Duty Dual Input Circle Drive Gearbox (Metric)
- 14.0 kg
- Heavy Duty Dual Input Circle Drive Gearbox (Imperial)
- 31.0 lb.
- Circle Drive Slip Clutch (Metric)
- 9.0 kg
- Circle Drive Slip Clutch (Imperial)
- 20.0 lb.
- Standard Circle (Metric)
- 0.0 kg
- Standard Circle (Imperial)
- 0.0 lb.
- Premium Circle (Metric)
- 289.0 kg
- Premium Circle (Imperial)
- 638.0 lb.
- Moldboard Impact Absorption System (Metric)
- 43.0 kg
- Moldboard Impact Absorption System (Imperial)
- 95.0 lb.
- Ripper/Scarifier, Rear Mounted With Hitch And Ripper Shanks (3) (Metric)
- 1139.0 kg
- Ripper/Scarifier, Rear Mounted With Hitch And Ripper Shanks (3) (Imperial)
- 2510.0 lb.
- Scarifier Shanks With Teeth, 9 For Rear Ripper/Scarifier (Metric)
- 68.0 kg
- Scarifier Shanks With Teeth, 9 For Rear Ripper/Scarifier (Imperial)
- 150.0 lb.
- Ripper Shanks and Teeth, 2 (Metric)
- 63.0 kg
- Ripper Shanks and Teeth, 2 (Imperial)
- 139.0 lb.
- Rear Counterweight With Integral Rear Hitch (Metric)
- 727.0 kg
- Rear Counterweight With Integral Rear Hitch (Imperial)
- 1603.0 lb.
- Rear Hitch (Metric)
- 54.4 kg
- Rear Hitch (Imperial)
- 120.0 lb.
- Push Block, Front (Metric)
- 1338.0 kg
- Push Block, Front (Imperial)
- 2950.0 lb.
- Scarifier, Front Mounted With Teeth (5) (Metric)
- 831.0 kg
- Scarifier, Front Mounted With Teeth (5) (Imperial)
- 1833.0 lb.
- Scarifier, Midmount With 11 Teeth (Metric)
- 1481.0 kg
- Scarifier, Midmount With 11 Teeth (Imperial)
- 3265.0 lb.
- Front Lift Group (Balderson Style) (Metric)
- 763.0 kg
- Front Lift Group (Balderson Style) (Imperial)
- 1682.0 lb.
- Opening Front and Side Windows (Metric)
- 14.5 kg
- Opening Front and Side Windows (Imperial)
- 32.0 lb.
- Premium Seat, Air Suspension, Heated, Adjustable Arm And Headrests (Metric)
- 13.0 kg
- Premium Seat, Air Suspension, Heated, Adjustable Arm And Headrests (Imperial)
- 28.0 lb.
- Coolant Heater (Metric)
- 4.0 kg
- Coolant Heater (Imperial)
- 9.0 lb.
- Quick Service (Metric)
- 11.0 kg
- Quick Service (Imperial)
- 24.0 lb.
- Secondary Steering (Metric)
- 26.0 kg
- Secondary Steering (Imperial)
- 58.0 lb.
- Fire Extinguisher (Metric)
- 14.5 kg
- Fire Extinguisher (Imperial)
- 32.0 lb.
- Lighting Packages 10 Halogen Lights (Metric)
- 4.5 kg
- Lighting Packages 10 Halogen Lights (Imperial)
- 10.0 lb.
- Lighting Packages 18 Halogen Lights (Metric)
- 8.0 kg
- Lighting Packages 18 Halogen Lights (Imperial)
- 18.0 lb.
- Lighting Packages 18 LED Lights (Metric)
- 7.0 kg
- Lighting Packages 18 LED Lights (Imperial)
- 16.0 lb.
- High Front Light Bar For Snowplowing (Metric)
- 20.0 kg
- High Front Light Bar For Snowplowing (Imperial)
- 44.0 lb.
- Auxiliary Hydraulic Control Valve Section And Controls (Metric)
- 7.0 kg
- Auxiliary Hydraulic Control Valve Section And Controls (Imperial)
- 15.0 lb.
- Hydraulics For Front Mounted Equipment (Metric)
- 9.0 kg
- Hydraulics For Front Mounted Equipment (Imperial)
- 19.0 lb.
Tire, Rim, And Fender Option Weights18 specifications
- 14.00 R24, Radial, G2/L2 General Purpose (Metric)
- 0.0 kg
- 14.00 R24, Radial, G2/L2 General Purpose (Imperial)
- 0.0 lb.
- 14.00 R24, Radial, G2/L2 Snow (Metric)
- 10.8 kg
- 14.00 R24, Radial, G2/L2 Snow (Imperial)
- 90.0 lb.
- 17.5 R25, Radial, L2 General Purpose (Metric)
- 51.7 kg
- 17.5 R25, Radial, L2 General Purpose (Imperial)
- 114.0 lb.
- 17.5 R25, Radial, G2/L2 Snow (Metric)
- 95.3 kg
- 17.5 R25, Radial, G2/L2 Snow (Imperial)
- 210.0 lb.
- 17.5 R25, Radial, G3/L3 General Purpose (Metric)
- 141.5 kg
- 17.5 R25, Radial, G3/L3 General Purpose (Imperial)
- 312.0 lb.
- Multi Piece Rim 254 x 610 mm
- 0.0 kg
- Multi Piece Rim 10 x 24 in.
- 0.0 lb.
- Multi Piece Rim 356 x 635 mm
- 85.3 kg
- Multi Piece Rim 14 x 25 in.
- 188.0 lb.
- Front Fenders (Metric)
- 99.0 kg
- Front Fenders (Imperial)
- 218.0 lb.
- Rear Fenders (Metric)
- 158.0 kg
- Rear Fenders (Imperial)
- 348.0 lb.
Machine Dimensions26 specifications
- Height To Top Of Cab (Metric)
- 3.18 m
- Height To Top Of Cab (Imperial)
- 10.42 ft
- Height To Top Of Exhaust (Metric)
- 3.1 m
- Height To Top Of Exhaust (Imperial)
- 10.17 ft
- Height To Top Of Blade Lift Cylinders (Metric)
- 3.05 m
- Height To Top Of Blade Lift Cylinders (Imperial)
- 10.0 ft
- Tandem Axle Spacing (Metric)
- 1.54 m
- Tandem Axle Spacing (Imperial)
- 5.08 ft
- Blade Base (Metric)
- 2.57 m
- Blade Base (Imperial)
- 8.42 ft
- Wheelbase (Metric)
- 6.16 m
- Wheelbase (Imperial)
- 20.25 ft
- Overall Length (Metric)
- 8.89 m
- Overall Length (Imperial)
- 29.17 ft
- Overall Length With Scarifier (Metric)
- 9.69 m
- Overall Length With Scarifier (Imperial)
- 31.75 ft
- Overall Length With Pushblock And Ripper (Metric)
- 9.99 m
- Overall Length With Pushblock And Ripper (Imperial)
- 32.75 ft
- Overall Length With Scarifier And Ripper (Metric)
- 10.59 m
- Overall Length With Scarifier And Ripper (Imperial)
- 34.75 ft
- Overall Length with Front Mounted Blade and Ripper (Metric)
- 10.6 m
- Overall Length with Front Mounted Blade and Ripper (Imperial)
- 34.75 ft
- Overall Width 14.00 R24 Tires (Metric)
- 2.49 m
- Overall Width 14.00 R24 Tires (Imperial)
- 8.17 ft
- Overall Width 17.5 R25 Tires (Metric)
- 2.64 m
- Overall Width 17.5 R25 Tires (Imperial)
- 8.67 ft
