John Deere

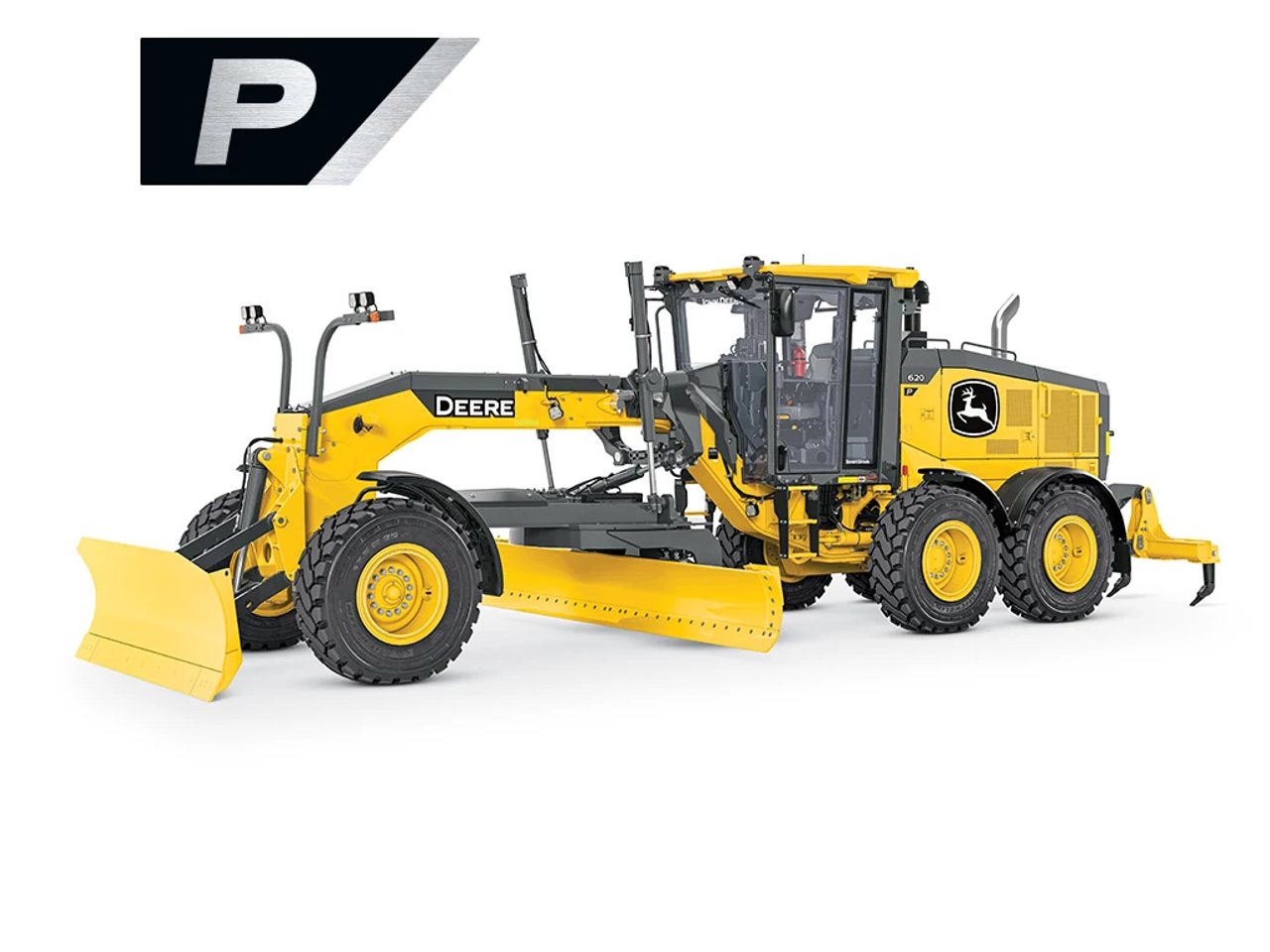

620 P-Tier Motor Grader
Motor Graders
Our competitively priced 620 P-Tier offers just the right amount of power and fuel savings of up to 10 percent over our larger models.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 8000BZ
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs7 specifications
- Net Engine Power Gear 8 (Metric)
- 160.0 kW
- Net Engine Power Gear 8 (Imperial)
- 215.0 hp
- Net Torque Rise
- 27.0 %
- Blade Pull At Maximum Operating Weight (Metric)
- 14091.0 kg
- Blade Pull At Maximum Operating Weight (Imperial)
- 31066.0 lb.
- Typical Maximum Operating Weight (Metric)
- 22680.0 kg
- Typical Maximum Operating Weight (Imperial)
- 50.0 lb.
Engine27 specifications
- Non Road Emission Standards
- EPA Tier 3/EU Stage IIIA
- Manufacturer And Model
- John Deere PowerTech™ Plus 6.8L
- Cylinders
- 6
- Displacement (Metric)
- 6.8 L
- Displacement (Imperial)
- 414.0 cu in.
- Net Engine Power Gear 1 (Metric)
- 112.0 kW
- Net Engine Power Gear 1 (Imperial)
- 150.0 hp
- Net Engine Power Gear 2 (Metric)
- 123.0 kW
- Net Engine Power Gear 2 (Imperial)
- 165.0 hp
- Net Engine Power Gear 3 (Metric)
- 134.0 kW
- Net Engine Power Gear 3 (Imperial)
- 180.0 hp
- Net Engine Power Gear 4 (Metric)
- 142.0 kW
- Net Engine Power Gear 4 (Imperial)
- 190.0 hp
- Net Engine Power Gear 5 (Metric)
- 149.0 kW
- Net Engine Power Gear 5 (Imperial)
- 200.0 hp
- Net Engine Power Gear 6 (Metric)
- 153.0 kW
- Net Engine Power Gear 6 (Imperial)
- 205.0 hp
- Net Engine Power Gear 7 (Metric)
- 157.0 kW
- Net Engine Power Gear 7 (Imperial)
- 210.0 hp
- Net Engine Power Gear 8 (Metric)
- 160.0 kW
- Net Engine Power Gear 8 (Imperial)
- 215.0 hp
- Net Peak Torque (Metric)
- 915.0 Nm
- Net Peak Torque (Imperial)
- 67.0 lb-ft
- Net Torque Rise
- 27.0 %
- Aspiration
- Turbocharged, charge-air cooled
- Lubrication
- Full-flow spin-on filter and integral cooler
- Air Cleaner With Restriction Indicator
- Dual element, dry
Cooling2 specifications
- Engine Coolant Rating (Metric)
- 37.0 ℃
- Engine Coolant Rating (Imperial)
- 34.0 °F
Powertrain33 specifications
- Transmission Type
- Direct-drive John Deere PowerShift Plus™, modulated shift-on-the-go, Event-Based Shifting (EBS), inching pedal; independent transmission reservoir with separate filtration and cooling system
- Transmission Gears Forward
- 8
- Transmission Gears Reverse
- 8
- Maximum Travel Speeds
- No tire slip at 2,180 rpm, 14.0-R24 tires
- Maximum Travel Speeds Gear 1 (Metric)
- 4.0 km/h
- Maximum Travel Speeds Gear 1 (Imperial)
- 2.5 mph
- Maximum Travel Speeds Gear 2 (Metric)
- 5.6 km/h
- Maximum Travel Speeds Gear 2 (Imperial)
- 3.5 mph
- Maximum Travel Speeds Gear 3 (Metric)
- 7.7 km/h
- Maximum Travel Speeds Gear 3 (Imperial)
- 4.8 mph
- Maximum Travel Speeds Gear 4 (Metric)
- 10.9 km/h
- Maximum Travel Speeds Gear 4 (Imperial)
- 6.8 mph
- Maximum Travel Speeds Gear 5 (Metric)
- 16.4 km/h
- Maximum Travel Speeds Gear 5 (Imperial)
- 10.2 mph
- Maximum Travel Speeds Gear 6 (Metric)
- 23.2 km/h
- Maximum Travel Speeds Gear 6 (Imperial)
- 14.4 mph
- Maximum Travel Speeds Gear 7 (Metric)
- 32.3 km/h
- Maximum Travel Speeds Gear 7 (Imperial)
- 20.1 mph
- Maximum Travel Speeds Gear 8 (Metric)
- 45.5 km/h
- Maximum Travel Speeds Gear 8 (Imperial)
- 28.3 mph
- Front Axle
- Heavy-duty welded fabrication
- Front Axle Oscillation, Total
- 32.0 degrees
- Front Axle Wheel Lean Angle, Each Direction
- 20.0 degrees
- Differentials
- Spiral bevel; hydraulically actuated, clutch type can be applied on-the-go; selectable manual or automatic differential lock
- Steering (All Models Include Steering Wheel)
- All-hydraulic power-frame articulation for maneuverability and productivity; crab steering reduces side drift, positions tandems on firm ground, and increases side-slope stability; return-to-straight control included on electrohydraulic (EH)
- Turning Radius: Front Steer And Articulation (Metric)
- 7.2 m
- Turning Radius: Front Steer And Articulation (Imperial)
- 28.0 in.
- Turning Radius: Front Steer And Articulation (Alternative 3)
- 24.0 ft
- Articulation (Both Right And Left)
- 22.0 degrees
- Final Drives
- Inboard-mounted planetary sealed in cooled, filtered oil
- Brakes
- Foot-controlled, hydraulically operated, multiple wet-disc brakes sealed in pressurized, cooled, filtered oil; both independent systems effective on all 4 tandem wheels
- Primary And Secondary Brakes
- Hydraulically actuated, inboard of tandem pivot, self-adjusting, sealed in cooled and filtered oil, multi-disc (ISO 3450)
- Parking Brake
- Automatically spring applied, hydraulically released, oil cooled, self-adjusting (ISO 3450)
Hydraulics7 specifications
- Type
- Closed-center, pressure-compensated load-sensing (PCLS), variable-displacement piston pump
- Maximum Pump Flow (Metric)
- 212.0 L/min
- Maximum Pump Flow (Imperial)
- 56.0 gpm
- Maximum System Pressure (Metric)
- 18961.0 kPa
- Maximum System Pressure (Imperial)
- 2750.0 psi
- Pump Displacement (cm3)
- 90.0 cm³
- Pump Displacement
- 5.5 cu in.
Blade Function11 specifications
- Blade Type
- All-hydraulic, industry-standard lever placement of blade-function controls; includes float position; 7 discrete saddle positions
- Blade Range Lift Above Ground (Metric)
- 490.0 mm
- Blade Range Lift Above Ground (Imperial)
- 19.3 in.
- Blade Range Blade Side Shift, Right Or Left (Metric)
- 683.0 mm
- Blade Range Blade Side Shift, Right Or Left (Imperial)
- 26.9 in.
- Pitch At Ground Line Forward
- 42.0 degrees
- Pitch At Ground Line Back
- 5.0 degrees
- Shoulder Reach Outside Wheels (Frame Straight), Right Or Left (Metric)
- 2083.0 mm
- Shoulder Reach Outside Wheels (Frame Straight), Right Or Left (Imperial)
- 82.0 in.
- Shoulder Reach Outside Wheels (Frame Straight), Right Or Left (Alternative 3)
- 10.0 ft
- Bank Cut Angle, Right Or Left
- 90.0 degrees
Blade Pull2 specifications
- Blade Pull At Maximum Operating Weight (Metric)
- 14091.0 kg
- Blade Pull At Maximum Operating Weight (Imperial)
- 31066.0 lb.
Electrical8 specifications
- Voltage
- 24.0 V
- Number Of Batteries
- 2
- Battery Capacity
- 1400.0 CCA
- Reserve Capacity
- 440.0 min.
- Amp Hour Rating
- 224.0 amp-hr
- Base Alternator Rating
- 130.0 amp
- Solid State Load Center And Sealed Switch Module
- EPA Tier 3/EU Stage IIIA
- Lights
- Driving lights; 2 high- and 2 low-beam halogen headlights; front and rear LED turn signals and marker lights; LED brake and hazard warning lights
Mainframe9 specifications
- Mainframe Types
- Welded box construction
- Width, Minimum (Metric)
- 307.0 mm
- Width, Minimum (Imperial)
- 12.1 in.
- Height, Minimum (Metric)
- 307.0 mm
- Height, Minimum (Imperial)
- 12.1 in.
- Thickness, Side (Metric)
- 16.0 mm
- Thickness, Side (Imperial)
- 0.63 in.
- Thickness, Top And Bottom Plate (Metric)
- 23.0 mm
- Thickness, Top And Bottom Plate (Imperial)
- 0.89 in.
Draft Frame (Drawbar)1 specifications
- Draft Frame Type
- Welded box construction machined for flatness with double ball-and-socket pivot connection
Circle23 specifications
- Circle Type
- Welded construction, heat-treated, and machined for flatness
- Standard Circle Diameter (Metric)
- 1524.0 mm
- Standard Circle Diameter (Imperial)
- 60.0 in.
- Premium Circle Diameter (Metric)
- 1524.0 mm
- Premium Circle Diameter (Imperial)
- 60.0 in.
- Standard Circle Rotation
- 360.0 degrees
- Premium Circle Rotation
- 360.0 degrees
- Standard Circle Rotation Surface
- Quick-change bronze or nylon wear inserts
- Premium Circle Rotation Surface
- Sealed and lubricated roller element slewing bearing
- Standard Circle Pinion/Ring Gear Connection
- Adjustable backlash and open for serviceability
- Premium Circle Pinion/Ring Gear Connection
- No adjustment; fully sealed and lubricated
- Standard Circle Drive
- Hydraulic motor and worm gear with positive lock
- Premium Circle Drive
- Hydraulic motor and worm gear with positive lock
- Standard Circle Slip Clutch
- Option
- Premium Circle Slip Clutch
- Standard
- Standard Circle Circle Side Shift Right (Metric)
- 787.0 mm
- Standard Circle Circle Side Shift Right (Imperial)
- 31.0 in.
- Premium Circle Circle Side Shift Right (Metric)
- 787.0 mm
- Premium Circle Circle Side Shift Right (Imperial)
- 31.0 in.
- Standard Circle Circle Side Shift Left (Metric)
- 787.0 mm
- Standard Circle Circle Side Shift Left (Imperial)
- 31.0 in.
- Premium Circle Circle Side Shift Left (Metric)
- 787.0 mm
- Premium Circle Circle Side Shift Left (Imperial)
- 31.0 in.
Moldboard8 specifications
- Moldboard Material
- High-strength, pre-stressed for higher strength; wear-resistant, high-carbon steel and reversible end bits
- Moldboard Type
- blade side-shift wear system includes quick-change replaceable wear inserts and quick-adjust jackscrew system
- Base Length (Metric)
- 3.66 m
- Base Length (Imperial)
- 144.0 in.
- Height (Metric)
- 610.0 m
- Height (Imperial)
- 24.0 in.
- Thickness (Metric)
- 22.0 mm
- Thickness (Imperial)
- 0.88 in.
Cutting Edge5 specifications
- Cutting Edge Type
- Dura-Max™ through-hardened steel edge
- Thickness (Metric)
- 16.0 mm
- Thickness (Imperial)
- 0.62 in.
- Width (Metric)
- 152.0 mm
- Width (Imperial)
- 6.0 in.
Scarifier27 specifications
- Front Type
- V-type toolbar with 2-pitch positions and hydraulic float
- Midmount Type
- Radial linkage, with NeverGrease™ pin joints; V-type manual 3-pitch positions and hydraulic float
- Front Width Of Cut (Metric)
- 1.2 m
- Front Width Of Cut (Imperial)
- 48.0 in.
- Front Width Of Cut (Alternative 3)
- 4.0 ft
- Midmount Width Of Cut (Metric)
- 1.19 m
- Midmount Width Of Cut (Imperial)
- 46.7 in.
- Midmount Width Of Cut (Alternative 3)
- 3.92 ft
- Front Number Of Shanks/Teeth
- 5
- Front Number Of Shanks/Teeth (Maximum)
- 9
- Midmount Number Of Shanks/Teeth
- 11
- Front Lift Above Ground (Metric)
- 589.0 mm
- Front Lift Above Ground (Imperial)
- 23.2 in.
- Midmount Lift Above Ground (Metric)
- 335.0 mm
- Midmount Lift Above Ground (Imperial)
- 13.2 in.
- Front Maximum Depth
- 335.0 mm
- Front Maximum Depth (in.)
- 13.2 in.
- Midmount Maximum Depth (Metric)
- 325.0 mm
- Midmount Maximum Depth (Imperial)
- 12.8 in.
- Front Shank Spacing (Metric)
- 146.0 mm
- Front Shank Spacing (Imperial)
- 5.75 in.
- Midmount Shank Spacing (Metric)
- 117.0 mm
- Midmount Shank Spacing (Imperial)
- 4.6 in.
- Front Shank Size (mm x mm)
- 25 x 76
- Front Shank Size (in. x in.)
- 1 x 3
- Midmount Shank Size (mm x mm)
- 25 x 76
- Midmount Shank Size (in. x in.)
- 1 x 3
Front Lift Group (Balderson-Style)5 specifications
- Front Lift Group Type
- Parallel linkage, mechanical pins, and hydraulic float
- Lift Above Ground (Top Of Tube) (Metric)
- 1864.0 mm
- Lift Above Ground (Top Of Tube) (Imperial)
- 73.4 in.
- Lift Range (Metric)
- 988.0 mm
- Lift Range (Imperial)
- 38.9 in.
Dozer Blade3 specifications
- Front Dozer Blade Type
- Parallel linkage and hydraulic float
- Lift Above Ground (Metric)
- 706.0 mm
- Lift Above Ground (Imperial)
- 27.8 in.
Rear Ripper/Scarifier26 specifications
- Type
- Parallel linkage, with NeverGrease pin joints, hydraulic float, and integrated hitch
- Ripper Width Of Cut (Metric)
- 2.21 m
- Ripper Width Of Cut (Imperial)
- 87.2 in.
- Ripper Width Of Cut (ft. in)
- 7.25 ft
- Scarifier Width Of Cut (Metric)
- 2.18 m
- Scarifier Width Of Cut (Imperial)
- 86.0 in.
- Scarifier Width Of Cut (Alternative 3)
- 7.17 ft
- Ripper Number Of Shanks/Teeth
- 3
- Ripper Number Of Shanks/Teeth Maximum Capacity
- 5
- Scarifier Number Of Shanks/Teeth Maximum Capacity
- 9
- Ripper Lift Above Ground (Metric)
- 602.0 mm
- Ripper Lift Above Ground (Imperial)
- 23.7 in.
- Scarifier Lift Above Ground (Metric)
- 810.0 mm
- Scarifier Lift Above Ground (Imperial)
- 31.9 in.
- Ripper Maximum Depth (Metric)
- 426.0 mm
- Ripper Maximum Depth (Imperial)
- 16.8 in.
- Scarifier Maximum Depth (Metric)
- 323.0 mm
- Scarifier Maximum Depth (Imperial)
- 12.7 in.
- Ripper Penetration Force (Metric)
- 9302.0 kg
- Ripper Penetration Force (Imperial)
- 20508.0 lb.
- Ripper Pryout Force (Metric)
- 11253.0 kg
- Ripper Pryout Force (Imperial)
- 24808.0 lb.
- Ripper Shank Size (mm x mm)
- 61.5 x 13
- Ripper Shank Size (in. x in.)
- 2.42 x 5.25
- Scarifier Shank Size (mm x mm)
- 25 x 76
- Scarifier Shank Size (in. x in.)
- 1 x 3
Operator Station2 specifications
- Rollover Protective Structure
- Low profile cab (ISO 3471-2008)
- Falling Object Protective Structure
- (ISO 3449-2005)
Wheels And Tires Option 14 specifications
- Wheel Size Wheel Tread On Ground (Metric)
- 2.16 m
- Wheel Size Wheel Tread On Ground (Imperial)
- 85.0 in.
- Wheel Size Ground Clearance (Front Axle) (Metric)
- 587.0 mm
- Wheel Size Ground Clearance (Front Axle) (Imperial)
- 23.1 in.
Refill Capacities17 specifications
- Engine Type
- EPA Tier 3/EU Stage IIIA
- Fuel Tank (Metric)
- 303.0 L
- Fuel Tank (Imperial)
- 80.0 gal.
- Cooling System (Metric)
- 44.0 L
- Cooling System (Imperial)
- 11.6 gal.
- Engine Oil With Filter (Metric)
- 26.0 L
- Engine Oil With Filter (Imperial)
- 6.9 gal.
- Transmission Fluid (Metric)
- 28.4 L
- Transmission Fluid (Imperial)
- 7.5 gal.
- Differential Housing (Metric)
- 38.0 L
- Differential Housing (Imperial)
- 10.0 gal.
- Tandem Housings (Each) (Metric)
- 74.0 L
- Tandem Housings (Each) (Imperial)
- 19.5 gal.
- Circle Gearbox (Metric)
- 5.7 L
- Circle Gearbox (Imperial)
- 1.5 gal.
- Hydraulic Reservoir (Metric)
- 53.0 L
- Hydraulic Reservoir (Imperial)
- 14.0 gal.
Operating Weights6 specifications
- Front (Metric)
- 4258.0 kg
- Front (Imperial)
- 9.387 lb.
- Rear (Metric)
- 10777.0 kg
- Rear (Imperial)
- 23.76 lb.
- Total (Metric)
- 15036.0 kg
- Total (Imperial)
- 33.149 lb.
Typical Operating Weight With Equipment8 specifications
- Front (Metric)
- 5037.0 kg
- Front (Imperial)
- 11.105 lb.
- Rear (Metric)
- 12570.0 kg
- Rear (Imperial)
- 27.712 lb.
- Total (Metric)
- 17608.0 kg
- Total (Imperial)
- 38.819 lb.
- Typical Maximum Operating Weight (Metric)
- 22680.0 kg
- Typical Maximum Operating Weight (Imperial)
- 50.0 lb.
