John Deere

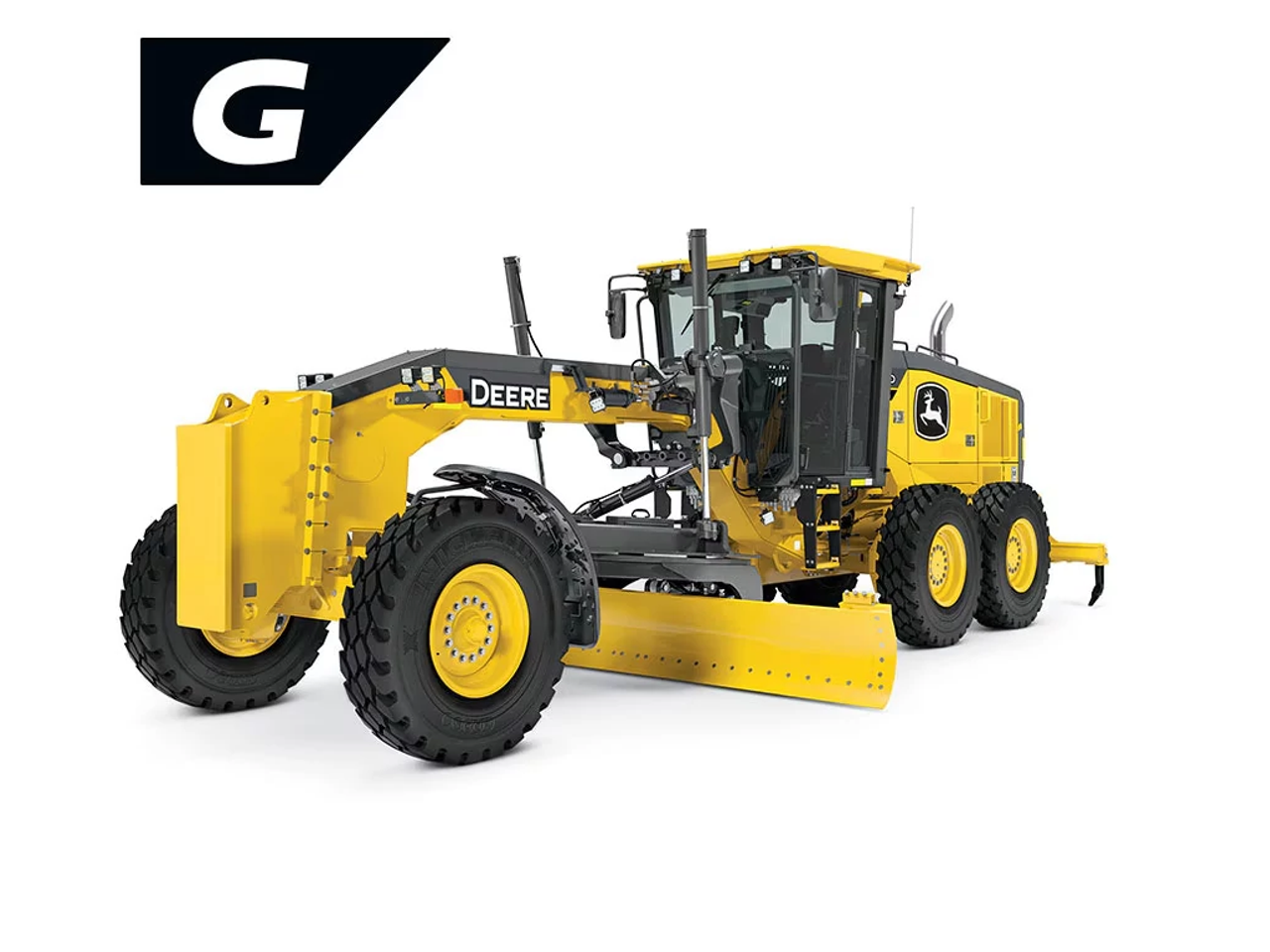

620 G-Tier Motor Grader
Motor Graders
Our competitively priced 620 G-Tier offers just the right amount of power and fuel savings of up to 10 percent over our larger models.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 8500BZ
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs7 specifications
- Net Engine Power Gear 8 (Metric)
- 160.0 kW
- Net Engine Power Gear 8 (Imperial)
- 215.0 hp
- Net Torque Rise
- 40.0 %
- Blade Pull At Maximum Operating Weight (Metric)
- 14091.0 kg
- Blade Pull At Maximum Operating Weight (Imperial)
- 31066.0 lb.
- Typical Maximum Operating Weight (Metric)
- 22680.0 kg
- Typical Maximum Operating Weight (Imperial)
- 50000.0 lb.
Engine27 specifications
- Non Road Emission Standards
- EPA Tier 3/EU Stage IIIA
- Manufacturer And Model
- John Deere PowerTech™ Plus 6.8L
- Cylinders
- 6
- Displacement (Metric)
- 6.8 L
- Displacement (Imperial)
- 414.0 cu in.
- Net Engine Power Gear 1 (Metric)
- 112.0 kW
- Net Engine Power Gear 1 (Imperial)
- 150.0 hp
- Net Engine Power Gear 2 (Metric)
- 123.0 kW
- Net Engine Power Gear 2 (Imperial)
- 165.0 hp
- Net Engine Power Gear 3 (Metric)
- 134.0 kW
- Net Engine Power Gear 3 (Imperial)
- 180.0 hp
- Net Engine Power Gear 4 (Metric)
- 142.0 kW
- Net Engine Power Gear 4 (Imperial)
- 190.0 hp
- Net Engine Power Gear 5 (Metric)
- 149.0 kW
- Net Engine Power Gear 5 (Imperial)
- 200.0 hp
- Net Engine Power Gear 6 (Metric)
- 153.0 kW
- Net Engine Power Gear 6 (Imperial)
- 205.0 hp
- Net Engine Power Gear 7 (Metric)
- 157.0 kW
- Net Engine Power Gear 7 (Imperial)
- 210.0 hp
- Net Engine Power Gear 8 (Metric)
- 160.0 kW
- Net Engine Power Gear 8 (Imperial)
- 215.0 hp
- Net Peak Torque (Metric)
- 1005.0 Nm
- Net Peak Torque (Imperial)
- 741.0 lb-ft
- Net Torque Rise
- 40.0 %
- Aspiration
- Turbocharged, charge-air cooled
- Lubrication
- Full-flow spin-on filter and integral cooler
- Air Cleaner With Restriction Indicator
- Dual element, dry
Cooling2 specifications
- Engine Coolant Rating (Metric)
- -37.0 ℃
- Engine Coolant Rating (Imperial)
- -34.0 °F
Powertrain33 specifications
- Transmission Type
- Direct-drive John Deere PowerShift Plus™, modulated shift-on-the-go, Event-Based Shifting (EBS), inching pedal; independent transmission reservoir with separate filtration and cooling system
- Transmission Gears Forward
- 8
- Transmission Gears Reverse
- 8
- Maximum Travel Speeds
- No tire slip at 2,180 rpm, 14.0-R24 tires
- Maximum Travel Speeds Gear 1 (Metric)
- 4.0 km/h
- Maximum Travel Speeds Gear 1 (Imperial)
- 2.5 mph
- Maximum Travel Speeds Gear 2 (Metric)
- 5.6 km/h
- Maximum Travel Speeds Gear 2 (Imperial)
- 3.5 mph
- Maximum Travel Speeds Gear 3 (Metric)
- 7.7 km/h
- Maximum Travel Speeds Gear 3 (Imperial)
- 4.8 mph
- Maximum Travel Speeds Gear 4 (Metric)
- 10.9 km/h
- Maximum Travel Speeds Gear 4 (Imperial)
- 6.8 mph
- Maximum Travel Speeds Gear 5 (Metric)
- 16.4 km/h
- Maximum Travel Speeds Gear 5 (Imperial)
- 10.2 mph
- Maximum Travel Speeds Gear 6 (Metric)
- 23.2 km/h
- Maximum Travel Speeds Gear 6 (Imperial)
- 14.4 mph
- Maximum Travel Speeds Gear 7 (Metric)
- 32.3 km/h
- Maximum Travel Speeds Gear 7 (Imperial)
- 20.1 mph
- Maximum Travel Speeds Gear 8 (Metric)
- 45.5 km/h
- Maximum Travel Speeds Gear 8 (Imperial)
- 28.3 mph
- Front Axle
- Heavy-duty welded fabrication
- Front Axle Oscillation, Total
- 32.0 degrees
- Front Axle Wheel Lean Angle, Each Direction
- 20.0 degrees
- Differentials
- Spiral bevel; hydraulically actuated, clutch type can be applied on-the-go; selectable manual or automatic differential lock
- Steering (All Models Include Steering Wheel)
- All-hydraulic power-frame articulation for maneuverability and productivity; crab steering reduces side drift, positions tandems on firm ground, and increases side-slope stability
- Turning Radius: Front Steer And Articulation (Metric)
- 7.21 m
- Turning Radius: Front Steer And Articulation (Imperial)
- 284.0 in.
- Turning Radius: Front Steer And Articulation (Alternative 3)
- 23.67 ft
- Articulation (Both Right And Left)
- 22.0 degrees
- Final Drives
- Inboard-mounted planetary sealed in cooled, filtered oil
- Brakes
- Foot-controlled, hydraulically operated, multiple wet-disc brakes sealed in pressurized, cooled, filtered oil; both independent systems effective on all 4 tandem wheels
- Primary And Secondary Brakes
- Hydraulically actuated, inboard of tandem pivot, self-adjusting, sealed in cooled and filtered oil, multi-disc (ISO 3450)
- Parking Brake
- Automatically spring applied, hydraulically released, oil cooled, self-adjusting (ISO 3450)
Hydraulics7 specifications
- Type
- Closed-center, pressure-compensated load-sensing (PCLS), variable-displacement piston pump
- Maximum Pump Flow (Metric)
- 212.0 L/min
- Maximum Pump Flow (Imperial)
- 56.0 gpm
- Maximum System Pressure (Metric)
- 18961.0 kPa
- Maximum System Pressure (Imperial)
- 2750.0 psi
- Pump Displacement (cm3)
- 90.0 cm³
- Pump Displacement
- 5.5 cu in.
Blade Function11 specifications
- Blade Type
- All-hydraulic, industry-standard lever placement of blade-function controls; includes float position; 7 discrete saddle positions
- Blade Range Lift Above Ground (Metric)
- 490.0 mm
- Blade Range Lift Above Ground (Imperial)
- 19.3 in.
- Blade Range Blade Side Shift, Right Or Left (Metric)
- 683.0 mm
- Blade Range Blade Side Shift, Right Or Left (Imperial)
- 26.9 in.
- Pitch At Ground Line Forward
- 42.0 degrees
- Pitch At Ground Line Back
- 5.0 degrees
- Shoulder Reach Outside Wheels (Frame Straight), Right Or Left (Metric)
- 2083.0 mm
- Shoulder Reach Outside Wheels (Frame Straight), Right Or Left (Imperial)
- 82.0 in.
- Shoulder Reach Outside Wheels (Frame Straight), Right Or Left (Alternative 3)
- 6.83 ft
- Bank Cut Angle, Right Or Left
- 90.0 degrees
Blade Pull2 specifications
- Blade Pull At Maximum Operating Weight (Metric)
- 14091.0 kg
- Blade Pull At Maximum Operating Weight (Imperial)
- 31066.0 lb.
Electrical7 specifications
- Voltage
- 24.0 V
- Number Of Batteries
- 2
- Battery Capacity
- 1400.0 CCA
- Reserve Capacity
- 440.0 min.
- Amp Hour Rating
- 224.0 amp-hr
- Base Alternator Rating
- 130.0 amp
- Lights
- Driving lights; 2 high- and 2 low-beam halogen headlights; front and rear LED turn signals and marker lights; LED brake and hazard warning lights
Mainframe9 specifications
- Mainframe Types
- Welded box construction
- Width, Minimum (Metric)
- 307.0 mm
- Width, Minimum (Imperial)
- 12.1 in.
- Height, Minimum (Metric)
- 307.0 mm
- Height, Minimum (Imperial)
- 12.1 in.
- Thickness, Side (Metric)
- 16.0 mm
- Thickness, Side (Imperial)
- 0.63 in.
- Thickness, Top And Bottom Plate (Metric)
- 23.0 mm
- Thickness, Top And Bottom Plate (Imperial)
- 0.89 in.
Draft Frame (Drawbar)1 specifications
- Draft Frame Type
- Welded box construction machined for flatness with double ball-and-socket pivot connection
Circle23 specifications
- Circle Type
- Welded construction, heat-treated, and machined for flatness
- Standard Circle Diameter (Metric)
- 1524.0 mm
- Standard Circle Diameter (Imperial)
- 60.0 in.
- Premium Circle Diameter (Metric)
- 1524.0 mm
- Premium Circle Diameter (Imperial)
- 60.0 in.
- Standard Circle Rotation
- 360.0 degrees
- Premium Circle Rotation
- 360.0 degrees
- Standard Circle Rotation Surface
- Quick-change bronze or nylon wear inserts
- Premium Circle Rotation Surface
- Sealed and lubricated roller element slewing bearing
- Standard Circle Pinion/Ring Gear Connection
- Adjustable backlash and open for serviceability
- Premium Circle Pinion/Ring Gear Connection
- No adjustment; fully sealed and lubricated
- Standard Circle Drive
- Hydraulic motor and worm gear with positive lock
- Premium Circle Drive
- Hydraulic motor and worm gear with positive lock
- Standard Circle Slip Clutch
- Option
- Premium Circle Slip Clutch
- Standard
- Standard Circle Circle Side Shift Right (Metric)
- 787.0 mm
- Standard Circle Circle Side Shift Right (Imperial)
- 31.0 in.
- Premium Circle Circle Side Shift Right (Metric)
- 787.0 mm
- Premium Circle Circle Side Shift Right (Imperial)
- 31.0 in.
- Standard Circle Circle Side Shift Left (Metric)
- 787.0 mm
- Standard Circle Circle Side Shift Left (Imperial)
- 31.0 in.
- Premium Circle Circle Side Shift Left (Metric)
- 787.0 mm
- Premium Circle Circle Side Shift Left (Imperial)
- 31.0 in.
Moldboard8 specifications
- Moldboard Material
- High-strength, pre-stressed for higher strength; wear-resistant, high-carbon steel and reversible end bits
- Moldboard Type
- Blade side-shift wear system includes quick change replaceable wear inserts and quick adjust jackscrew system
- Base Length (Metric)
- 3.66 m
- Base Length (Imperial)
- 144.0 in.
- Height (Metric)
- 0.61 m
- Height (Imperial)
- 24.0 in.
- Thickness (Metric)
- 22.0 mm
- Thickness (Imperial)
- 0.88 in.
Cutting Edge5 specifications
- Cutting Edge Type
- Dura-Max™ through-hardened steel edge
- Thickness (Metric)
- 16.0 mm
- Thickness (Imperial)
- 0.62 in.
- Width (Metric)
- 152.0 mm
- Width (Imperial)
- 6.0 in.
Scarifier27 specifications
- Front Type
- V-type toolbar with 2-pitch positions and hydraulic float
- Midmount Type
- Radial linkage, with NeverGrease™ pin joints; V-type manual 3-pitch positions and hydraulic float
- Front Width Of Cut (Metric)
- 1.2 m
- Front Width Of Cut (Imperial)
- 48.0 in.
- Front Width Of Cut (Alternative 3)
- 4.0 ft
- Midmount Width Of Cut (Metric)
- 1.19 m
- Midmount Width Of Cut (Imperial)
- 46.7 in.
- Midmount Width Of Cut (Alternative 3)
- 3.92 ft
- Front Number Of Shanks/Teeth
- 5
- Front Number Of Shanks/Teeth (Maximum)
- 9
- Midmount Number Of Shanks/Teeth
- 11
- Front Lift Above Ground (Metric)
- 589.0 mm
- Front Lift Above Ground (Imperial)
- 23.2 in.
- Midmount Lift Above Ground (Metric)
- 335.0 mm
- Midmount Lift Above Ground (Imperial)
- 13.2 in.
- Front Maximum Depth
- 335.0 mm
- Front Maximum Depth (in.)
- 13.2 in.
- Midmount Maximum Depth (Metric)
- 325.0 mm
- Midmount Maximum Depth (Imperial)
- 12.8 in.
- Front Shank Spacing (Metric)
- 146.0 mm
- Front Shank Spacing (Imperial)
- 5.75 in.
- Midmount Shank Spacing (Metric)
- 117.0 mm
- Midmount Shank Spacing (Imperial)
- 4.6 in.
- Front Shank Size (mm x mm)
- 25 x 76
- Front Shank Size (in. x in.)
- 1 x 3
- Midmount Shank Size (mm x mm)
- 25 x 76
- Midmount Shank Size (in. x in.)
- 1 x 3
Front Lift Group (Balderson-Style)5 specifications
- Front Lift Group Type
- Parallel linkage, mechanical pins, and hydraulic float
- Lift Above Ground (Top Of Tube) (Metric)
- 1864.0 mm
- Lift Above Ground (Top Of Tube) (Imperial)
- 73.4 in.
- Lift Range (Metric)
- 988.0 mm
- Lift Range (Imperial)
- 38.9 in.
Dozer Blade3 specifications
- Front Dozer Blade Type
- Parallel linkage and hydraulic float
- Lift Above Ground (Metric)
- 706.0 mm
- Lift Above Ground (Imperial)
- 27.8 in.
Rear Ripper/Scarifier22 specifications
- Type
- Parallel linkage, with NeverGrease pin joints, hydraulic float, and integrated hitch
- Ripper Width Of Cut (Metric)
- 2.21 m
- Ripper Width Of Cut (Imperial)
- 87.2 in.
- Ripper Width Of Cut (ft. in)
- 7.25 ft
- Scarifier Width Of Cut (Metric)
- 2.18 m
- Scarifier Width Of Cut (Imperial)
- 86.0 in.
- Scarifier Width Of Cut (Alternative 3)
- 7.17 ft
- Ripper Number Of Shanks/Teeth
- 3
- Ripper Number Of Shanks/Teeth Maximum Capacity
- 5
- Scarifier Number Of Shanks/Teeth Maximum Capacity
- 9
- Ripper Lift Above Ground (Metric)
- 602.0 mm
- Ripper Lift Above Ground (Imperial)
- 23.7 in.
- Scarifier Lift Above Ground (Metric)
- 810.0 mm
- Scarifier Lift Above Ground (Imperial)
- 31.9 in.
- Ripper Maximum Depth (Metric)
- 426.0 mm
- Ripper Maximum Depth (Imperial)
- 16.8 in.
- Scarifier Maximum Depth (Metric)
- 323.0 mm
- Scarifier Maximum Depth (Imperial)
- 12.7 in.
- Ripper Shank Size (mm x mm)
- 61.5 x 133
- Ripper Shank Size (in. x in.)
- 2.42 x 5.25
- Scarifier Shank Size (mm x mm)
- 25 x 76
- Scarifier Shank Size (in. x in.)
- 1 x 3
Operator Station2 specifications
- Rollover Protective Structure
- ROPS (ISO 3471-2008)
- Falling Object Protective Structure
- FOPS (ISO 3449-2005)
Wheels And Tires Option 15 specifications
- Wheel Size
- 14R24 on 254 mm (10 in.) Rim
- Wheel Size Wheel Tread On Ground (Metric)
- 2.08 m
- Wheel Size Wheel Tread On Ground (Imperial)
- 82.0 in.
- Wheel Size Ground Clearance (Front Axle) (Metric)
- 586.7 mm
- Wheel Size Ground Clearance (Front Axle) (Imperial)
- 23.1 in.
Wheels And Tires Option 25 specifications
- Wheel Size
- 17.5R25 on 356 mm (14 in.) Rim
- Wheel Size Wheel Tread On Ground (Metric)
- 2.16 m
- Wheel Size Wheel Tread On Ground (Imperial)
- 85.0 in.
- Wheel Size Ground Clearance (Front Axle) (Metric)
- 586.7 mm
- Wheel Size Ground Clearance (Front Axle) (Imperial)
- 23.1 in.
Refill Capacities19 specifications
- Engine Type
- EPA Tier 3/EU Stage IIIA and EPA Tier 2/EU Stage II
- Fuel Tank (Metric)
- 397.5 L
- Fuel Tank (Imperial)
- 105.0 gal.
- Diesel Exhaust Fluid (DEF) Tank (Metric)
- 22.7 L
- Diesel Exhaust Fluid (DEF) Tank (Imperial)
- 6.0 gal.
- Cooling System (Metric)
- 51.1 L
- Cooling System (Imperial)
- 13.5 gal.
- Engine Oil With Filter (Metric)
- 31.5 L
- Engine Oil With Filter (Imperial)
- 8.3 gal.
- Transmission Fluid (Metric)
- 28.4 L
- Transmission Fluid (Imperial)
- 7.5 gal.
- Differential Housing (Metric)
- 38.0 L
- Differential Housing (Imperial)
- 10.0 gal.
- Tandem Housings (Each) (Metric)
- 78.0 L
- Tandem Housings (Each) (Imperial)
- 19.5 gal.
- Circle Gearbox (Metric)
- 5.7 L
- Circle Gearbox (Imperial)
- 1.5 gal.
- Hydraulic Reservoir (Metric)
- 60.5 L
- Hydraulic Reservoir (Imperial)
- 16.0 gal.
Operating Weights6 specifications
- Front (Metric)
- 4200.0 kg
- Front (Imperial)
- 9259.0 lb.
- Rear (Metric)
- 11568.0 kg
- Rear (Imperial)
- 25503.0 lb.
- Total (Metric)
- 15768.0 kg
- Total (Imperial)
- 34762.0 lb.
Typical Operating Weight With Equipment8 specifications
- Front (Metric)
- 4980.0 kg
- Front (Imperial)
- 10978.0 lb.
- Rear (Metric)
- 13361.0 kg
- Rear (Imperial)
- 19455.0 lb.
- Total (Metric)
- 18340.0 kg
- Total (Imperial)
- 40433.0 lb.
- Typical Maximum Operating Weight (Metric)
- 22680.0 kg
- Typical Maximum Operating Weight (Imperial)
- 50000.0 lb.
Option Weights56 specifications
- 3.66 m x 610 mm x 22 mm Moldboards With 203 mm x 19 mm Cutting Edge And 16 mm Hardware
- 45.0 kg
- 12 ft x 24 in. x 7/8 in. Moldboards With 8 in. x 3/4 in. Cutting Edge And 5/8 in. Hardware
- 99.0 lb.
- Extensions 610 mm Right Or Left
- 116.0 kg
- Extensions 24 in. Right Or Left
- 255.0 lb.
- Overlay End Bits, Reversible (One Pair) For 152 mm Cutting Edge
- 19.5 kg
- Overlay End Bits, Reversible (One Pair) For 6 in. Cutting Edge
- 43.0 lb.
- Overlay End Bits, Reversible (One Pair) For 203 mm Cutting Edge
- 23.0 kg
- Overlay End Bits, Reversible (One Pair) For 8 in. Cutting Edge
- 51.0 lb.
- Circle Drive Slip Clutch (Metric)
- 9.0 kg
- Circle Drive Slip Clutch (Imperial)
- 20.0 lb.
- Standard Circle (Metric)
- 0.0 kg
- Standard Circle (Imperial)
- 0.0 lb.
- Premium Circle (Metric)
- 289.0 kg
- Premium Circle (Imperial)
- 638.0 lb.
- Moldboard Impact Absorption System (Metric)
- 43.0 kg
- Moldboard Impact Absorption System (Imperial)
- 95.0 lb.
- Ripper/Scarifier, Rear Mounted With Hitch And Ripper Shanks (3) (Metric)
- 1139.0 kg
- Ripper/Scarifier, Rear Mounted With Hitch And Ripper Shanks (3) (Imperial)
- 2510.0 lb.
- Scarifier Shanks With Teeth, 9 For Rear Ripper/Scarifier (Metric)
- 68.0 kg
- Scarifier Shanks With Teeth, 9 For Rear Ripper/Scarifier (Imperial)
- 150.0 lb.
- Rear Counterweight With Integral Rear Hitch (Metric)
- 727.0 kg
- Rear Counterweight With Integral Rear Hitch (Imperial)
- 1603.0 lb.
- Rear Hitch (Metric)
- 54.4 kg
- Rear Hitch (Imperial)
- 120.0 lb.
- Push Block, Front (Metric)
- 907.0 kg
- Push Block, Front (Imperial)
- 2000.0 lb.
- Scarifier, Front Mounted With Teeth (5) (Metric)
- 831.0 kg
- Scarifier, Front Mounted With Teeth (5) (Imperial)
- 1833.0 lb.
- Scarifier, Midmount With 11 Teeth (Metric)
- 1481.0 kg
- Scarifier, Midmount With 11 Teeth (Imperial)
- 3265.0 lb.
- Front Lift Group (Balderson Style) (Metric)
- 763.0 kg
- Front Lift Group (Balderson Style) (Imperial)
- 1682.0 lb.
- Opening Front and Side Windows (Metric)
- 14.5 kg
- Opening Front and Side Windows (Imperial)
- 32.0 lb.
- Premium Seat, Air Suspension, Heated, Adjustable Arm And Headrests (Metric)
- 13.0 kg
- Premium Seat, Air Suspension, Heated, Adjustable Arm And Headrests (Imperial)
- 28.0 lb.
- Coolant Heater (Metric)
- 4.0 kg
- Coolant Heater (Imperial)
- 9.0 lb.
- Quick Service (Metric)
- 11.0 kg
- Quick Service (Imperial)
- 24.0 lb.
- Secondary Steering (Metric)
- 26.0 kg
- Secondary Steering (Imperial)
- 58.0 lb.
- Fire Extinguisher (Metric)
- 14.5 kg
- Fire Extinguisher (Imperial)
- 32.0 lb.
- Lighting Packages 10 Halogen Lights (Metric)
- 4.5 kg
- Lighting Packages 10 Halogen Lights (Imperial)
- 10.0 lb.
- Lighting Packages 18 Halogen Lights (Metric)
- 8.0 kg
- Lighting Packages 18 Halogen Lights (Imperial)
- 18.0 lb.
- Lighting Packages 18 LED Lights (Metric)
- 7.0 kg
- Lighting Packages 18 LED Lights (Imperial)
- 16.0 lb.
- High Front Light Bar For Snowplowing (Metric)
- 20.0 kg
- High Front Light Bar For Snowplowing (Imperial)
- 44.0 lb.
- Auxiliary Hydraulic Control Valve Section And Controls (Metric)
- 7.0 kg
- Auxiliary Hydraulic Control Valve Section And Controls (Imperial)
- 15.0 lb.
- Hydraulics For Front Mounted Equipment (Metric)
- 9.0 kg
- Hydraulics For Front Mounted Equipment (Imperial)
- 19.0 lb.
Tire, Rim, And Fender Option Weights12 specifications
- One Piece Rim 229 x 610 mm
- 0.0 kg
- One Piece Rim 9 x 24 in.
- 0.0 lb.
- One Piece Rim 330 x 635 mm
- 65.0 kg
- One piece Rim 13 in. x 25 in.
- 144.0 lb.
- Multi Piece Rim 254 x 610 mm
- 180.0 kg
- Multi Piece Rim 10 x 24 in.
- 396.0 lb.
- Multi Piece Rim 356 x 635 mm
- 267.0 kg
- Multi Piece Rim 14 x 25 in.
- 588.0 lb.
- Front Fenders (Metric)
- 99.0 kg
- Front Fenders (Imperial)
- 218.0 lb.
- Rear Fenders (Metric)
- 185.0 kg
- Rear Fenders (Imperial)
- 348.0 lb.
Machine Dimensions26 specifications
- Height To Top Of Cab (Metric)
- 3.18 m
- Height To Top Of Cab (Imperial)
- 10.42 ft
- Height To Top Of Exhaust (Metric)
- 3.1 m
- Height To Top Of Exhaust (Imperial)
- 10.17 ft
- Height To Top Of Blade Lift Cylinders (Metric)
- 3.05 m
- Height To Top Of Blade Lift Cylinders (Imperial)
- 10.0 ft
- Tandem Axle Spacing (Metric)
- 1.54 m
- Tandem Axle Spacing (Imperial)
- 5.08 ft
- Blade Base (Metric)
- 2.57 m
- Blade Base (Imperial)
- 8.42 ft
- Wheelbase (Metric)
- 6.16 m
- Wheelbase (Imperial)
- 20.25 ft
- Overall Length (Metric)
- 8.89 m
- Overall Length (Imperial)
- 29.17 ft
- Overall Length With Scarifier (Metric)
- 9.69 m
- Overall Length With Scarifier (Imperial)
- 31.75 ft
- Overall Length With Pushblock And Ripper (Metric)
- 9.99 m
- Overall Length With Pushblock And Ripper (Imperial)
- 32.75 ft
- Overall Length With Scarifier And Ripper (Metric)
- 10.59 m
- Overall Length With Scarifier And Ripper (Imperial)
- 34.75 ft
- Overall Length with Front Mounted Blade and Ripper (Metric)
- 10.6 m
- Overall Length with Front Mounted Blade and Ripper (Imperial)
- 34.75 ft
- Overall Width 14.00 R24 Tires (Metric)
- 2.49 m
- Overall Width 14.00 R24 Tires (Imperial)
- 8.17 ft
- Overall Width 17.5 R25 Tires (Metric)
- 2.64 m
- Overall Width 17.5 R25 Tires (Imperial)
- 8.67 ft
