John Deere

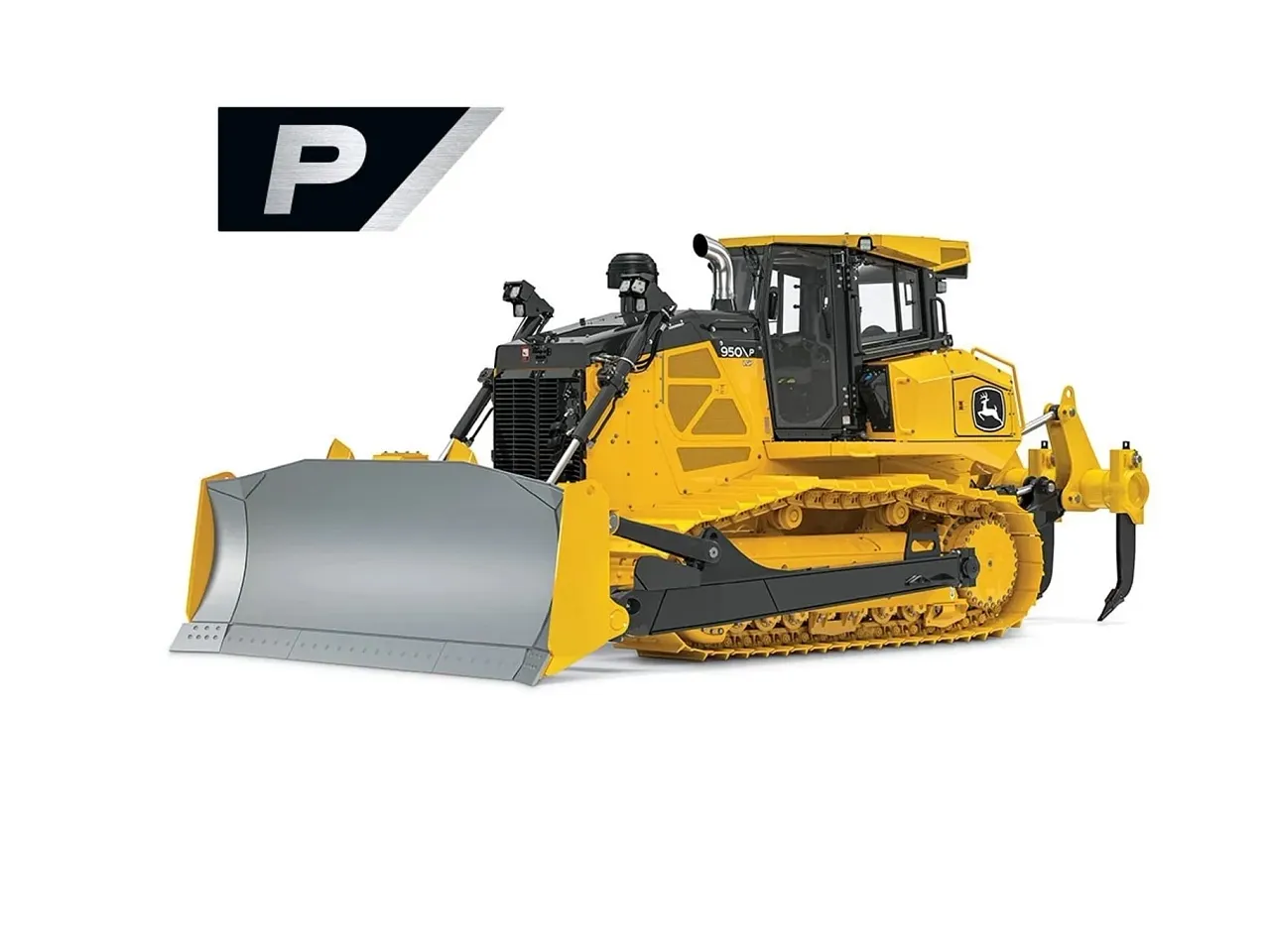

950 P-Tier Large Dozer
Dozers
Explore the 950P-Tier Dozer. View features, specifications, compare with competitive models, and download a brochure.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 06S0T
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Primary Engine Option14 specifications
- Manufacturer
- John Deere
- Model
- Powertech PSS 6090
- Cylinders
- 6
- Valves per Cylinder
- 4
- Displacement (Imperial)
- 549.0 cu in.
- Displacement (Metric)
- 9.0 L
- Net Torque Rise
- 289.0 lb-ft
- Net Power Bulge
- 37.0 hp
- Engine Bore and Stroke
- 4.7 x 5.4 in.
- Aspiration
- Turbocharged and air-to-air aftercooled
- Air Cleaner
- Dual Element dry canister with external rotary ejector pre-cleaner
- Lubrication
- Pressure system with full flow spin-on filter and oil-to-water cooler
- Fuel System
- High pressure common rail
- Slope Operation, Maximum Angle
- 30.0 degree (angle)
Cooling3 specifications
- Fan Type
- Variable-speed suction fan with automatic reversing; Perforated engine side shields; Perforated front grill with hose protection
- Engine Coolant Rating
- -34.0 °F
- Engine Radiator Fins per Inch
- 8
Powertrain19 specifications
- Transmission Type
- Automatic, dual-path, hydrostatic drive; load-sensing feature automatically adjusts speed and power to match changing load conditions; each individually controlled track is powered by a variable-displacement piston pump and motor combination; ground-speed selection buttons on single-lever steering and direction control; independently selectable reverse speed ratios of 100% ,115%, or 130% of forward ground speed; decelerator pedal controls ground speed to stop.
- System Relief Pressure
- 6650.0 psi
- Forward Travel Speed (Imperial)
- 6.8 mph
- Forward Travel Speed (Metric)
- 11.0 km/h
- Reverse Travel Speed (Imperial)
- 6.8 mph
- Reverse Travel Speed (Metric)
- 11.0 km/h
- Maximum (Optional) Travel Speed (Imperial)
- 6.8 mph
- Maximum (Optional) Travel Speed (Metric)
- 11.0 km/h
- Filter, Charge Oil
- 10 micron
- Cooling
- Oil-to-air
- Steering Type
- Single-lever steering, speed, direction control, and counterrotation; full power turns and infinitely variable track speeds provide unlimited maneuverability and optimum control; hydrostatic steering eliminates steering clutches and brakes.
- Final Drives Type
- Double-sealed, double-reduction, planetary final drives mounted independent of the track frame and dozer push frame for isolation from shock loads.
- Total Ratio
- 41.2
- Maximum Drawbar Pull
- 123000.0 lb.
- Drawbar Pull at 1.2 mph
- 59000.0 lb.
- Drawbar Pull at 2.0 mph
- 35000.0 lb.
- Brakes
- Decelerator/brake pedal; automatic power management with manual override for matching ground speed.
- Service Brakes Type
- Hydrostatic (dynamic) braking stops machine when the direction/steering control lever is moved to neutral or the decelerator is depressed to the end of travel.
- Parking Brakes Type
- Exclusive safety feature engages wet, multiple-disc brakes whenever the engine stops, whenever the decelerator is depressed to the end of travel, or whenever the park lock lever is placed in the start or neutral positions and motion is detected; machine cannot be driven with brake applied, reducing wear-out or need for adjustment; spring-applied, hydraulic release.
Primary Undercarriage16 specifications
- Tracks
- Exclusive safety feature engages wet, multiple-disc brakes whenever the engine stops, whenever the decelerator is depressed to the end of travel, or whenever the park lock lever is placed in the start or neutral positions and motion is detected; machine cannot be driven with brake applied, reducing wear-out or need for adjustment; spring-applied, hydraulic release.
- Track Gauge (Imperial)
- 86.0 in.
- Track Gauge (Metric)
- 2184.0 mm
- Grouser Width (Shoe Width) (Imperial)
- 24.0 in.
- Grouser Width (Shoe Width) (Metric)
- 610.0 mm
- Chain
- Sealed and lubricated
- Shoes, Each Side
- 46
- Track Rollers, Each Side
- 8
- Track Length on Ground (Imperial)
- 134.0 in.
- Track Length on Ground (Metric)
- 3404.0 mm
- Ground Contact Area (Imperial)
- 6462.0 sq in.
- Ground Contact Area (Metric)
- 41690.0 cm²
- Ground Pressure (Imperial)
- 14.6 psi
- Ground Pressure (Metric)
- 100.7 kPa
- Track Pitch Standard (Imperial)
- 8.5 in.
- Track Pitch Standard (Metric)
- 216.0 mm
Hydraulics9 specifications
- Type
- Load sense electro-hydraulic system with variable-displacement piston pump.
- Pump Displacement
- 6.1 cu in.
- System Relief Pressure
- 3625.0 psi
- Differential Pressure
- 275.0 psi
- Differential Pressure (Electro Hydraulic Option)
- 275.0 psi
- Filter, Return Oil
- 10 micron
- Maximum Flow at Unloaded High Idle
- 53.0 gpm

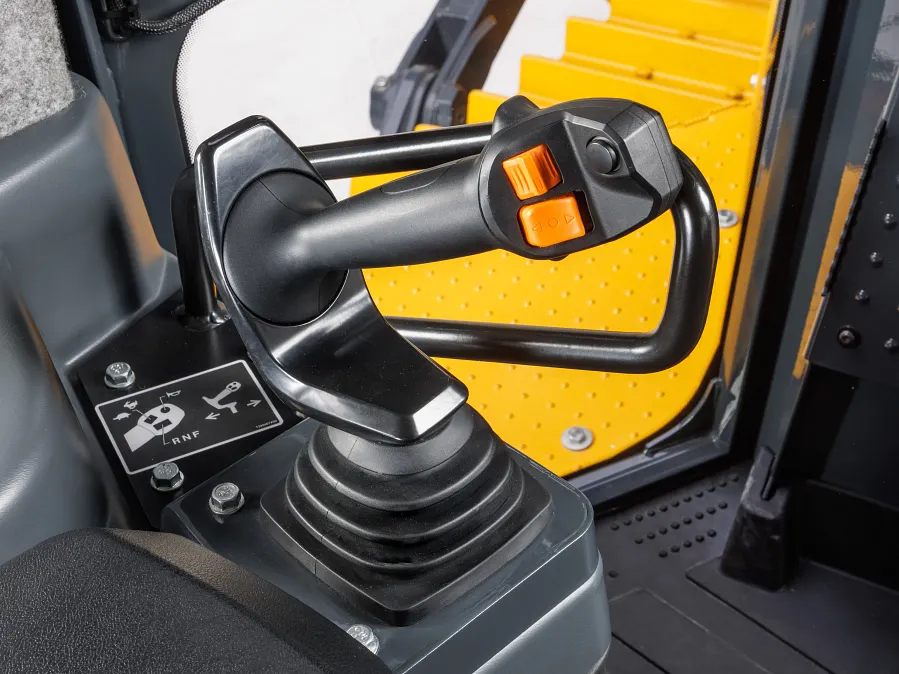

- Control
- Two-function electro-hydraulic T-bar joystick
- Cooling
- Oil-to-air
Cylinders8 specifications
- Cylinders Type
- Heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins.
- Lift Cylinders Bore
- 3.94 in.
- Lift Cylinders Rod Diameter
- 2.48 in.
- Lift Cylinders Stroke
- 49.6 in.
- Lift Cylinders Closed Length
- 933.5 in.
- Tilt Cylinder Bore
- 7.1 in.
- Tilt Cylinder Diameter
- 3.15 in.
- Tilt Cylinder Stroke
- 5.04 in.
Serviceability4 specifications
- Fuel Tank Capacity with Lockable Cap (Imperial)
- 180.0 gal.
- Fuel Tank Capacity with Lockable Cap (Metric)
- 681.0 L
- Hydraulic Reservoir and Filter Capacity (Imperial)
- 23.0 qt
- Hydraulic Reservoir and Filter Capacity (Metric)
- 87.0 L
Operating Weights2 specifications
- Base Weight (Imperial)
- 94000.0 lb.
- Base Weight (Metric)
- 42640.0 kg
Machine Dimensions11 specifications
- Overall Height to Roof (Imperial)
- 137.0 in.
- Overall Height to Roof (Metric)
- 3480.0 mm
- Ground Clearance in Dirt (Imperial)
- 21.0 in.
- Ground Clearance in Dirt (Metric)
- 537.0 mm
- Blade Digging Depth (Imperial)
- 20.0 in.
- Blade Digging Depth (Metric)
- 516.0 mm
- Blade Width (Straight) (Imperial)
- 167.0 in.
- Blade Width (Straight) (Metric)
- 4242.0 mm
- Blade Tilt (Straight)
- 35 in. / 832 mm
- SAE Capacity (Mechanical Angle Blade) (Imperial)
- 14.6 cu yd
- SAE Capacity (Mechanical Angle Blade) (Metric)
- 11.2 m³
