John Deere

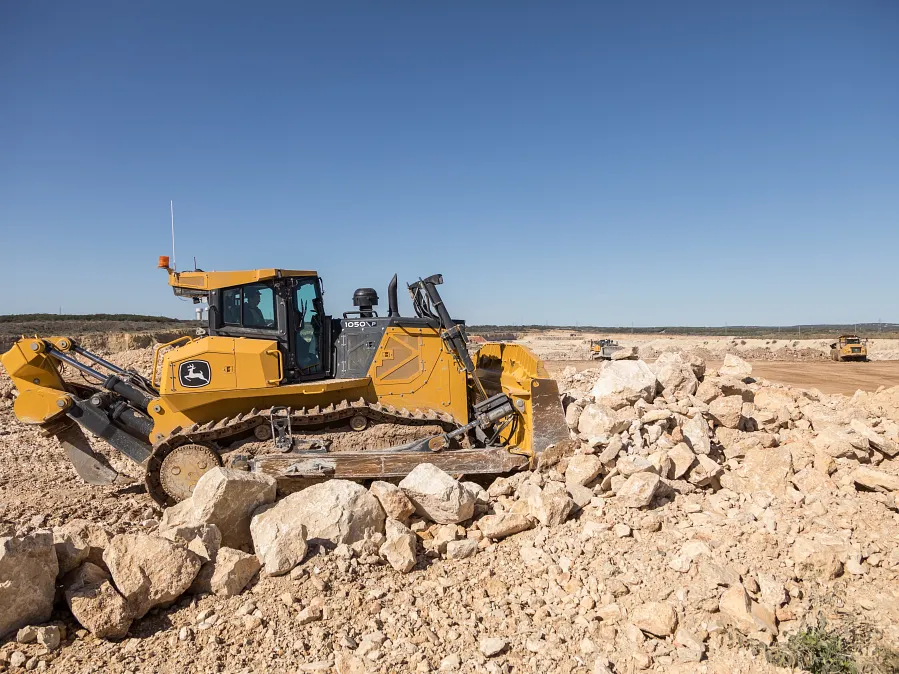

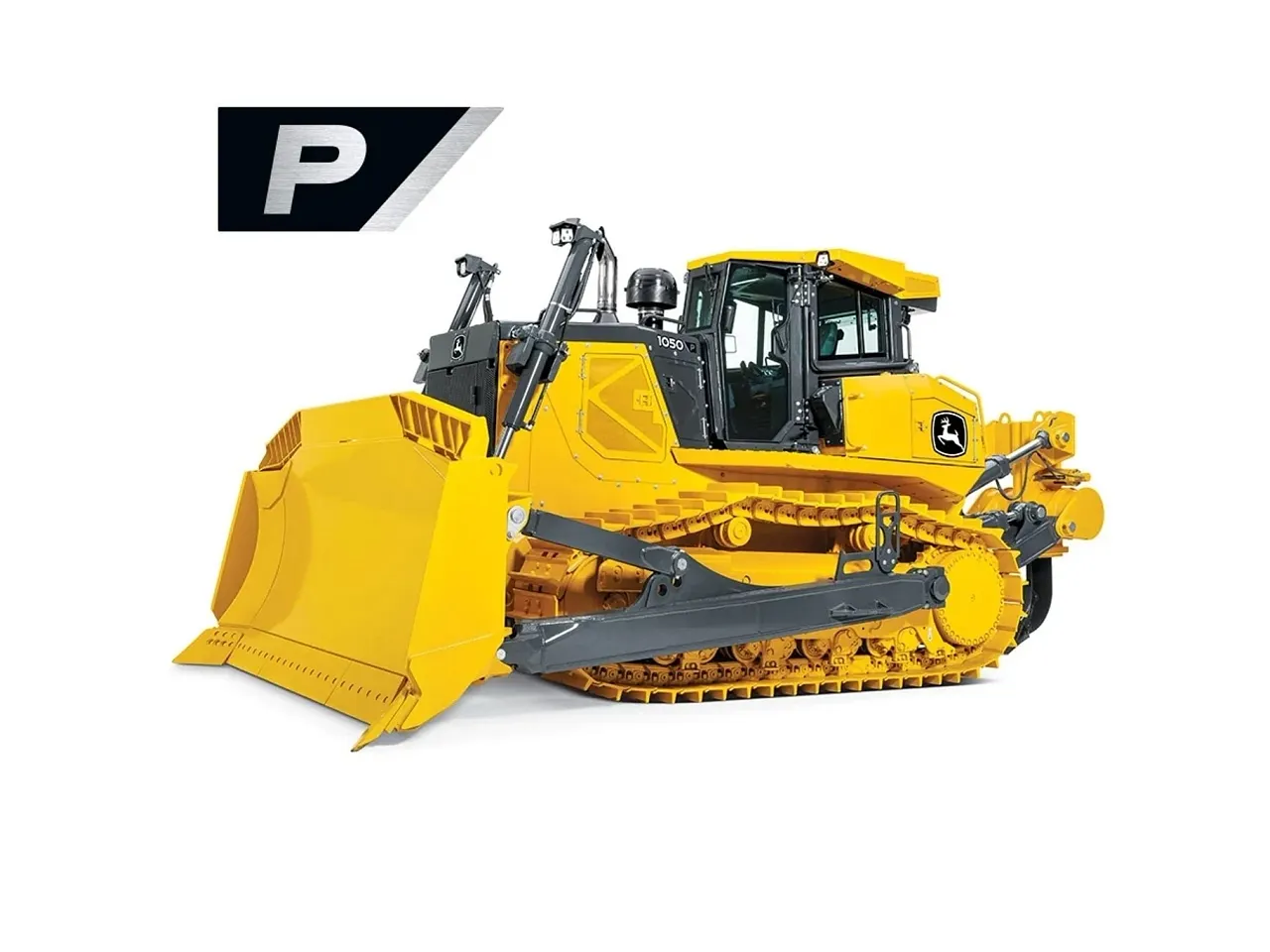

1050 P-Tier Large Dozer
Dozers
When you weigh all your options, you'll choose a 1050 P-Tier Dozer. View features, specifications, compare with competitive models, and download a brochure.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 06Z0T
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Primary Engine Option4 specifications
- Manufacturer
- John Deere
- Model
- JD14
- Displacement (Imperial)
- 827.0 cu in.
- Displacement (Metric)
- 13.6 L
Powertrain6 specifications
- Transmission Type
- Hydrostatic
- Forward Travel Speed (Imperial)
- 6.8 mph
- Forward Travel Speed (Metric)
- 11.0 km/h
- Reverse Travel Speed (Imperial)
- 6.8 mph
- Reverse Travel Speed (Metric)
- 11.0 km/h
- Final Drives Type
- Planetary

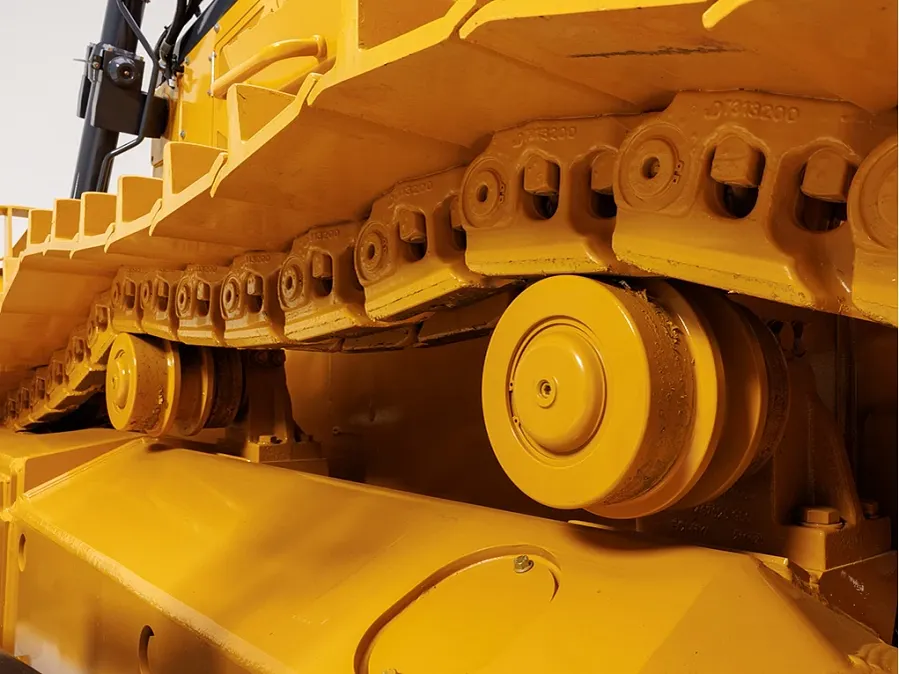

Primary Undercarriage11 specifications
- Track Gauge (Imperial)
- 86.0 in.
- Track Gauge (Metric)
- 2184.0 mm
- Shoes, Each Side
- 46
- Track Rollers, Each Side
- 8
- Track Length on Ground (Imperial)
- 134.0 in.
- Track Length on Ground (Metric)
- 3404.0 mm
- Ground Contact Area (Imperial)
- 7207.0 sq in.
- Ground Contact Area (Metric)
- 46498.0 cm²
- Ground Pressure (Imperial)
- 13.0 psi
- Ground Pressure (Metric)
- 90.0 kPa
- Oscillation at Front Roller
- Yes
Hydraulics3 specifications
- Type
- Piston
- Pump Capacity (High Flow) (Imperial)
- 80.0 gpm
- Pump Capacity (High Flow) (Metric)
- 303.0 L/min
Serviceability4 specifications
- Fuel Tank Capacity with Lockable Cap (Imperial)
- 180.0 gal.
- Fuel Tank Capacity with Lockable Cap (Metric)
- 681.0 L
- Hydraulic Reservoir and Filter Capacity (Imperial)
- 23.0 qt
- Hydraulic Reservoir and Filter Capacity (Metric)
- 87.0 L
Operating Weights2 specifications
- Base Weight (Imperial)
- 94000.0 lb.
- Base Weight (Metric)
- 42640.0 kg
Machine Dimensions11 specifications
- Overall Height to Roof (Imperial)
- 137.0 in.
- Overall Height to Roof (Metric)
- 3480.0 mm
- Ground Clearance in Dirt (Imperial)
- 21.0 in.
- Ground Clearance in Dirt (Metric)
- 537.0 mm
- Blade Digging Depth (Imperial)
- 20.0 in.
- Blade Digging Depth (Metric)
- 516.0 mm
- Blade Width (Straight) (Imperial)
- 167.0 in.
- Blade Width (Straight) (Metric)
- 4242.0 mm
- Blade Tilt (Straight)
- 35 in. / 832 mm
- SAE Capacity (Mechanical Angle Blade) (Imperial)
- 14.6 cu yd
- SAE Capacity (Mechanical Angle Blade) (Metric)
- 11.2 m³
