John Deere

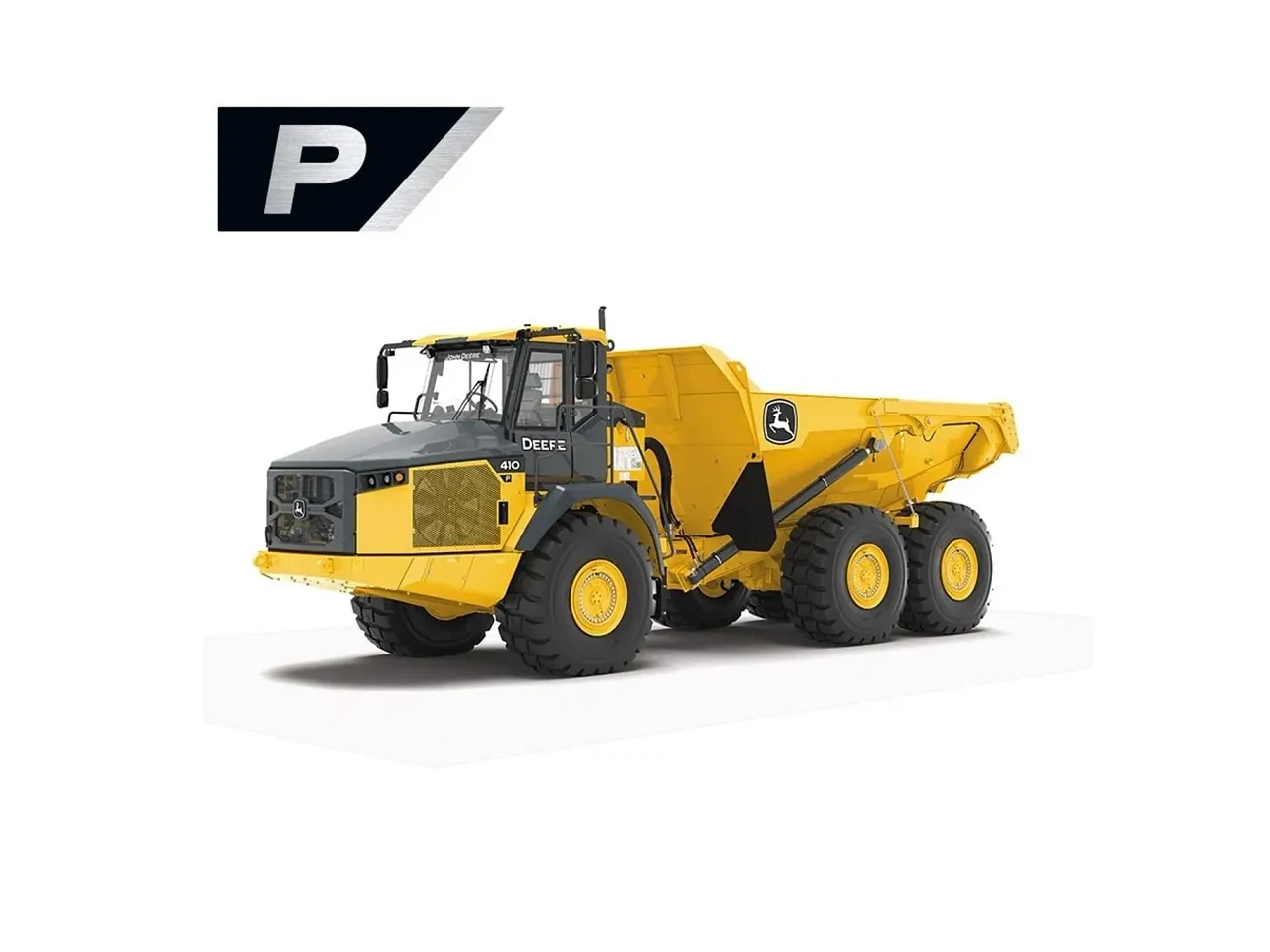

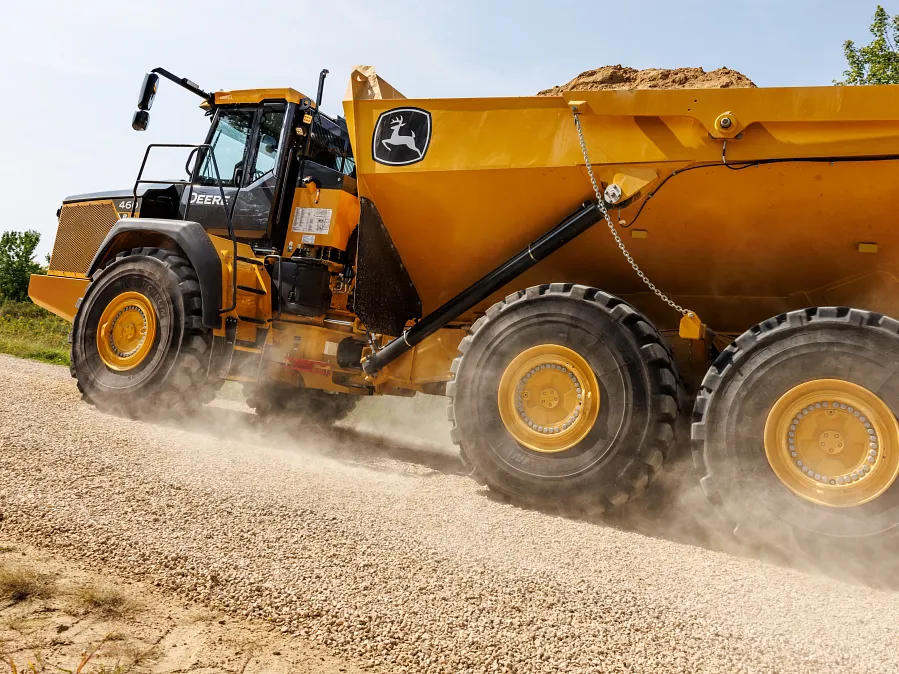

410 P-Tier Articulated Dump Truck
Articulated Dump Trucks
The 410 P-Tier ADT’s purpose-built powertrain with a JD14 13.6 litre engine and heavy-duty axles. Download specs, build your own dump truck.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 9471DW
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Engine15 specifications
- Manufacturer
- John Deere
- Model
- JD14
- Non road emission standards
- EPA Final Tier 4 (FT4)/EU Stage IV
- Valves per cylinder
- 4
- Displacement (cu in.)
- 830.0 cu in.
- Displacement (L)
- 13.6 L
- Net power rpm rating (rpm)
- 1700.0 rpm
- Net power (ISO 9249) at rated rpm (hp)
- 457.0 hp
- Net power (ISO 9249) at rated rpm (k W)
- 341.0 kW
- Net peak torque rpm rating (rpm)
- 1300.0 rpm
- Net peak torque (ISO 9249) at rated rpm (lb ft)
- 1791.0 lb-ft
- Net peak torque (ISO 9249) at rated rpm (Nm)
- 2429.0 Nm
- Aspiration
- Dual-series turbocharger with fixed geometry first stage and wastegated second stage; air-to-air after-cooling and cooled exhaust gas recirculation (EGR)
- Fuel system
- Electronically controlled high-pressure common-rail (HPCR) with 10- and 4-micron filtration and water separator.
- Cold start aid option and description
- Optional ether start, block heater, and diesel-fired coolant heater
Cooling1 specifications
- Engine cooling
- Coolant mixture is air cooled with two single pass radiators and has a remote pressurized coolant tank. A separate charge air cooler is used for the air system
Powertrain36 specifications
- Transmission type
- 8-speed forward, 4-speed reverse, countershaft/planetary type with integral retarder and torque proportioning differential
- Retarder type
- Integral, gear dependent, hydrodynamic, oil-to-air cooled, variable, fully automatic
- Differential type
- Torque proportioning, planetary-type, Inter-axle Differential Lock (IDL) with PowerShift™ lock-up clutch
- Output torque front (%)
- 32.0 %
- Output torque rear (%)
- 68.0 %
- Shift controls
- Fully automatic, electronically modulated PowerShift™, load-speed adaptive with gear skip and gear hunting protection

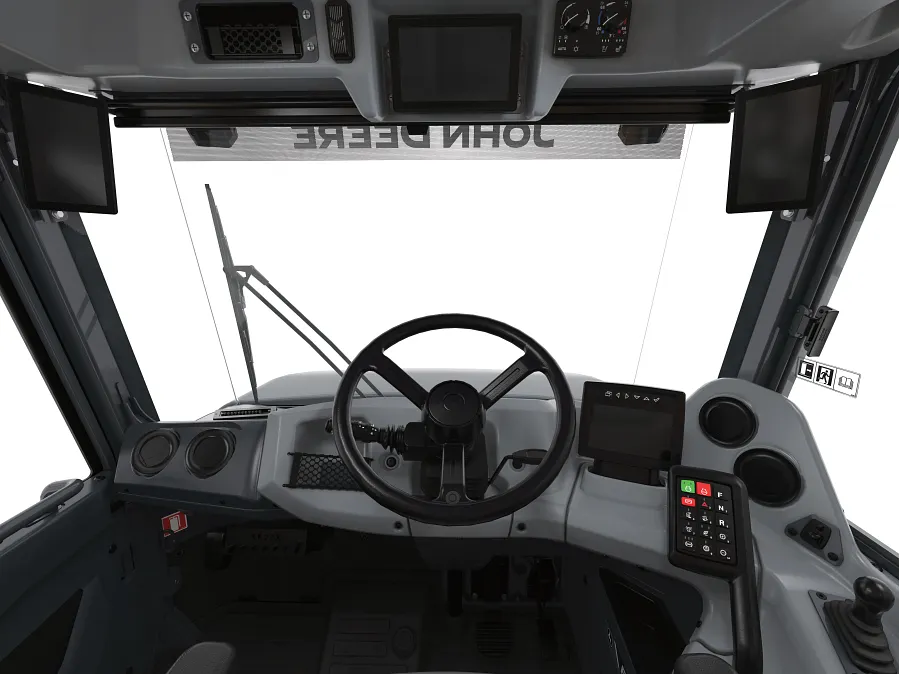

- Transmission Operator Interface
- Push-button F-N-R, selectable speed- and gear-range limits, selectable retarder aggressiveness, downhill-descent control, and gear-hold
- Gear 1 forward speed (mph)
- 3.5 mph
- Gear 1 forward speed (km/h)
- 6.0 km/h
- Gear 1 reverse speed (mph)
- 3.5 mph
- Gear 1 reverse speed (km/h)
- 6.0 km/h
- Gear 2 forward speed (mph)
- 5.0 mph
- Gear 2 forward speed (km/h)
- 8.0 km/h
- Gear 2 reverse speed (mph)
- 5.0 mph
- Gear 2 reverse speed (km/h)
- 8.0 km/h
- Gear 3 forward speed (mph)
- 7.0 mph
- Gear 3 forward speed (km/h)
- 11.0 km/h
- Gear 3 reverse speed (mph)
- 7.0 mph
- Gear 3 reverse speed (km/h)
- 11.0 km/h
- Gear 4 forward speed (mph)
- 10.0 mph
- Gear 4 forward speed (km/h)
- 16.0 km/h
- Gear 4 reverse speed (mph)
- 10.0 mph
- Gear 4 reverse speed (km/h)
- 16.0 km/h
- Gear 5 forward speed (mph)
- 14.0 mph
- Gear 5 forward speed (km/h)
- 23.0 km/h
- Gear 6 forward speed (mph)
- 20.0 mph
- Gear 6 forward speed (km/h)
- 32.0 km/h
- Gear 7 forward speed (mph)
- 28.0 mph
- Gear 7 forward speed (km/h)
- 45.0 km/h
- Gear 8 forward speed (mph)
- 34.0 mph
- Gear 8 forward speed (km/h)
- 55.0 km/h
- Axles differential
- Helical transfer gears, spiral bevel, hydraulically actuated PowerShift Cross-axle Differential Lock (CDL)
- Final drive type
- Extreme-duty outboard-mounted planetary; cooled and filtered oil
- Service brake type
- Dual-circuit, hydraulically actuated, wet multi-disk, force cooled, inboard mounted
- Parking brake type
- Spring-Applied Hydraulically-Released, driveline-mounted, dry-disk with a self-adjusting for pad wear
- Auxiliary brake type
- Fully automatic; transmission-mounted gear-dependent; hydrodynamic retarder with selectable levels
Hydraulics6 specifications
- Hydraulics type
- Closed center, Variable Displacement, Load-sensing system
- Main Pump
- Variable displacement, Axial Piston
- Secondary steering pump type
- Ground Driven Gear Pump with Hydraulic Unloader Valve
- Dump cylinder hydraulics type
- Dual Acting, single-stage with heat-treated, chrome-plated and polished cylinder rods, hardened steel replaceable bushings and pivot pins
- Cycle time power down (sec.)
- 7 seconds
- Cycle time raise time (sec.)
- 12 seconds
Electrical6 specifications
- Voltage (V)
- 24.0 V
- Number of batteries
- 2
- Voltage per battery (V)
- 12.0 V
- Battery capacity (CCA)
- 1400.0 CCA
- Alternator voltage (V)
- 28.0 V
- Alternator standard rating (amp)
- 145.0 amp
Steering System3 specifications
- Type
- Two hydrostatically actuated, double-acting hydraulic cylinders; ground-driven secondary steering pump
- Angle, side to side (degrees)
- 45.0 degrees
- Lock to lock turns (rotations)
- 4.0
Suspension2 specifications
- Front
- Semi-independent leading A-frame geometry with a transverse link for lateral restraint and self-leveling oil filled struts with integrated nitrogen charged accumulators
- Rear
- Load-equalizing, pivoting walking beams with laminated suspension blocks, tri-link geometry and transverse links for lateral restraint

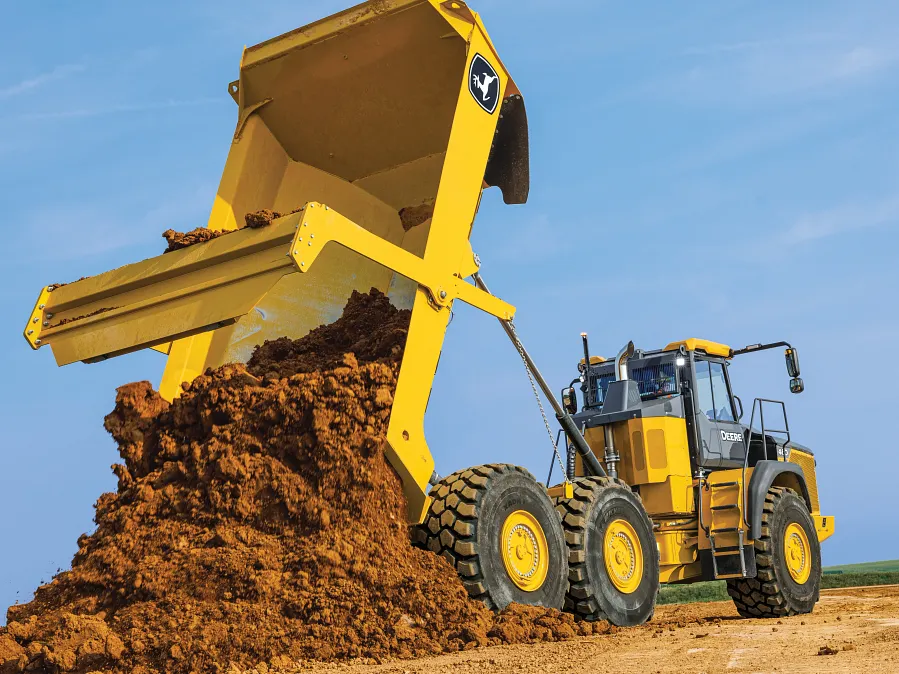

Dump body9 specifications
- Type
- High Strength Steel Dump Body
- Struck capacity (cu yd)
- 22.3 cu yd
- Struck capacity (m³)
- 17.1 m³
- Capacity heaped at 2:1 ISO 6483 ratio (cu yd)
- 30.0 cu yd
- Capacity heaped at 2:1 ISO 6483 ratio (m³)
- 22.9 m³
- Capacity heaped at 2:1 ISO 6483 ratio with optional tailgate (cu yd)
- 31.7 cu yd
- Capacity heaped at 2:1 ISO 6483 ratio with optional tailgate (m³)
- 24.2 m³
- Maximum dump angle (degrees)
- 70.0 degrees
- Heater type
- Body ducted to accept optional exhaust heating
Tires and Wheels4 specifications
- Standard type
- Radial earthmovers
- Standard size
- 29.5R25
- Optional type
- Radial earthmovers
- Optional size
- 875/65R29
Serviceability21 specifications
- Ground level service fluid and filters
- Ground level engine, transmission and axle oil level check and filter replacement. Ground level fueling, and fuel filter replacement
- Ground level service coolers
- Swing out coolers for easy cleaning; Optional reversing fans
- Ground level service fluid sampling
- Standard fluid sampling ports; Optional quick service ports
- Fuel tank (gal.)
- 160.9 gal.
- Fuel tank (L)
- 609.0 L
- Diesel exhaust fluid (DEF) tank (gal.)
- 12.7 gal.
- Diesel exhaust fluid (DEF) tank (L)
- 48.0 L
- Engine oil capacity with filter (qt)
- 64.5 qt
- Engine oil capacity with filter (L)
- 61.0 L
- Engine coolant (gal.)
- 23.8 gal.
- Engine coolant (L)
- 90.0 L
- Transmission fluid (gal.)
- 15.9 gal.
- Transmission fluid (L)
- 60.0 L
- Hydraulic reservoir (gal.)
- 46.5 gal.
- Hydraulic reservoir (L)
- 176.0 L
- Front axle fluid, standard capacity (gal.)
- 16.4 gal.
- Front axle fluid, standard capacity (L)
- 62.0 L
- Mid axle fluid, standard capacity (gal.)
- 16.4 gal.
- Mid axle fluid, standard capacity (L)
- 62.0 L
- Rear axle fluid, standard capacity (gal.)
- 18.0 gal.
- Rear axle fluid, standard capacity (L)
- 68.0 L
Operating Weights24 specifications
- Front, empty, with standard equipment (lb)
- 37236.0 lb.
- Front, empty, with standard equipment (kg)
- 16890.0 kg
- Front, loaded, with standard equipment (lb)
- 49978.74 lb.
- Front, loaded, with standard equipment (kg)
- 22670.0 kg
- Middle, empty, with standard equipment (lb)
- 15685.87 lb.
- Middle, empty, with standard equipment (kg)
- 7115.0 kg
- Middle, loaded, with standard equipment (lb)
- 50393.2 lb.
- Middle, loaded, with standard equipment (kg)
- 22858.0 kg
- Rear, empty, with standard equipment (lb)
- 15685.87 lb.
- Rear, empty, with standard equipment (kg)
- 7115.0 kg
- Rear, loaded, with standard equipment (lb)
- 50393.2 lb.
- Rear, loaded, with standard equipment (kg)
- 22858.0 kg
- Total, empty, with standard equipment (lb)
- 68607.77 lb.
- Total, empty, with standard equipment (kg)
- 31120.0 kg
- Total, loaded, with standard equipment (lb)
- 150765.14 lb.
- Total, loaded, with standard equipment (kg)
- 68386.0 kg
- Rated payload, empty, with standard equipment (lb)
- 82157.0 lb.
- Rated payload, empty, with standard equipment (kg)
- 37266.0 kg
- Steel dump body liner (lb)
- 3062.0 lb.
- Steel dump body liner (kg)
- 1389.0 kg
- Tailgate (lb)
- 2112.0 lb.
- Tailgate (kg)
- 958.0 kg
- 875/65 R29 tires (lb)
- 2835.0 lb.
- 875/65 R29 tires (kg)
- 1286.0 kg
Operating Dimensions4 specifications
- Turning circle radius, inside (ft, in.)
- 15.2 ft, in.
- Turning circle radius, inside (m)
- 4.63 m
- Turning circle radius, outside (ft, in.)
- 29.2 ft, in.
- Turning circle radius, outside (m)
- 8.9 m
